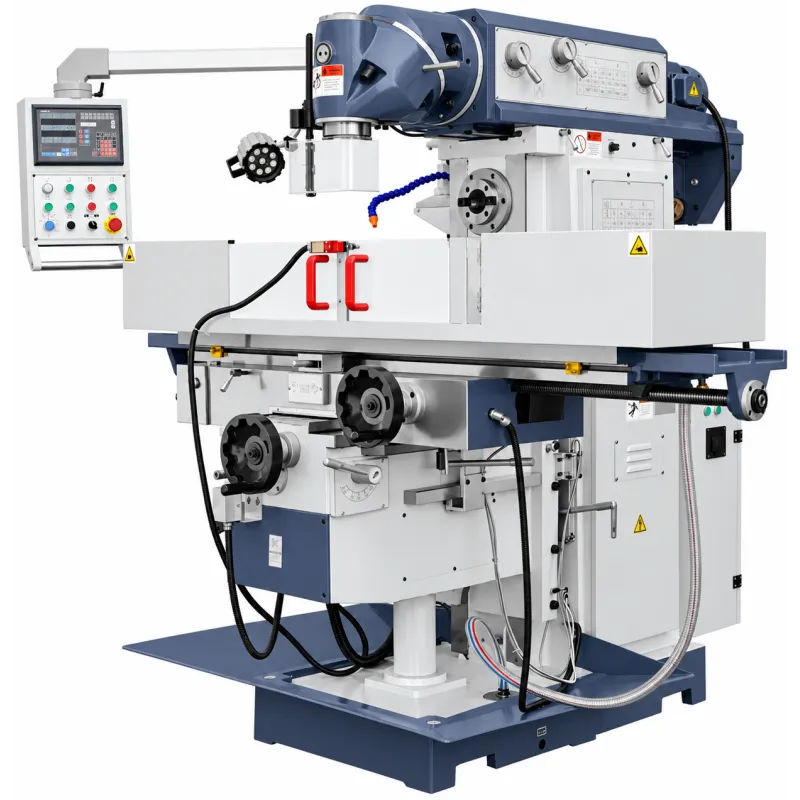

Universal Milling Machine CORMAK UWF150 SERVO

UWF 150 SERVO Universal Milling Machine is an industrial metal milling machine designed for precise and efficient machining of workpieces of various sizes. Servo drives on all axes, a 1600x360mm worktable, ISO50 spindles and a vertical head with spatial positioning capability provide a wide range of applications in toolrooms, production facilities and maintenance departments.

UWF 150 SERVO universal milling machine – servo drives, ISO50 spindles and large working range

The UWF 150 SERVO has been designed as a professional servo-driven milling machine for tasks requiring precise control of table movement. Maximum travel of 1300x320x460mm in the X/Y/Z axes enables machining of large workpieces, while feeds of 30-750/20-500/15-375mm/min allow the working movement to be adapted to the type of material, tool and operation.

Servo drives on all axes improve positioning control and facilitate repeatable working movements. The servomotor torque of 15Nm provides suitable feed drive parameters for professional machining operations.

Main machine advantages

• Servo drives on all axes – precise control of movement and positioning.
• 1600x360mm table – large space for clamping workpieces and tooling.
• X/Y/Z travel 1300x320x460mm – wide machining range.
• Vertical and horizontal ISO50 spindles – suitable for the use of industrial milling tooling.
• 3D swivelling vertical head – flexible positioning of the tool relative to the workpiece.
• 5.5kW horizontal motor and 4.5kW vertical motor – parameters suited to demanding operations.
• 3-axis digital readout – precise position monitoring during machining.

Construction and technology of the UWF 150 SERVO industrial metal milling machine

The machine uses vertical and horizontal spindles with 7:24 ISO50 tapers. The vertical spindle is driven by a 4.5kW motor, while the horizontal spindle is driven by a 5.5kW motor. The speed range is (12) 60-1750rpm for the vertical spindle and 60-1800rpm for the horizontal spindle, allowing the speed to be adapted to the tool diameter and material being machined.

Guideways and durability of the motion system

The trapezoidal X-axis guideways and wide rectangular Y/Z-axis guideways form a stable guidance system for the working assemblies. Ball screws on all axes support repeatable movement, while the central lubrication system ensures regular delivery of lubricant to the guideways and reduces maintenance requirements.

3D head and flexible machining configuration

The tilting and adjustable upper beam and 3D vertical head increase spindle positioning possibilities. This enables surfaces to be machined at different angles and reduces the need for repeated workpiece setup. As a result, the UWF 150 SERVO meets the requirements of professional universal milling machines used for varied production tasks.

Precision and operating efficiency

The combination of servo drives, a three-axis digital readout and wide feed ranges enables precise control of working movement. The 550mm arm travel, spindle-to-table surface distance of 196-656mm and horizontal spindle-to-table distance of 20-480mm allow the working area to be adapted to the geometry of the workpiece and tooling used.

Applications of the UWF 150 SERVO universal milling machine

The UWF 150 SERVO universal milling machine is suitable for metalworking facilities, toolrooms, repair workshops, maintenance departments and one-off and small-batch production. It can be used for milling flat surfaces, slots, inclined surfaces and components requiring vertical and horizontal machining. It is a professional metalworking machine for users requiring high setup flexibility and precise feeds.

Technical specifications of the UWF 150 SERVO milling machine

Standard equipment for the UWF 150 SERVO

• 3-axis digital readout
• SERVO DRIVE
• Long ISO 50/27mm / ISO 50/32mm arbor
• ISO 50 / MT4 adaptor
• ISO50 arbor with ER32 collets 4,6,8,12,16,18,20,26
• Lighting
• Cooling system
• Central lubrication system
• Table feed for the X, Y and Z axes
• Operating tool set
• EC Declaration of Conformity
• User manual
• Factory-new machine under warranty

UWF 150 SERVO – ISO50 universal milling machine for professional metalworking

The combination of servo drives, two ISO50 spindles, a large table and extensive working area makes the UWF 150 SERVO suitable for demanding industrial applications. Contact a CORMAK advisor to select tooling and the machine configuration for the type of workpieces, materials and planned milling processes.
