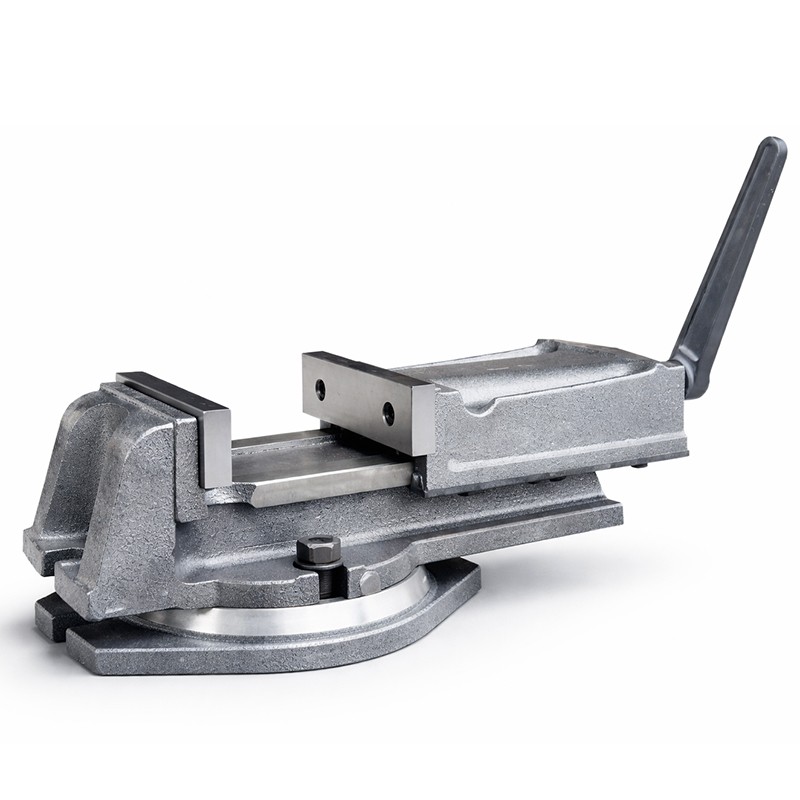

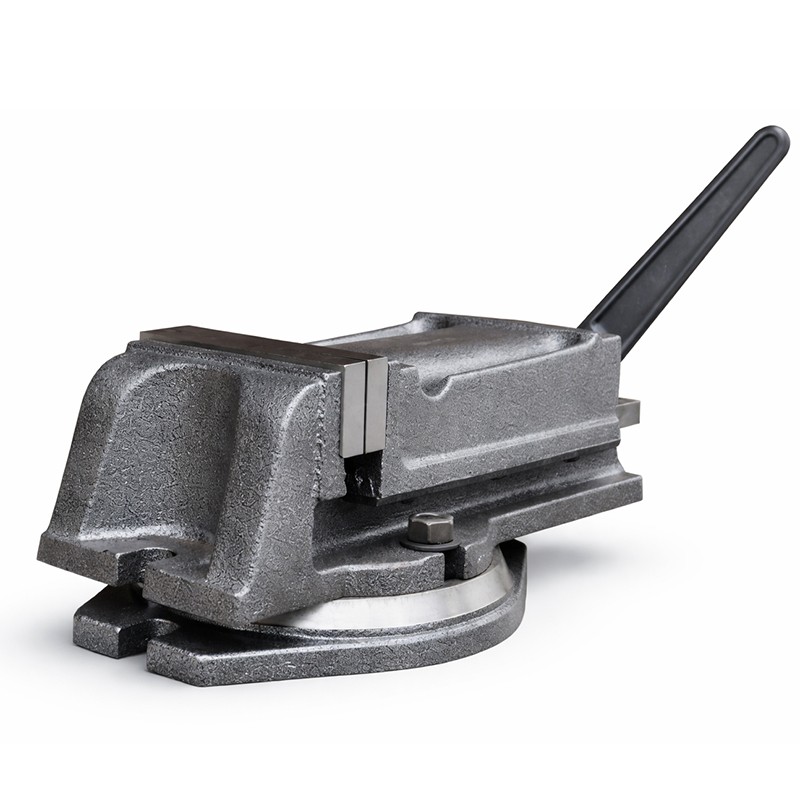

Swivel Machine Vice 160x125mm CORMAK QH160

Swivel Machine Vice 160x125mm CORMAK QH160 – precise and reliable clamping for high-force applications

The QH series machine vices are solid and dependable solutions designed for professional metalworking operations. The QH160 model, with a jaw width of 160mm and maximum opening of 125mm, is ideal for tasks requiring firm and precise workpiece clamping. Made from high-quality cast iron and equipped with a 360° rotary base with 1° graduation, this vice offers versatility, repeatability, and efficiency in daily use.

Main advantages

• 360° rotary base with 1° scale allows precise positioning of the workpiece.
• High-quality cast iron used for the body and movable jaw ensures rigidity and resistance to deformation.
• Protected lead screw sealed from above against chips and dirt – guaranteeing long service life.
• High clamping force – up to 3,000kg, enabling safe fixing of larger and heavier workpieces.
• Option to remove the rotary base for use as a fixed vice.

Construction and technology

The CORMAK QH160 machine vice is designed for intensive use in demanding industrial conditions. The cast-iron body construction ensures high stability, while precision-machined surfaces provide accurate clamping. Replaceable jaw inserts require accurate finishing after installation to maintain tolerances compliant with technical documentation.

Precision and efficiency

The combination of a rigid body, wide jaw span, and high clamping force enables efficient and precise machining of various materials. The angular scale allows the operator to position the vice at any angle within 360°, reducing setup time and improving workflow efficiency.

Applications

The QH160 vice is ideal for machining plants, toolrooms, and locksmith workshops, as well as workstations equipped with bench drills, milling machines, and grinders. It performs equally well in both single-piece and series production, wherever precise and stable workpiece clamping is required.

Standard equipment

• 360° rotary base
• Mounting holes
• Jaw inserts

Technical data
