Universal Mills

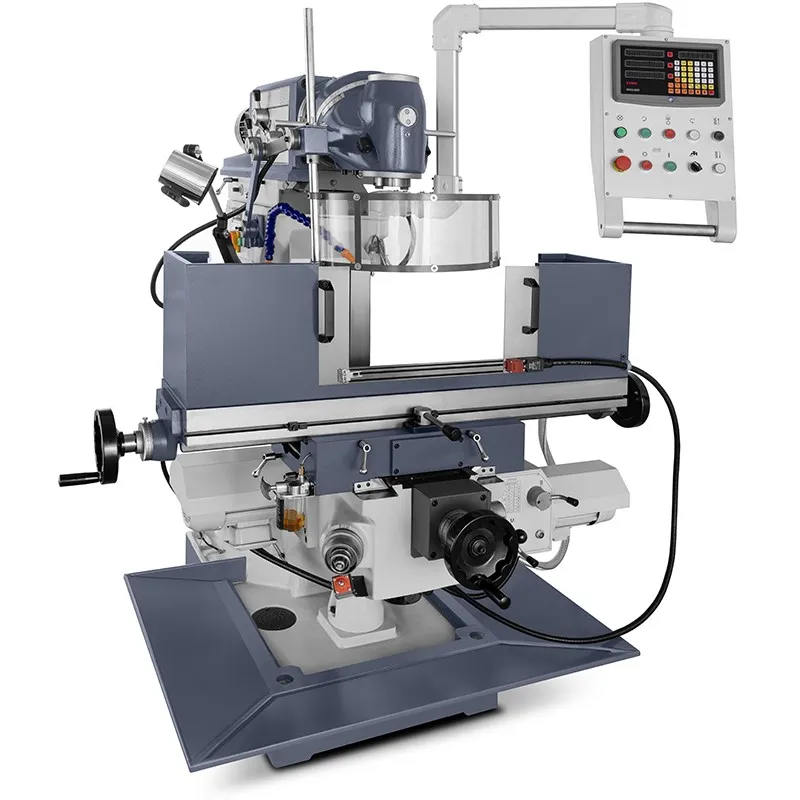

Universal Milling Machine CORMAK UWF110B
Reference:
UWF110B
Discover a new era of conventional milling machines with our Universal Milling Machine UWF110B. Using innovative servo drives for axis motion control, this machine sets new standards of machining precision. As a result, it significantly increases not only the quality of the final product but also the overall efficiency of the machine. Simple operation and reliability make the UWF110B model extremely popular among users. The modern technologies applied not only simplify operation but also ensure process stability. It is an excellent machine for those who value quality and efficiency.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Technical data
|

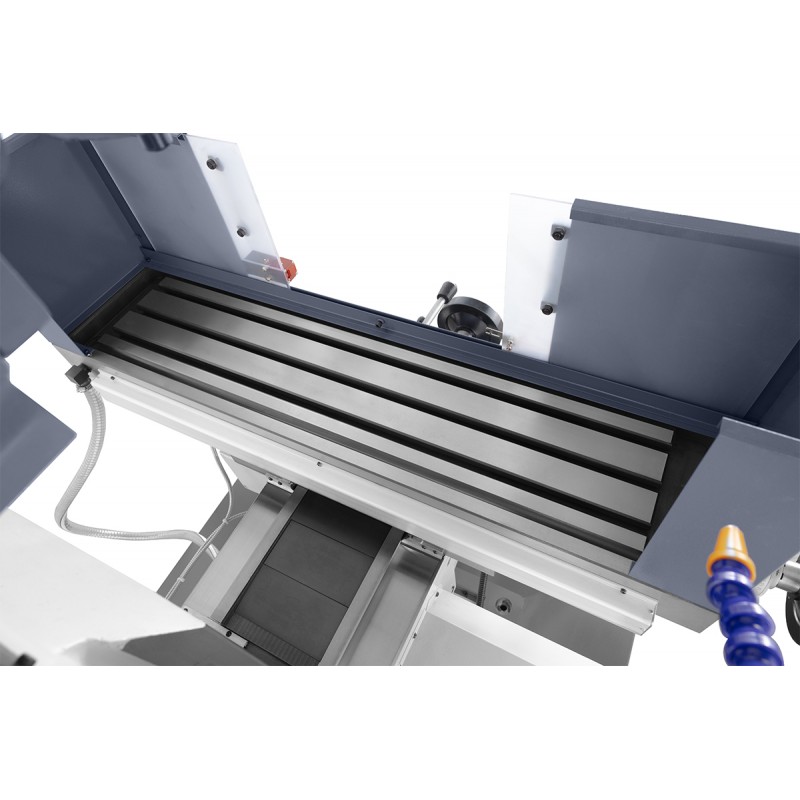

Table dimensions |
1120x260 mm |
|
Spindle speeds |
45–1660 rpm (11 speeds) |
|
Distance from spindle axis to column |
0–580 mm |
|
Distance from spindle nose to table |
80–480 mm |
|
Table travel |
|
|
Motor |
2.2kW |
|
Table T-slots |
3x14 mm x 63 mm |
|
Weight |
1,350kg |
|
Overall dimensions |
1800x1600x1950 mm |
Standard equipment

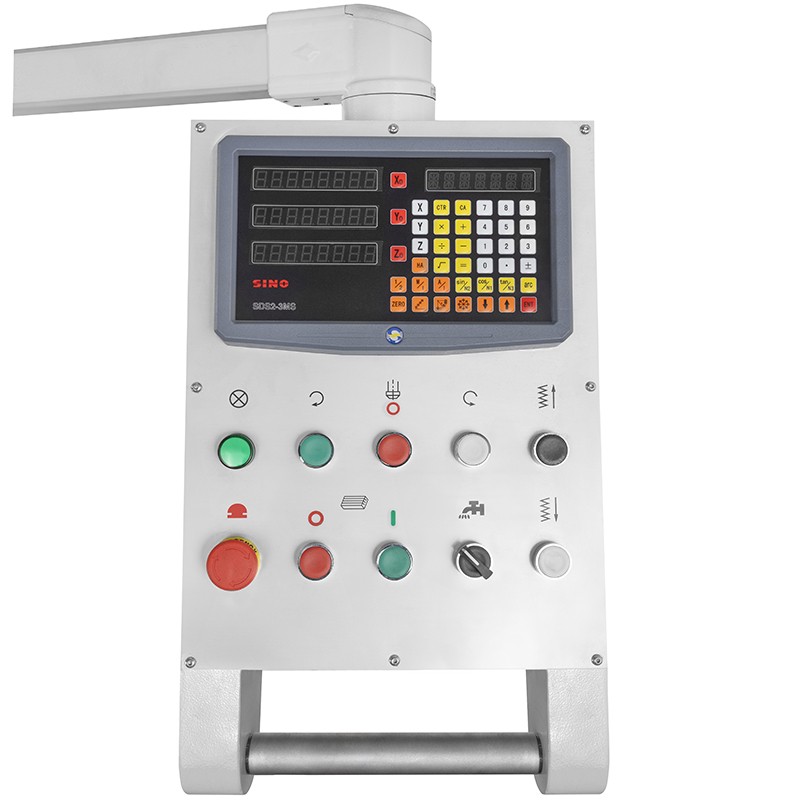

- digital readout for 3 axes
- horizontal spindle support – bracket
- long milling arbor
- worktable guard
- milling arbor with a set of collet sleeves for end mills
- drill chuck 1–16 mm
- reduction sleeves ISO40/Morse taper
- 24V lighting installation
- cooling system
Optional equipment
- swivel vices
- tilting vices
- precision vices
- dividing tables
- dividing heads
- tapping heads
- milling heads
- end mills (HSS, HSSE, HSS-PM, VHM)
- drills with cylindrical shank
- taper shank drills
- milling inserts
- hand and machine taps
- clamping kits
- toolholders (collet type, Weldon type)
- driving arbors
- drill chucks
