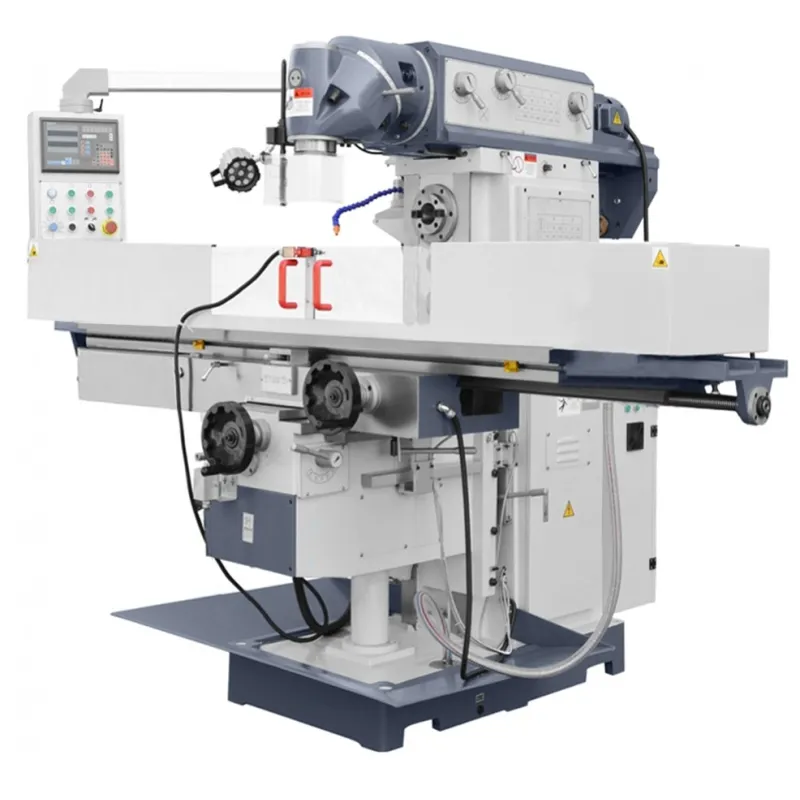

Universal Milling Machine CORMAK UWF 200 SERVO

UWF 200 SERVO Universal Milling Machine is an industrial metal milling machine designed for intensive machining of large workpieces. A 2000x400mm worktable, X/Y/Z travels of 1600x490x460mm and a servo drive with 15Nm torque provide extensive machining capabilities for one-off, small-batch and workshop production.

UWF 200 SERVO universal milling machine – large working area and precise feed control

The UWF 200 SERVO has been designed for facilities that require a universal milling machine with a large working area, high structural stability and precise control of axis movements. Maximum table travel of 1600x490x460mm enables machining of long and heavy workpieces, reducing the need for frequent repositioning between successive operations.

The installed 15Nm servomotor supports smooth table movement and precise positioning during machining. The X/Y/Z axis feed ranges of 30-750 / 20-500 / 15-375mm/min, respectively, allow the working movement speed to be adapted to the type of milling operation, material and tool used.

Main machine advantages

• 2000x400mm worktable enabling the clamping of large workpieces and extensive tooling.
• X/Y/Z travels of 1600x490x460mm increasing the range of workpieces that can be machined.
• 360° swivel head enabling the tool to be positioned at the required angle.
• SERVO drives supporting precise axis movement and positioning.
• ISO50 spindle taper in both vertical and horizontal configurations.
• 7.5kW horizontal motor and 5kW vertical motor suited to demanding milling operations.
• Weight 4,500kg providing a stable base during machining.

Construction and technology of the UWF 200 SERVO metal milling machine

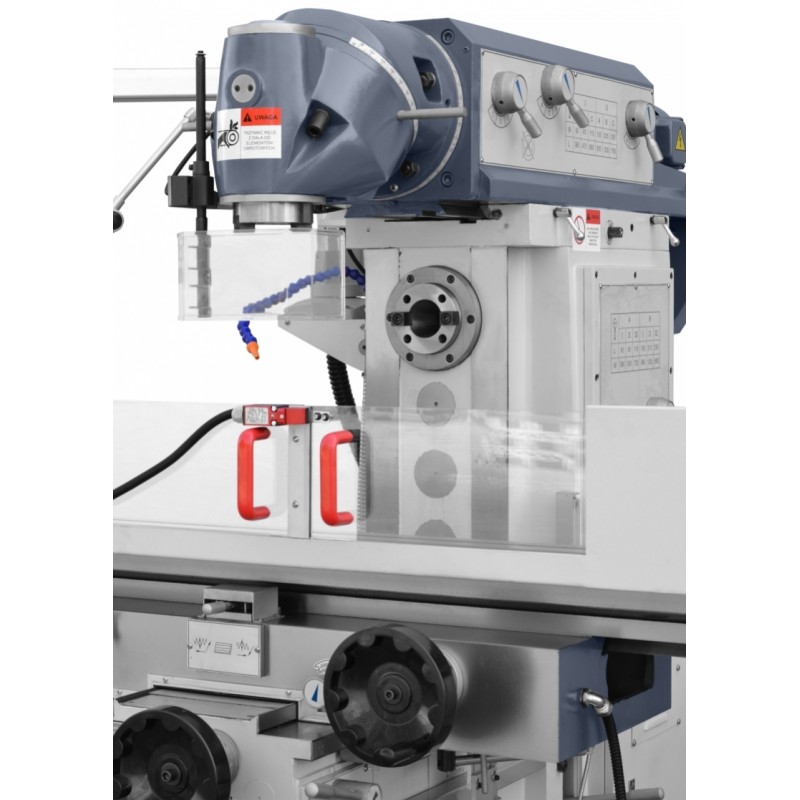

One of the key design elements is the 360-degree swivel head, which allows the tool to be freely positioned relative to the machined surface. This solution increases process flexibility and enables operations to be carried out at different angles without having to reposition the workpiece each time.

Schneider Electric electronics and SERVO drives control the machine's basic functions and ensure stable axis movement. The control panel has been designed for quick access to operating parameters, while the large table surface allows the operator to prepare an extensive machining setup.

ISO50 spindle and cutting parameter range

The milling machine uses a 7:24 ISO50 spindle taper in both horizontal and vertical configurations. This solution enables the use of tooling intended for heavier industrial applications. The speed range is 60-1750rpm for the vertical spindle and 60-1800rpm for the horizontal spindle, with 12 speed steps.

The 7.5kW horizontal motor and 5kW vertical motor allow the machining method to be adapted to the workpiece geometry and the type of operation being performed. As a result, the UWF 200 SERVO can be used for rough machining, face milling, slot milling and machining components that require working from different directions.

Precision, stability and operating efficiency

The machine weight of 4,500kg provides an appropriately stable structural base during cutting. The spindle-to-table surface distance of 196-656mm and the horizontal spindle-to-table distance of 20-480mm allow the working area to be adapted to different workpiece heights and tooling configurations.

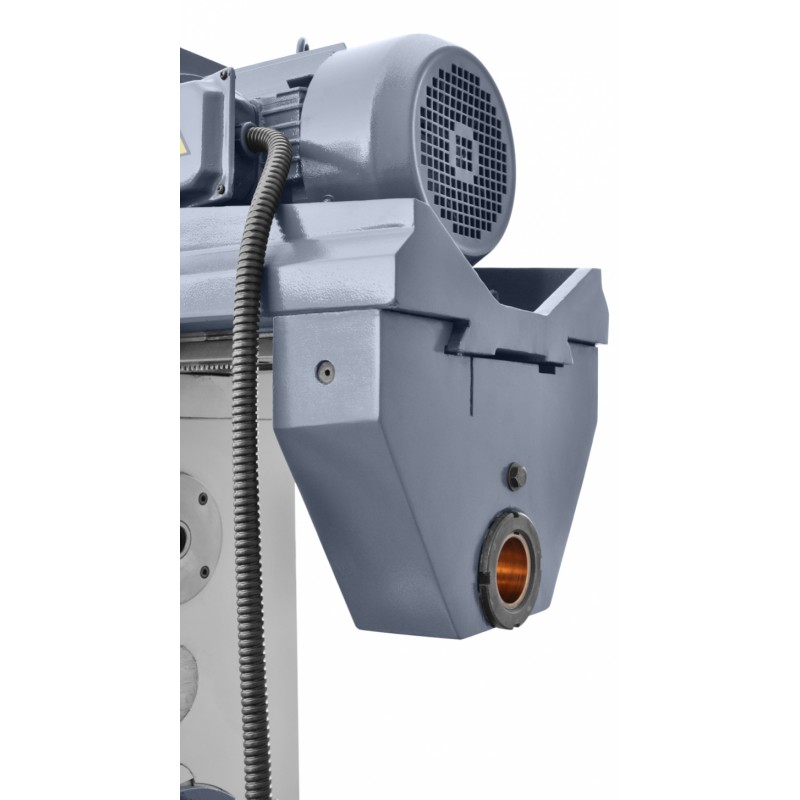

The 550mm arm travel further increases the ability to position the head relative to the workpiece. In practice, this provides greater freedom in organising the machining process and reduces the number of additional preparation operations.

Applications of the UWF 200 SERVO universal milling machine

The UWF 200 SERVO Universal Milling Machine is suitable for production facilities, toolrooms, repair workshops, companies manufacturing machine components and maintenance departments. It is suitable wherever universal milling machines need to combine a large travel range, high stability and the ability to machine in both vertical and horizontal configurations.

Machine characteristics

• The 360-degree swivel head allows the tool to be freely rotated, enabling materials to be machined at any angle.
• Schneider Electric electronics and SERVO drives provide not only machining precision but also operational safety.
• An easy-to-use control panel and a robust table with a large working area ensure comfortable and stable operation.

Technical specifications of the UWF 200 SERVO milling machine

UWF 200 SERVO – universal milling machine for heavier industrial applications

The combination of a large table, ISO50 spindles, servo drive, high power and a 360° swivel head makes the UWF 200 SERVO suitable for facilities requiring a high degree of technological flexibility. It is a metal milling machine suitable for machining larger workpieces and for processes where a wide adjustment range and structural stability are important.

Contact a CORMAK advisor to select the UWF 200 SERVO configuration and tooling for the materials being machined, workpiece dimensions and planned milling process.
