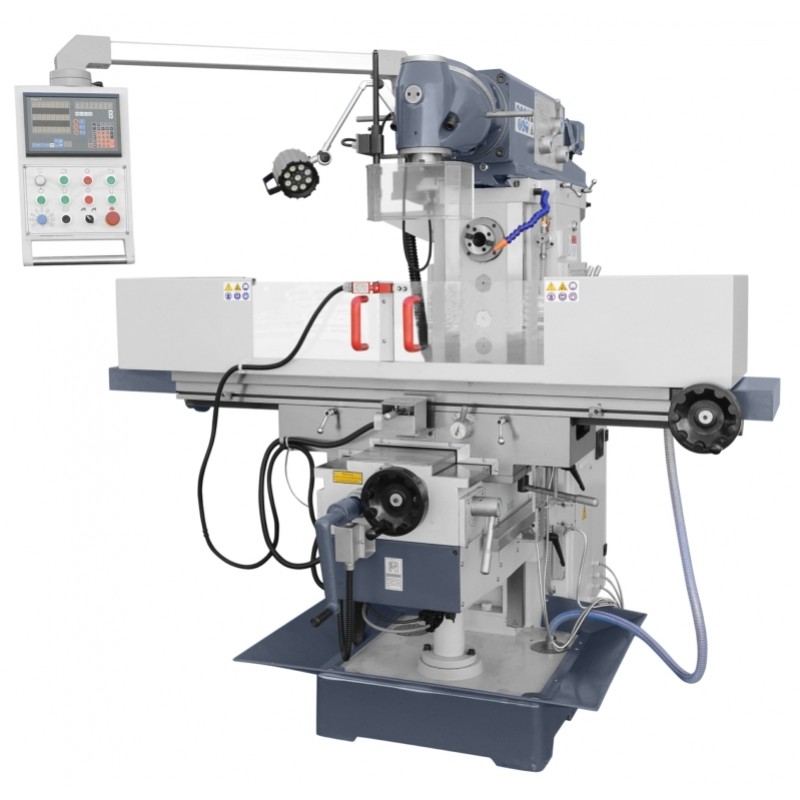

Universal Milling Machine CORMAK UW F130 SERVO

UWF 130 SERVO Universal Milling Machine is an industrial metal milling machine equipped with a servo feed drive, automatic table movement in three axes and spindles with an ISO 40 taper. The 1370x320mm worktable, 1000mm longitudinal travel and 360° swivelling head provide a wide range of applications in toolrooms, production facilities and maintenance departments.

UWF 130 SERVO universal milling machine – servo drive, ISO 40 and automatic X/Y/Z feeds

The UWF 130 SERVO model has been designed for professional machining applications requiring structural stability and precise table guidance. The cast-iron body reduces the effect of vibrations during milling, while the 10Nm / 1.5kW feed servomotor supports controlled movement of the working assemblies.

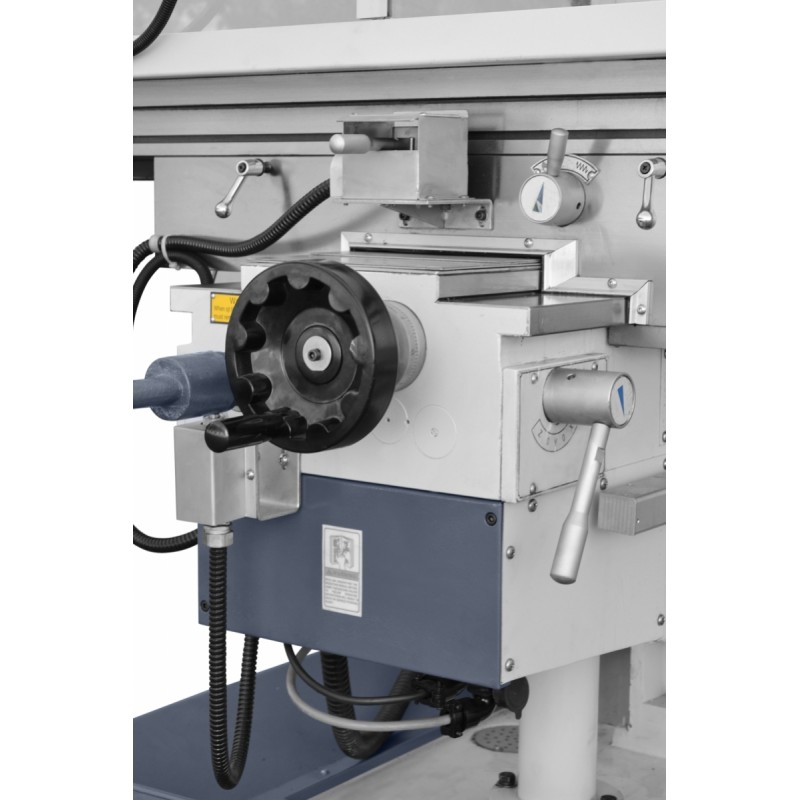

Automatic feeds in the X, Y and Z axes and rapid traverses improve workpiece positioning. The feed range is (8) 30 - 830mm/min in the X and Y axes and (8) 23 - 625mm/min in the Z axis, allowing the travel speed to be selected according to the material being machined and the type of operation.

Main advantages of the UWF 130 SERVO milling machine

• 1370x320mm table with a maximum load of 300kg.
• Automatic feed in the X, Y and Z axes and rapid traverses.
• 10Nm / 1.5kW servo drive for the feed system.
• ISO 40 vertical and horizontal spindles allowing the use of industrial tooling.
• 360° swivelling milling head increasing tool positioning options.
• Tilting table from -45° to +45° for machining surfaces positioned at an angle.
• Central lubrication system supporting correct operation of the guideways.

Two ISO 40 spindles and a wide cutting speed range

The UWF 130 SERVO industrial milling machine uses vertical and horizontal spindles with an ISO 40 taper. The horizontal spindle offers 12 speeds in the range of 35 - 1500rpm, while the vertical spindle provides 11 speeds from 45 to 1660rpm. Both spindles are driven by 4.0kW motors.

This configuration allows the operating setup to be matched to the type of tool, material and direction of the machining operation. The distance between the vertical spindle and the table is 30 - 430mm, while the distance between the spindle and the column is 305 - 805mm, increasing workpiece positioning possibilities.

Tilting table and 360° head

The table tilts from -45° to +45°, while the milling head rotates through 360°, allowing machining at different angles without the need for additional solutions for each change of working plane. Three T-slots with a width of 14mm and spacing of 80mm allow stable mounting of vices and tooling.

Precision, SERVO feed and machining efficiency

The longitudinal table travel is 1000mm, the cross travel is 360mm, and the vertical travel is 400mm. Rapid feeds reach 1000mm/min in the X and Y axes and 750mm/min in the Z axis. These parameters improve changes in working position and reduce auxiliary movement time between successive milling operations.

The cooling system is equipped with a 90W pump providing a capacity of 25L/min. Supplying coolant to the cutting zone supports heat dissipation during machining and improves tool operating conditions.

Applications of the UWF 130 SERVO universal milling machine

The ISO 40 universal milling machine UWF 130 SERVO is intended for metalworking facilities, toolrooms, repair workshops, single-piece and small-batch production, and maintenance departments. It can be used for milling flat surfaces, slots, inclined surfaces and components requiring vertical or horizontal machining. It is a professional servo-driven milling machine for users requiring a large travel range and flexible workstation configuration.

Technical data of the UWF 130 SERVO milling machine

Standard equipment and integral components of the SERVO configuration

• 10Nm / 1.5kW feed servo drive
• Automatic table feed in the X, Y and Z axes
• Rapid feed in the X, Y and Z axes
• ISO 40 vertical and horizontal spindles
• 360° swivelling milling head
• Tilting table from -45° to +45°
• Cooling system with 90W pump
• Central guideway lubrication system

Equipment depending on version

• 3-axis digital readout
• Long arbor ISO 50/27mm / ISO 50/32mm
• ISO 50 / MT 4 reducing sleeve
• ISO50 arbor with ER32 collets 4,6,8,12,16,18,20,26
• Lighting
• Operating tool set
• EC Declaration of Conformity
• User manual
• Brand-new machine with warranty

Optional equipment* for the UWF 130 SERVO milling machine

• ISO40 starter tool set
• 125mm tilting machine vice
• 125x100mm QH125 machine vice
• 200mm QH200 swivel machine vice
• 160mm QHK160 tilting machine vice
• ES-12 5L emulsifying oil, machining coolant
• 160x125mm QH160 machine vice
• 100x80mm QH100 machine vice

*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.

UWF 130 SERVO – ISO 40 universal milling machine for professional metalworking

The combination of ISO 40 spindles, servo drive, automatic feeds, tilting table and 360° head allows the UWF 130 SERVO to perform a wide range of operations at one workstation. Contact a CORMAK advisor to select the equipment version, holders and tooling for the workpieces to be machined and the planned manufacturing processes.
