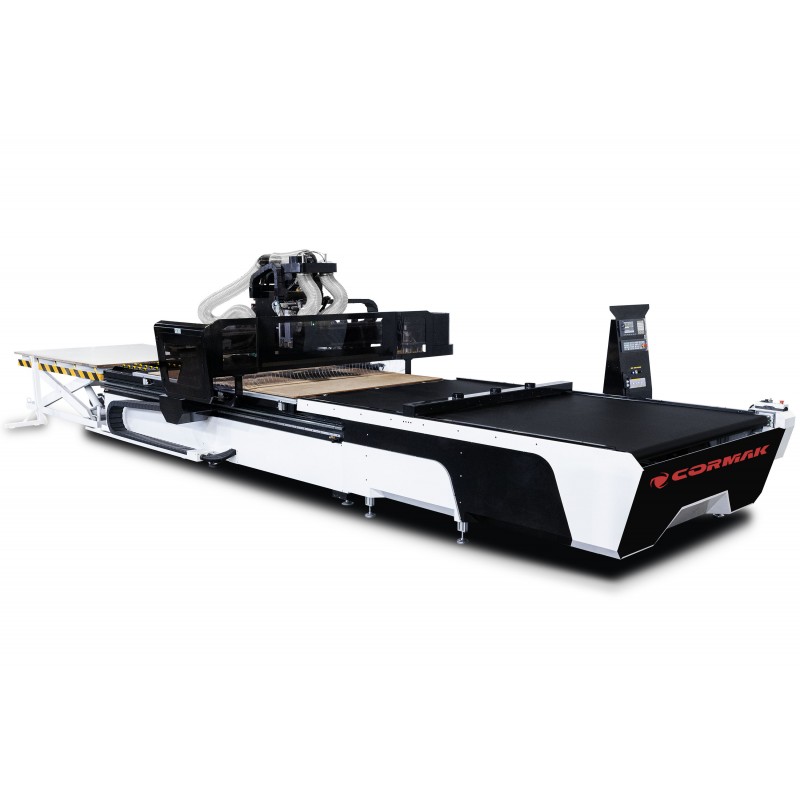

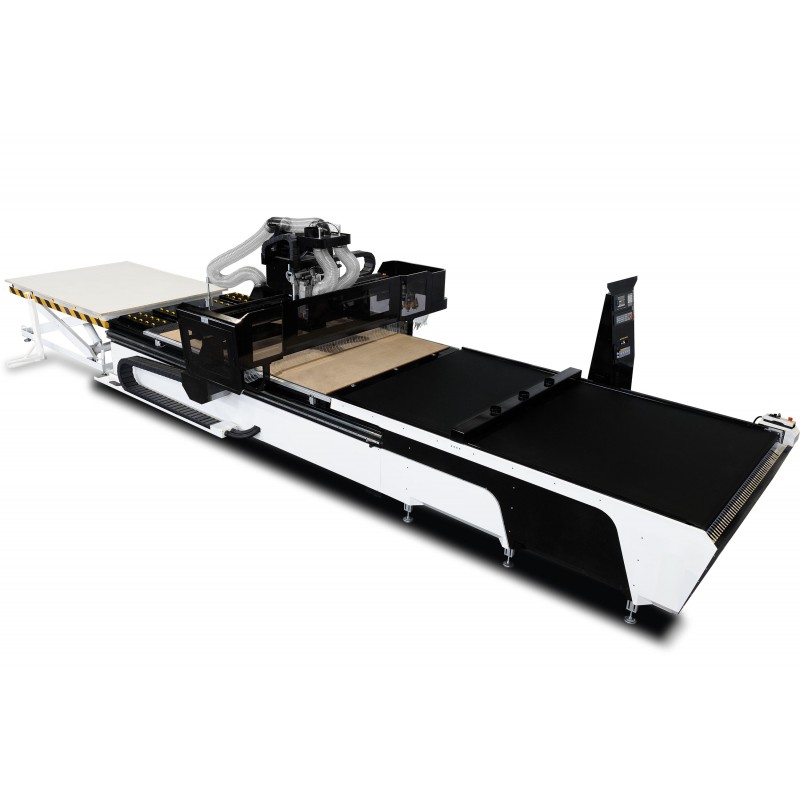

CNC Machining Centre / CNC Router CORMAK NST2131129A with Loading/Unloading System
Reference:
NST2131129A
Manufacturer:
CORMAK
CNC Machining Centre / CNC Router CORMAK NST2131129A is a dynamic and precise milling router based on components from global manufacturers, designed for the most demanding applications and perfectly suited for industrial-scale production. Thanks to advanced technology, it represents the high precision and efficiency expected from professional CORMAK CNC systems.
Constant quality control and premium-grade components used in its construction ensure high machining quality for materials such as wood, wood-based boards, MDF, OSB, PVC, HPL, plywood, plexiglass, dibond, carbon fibre, and alucobond.
Choosing CORMAK means investing in a machine that meets expectations within a reasonable budget and includes comprehensive support throughout every stage of your investment.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Machine Description
- pneumatic pins, bars and cylinders for automatic sheet positioning
- two high-performance units (milling and drilling)
- intelligent high-speed tool selection from a 12-position “revolver”-type magazine
- drilling unit equipped with its own tool magazine
- LCD control panel with industrial-grade software included
- electronics from Siemens, Schneider, and Phoenix
- feeding and receiving tables
We offer machine tools with genuine CE certification — verified and certified by leading authorities in the EU.
By choosing the CORMAK brand, you choose machining precision, durability, and operator safety.
We offer warranty and post-warranty service. Machine training and/or commissioning is available upon individual quotation — please contact our consultant.
Technical Parameters
| Working Area | 2100×3100 mm |
| Z Axis | 300 mm |
| Construction |
Arm – cast iron / table – welded steel Automatic XYZ axis lubrication system |
| Drives | INOVANCE servo (1.3 kW for XY, 850 W for Z axis) with planetary gearbox |
| Table |
T-slotted / hybrid / feeding and receiving Double-layer, multi-hole, vacuum bakelite table with seals and fixing screws, including positioning system |
| Spindle Power | 9 kW |
| Spindle | HQD air-cooled (optional oil mist) |
| Spindle Speed | 6,000–24,000 rpm |
| Power Supply | 400 V, 3PH, 50 Hz |
| Repositioning Accuracy | 0.01 mm |
| Linear Bearings | trapezoidal rails, Hiwin carriages |
| Material Clamping | vacuum, hybrid |
| Vacuum Pump | 2×7.5 kW (optional) |
| Software | SYNTEC 60WE |
| Dimensions | 10,300×3,600×2,430 mm |
| Weight | 4,000 kg |
Equipment
- HQD air-cooled spindle, Premium version
- Tool length measurement sensor included
- Tools, collet set, levelling feet and additional accessories
Machine unloading and placement are the customer’s responsibility.
Power plug provided by the customer due to different 16A / 32A socket standards.
