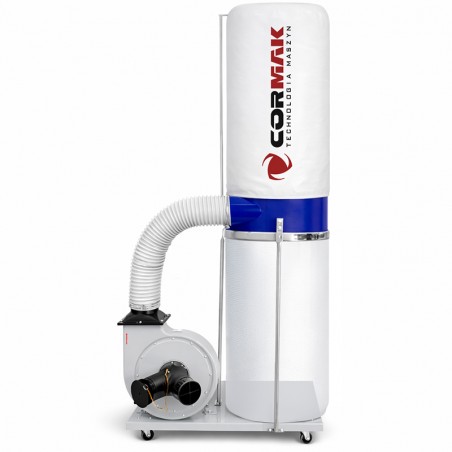

Wood Dust and Chip Extractor CORMAK FM300SA – High-Performance Industrial Extractor for Professional Workshops

CORMAK FM300SA is an advanced wood dust and chip extractor designed for intensive use in woodworking, furniture and industrial production plants. Combining impressive 3,900 m³/h suction performance, reinforced steel construction and the precision-balanced WhirlWind impeller, this unit guarantees durability and stable long-term operation in demanding environments.

Main advantages of the machine

• 2.2 kW / 400 V motor – reliable performance for continuous industrial use.
• Airflow 3,900 m³/h – efficient extraction from several workstations at once.
• WhirlWind multi-blade metal impeller – dynamically balanced for quiet, vibration-free operation.
• 4 filter bags (220 L total capacity) – extended filtration area for longer operating cycles.
• Reinforced steel frame with heavy-duty supports for maximum stability.
• Quick bag-mounting system – tool-free, time-saving servicing.
• Sealed system with 4 elastic gaskets – ensures airtight performance.
• Mobile base with bearing-mounted wheels for easy movement across the workshop.

Design and technology

The FM300SA extractor is driven by a precision-balanced WhirlWind impeller that provides strong, steady suction pressure. Its double-support frame and solid steel housing guarantee vibration-free operation, even under full load. All junctions are sealed with flexible gaskets to prevent pressure loss, while the four-bag layout allows efficient air separation and dust collection.

Precision and performance

The CORMAK FM300SA dust extractor can serve multiple woodworking machines simultaneously via its Ø150 mm inlet or 3 × Ø100 mm adapter. Four canvas filter bags with a total capacity of 220 litres reduce emptying frequency and maintain continuous production. The system’s quiet, stable performance ensures comfort and high efficiency during long working hours.

Applications

• Joinery and furniture workshops – central wood dust extractor for several workstations.
• Wood industry and MDF processing – handles large volumes of chips and dust.
• Training centres and schools – safe and reliable extraction solution.
• Production lines – used as a central or local chip extraction system.

Standard equipment

• 4 canvas filter bags (220 L total)
• Steel mobile base with bearing-mounted castors

Optional equipment*

• Galvanised hose clamp
• Filter cartridge (up to 2 µm filtration)

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Technical data

Summary

CORMAK FM300SA is a heavy-duty wood dust and chip extractor built for demanding industrial applications. Its powerful motor, four-bag filtration system and robust frame ensure superior efficiency, clean air and long-term reliability in any professional environment.

Choose the CORMAK FM300SA – a high-performance dust extractor that meets the needs of the most demanding professionals!
