Wood Dust and Chip Extractor CORMAK FM300 400V

Wood Dust and Chip Extractor CORMAK FM300 – High-Performance Industrial Workshop Extractor

CORMAK FM300 is a high-efficiency wood dust and chip extractor designed for continuous operation in woodworking, furniture and industrial plants. Equipped with a 1.5 kW three-phase motor, dynamically balanced impeller and durable steel frame, it delivers stable suction and high reliability. With an airflow rate of 2,530 m³/h, it is suitable for multi-machine extraction systems.

Main advantages of the machine

• High airflow – 2,530 m³/h – efficient extraction from multiple workstations simultaneously.
• 1.5 kW motor (400 V, 3-phase) – constant torque and overload resistance for continuous operation.
• Balanced metal impeller – ensures quiet, vibration-free performance and long lifespan.
• Large 150 L bag capacity – extended operating time without frequent emptying.
• Y-type connector: 2 × Ø100 mm or 1 × Ø130 mm – adaptable to various machine setups.
• Stable wheeled base – allows easy relocation around the workshop.

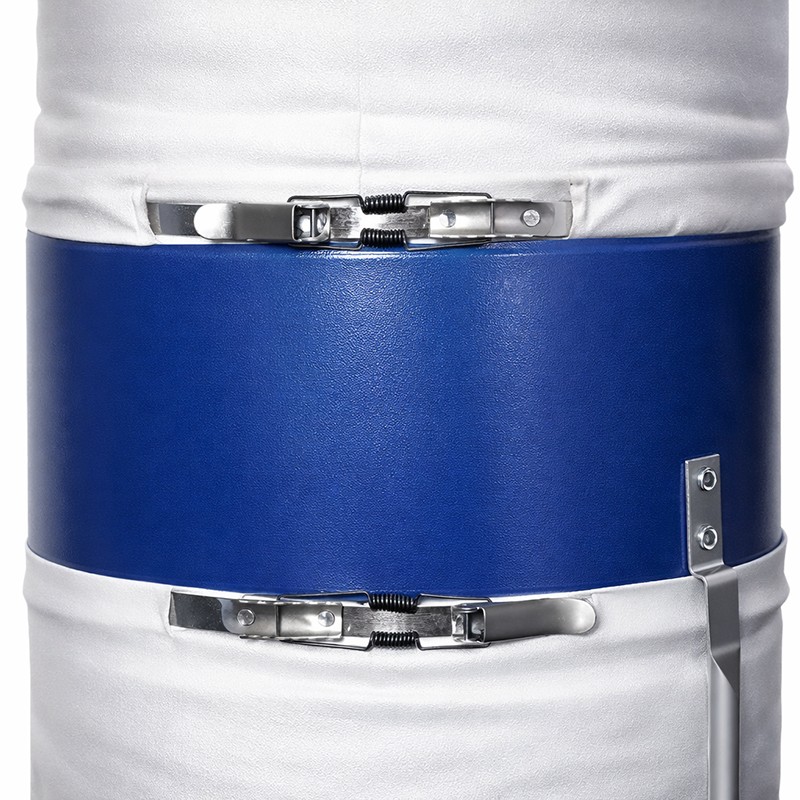

• Quick bag mounting system – speeds up maintenance and enhances ergonomics.

Design and technology

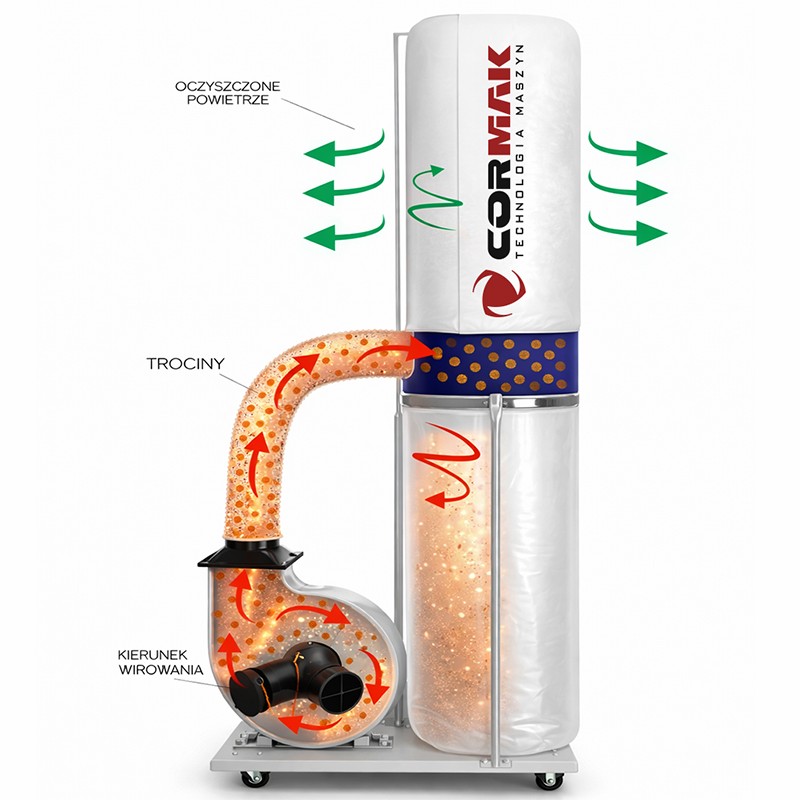

The CORMAK FM300 woodworking extractor is built on a welded steel frame with four castor wheels, combining strength and mobility. The core of the system is a metal chip extraction fan with a dynamically balanced impeller, generating consistent suction pressure with minimal noise and vibration. The Y-type coupling enables quick switch between single- and dual-line extraction configurations, making it a flexible industrial solution.

Precision and work efficiency

Operating at 2,850 rpm, the CORMAK FM300 chip extractor efficiently handles both light sawdust and heavier dust fractions from cutting, milling and sanding operations. Its large-capacity dual-bag system reduces downtime, while the impeller design prevents clogging and ensures uninterrupted performance under demanding conditions.

Applications

• Professional joinery and furniture workshops – ideal for saws, planers, jointers, milling and sanding machines.
• Industrial facilities – as a central wood dust collector for multi-machine systems.
• Technical schools and training workshops – durable and safe for everyday use.
• Craft and service workshops – mobile and powerful solution for diverse production needs.

Standard equipment

• Metal Y-connector – 2 × Ø100 mm or 1 × Ø130 mm
• Steel wheeled base
• Two fabric bags (filter and collection)

Optional equipment

• Extraction hose Ø100 mm (any length)
• Galvanised clamping rings
• Disposable plastic collection bags

Technical data

Summary

CORMAK FM300 is a professional wood dust and chip extractor that stands out with its reliability, high performance and durability for continuous use. Its versatile connector system and mobile frame make it ideal for both stationary and flexible workshop setups. A robust investment in cleanliness, efficiency and workplace safety.

Order the CORMAK FM300 today and upgrade your workshop’s dust extraction system!
