CNC Milling Machine / CNC Router CORMAK C1325 BSP (1300x2500)

Construction

• Rigid welded steel structure,
• The gantry arms are made of hardened, powder-coated thick sheet metal with increased stiffness, improving the quality of the machined parts.

Worktable

• Equipped with T-slots allowing manual clamping of materials with dimensions of 1300 x 2500mm,

Drive

• The high-power motors used for driving the machine tools provide adequate acceleration and speeds in all axes.
• The X and Y axes use highly regarded HIWIN rack and pinion systems, ensuring high durability and precision,
• All axes move on linear guideways.
• The machine is equipped with a tool height sensor.
• Linear bearings: trapezoidal rails.

Spindle

• High-quality spindle characterised by excellent durability.
• Additionally equipped with an air cooling system
• The spindle construction uses high-quality machine bearings ensuring very quiet operation and increased service life.
• Tool height measuring sensor – included.
• Spindle speed range from 4,500 to 18,000 rpm.
• Tool clamping with ER32 collets

Software

• OPTIONALLY latest software UCanCAM V13 (the software enables importing files from Corel, AutoCAD, etc. Import/export of files, text editing and input, and many other functions)
• The software allows for quick and easy design of components, which are then converted into G-code. It also allows importing ready-made files from other programmes.
• The machine is equipped with a G-code path memory function (in case of power failure, the work resumes from the last point without time or material loss.)

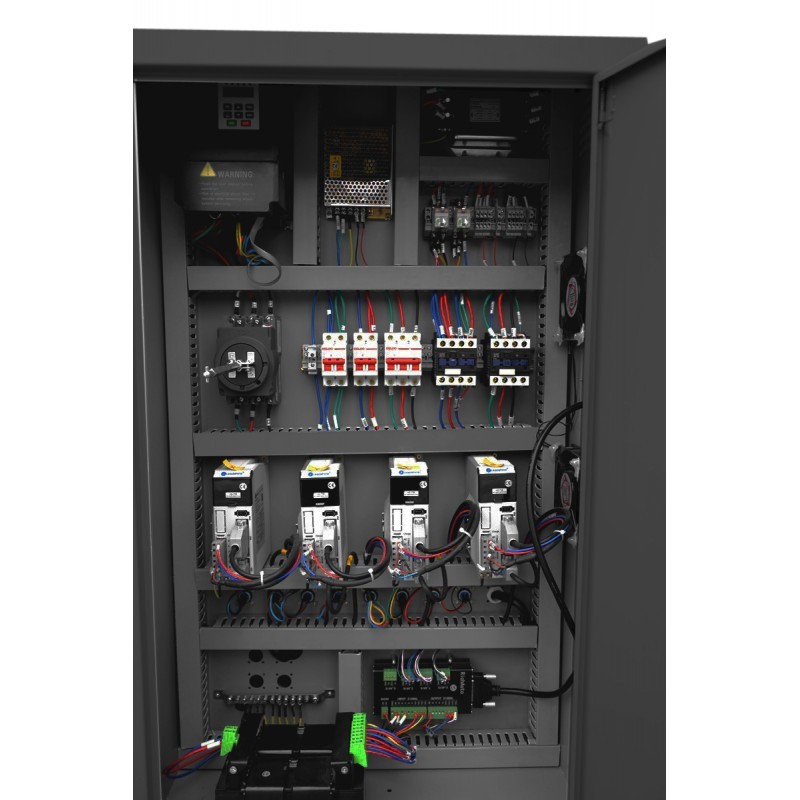

DSP Control

• Digital Signal Processing – digital signal processing system
• The DSP controller has its own processor and operating memory, ensuring reliable operation and simple control.
• The controller guarantees smooth machine operation and precision during machining.
• After power loss, there is no need to initialise the programme again.
• The built-in memory allows the machine to operate without reloading the programme each time.

We offer machines with genuine CE certification – certified by the best institutions in the EU.

By choosing the CORMAK brand, you choose machining precision, long service life, and operator safety.

We offer warranty and post-warranty service. Machine training and/or commissioning is available upon individual pricing — please contact our consultant.

Technical parameters

Equipment

• levelling feet,
• screws,
• wrenches,
• training cutter set,
• ER32 collets – 1/8”, 1/2”, and 5–6 mm

*Unloading and machine placement are the customer’s responsibility.

** Power plug on the customer’s side due to various 16A / 32A sockets.

On-site commissioning of CNC routers available upon request, with individual pricing.

CNC Milling Router Commissioning
