Category:
Vertical machining centres

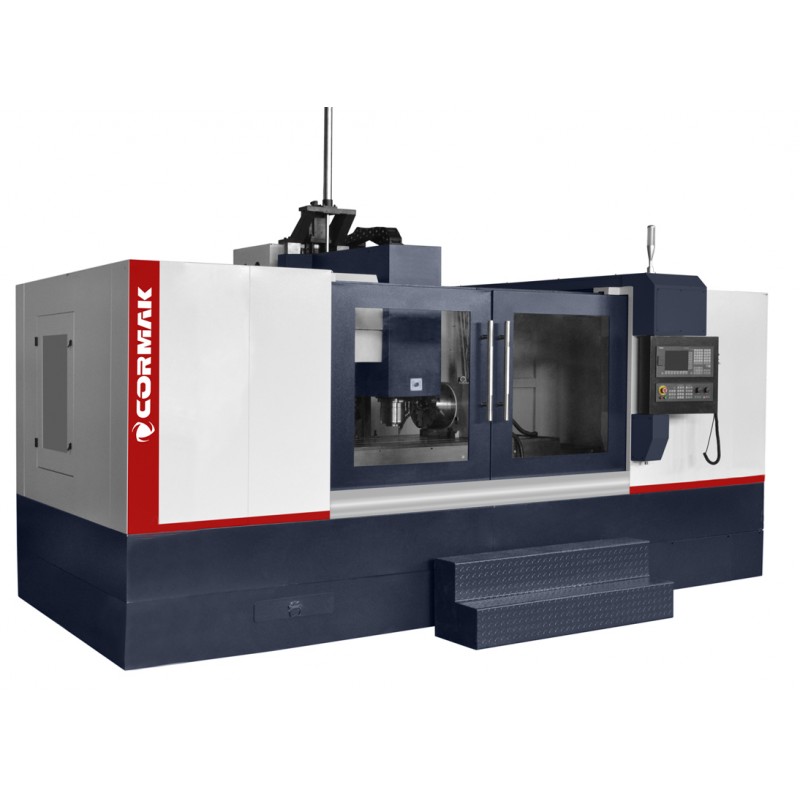

CNC Machining Centre CORMAK MILL1470 1400×710 Siemens Sinumerik
Reference:
MILL1470
Manufacturer:
CORMAK
Our machining centre combines strength and advanced technology, built with high-quality components that ensure long-term, uninterrupted performance. Designed for efficient execution of multiple operations such as milling, drilling, tapping and reaming, this machine is an indispensable tool for your production line. Its ability to maintain high machining precision makes it an ideal choice for companies that value quality and reliability. Choose our MILL series to bring a new level of efficiency and precision to your manufacturing process.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Machine Description
• Highest-quality linear guides on all axes
• Four-track guide system on the machine base for heavy table loads
• Rigid cast-iron body with a wide layout of hardened and ground rectangular guideways
• Fully enclosed working area ensuring operator safety
• Maximum precision provided by ball screws on all three axes
Technical Specifications |
|
| Control system options | SIEMENS 808 ADVANCED |
| Table size | 1400×710 mm |
| T-slots | 5×22×135 mm |
| Maximum table load | 960 kg |
| Travel (X/Y/Z) | 1300×700×650 mm |
| Spindle-to-table distance | 200–900 mm |
| Spindle-to-column distance | 830 mm |
| Spindle taper | BT50 |
| Spindle speed | 100–8000 rpm |
| Spindle drive | Belt drive |
| Spindle motor power | 15 kW |
| Servo motor torque (X/Y/Z) | 22/22/22 N·m |
| Ball screws (diameter × pitch) X/Y/Z | 40×08 / 40×08 / 40×08 mm |
| Rapid feed rate (X/Y/Z) | 15/15/12 m/min |
| Cutting feed rate (X/Y/Z) | 8 m/min |

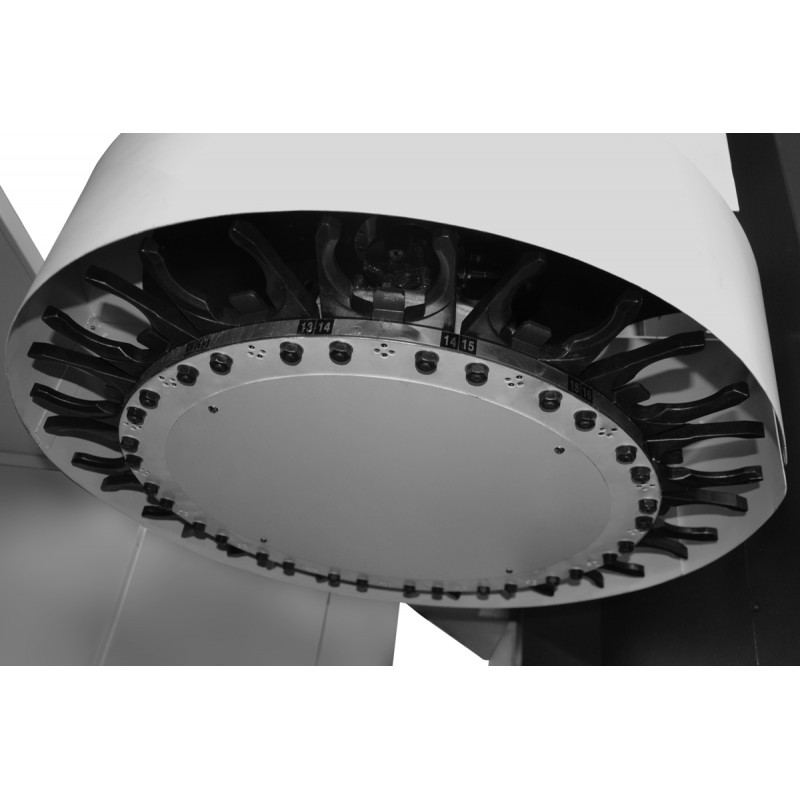

| Tool magazine capacity | BT50-24 |
| Maximum tool length | 300 mm |
| Number of tools | 24 |
| Maximum tool weight | 7.5 kg |
| Electrical supply | 25 kVA |
| Air pressure | 5–7 kgf/cm² |
| Positioning accuracy | ±0.01 mm |
| Machine dimensions | 3920×2800×2810 mm |
| Weight | 10,500 kg |
CNC Control Systems – Siemens Sinumerik 808D, Siemens 828D and Fanuc Oi-TF
We offer professional CNC control systems from leading manufacturers Siemens and Fanuc, providing precision, efficiency and ease of operation. These solutions are ideal both for smaller workshops and demanding industrial applications.
SIEMENS SINUMERIK 808 Advanced – Compact CNC Control for Standard Applications
Siemens Sinumerik 808D is a modern and economical CNC control system dedicated to basic class milling machines and lathes. It is designed for small and medium-sized enterprises and offers:
- Intuitive operation – a graphical interface for easy programming and machine configuration.
- High reliability – robust design resistant to demanding workshop environments.
- Wide compatibility – suitable for machines with standard technological requirements.
- Perfect for beginners starting work with modern CNC control systems.
Siemens Sinumerik 828D – Advanced Control for Demanding Applications
Sinumerik 828D is a professional CNC control system designed for machining centres and lathes requiring superior precision and performance. Key features include:
- High processing power – fast data processing enables dynamic and accurate machining.
- Expanded technological functions – advanced machining cycles, interpolation and toolpath optimisation.
- Compact and durable design – ready for intensive industrial use.
- Easy automation integration – expandable with additional control modules and process options.
- CAD/CAM compatibility – seamless connection with design and production management systems.
An excellent choice for companies seeking efficient and reliable CNC control for complex machining operations.
Fanuc Oi-TF – Stability and Precision in Turning Operations
Fanuc Oi-TF is one of the most recognised CNC control systems for lathes, valued for reliability and simplicity. It is widely used in metalworking industries due to:
- Outstanding stability – dependable performance during long production runs.
- Advanced turning functions – supports a wide range of threading, grooving and drilling cycles.
- User-friendly interface – fast programming and clear menu navigation.
- Wide compatibility – suitable for many lathe models.
- Process optimisation – provides precise control over cutting parameters, reducing time and material costs.
Choosing the right CNC control is key to achieving maximum efficiency and precision. Siemens Sinumerik 808D is ideal for standard tasks, Siemens Sinumerik 828D for more advanced applications, and Fanuc Oi-TF for stable and precise turning operations.
Contact us – we will help you select the CNC control best suited to your production needs.
User Manuals
SIEMENS SINUMERIK 828/840
SIEMENS SINUMERIK 808
Trust CORMAK’s Experience
With over 20 years of experience in providing industrial machinery and technological solutions, CORMAK holds a leading position in supplying the manufacturing sector.
- 16 years of experience servicing Siemens CNC control systems.
- Over 15,000 m² of warehouse space with around 12,000 machines and devices available.
We provide professional support and ongoing technical assistance. Our machines meet European safety standards and are designed to deliver long-term reliability and precision.
Ask for details or schedule a demonstration!
