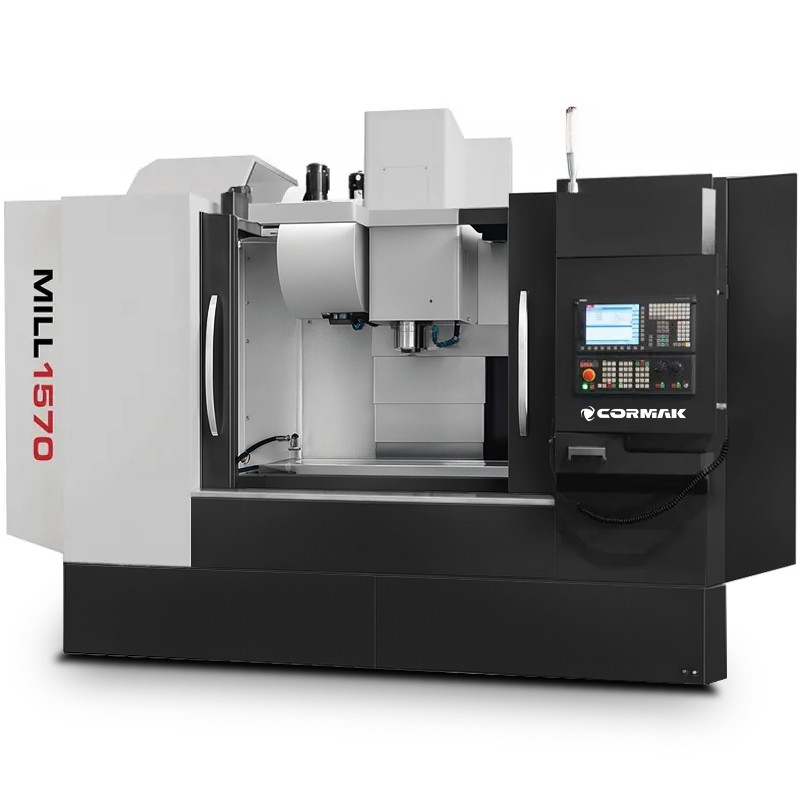

CNC Machining Centre CORMAK MILL1570 1500×710 Siemens Sinumerik

The MILL1570 Machining Centre is a modern vertical CNC machining centre designed for precise metal processing in demanding industrial environments. Equipped with the advanced Siemens Sinumerik 828D control system, it offers outstanding accuracy and high performance.

Main Advantages of the MILL1570 Machining Centre

The MILL1570 Vertical Machining Centre combines advanced technology with a robust structure, ensuring stability and precision in heavy-duty machining. It is an ideal solution for companies seeking CNC machining centres that guarantee quality, efficiency and flexibility. Key benefits include:

• Exceptional accuracy: Positioning accuracy of ±0.01 mm thanks to ball screws with 40 mm diameter and 8 mm pitch, perfect for complex geometries.
• Stable construction: A rigid frame weighing 9500 kg with a four-track guide system minimises vibration, enabling machining of parts up to 960 kg.
• High performance: 16 kW spindle with up to 10,000 rpm, belt-driven, combined with a rapid feed rate of 15/15/12 m/min shortens cycle times.
• Operator safety: A fully enclosed work area protects against dust and chips while maintaining ergonomic operation.
• Flexible configuration: Can be expanded with a fourth rotary axis, advanced control systems (Siemens 808D, Fanuc Oi-TF), and through-spindle cooling.
• Durability: High-quality linear guides and mechanical components ensure long service life even under intensive industrial use.
• Advanced control functions: An ergonomic interface and machining cycles simplify programming and process optimisation.

Construction and Technology of the MILL1570 Machining Centre

The MILL1570 Vertical Milling Centre is designed for maximum durability and precision in demanding production conditions. Key structural elements include:

• Heavy cast-iron body: Weighing 9500 kg, with wide hardened and ground rectangular guideways providing rigidity and stability.
• Four-track guide system: Enables high table load capacity – ideal for heavy components.
• Linear guides: Top-quality guides in the X, Y, and Z axes ensure smooth motion and precision at 15 m/min.
• BT40 spindle (BT50 optional): 16 kW power and up to 10,000 rpm with belt drive and counterweight for reduced vibration and efficient cutting.
• Ball screws: Precision ball screws (Ø40 mm, 8 mm pitch) in all axes ensure high accuracy and repeatability.
• Tool magazine: 24-position BT40 (optional BT50) magazine for quick tool changes up to 7.5 kg each.
• Automatic lubrication system: Minimises wear and extends machine lifespan.
• Fully enclosed workspace: Protects the operator and the machining area from contaminants.

Precision and Performance

The CNC Machining Centre MILL1570 delivers outstanding precision with the Siemens Sinumerik 828D control system, offering high computational power and advanced machining cycles. Positioning accuracy of ±0.01 mm and rapid feed rates of 15/15/12 m/min ensure efficient machining of complex parts. The system optimises toolpaths, reduces cycle time and minimises errors.

Applications of the MILL1570 Vertical Machining Centre

Vertical machining centres such as the MILL1570 are widely used in key industrial sectors, including:

• Automotive industry: Machining of engine, gearbox and suspension components.
• Aerospace industry: Production of precision components such as turbine blades and structural parts.
• Toolmaking industry: Manufacturing of injection moulds, dies and complex tooling.
• Machine building: Production of heavy industrial and precision components.

With the option to add a fourth axis, the machine is ideal for production facilities requiring versatility and accuracy.

Standard Equipment

• Siemens Sinumerik 828D control system with 2-year warranty
• 10,000 rpm spindle
• 24-position BT40 tool magazine
• Three-colour signal lights
• Work area lighting
• Closed cooling system
• Fully enclosed housing
• Automatic lubrication system
• Pneumatic system

Optional Equipment*

• Control systems: Siemens Sinumerik 808D or Fanuc Oi-TF
• Spindle type: BT50
• Through-spindle coolant system: 20 bar or 40 bar
• Fourth rotary axis
• Chip conveyor: chain or auger type
• Renishaw TS27R tool probe
• Renishaw OMP60 workpiece probe
• Renishaw measurement cycles
• Oil and coolant separator
• Oil mist extractor
• Automatic doors
• Linear scales for 3 axes

*The price quoted refers to the machine only and excludes optional or additional equipment, installation, transport and training — please contact our consultant for details.

Technical Specifications

CNC Control Systems – Siemens and Fanuc

The MILL1570 Machining Centre supports advanced CNC control systems including Siemens Sinumerik 808D, Siemens Sinumerik 828D and Fanuc Oi-TF, providing precision, reliability and user-friendly operation:

SIEMENS SINUMERIK 808 Advanced

• Intuitive interface: Simple to operate, ideal for smaller workshops and beginners.
• Reliability: Durable construction for industrial environments.
• Cost-effective: Perfect for standard milling and turning applications.

Siemens Sinumerik 828D

• High computing power: Enables dynamic machining and advanced cycles.
• CAD/CAM integration: Seamless cooperation with design software.
• Advanced functions: Toolpath optimisation and modular expansion options.

Fanuc Oi-TF

• Stability: Reliable for long-term and serial production.
• Advanced turning cycles: Ideal for precision cutting operations.
• Intuitive operation: Clear interface for faster programming.
