MILL 530 Machining Centre: Your Path to Precision Manufacturing
CNC machining centres MILL 530 are industrial machines that combine reliability and precision. Thanks to their robust construction and proven components, they are ideal for demanding industrial applications. The massive body ensures stability and machining accuracy, while the hermetic enclosure keeps the workspace clean and safe. The hardened table surface is workpiece-friendly, and the efficient cooling system ensures optimal cutting conditions. Choose the MILL 530 to guarantee the highest quality and efficiency in your production.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
MILL 530 Machining Centre – Precision and Performance in CNC Machining
MILL 530 machining centre is an advanced vertical CNC machining centre designed for precise metal machining in production facilities. Equipped with modern technologies and a robust structure, it ensures reliability and high performance in various industrial applications.
Main advantages of the MILL 530 machining centre
Vertical machining centre MILL 530 stands out on the market thanks to the combination of advanced technology, solid construction and wide application possibilities. It is an ideal solution for companies looking for a reliable metal milling centre that meets the requirements of modern manufacturing.
- Top-level precision: Thanks to high-quality linear guideways and ball screws, the machine guarantees positioning accuracy of 0.006 mm.
- High performance: Siemens servo drives and a spindle speed of up to 8000 rpm (option* 10,000 rpm) ensure efficiency when machining a variety of materials.
- Durability and reliability: The massive machine body and hermetic working chamber provide stability and operational safety even in demanding conditions.
- Flexibility: The possibility of expansion with additional options, such as through-spindle cooling or a 4th axis, allows the machine to be adapted to specific production needs.
- Intuitive control: A choice of advanced CNC systems, such as Siemens Sinumerik or Fanuc Oi-TF, facilitates operation and programming.
Design and technology of the machining centre
CNC machining centre MILL 530 has been designed with maximum precision and durability in mind. Key machine components include:
- Massive body: Solid construction ensures stability during machining, minimising vibration and increasing machine lifespan.
- Linear guideways: High-quality guideways in the X, Y and Z axes guarantee smooth movement and precision at the level of 0.006 mm.
- Precision ball screws: Advanced ball screws in three axes ensure accuracy and repeatability of movements.

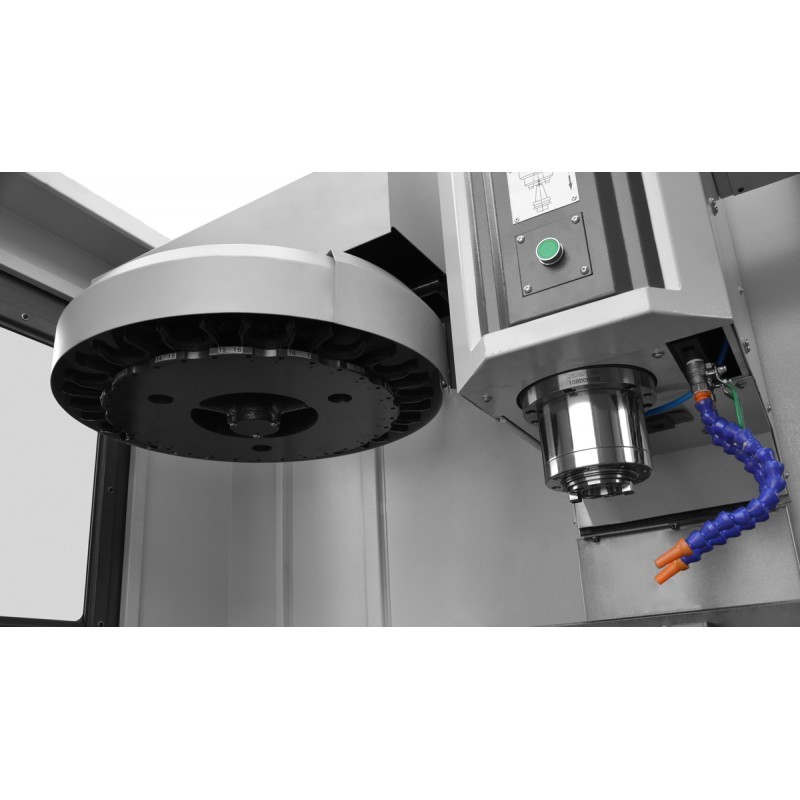

- BT40 spindle: Durable spindle with power of 3.7kW and rotational speed up to 8000 rpm (option* 10,000 rpm) enables machining of a wide range of materials.
- Siemens servo drives: Ensure smooth and dynamic movement, resulting in high machining efficiency.
- Hermetic working chamber: Protects against dust and contaminants, ensuring operator safety and a clean working environment.
- Cooling system: Coolant pump with power of 480W and capacity of 2.5-3.3 m³/h ensures effective heat dissipation during machining.
Precision and working efficiency
CNC machining centres, such as the MILL 530, combine advanced technology with robust construction, resulting in excellent machining results. High positioning precision (0.01 mm) and rapid axis feeds (14 m/min for X and Y, 11 m/min for Z) allow complex milling tasks to be completed in a short time. Thanks to advanced CNC controls, the machine enables precise programming and optimisation of tool paths, minimising machining time and increasing detail quality.
Applications of the metal milling centre
Vertical machining centres MILL 530 are used in various industrial sectors, such as:
- Automotive industry: Production of precision components for engines, gearboxes and other parts.
- Aerospace industry: Machining of light alloys and high-strength materials.
- Machine building: Production of moulds, dies and other components requiring the highest precision.
- Small and medium workshops: Ideal for both serial and single-piece production thanks to ease of use and flexibility.
The machine is an excellent choice for manufacturing plants that require a reliable and versatile machining centre for processing metals and other materials.
Technical parameters
| Travel range | |
| X axis | 450 mm |
| Y axis | 340 mm |
| Z axis | 400 mm |
| Distance from spindle nose to worktable | 10–470 mm |
| Distance from spindle centre to column guideway | 350 mm |
| Feed | |
| Rapid feed X axis | power | torque | 14 m/min | 1kW | 4.78 Nm |
| Rapid feed Y axis | power | torque | 14 m/min | 1kW | 4.78 Nm |
| Rapid feed Z axis | power | torque | 11 m/min | 1.75kW | 8.36 Nm |
| Worktable | |
| Worktable surface | 900 x 400 mm |
| T-slot | 4–14 mm |
| Spindle | |
| Speed | 100–8000 rpm (option* 10000 rpm) |
| Spindle taper | BT40 |
| Coolant pump | 480W; 2.5-3.3m3/h |
| Main motor power | 3.7kW |
| Tool magazine | |
| Max. tool diameter | 100 mm |
| Max. tool length | 300 mm |
| Max. tool weight | 7 kg |
| Tool change time | 2-5s |
| Other parameters | |
| Positioning accuracy | 0.006 mm |
| Dimensions (LxWxH) | 2100 x 2250 x 2600 mm |
| Weight | 1800 kg |
Standard equipment
- Control SIEMENS SINUMERIK 808 Advanced
- Spindle 8000 rpm
- 16-position tool magazine
- 3-colour alarm light
- Lighting
- Closed cooling system
- Fully enclosed machine housing
- Automatic lubrication system
- Pneumatic system
Optional equipment*
- Control SINUMERIK 828D
- Control FANUC Oi-TF
- Horizontal tool magazine (24)
- Through-spindle cooling
- Spindle 12,000 rpm
- Chip conveyor
- Tool measurement probe
- Workpiece measurement probe
- 4th axis
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
CNC Controls – Siemens and Fanuc
The MILL 530 Machining Centre offers a choice of advanced CNC control systems providing precision and ease of operation. Available options include:
SIEMENS SINUMERIK 808 Advanced
An economical control system for smaller workshops, offering an intuitive interface, high reliability and compatibility with basic milling applications.
Siemens Sinumerik 828D
An advanced system for demanding processes, featuring high computing power and seamless integration with CAD/CAM systems.
Fanuc Oi-TF
A reliable control system dedicated to turning and milling operations, known for outstanding stability and advanced functionality.
User manuals
SIEMENS SINUMERIK 828/840
SIEMENS SINUMERIK 808
Trust the experience of CORMAK
With over 20 years of experience in supplying industrial machinery, CORMAK provides reliable solutions for industry. Our machining centres are designed to meet the highest standards of quality and safety, confirmed by European certifications. We provide professional warranty and post-warranty service as well as technical support at every stage of machine operation.
Ask about the MILL 530 machining centre today!
Contact us to learn more about the MILL 530 vertical machining centre and configure the machine to suit your workshop’s needs. Our specialists will help you choose the right control system and optional equipment to optimise your production processes.
