CNC Machining Centre CORMAK MILL 2282 2200×820 SIEMENS SINUMERIK

MILL 2282 Machining Centre is an advanced vertical CNC machining centre designed for precision metalworking in demanding industrial applications. Equipped with the Siemens Sinumerik 808 Advanced control system, it delivers high process efficiency and stability.

Main Advantages of the MILL 2282 Machining Centre

The vertical machining centre MILL 2282 combines a robust structure with modern technology, ensuring precision and productivity when machining large and heavy components. It is an ideal solution for companies seeking CNC machining centres that offer reliability, versatility and top machining quality. Key benefits include:

• High machining precision: Positioning accuracy of ±0.01 mm achieved through precision ball screws with a diameter of 40 mm and a lead of 8 mm – perfect for complex geometries.
• Structural stability: A massive body weighing 14,000 kg with a 4-way guide system reduces vibration and enables machining of parts weighing up to 960 kg.
• Large working area: A table of 2200×820 mm and axis travel of 2000×800×700 mm allow processing of large components.
• Performance: A 15 kW spindle (8000 rpm, belt drive) with rapid traverse rates of 15/15/12 m/min optimises production time.
• Operator safety: A hermetically sealed work chamber protects against dust and chips, providing an ergonomic working environment.
• Configuration flexibility: Upgradeable with control systems (Siemens 828D, Fanuc Oi-TF), through-spindle coolant and a fourth rotary axis to meet specific requirements.
• Durability: High-grade hardened linear guides ensure long-term operation under demanding conditions.
• Operating economy: Automatic lubrication and energy-efficient components reduce maintenance costs.

Construction and Technology of the MILL 2282 Machining Centre

The MILL 2282 metal milling centre is engineered for maximum durability and precision in demanding production environments. Key construction features include:

• Massive cast-iron frame: Weighing 14,000 kg with widely spaced hardened and ground rectangular guides ensuring outstanding rigidity and stability.
• 4-way guide system: Handles heavy table loads (up to 960 kg), perfect for large workpieces.
• Hardened linear guides: Top-quality guides on X, Y and Z axes guarantee smooth movement and precision at feed rates of 15 m/min.
• BT50 spindle: With 11 kW power and up to 8000 rpm (belt drive), provides efficient cutting of various materials.
• Ball screws: Precision screws of 40 mm diameter and 8 mm lead on all three axes ensure accuracy and repeatability.

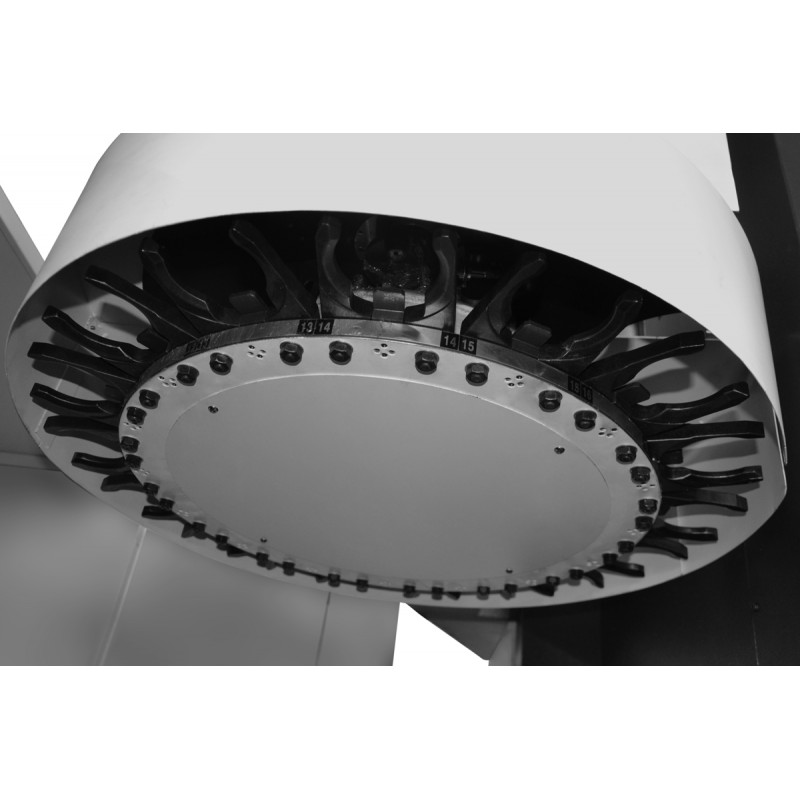

• Tool magazine: 24-position BT50 magazine enables quick tool changes (max tool weight 7.5 kg), enhancing efficiency.
• Automatic lubrication system: Minimises wear and extends service life.
• Hermetic work chamber: Protects against contaminants and ensures operator safety.

Precision and Productivity

The CNC Machining Centre MILL 2282 offers outstanding accuracy thanks to the Siemens Sinumerik 808 Advanced system. Positioning accuracy of ±0.01 mm and rapid feed rates of 15/15/12 m/min enable efficient machining of large, complex parts. The control system optimises tool paths, reducing cycle times and minimising production errors.

Applications of the MILL 2282 Vertical Machining Centre

Vertical machining centres such as the MILL 2282 are used in key industrial sectors, including:

• Automotive industry: Production of engine parts, gearboxes, and large structural components.
• Aerospace industry: Precision machining of components such as turbine elements and aircraft structures.
• Toolmaking industry: Manufacture of large injection moulds, dies, and other complex components.
• Machine building: Production of heavy parts for industrial machines and precision tools.

The machine is ideal for large production facilities requiring precision, reliability, and the ability to handle larger workpieces.

Standard Equipment

• Siemens Sinumerik 808 Advanced control system with a 2-year warranty
• Spindle speed 8000 rpm
• 24-position BT50 tool magazine
• Three-colour warning lights
• Work area lighting
• Closed cooling system
• Hermetically sealed enclosure
• Automatic lubrication system
• Pneumatic system

Optional Equipment*

• Siemens Sinumerik 828D or Fanuc Oi-TF control systems
• Spindle 10,000 or 12,000 rpm
• Through-spindle coolant (20 bar or 40 bar)

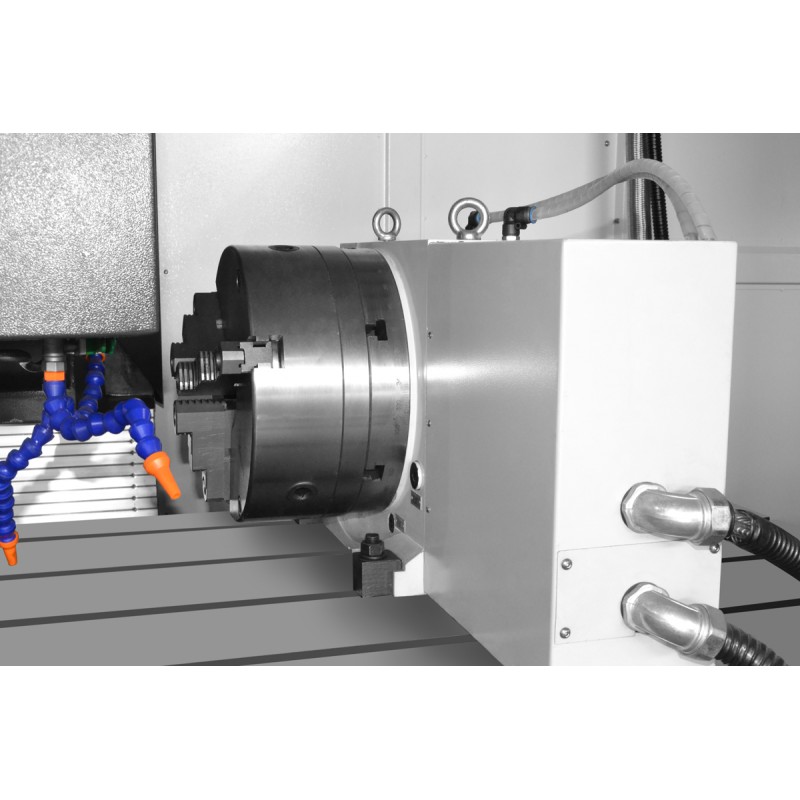

• 4th rotary axis
• Chip conveyor (chain or auger type)
• Renishaw TS27R tool probe
• Renishaw OMP60 workpiece probe
• Renishaw measurement cycles
• Oil and coolant separator
• Oil mist extractor
• Automatic doors
• Linear scales for 3 axes

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Technical Parameters

CNC Control Systems – Siemens and Fanuc

The MILL 2282 Machining Centre offers advanced CNC control systems such as Siemens Sinumerik 808D, Siemens Sinumerik 828D and Fanuc Oi-TF, providing precision, reliability and ease of operation:

Siemens Sinumerik 808D

• Intuitive interface: Easy to operate, ideal for small workshops and beginner users.
• Reliability: Durable construction resistant to harsh industrial environments.
• Cost-effectiveness: Designed for basic milling and turning applications.

Siemens Sinumerik 828D

• High computing power: Enables dynamic machining and handling of complex cycles.
• CAD/CAM integration: Simplifies cooperation with design software.
• Advanced functions: Toolpath optimisation and expandability with additional modules.

Fanuc Oi-TF

• Stability: Reliable performance in serial production and continuous operation.
• Advanced turning cycles: Ideal for precise cutting operations.
• Intuitive operation: Clear interface speeds up programming.
