Reference:
WL18+WF18
Manufacturer:
CORMAK

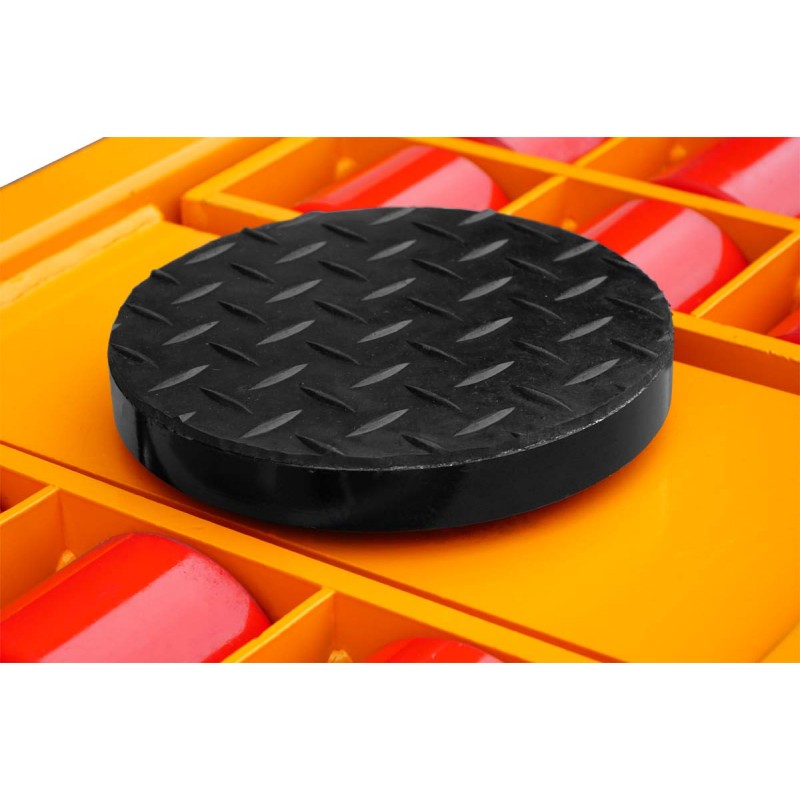

Machine moving skate set consisting of the WL18 steering skate and the WF18 load skate enables safe relocation of heavy loads weighing up to 36 tonnes. The WL18 steering platform is equipped with durable rollers that provide traction and minimise friction, allowing controlled movement of heavy machinery and construction components. The WF18 transport bogie ensures stability and smooth mobility, making the set suitable for use in industry, construction, logistics and transport applications.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Description
Transport rollers make it easy and safe to transport heavy items.
Thanks to the use of polyurethane tread rollers, the transported machine and floor are not damaged.
|
Technical parameters WL18 | |
|---|---|
|
ROLLERS SIZE |
85x85 mm |
|
NUMBER OF ROLLERS |
16 |
|
LOADING CAPACITY |
18000 kg |
|
LOADING HEIGHT |
110 mm |
|
BEARING SURFACE ON ELEMENT |
Ø170 mm |
|
SUPPORT POINTS |
1 |
|
LENGHT OF SHAFT |
1080 mm |
|
TURNING ANGLE OF SHAFT |
± 90o |
|
DIMENSIONS |
1030x620 mm |
|
WEIGHT |
137 kg |
|
Technical parameters WF12 | |
|
ROLLERS SIZE |
85x85 mm |
|
NUMBER OF ROLLERS |
16 |
|
LOADING CAPACITY |
18000 kg |
|
LOADING HEIGHT |
110 mm |
|
BEARING SURFACE ON ELEMENT |
200x407 mm |
|
SUPPORT POINTS |
2 |
|
CONNECTOR LENGHT |
1430 mm |
|
WIDTH OF SPACING ROLLERS |
1014 - 1430 mm |
|
WEIGHT |
50 kg |
