400–500 mm Turning Diameter

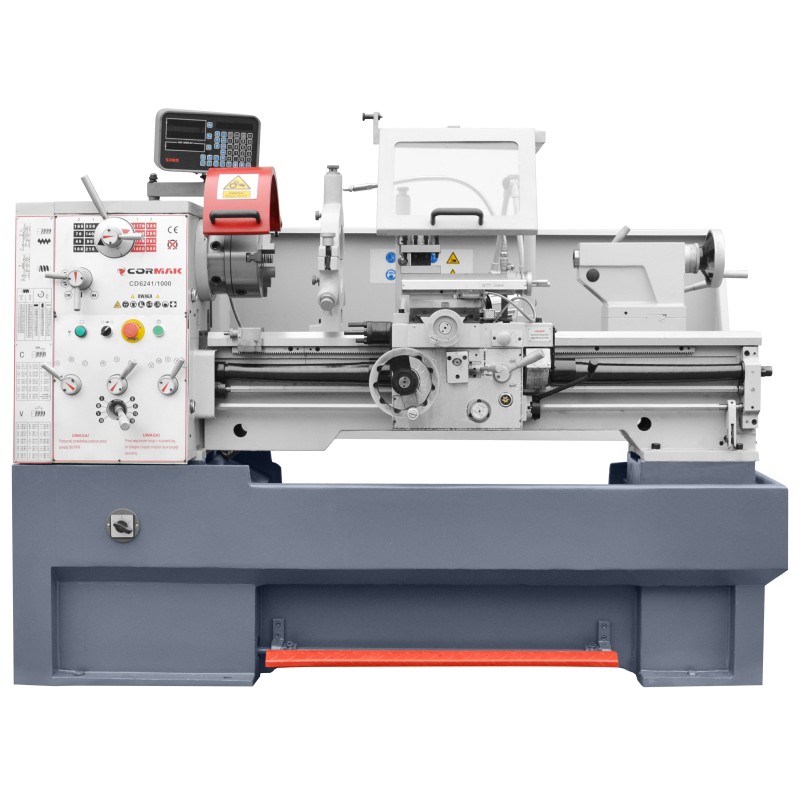

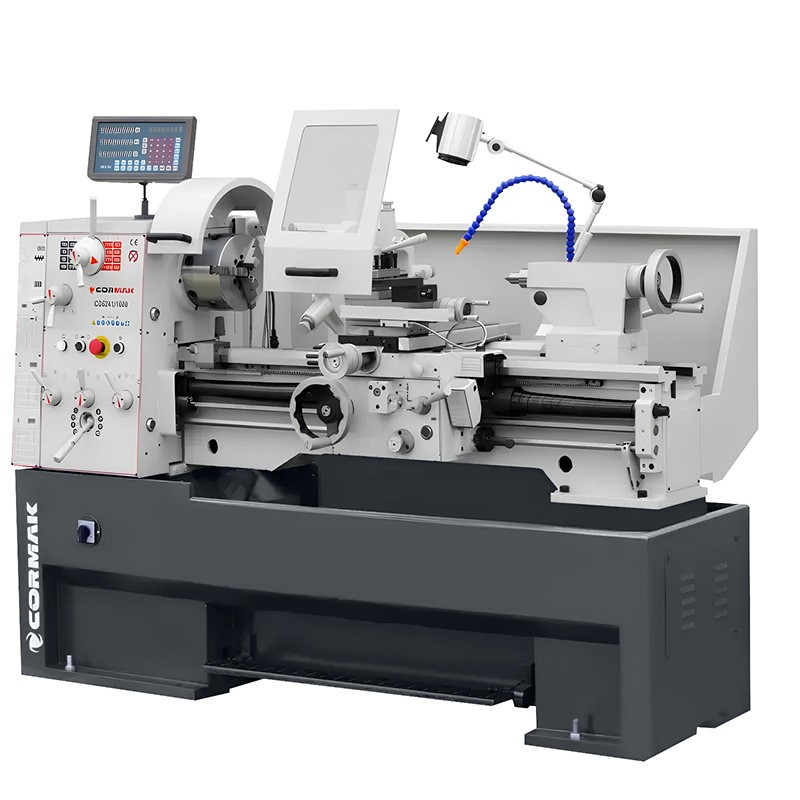

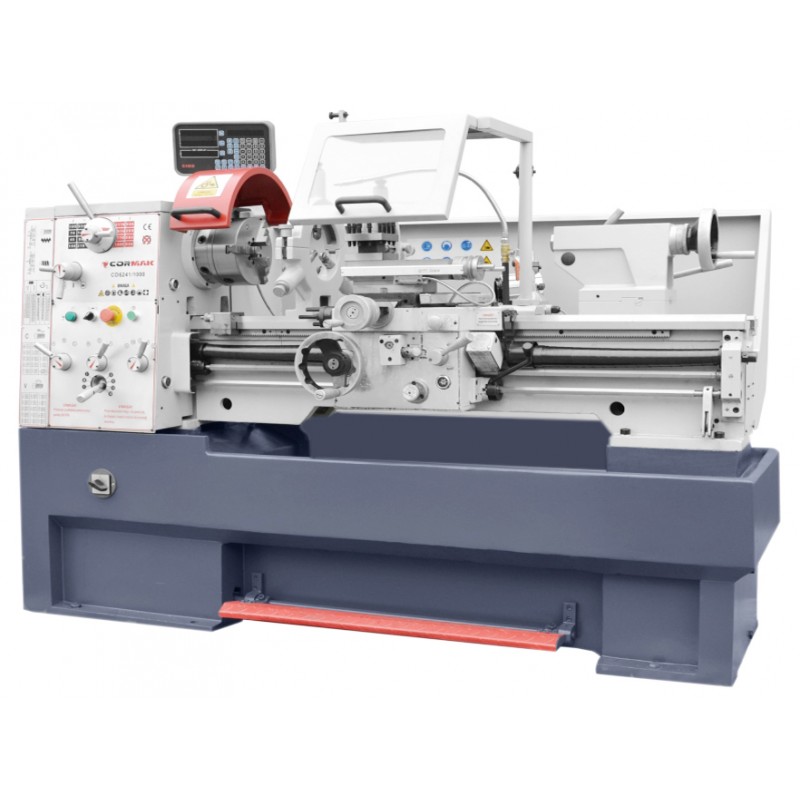

Conventional Universal Metal Lathe CORMAK CD6241/1000 410x1000 with Cutting Tools and Live Centre
Reference:
410x1000
Manufacturer:
CORMAK
The industrial metal lathe CORMAK 410x1000 (CD6241/1000) features a solid cast-iron bed construction and is equipped with a 16-speed gearbox driven by a dual-range 3.3 kW induction motor, providing maximum torque. Recommended for machining hard steels and precision mechanical work. Suitable for various operations such as internal and external turning, taper machining, polishing, metric and inch threading, drilling and broaching.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Universal Conventional Lathe CORMAK 410 x 1000 with Tool Set and Live Centre – a complete solution for precision metalworking
The CORMAK 410 x 1000 UNIVERSAL LATHE is a reliable conventional metal lathe designed for professional workshops, production facilities and maintenance departments. This package includes a full set of seven 20 × 20 mm turning tools with replaceable inserts and a precision live centre MK4, providing a ready-to-use workstation with no extra setup required.
Main features
- Comprehensive machining capability – external and internal turning, threading (metric, inch, module, D.P.), drilling, broaching, polishing and taper turning.

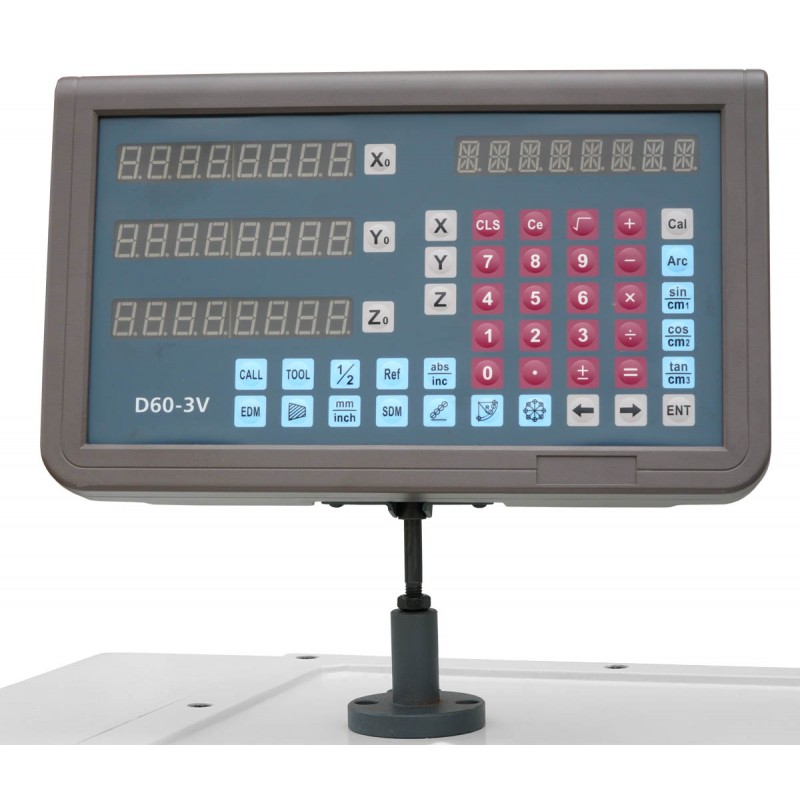

- Three-axis digital readout (DRO) – optical scales provide precise positioning and movement control in X, Y and Z axes.
- Spindle bore Ø52 mm – allows machining of long and through-type workpieces.
- Rigid spindle assembly with precision bearings and CAMLOCK D1-6 mount ensures high rigidity and durability.
- Hardened and ground bed ways (250 mm wide) – maintain stability and minimise vibration under heavy loads.
- Removable bed gap – enables machining of workpieces up to Ø580 mm.

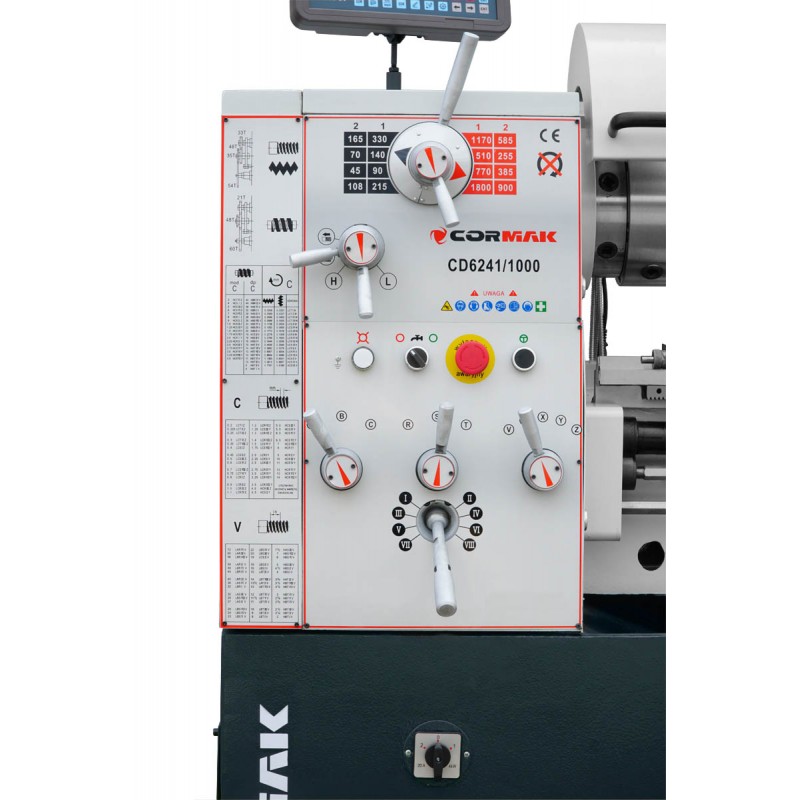

- 16 spindle speeds from 45 to 1800 rpm – adaptable to a wide range of materials.
- No gear change required for threading – fast setup for various operations.
Design and technology
The CORMAK 410 x 1000 lathe is engineered for accuracy and durability. Precision guideways, hardened transmission gears and a massive cast-iron frame ensure lasting dimensional stability. The included 20×20 mm tool set with inserts allows immediate operation, while the MK4 live centre provides support and stability during long-part machining.
Precision and efficiency
The three-axis DRO gives the operator full control over feed movements with 0.02 mm accuracy. The large-bore spindle makes it possible to machine pipes and shafts, while the wide threading range broadens the machine’s applications. An integrated thread dial facilitates precise multi-pass threading with minimal error risk.
Applications
The CORMAK 410 x 1000 model is ideal for:
- industrial unit and small-batch production,
- machine-part repair and refurbishment,
- maintenance departments,
- technical schools and training workshops.
With its included tooling and accessories, users receive a fully equipped and operational machine right out of the box.
Technical parameters
| 3-jaw chuck | 200 mm |
| Max. swing over bed | 410 mm |
| Swing over cross slide | 255 mm |
| Swing in gap | 580 mm |
| Distance between centres | 1000 mm |
| Centre height | 205 mm |
| Compound slide travel | 145 (0.02) mm |
| Cross slide travel | 225 (0.02) mm |
| Longitudinal travel | 750 (0.2) mm |
| Bed width | 250 mm |
| Spindle bore | 52 mm |
| Spindle mount | D1-6 CAMLOCK |
| Spindle taper | MK6 |
| Tool post size | 100 × 100 × 32 mm |
| Max. tool size | 20 × 20 mm |
| Spindle speeds | 16 ranges (45 – 1800 rpm) |
| Speed steps | 45, 70, 90, 108, 140, 165, 215, 255, 330, 385, 510, 585, 770, 900, 1170, 1800 rpm |
| Metric threads (count / range) | (42) 0.2 – 14 mm/rev |
| Inch threads (count / range) | (42) 2 – 72 TPI |
| Module threads (count / range) | (18) 0.3 – 3.5 mm |
| D.P. threads (count / range) | (21) 8 – 44 DP |
| Longitudinal feeds | (17) 0.05 – 1.7 mm/rev |
| Cross feeds | (17) 0.025 – 0.85 mm/rev |

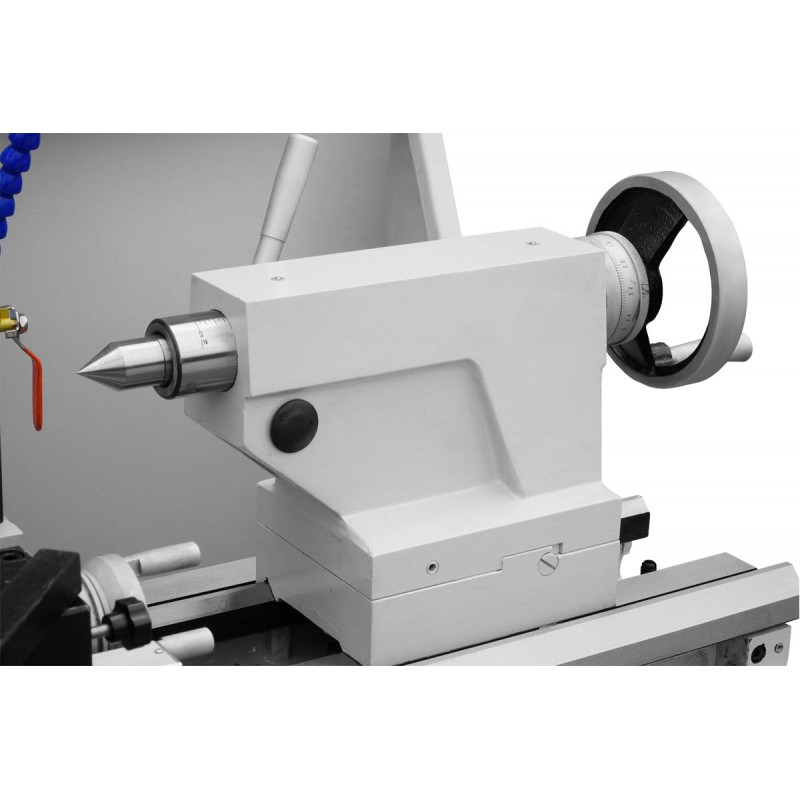

| Tailstock quill diameter | 50 mm |
| Tailstock quill travel | 120 (0.02) mm |
| Tailstock taper | MK4 |
| Main motor power | 2.2 / 3.3 kW |
| Coolant pump power | 0.1 / 0.12 kW |
| Dimensions (L × W × H) | 2050 × 900 × 1650 mm |
| Weight (net) | 1600 kg |
Standard equipment
- Turning-tool set 20×20 mm – 7 pcs with inserts
- Precision live centre MK4
- 3-axis digital readout (optical scales)
- 3-jaw chuck 200 mm + L/R jaws
- 4-jaw chuck 250 mm
- Faceplate 350 mm
- Fixed and travelling steady rests
- Fixed centre MK4
- Reducing sleeve MK6/MK4
- Full change-gear set
- Cooling system
- Work light
- Oiler and service wrenches
- User manual (EN), CE declaration
- 6 vibration isolators
Optional equipment
- Taper-turning attachment
- Drill arbor MK4/B16
- Drill chuck B16 (3 – 16 mm)
- HSS-CO5 drill set (1 – 13 mm)
- Cutting fluid ES-12 1 L
Choose reliability and completeness. Select the CORMAK 410 × 1000 conventional lathe with its full accessory package and start machining immediately after setup. Contact our technical department and order your complete set today!
