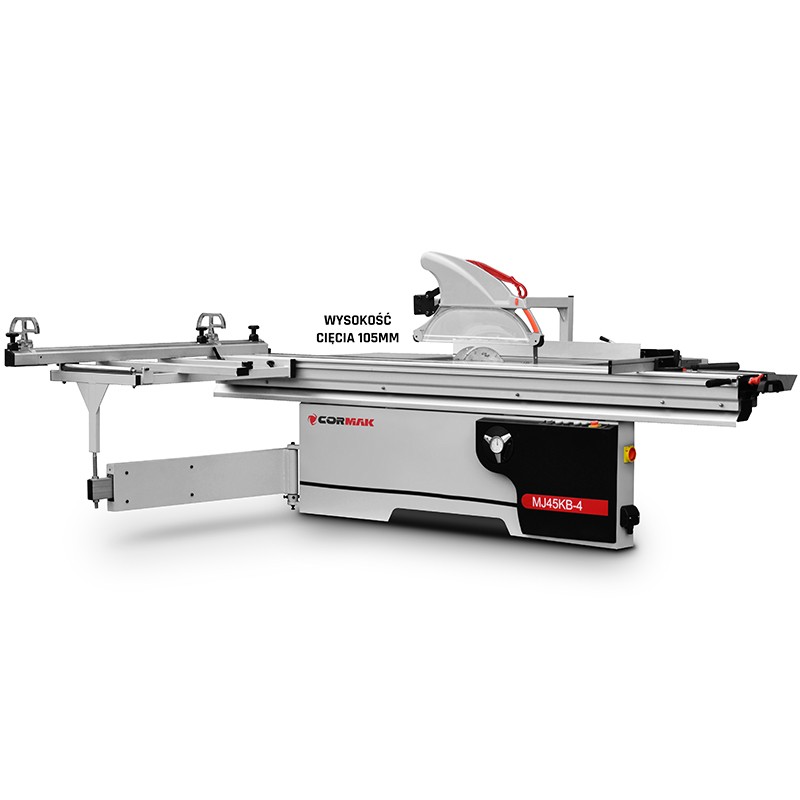

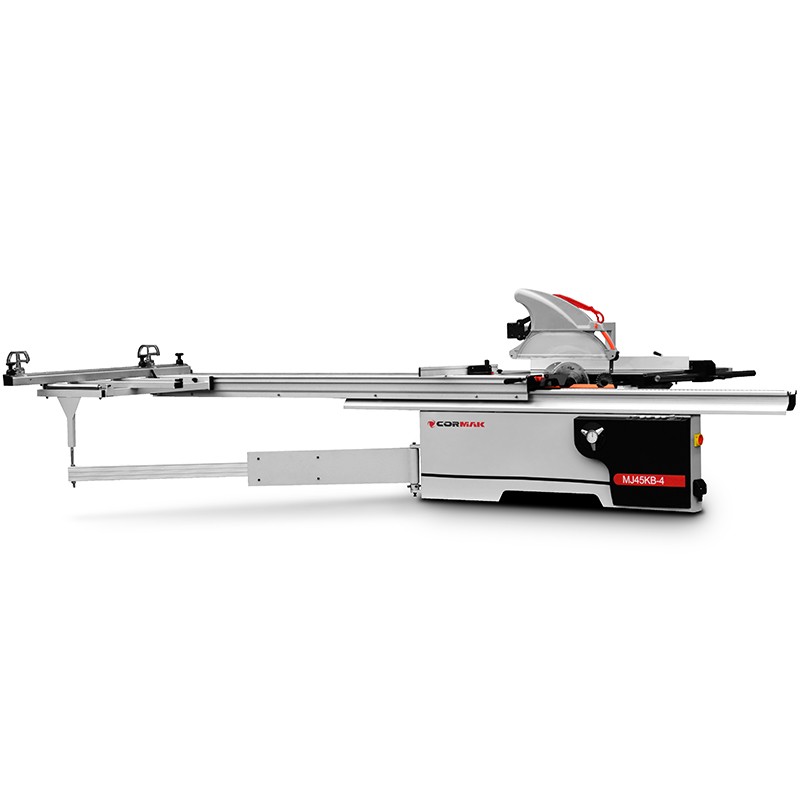

Sliding Panelsaw CORMAK MJ45-KB4 with Scoring Unit – precision cutting of wood-based materials

Sliding Panelsaw CORMAK MJ45-KB4 is a powerful industrial woodworking machine designed for precision cutting of furniture boards, MDF, plywood and other wood-based materials. Equipped with a scoring unit and a large 3200 mm sliding table, it ensures high-quality, chip-free edges. This reliable solution is dedicated to furniture manufacturers, carpentry workshops and production facilities requiring high efficiency and cutting repeatability.

Main advantages of the CORMAK MJ45-KB4 machine

• Precision scoring unit eliminates chipping when cutting laminated panels
• High-performance 5.5 kW main motor enables cutting thicker materials up to 105 mm
• 3200 mm sliding table guided on hardened rods – stability and cutting accuracy
• Cutting angle adjustment 0–45° – flexibility for complex projects
• Ergonomic and intuitive control system with quick access to machine functions
• Solid steel frame ensuring durability and minimal vibration

Construction and technology – quality components determine the result

The CORMAK MJ45-KB4 panelsaw is designed with durability and precision in mind. Its steel bed and reinforced frame increase rigidity, ensuring stable operation even under heavy-duty conditions. Linear guide systems and ball bearings guarantee smooth and accurate movement of the table.

The scoring unit with a Ø125 mm blade rotating at 8000 rpm precisely pre-cuts the underside of the board, preventing edge chipping. The main Ø350 mm blade delivers excellent cut quality even at a maximum depth of 105 mm.

Precision and performance – reliability in everyday use

Main spindle speeds of 4000/6000 rpm allow selection of the optimal cutting speed depending on material type. Blade tilt adjustment within 0–45° enables angled cuts, while manual scoring unit adjustment ensures quick setup without interrupting operation.

The machine meets the expectations of facilities requiring repeatability, dimensional accuracy and minimal material waste.

Applications of the MJ45-KB4 sliding panelsaw

The CORMAK MJ45-KB4 model is used in:

• Furniture manufacturing plants
• Joinery workshops
• Interior fitting and construction woodwork production
• Companies specialising in cutting MDF, HDF, OSB, plywood and wood-based panels

Standard equipment

• Crosscut fence
• Rip fence
• Ergonomic blade guard
• Table extension
• Mitre cutting fence
• Dial indicator for blade tilt
• User manual
• CE Declaration of Conformity

Optional equipment

• Set of saw blades for wood and laminate
• Dust extraction and chip removal systems
• Precision guides with digital readouts
• Panel transport trolley

Choose professional panel cutting and rely on the quality of the CORMAK MJ45-KB4 machine. Contact our technical consultant or place an order online to optimise your workshop cutting process.
