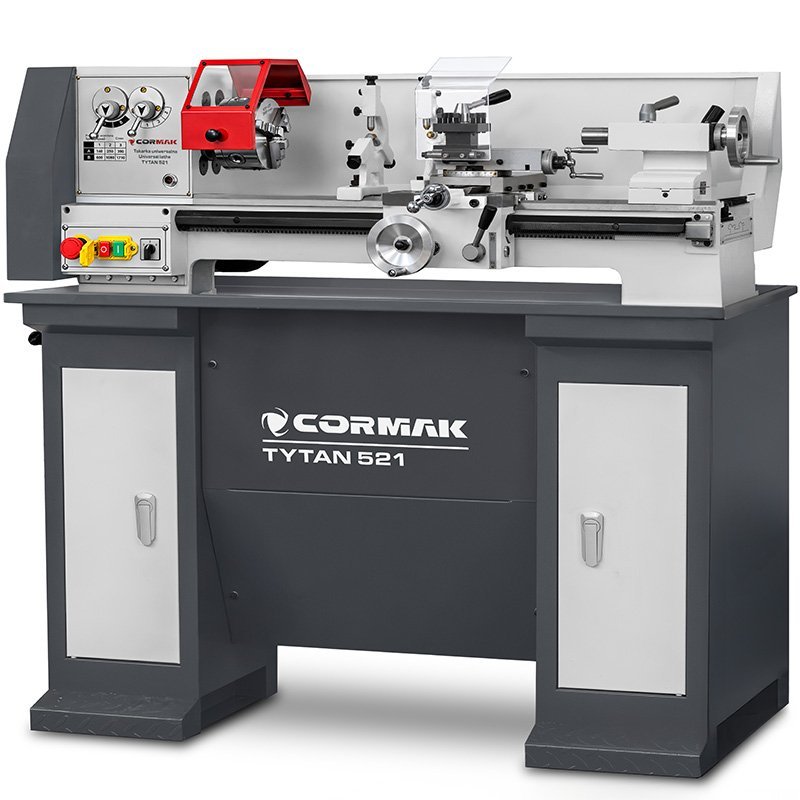

Conventional Universal Lathe CORMAK TYTAN 210x520 230V + Turning Tool Set

Conventional universal lathe CORMAK TYTAN 210x520 + turning tools is a compact, robustly built metal lathe designed for precision machining of small and medium-sized workpieces. With a 520mm distance between centres, 210mm swing over bed and conventional design, the machine is suitable for workshop, repair and service tasks as well as one-off and small-batch production. The TYTAN 210x520 combines compact dimensions with functionality typical of larger conventional lathes. The induction motor used provides a durable and reliable drive, well suited to regular workshop operation.

CORMAK TYTAN 210x520 lathe – a versatile machine for precision metalworking

The CORMAK TYTAN 210x520 has been designed for users who need a versatile workstation for typical turning operations without taking up a large amount of workshop space. The machine enables machining of steel, aluminium, brass and other engineering materials, making it suitable for producing spare parts, bushes, shafts, pins, threaded components and various technical parts.

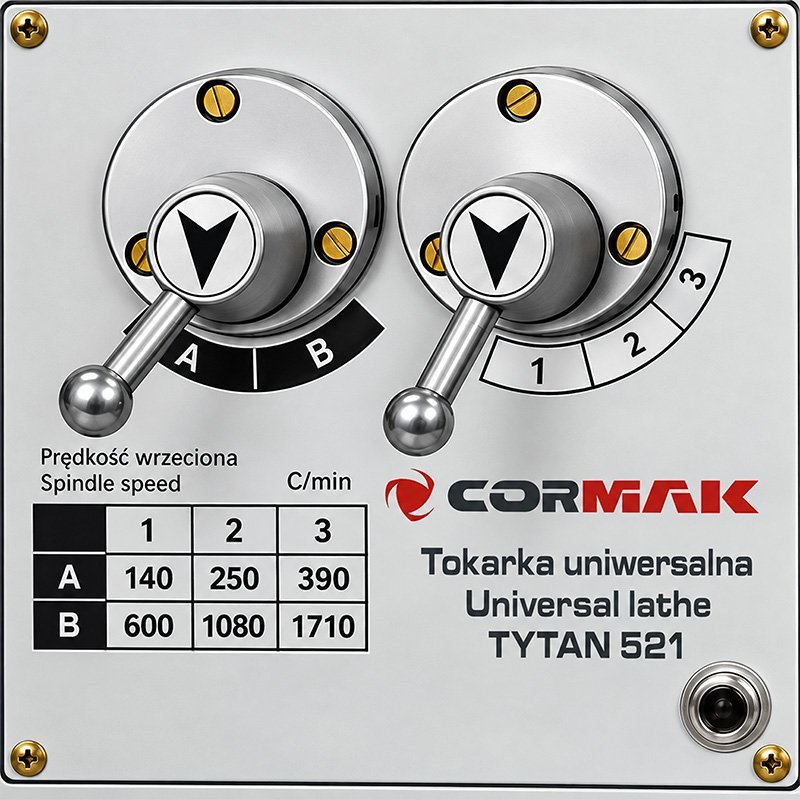

The spindle speed range of 140–1710rpm allows cutting conditions to be matched to the workpiece diameter, material type and tool used. The mechanical transmission system provides clear selection of settings and allows the machine to be used for both rough machining and more precise finishing operations.

An important advantage in everyday use is the ability to perform many different operations at one workstation. In addition to conventional longitudinal and cross turning, the machine can cut threads, machine facing and tapered surfaces, and perform operations using the tailstock. This makes the TYTAN 210x520 suitable as basic equipment for a small mechanical workshop or as an addition to the machine park of a larger facility.

Induction motor – durable drive designed for workshop use

One of the important design features of the TYTAN 210x520 is its induction motor. This type of drive is valued in machine tools primarily for its simple, durable construction and low maintenance requirements. The absence of conventional brushes and a commutator reduces the number of consumable components subject to natural wear during operation.

Compared with a conventional brushed DC motor, an induction motor is particularly advantageous in a machine intended for regular use. Fewer components requiring periodic replacement mean easier maintenance and the possibility of long-term operation without servicing the brush system.

• No carbon brushes – no need for periodic inspection and replacement as required with conventional brushed DC motors.
• Lower maintenance requirements – the simple drive design supports trouble-free operation.
• High durability – the reduced number of friction components has a positive effect on drive system service life.
• Reliability during regular operation – a solution well suited to workshop machine tools.
• No commutator – eliminates another component susceptible to mechanical wear in conventional DC designs.
• Good characteristics for machine-tool drive – the motor works with a mechanical transmission system, allowing suitable spindle speeds to be used for various turning operations.

Wide range of turning operations

The machine design allows the most common machining operations to be performed. The lathe can be used, among other things, for:

• external and internal turning of components of various diameters,
• turning cylindrical and tapered surfaces,
• facing,
• cutting metric and imperial threads,
• drilling, reaming and countersinking holes using the tailstock,
• machining short shafts, bushes, pins, axles and other technical components.

Main advantages of the TYTAN 210x520 lathe

• Induction motor – durable, requires no periodic brush replacement and is well suited to regular workshop operation.
• 210mm swing over bed – suitable for producing many typical workshop components.
• 520mm distance between centres allowing longer shafts and workpieces to be machined.
• 6 spindle speeds from 140–1710rpm allowing parameters to be matched to the type of operation.
• 21mm spindle bore facilitating machining of bar stock.
• MK3 spindle taper and MK2 tailstock taper.
• Capability to cut 11 metric thread sizes and 11 imperial thread sizes.
• 4-way tool post allowing several tools to be prepared for successive machining stages.
• Longitudinal feed 0.05–0.2mm/rev. facilitating repeatable machining.
• Compact dimensions allowing a functional workstation to be organised even in a smaller workshop.
• 230V power supply allowing the machine to be used in many workshops and technical workspaces.

Rigid bed and stable tool guidance

The machine structure is based on a 125mm-wide bed. It is responsible for proper carriage guidance and maintaining the correct position of the machine's main assemblies during operation. Stable support of the working components is particularly important when turning longer workpieces, carrying out successive tool passes and performing operations requiring repeatable dimensions.

The longitudinal carriage offers travel of up to 460mm, while the maximum cross-slide travel is 120mm. These ranges allow the cutting tool to be guided conveniently relative to the workpiece during external turning, facing and other typical operations.

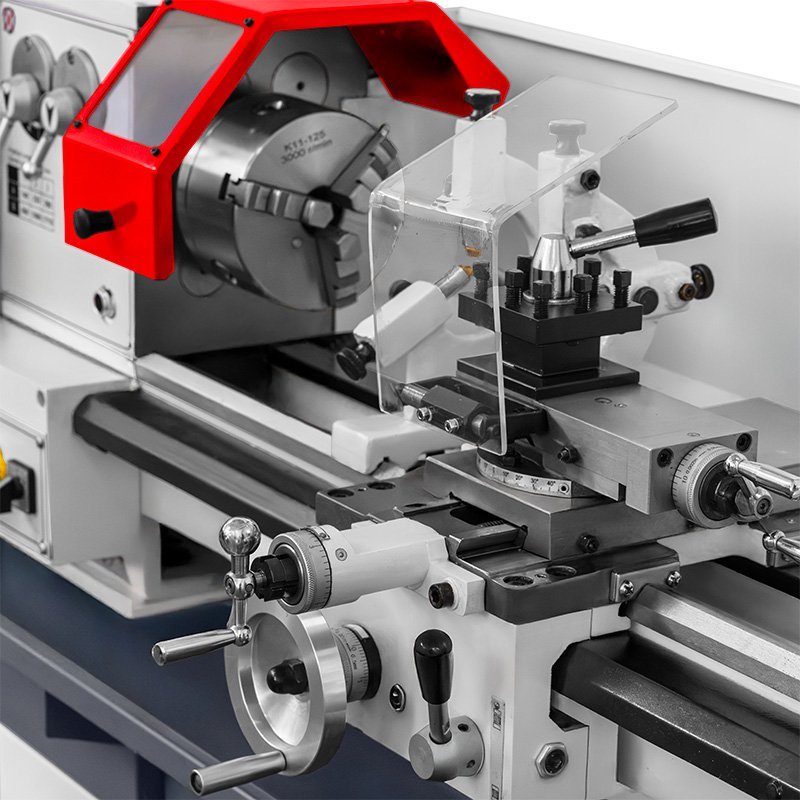

Spindle and workpiece clamping

The lathe is equipped with a spindle featuring a 21mm through bore and MK3 taper. The standard 125mm 3-jaw chuck allows round workpieces to be centred and clamped quickly. The set also includes right-hand and left-hand jaws, increasing the ability to adapt the clamping method to the dimensions of the workpiece.

Tailstock for support and hole machining

The tailstock with an MK2 taper and 50mm quill travel can be used to support longer components and produce axial holes. Suitable additional equipment allows the tailstock to be used, among other things, for drilling, reaming and other operations performed along the workpiece axis.

Metric and imperial threading

One of the important applications of the lathe is thread cutting. The TYTAN 210x520 supports 11 metric thread ranges from 0.4 to 3mm and 11 imperial thread ranges from 8 to 28 threads per inch. The set of change gears supplied with the machine allows the drive system to be configured for the selected thread pitch.

The ability to cut two popular thread systems extends the machine's applications in repair work, component refurbishment, production of non-standard fasteners and manufacture of replacement components for machines and equipment.

Compact lathe for workshops, service work and small-scale production

With dimensions of 1150 × 580 × 550mm and a weight of 120kg, the lathe offers extensive machining capability while requiring relatively little space. This makes it suitable for locations where efficient use of working space is important.

Conventional lathe CORMAK TYTAN 210x520 can be used both for manufacturing new components and for repair machining. It is a suitable solution for users producing a variety of workpieces without the need to dedicate a separate workstation to each operation.

Applications of the CORMAK TYTAN 210x520 lathe

• mechanical and fitting workshops,
• toolrooms and technical departments,
• production facilities,
• service and maintenance departments,
• technical and training workshops,
• one-off and small-batch production,
• manufacture and refurbishment of machine and equipment parts.

Standard equipment

• travelling and fixed steadies,
• set of 5 turning tools,
• 125mm 3-jaw chuck,
• right-hand and left-hand jaws,
• change gears for threading,
• MK2 dead centre,
• oil can,
• chip tray,
• chuck and tool-post keys,
• open-ended and hex keys,
• user manual,
• CE Declaration of Conformity.

Optional equipment*

• lathe stand,
• 4-jaw chuck,
• tool holders,
• live centres,
• turning tools,
• drill chucks for the tailstock.

*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.

Technical parameters – CORMAK TYTAN 210x520

CORMAK TYTAN 210x520 – functional workstation for everyday machining

CORMAK TYTAN 210x520 universal lathe + turning tools is a solution for users looking for a compact machine that still offers the ability to perform many basic turning operations. The durable induction motor, extensive standard equipment, metric and imperial threading capability and wide range of spindle settings allow it to be used for producing new parts, repairs and workshop tasks.

If you need a metal lathe for one-off production, service work or equipping your own workshop, the CORMAK TYTAN 210x520 provides a practical combination of functionality, compact dimensions, durable drive and a wide range of machining capabilities.
