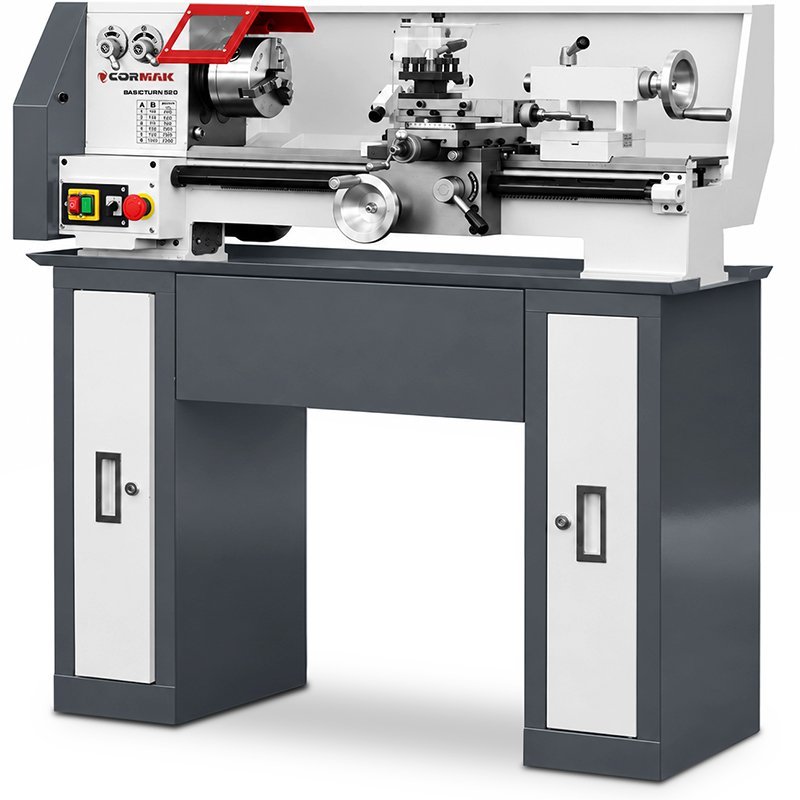

Conventional Universal Metal Lathe CORMAK Basic Turn 210x520 230V + Stand

CORMAK Basic Turn 210x520 is a versatile metal lathe that combines compact dimensions with a wide range of machining capabilities. A maximum 210mm swing over bed and a 520mm distance between centres allow the production of various machine components, such as shafts, bushes, pins and fastening elements. Equipped with an induction motor and a mechanical speed change system, the machine is a practical solution for engineering workshops, technical workshops and small production facilities.

CORMAK Basic Turn 210x520 Universal Lathe – Versatile Metalworking

The Basic Turn 210x520 universal lathe has been developed for users who need a compact yet versatile machine tool for everyday operations. It supports a wide range of machining operations involving steel, aluminium, brass and other engineering materials. It is ideal for producing new components, adapting replacement parts and carrying out mechanical repairs.

The machine offers 6 spindle speeds ranging from 170 to 1,950rpm. The mechanical gearbox allows the appropriate speed to be selected according to the material, workpiece diameter and cutting tool used. This solution ensures convenient operation and allows machining conditions to be adapted to the task being performed.

With the ability to perform external and internal turning, taper turning, threading and drilling using the tailstock, the CORMAK bench lathe can serve as an essential piece of machining equipment. Its versatility makes it suitable for both individual machining tasks and small-batch production.

Induction Motor – Reliable Drive for the Metal Lathe

An important design feature of the Basic Turn 210x520 is its induction motor, which offers durable construction and low maintenance requirements. Unlike conventional brushed motors, it has no carbon brushes or commutator, reducing the number of components subject to mechanical wear.

The use of an induction drive is particularly beneficial for machine tools operated regularly. Eliminating the need for periodic brush replacement simplifies machine maintenance, while the combination of the motor and mechanical gearbox enables efficient use of the available spindle speeds for various turning operations.

• Brushless motor design – eliminates the need to replace carbon brushes during operation.
• Reduced servicing requirements – the simplified drive design reduces maintenance needs.
• Mechanical durability – the absence of a commutator and brushes reduces wear on internal motor components.
• Suitable for regular use – a drive designed for operations carried out in engineering workshops and mechanical service facilities.
• No commutator – fewer components requiring periodic inspection and maintenance.
• Mechanical gearbox compatibility – enables the use of all six available spindle speeds.

Wide Range of Turning Operations

CORMAK Basic Turn 210x520 can perform numerous operations involving the precision machining of metal components. The design of its working assemblies and the ability to use different cutting tools make the machine suitable for both machining new workpieces and refurbishing worn components.

• External and internal turning – machining cylindrical surfaces and bores.
• Shaft and taper turning – producing components with different geometries.
• Facing – producing flat end faces on workpieces.
• Metric and imperial thread cutting – producing threaded connections and replacement parts.
• Drilling, reaming and counterboring – operations performed using tools mounted in the tailstock.
• Machining bushes, pins, axles, spindles and shafts – producing common engineering and workshop components.

Key Features of the CORMAK Basic Turn 210x520 Metal Lathe

• Induction motor – a durable drive without carbon brushes, characterised by low maintenance requirements.
• Maximum swing over bed of 210mm – enables machining of a wide range of metal workpieces.
• 520mm distance between centres – allows workpieces of various lengths to be mounted and machined.
• 6 spindle speeds from 170 to 1,950rpm – mechanical speed adjustment for selecting suitable cutting parameters.
• 21mm spindle bore – useful when machining bar stock.
• MT3 spindle taper and MT2 tailstock taper – allow the use of suitable tooling accessories.
• 11 metric thread pitches and 11 imperial thread pitches – a wide range of thread-cutting capabilities.
• 4-way tool post – enables several tools to be mounted and conveniently changed during operation.
• Drip tray included as standard – collects dripping oil, coolant and other operating fluids, helping to keep the area around the machine clean.
• Compact construction – allows installation in workshops with limited floor space.
• 230V single-phase power supply – allows operation without requiring a three-phase electrical installation.

Robust Bed and Precise Tool Guidance

The lathe's working assembly is built around a 125mm-wide bed, along which the carriage assemblies and tailstock travel. Its construction provides adequate support for the machine components and ensures stable tool guidance during turning. This is particularly important when performing successive cutting passes and machining components that must meet specified dimensional requirements.

The longitudinal carriage offers a maximum travel of 540mm, while the cross-slide travel is 120mm. In addition, the compound slide has a travel of 80mm. This arrangement allows convenient positioning of the turning tool relative to the workpiece and supports a wide range of cutting operations.

Headstock and Lathe Chuck

The lathe spindle has a 21mm through-bore and an internal MT3 taper. Standard equipment includes a 125mm 3-jaw lathe chuck for holding common cylindrical workpieces. The supplied set of internal and external jaws increases flexibility when selecting a suitable clamping arrangement for the shape and dimensions of the workpiece.

Tailstock with MT2 Quill

The tailstock features an MT2 taper and 45mm quill travel. This assembly is used to support longer workpieces with a suitable centre and to hold tools intended for hole-making operations. As a result, the lathe can perform drilling, reaming and counterboring along the axis of the clamped workpiece.

Metric and Imperial Thread Cutting – Greater Workshop Versatility

The CORMAK Basic Turn 210x520 conventional lathe is designed to cut threads in two commonly used systems. Users can select from 11 metric thread pitches ranging from 0.4 to 3mm and 11 imperial thread pitches ranging from 8 to 48 threads per inch. Gear ratios are selected using the appropriate change gears supplied with the machine.

The threading function significantly expands the machine's applications in repair work, manufacturing fastening components, refurbishing assemblies and producing parts requiring threaded connections. The 0.05–0.2mm/rev longitudinal feed range allows tool movement to be adjusted to suit the machining operation.

Drip Tray – Workstation Protection and Easier Cleaning

The lathe's standard equipment includes a drip tray designed to collect oil, coolant and other operating fluids that may drain during machine operation or maintenance. This component helps prevent contamination of the surface supporting the machine and makes it easier to keep the workstation tidy.

The drip tray is particularly useful in workshops carrying out regular turning operations. Together with the supplied chip tray, it provides practical equipment that helps organise the workspace and simplifies cleaning after machining.

Compact Bench Lathe

The Basic Turn 210x520 has overall dimensions of 1,100 × 500 × 550mm and a weight of 110kg. Thanks to its compact dimensions, the machine can be installed on a suitably prepared workstation without requiring a large amount of workshop space.

It is a practical choice for users looking for a bench metal lathe for servicing, one-off and small-batch production, and manufacturing replacement parts. Its combination of functionality, mechanical speed adjustment and an induction motor makes it suitable for a wide range of everyday machining tasks.

Where Can the CORMAK Basic Turn 210x520 Lathe Be Used?

• engineering workshops and metalworking shops,
• toolrooms and technical workshops,
• small and medium-sized production facilities,
• maintenance departments and industrial service facilities,
• training centres and educational workshops,
• prototype manufacturing, one-off components and small-batch production,
• repair and refurbishment of machine and equipment components.

Standard Equipment

• drip tray for collecting oil, coolant and other operating fluids,
• travelling steady and fixed steady rest,
• 125mm 3-jaw chuck,
• internal and external jaws,
• thread-cutting change gears,
• MT2 dead centre,
• oil can,
• chip tray,
• chuck key and tool post key,
• open-ended spanners and hex keys,
• user manual,
• CE declaration of conformity,
• lathe stand.

Optional equipment*

• 4-jaw chuck,
• tool holders,
• live centres,
• turning tools,
• tailstock drill chucks.

Technical Specifications – CORMAK Basic Turn 210x520

CORMAK Basic Turn 210x520 – A Versatile Metal Lathe for Your Workshop

The CORMAK Basic Turn 210x520 lathe combines compact dimensions, a durable induction motor and practical features that simplify everyday metalworking. Six spindle speeds, the ability to cut metric and imperial threads, a stable bed and comprehensive standard equipment provide a wide range of applications for workshop and production operations.

If you need a universal metal lathe suitable for turning, threading, drilling and producing replacement parts, the Basic Turn 210x520 is a practical addition to your machining workstation. It is designed for regular mechanical work, repairs and small-batch component production.

*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.
