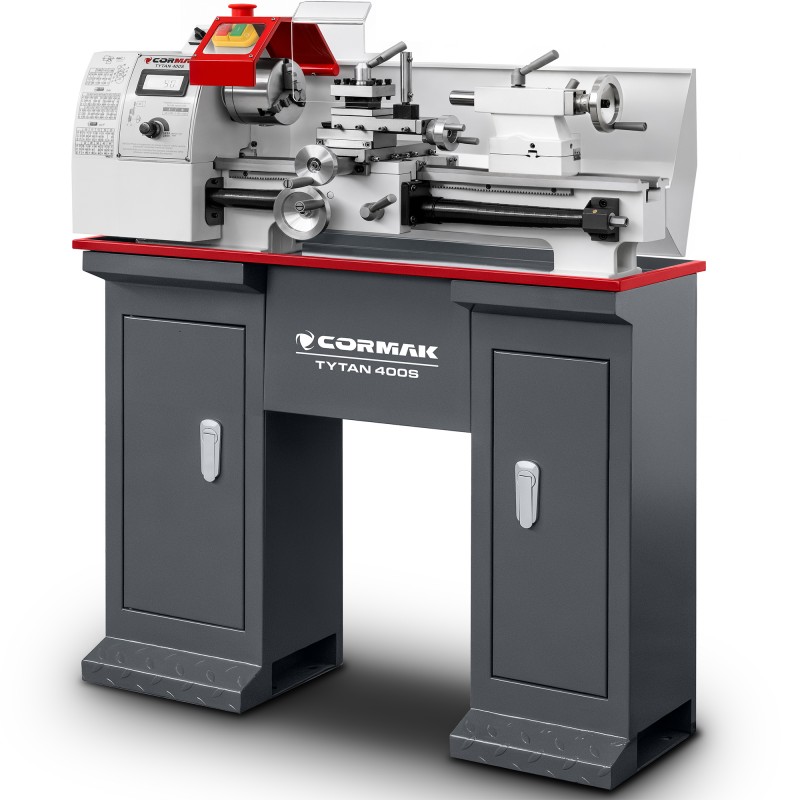

Conventional Universal Lathe CORMAK TYTAN 210x400 VARIO 230V + Stand

The CORMAK TYTAN 210x400 VARIO 230V conventional universal lathe is a compact metal-turning machine designed for the precision machining of components in workshops, tool rooms and small production facilities. Thanks to its stepless spindle speed control, robust construction and extensive threading capabilities, the machine ensures high machining accuracy and comfort in day-to-day operation. It is a reliable conventional lathe that is equally suited to single-piece production, maintenance work and prototyping.

CORMAK TYTAN 210x400 VARIO 230V universal lathe – precision, reliability and a wide range of machining capabilities

The CORMAK TYTAN 210x400 VARIO universal lathe has been designed for users who expect high precision and ease of use. Electronic, stepless speed control allows cutting parameters to be quickly adjusted to the type of material being machined without the need for time-consuming gear changes.

The machine enables a wide range of machining operations, such as:

• external and internal turning,
• turning of cylindrical and conical surfaces,
• face milling,
• metric and imperial threading,
• drilling, reaming and countersinking,
• machining of components made from steel, aluminium, brass and engineering plastics.

The drive, powered by a high-performance 750 W motor, works in conjunction with an electronic speed control system, ensuring stable operation even when machining demanding materials. The speed range of 50–2,500 rpm allows you to select the optimum speed for both rough turning and precision surface finishing.

Key advantages of the machine

• Smooth spindle speed adjustment within the range of 50–2,500 rpm.
• A 750 W / 230 V motor ensuring stable operation.
• Compact design ensuring rigidity during machining.

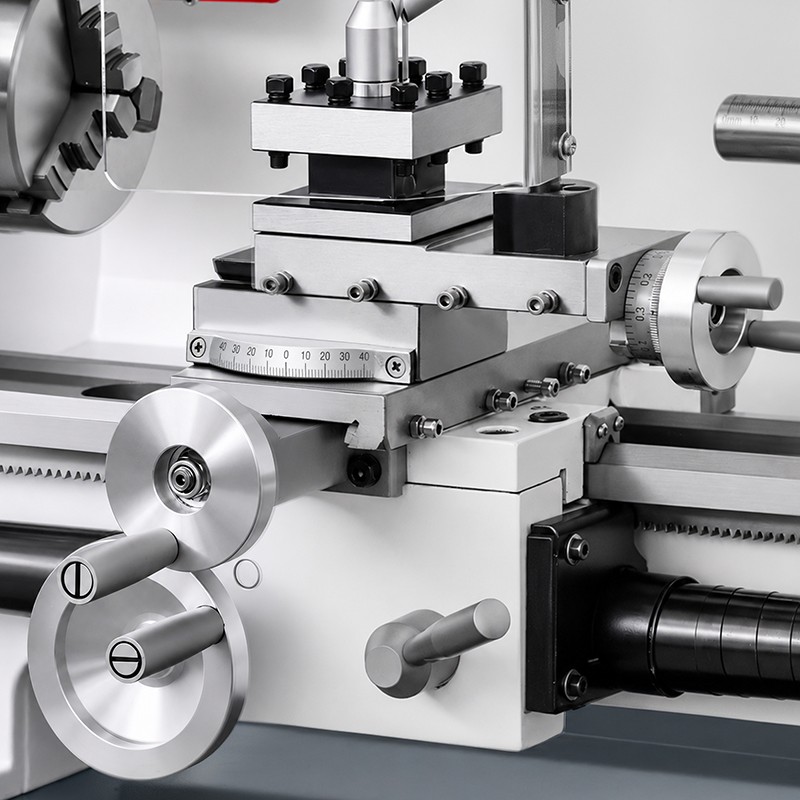

• 4-position tool chuck for quick tool changes.
• Capable of cutting both metric and imperial threads.
• Spindle with MK3 taper and 21 mm bore.
• Forward/reverse operation, enhancing the machine’s functionality.

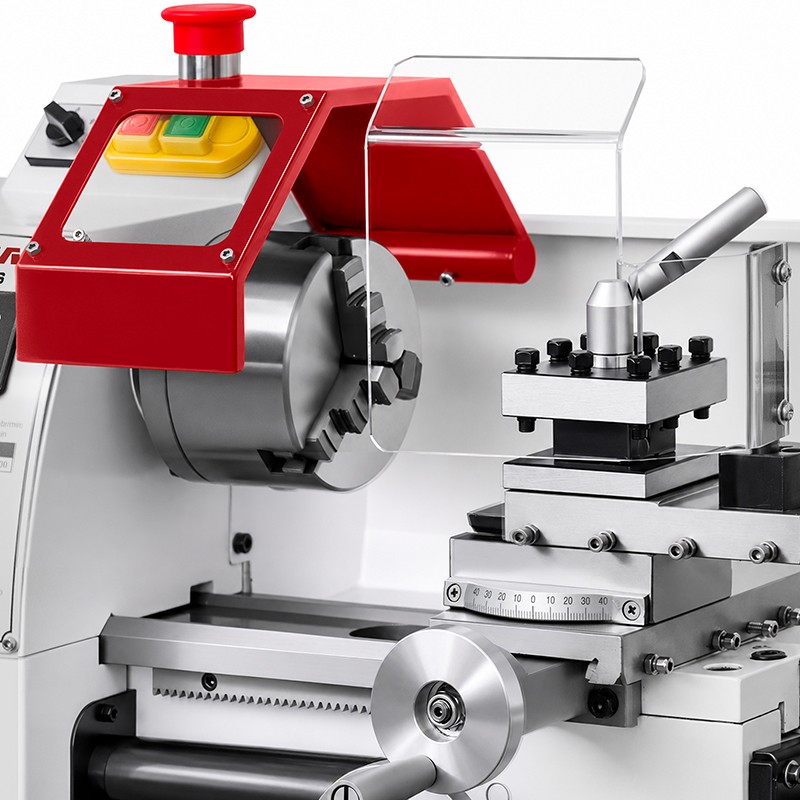

• A hinged spindle guard to improve operator safety.
• A chip tray to help keep the workstation clean.

Construction and technical features

Stable bed and precision guides

The bed width of 100 mm ensures adequate rigidity of the structure during turning. Precisely machined guides minimise vibrations and enable a high-quality surface finish on the workpieces.

Electronic speed control

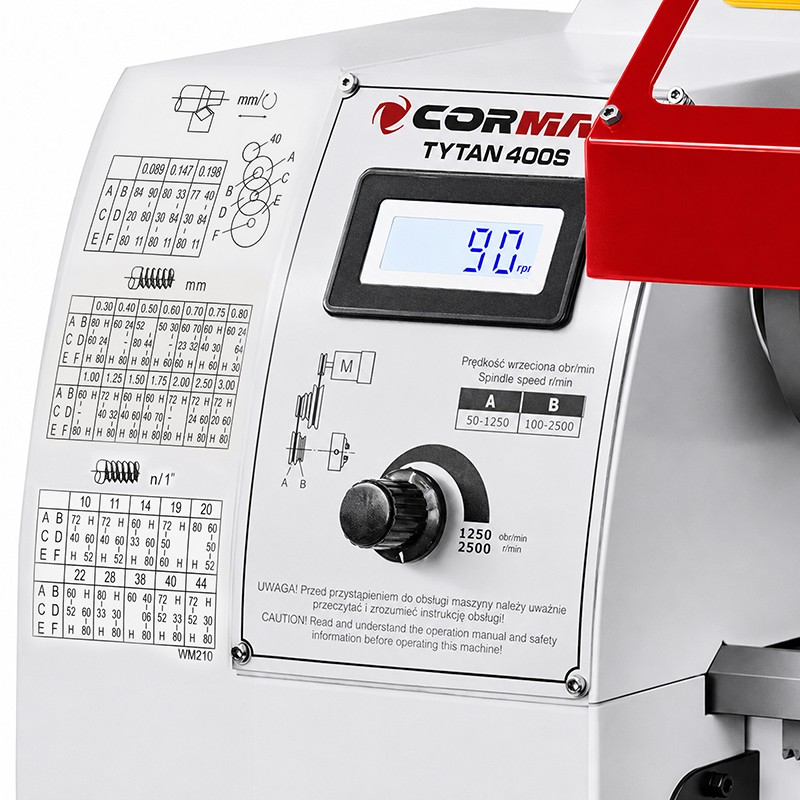

The use of stepless speed control allows the operator to instantly adjust the operating parameters to suit the type of material and tool. The LCD display enables real-time monitoring of the spindle speed.

Spindle and threading system

The spindle, featuring an MK3 taper and a 21 mm bore, ensures stable clamping of the workpiece. The advanced gear system enables the production of a wide range of metric and imperial threads.

Precision and efficiency

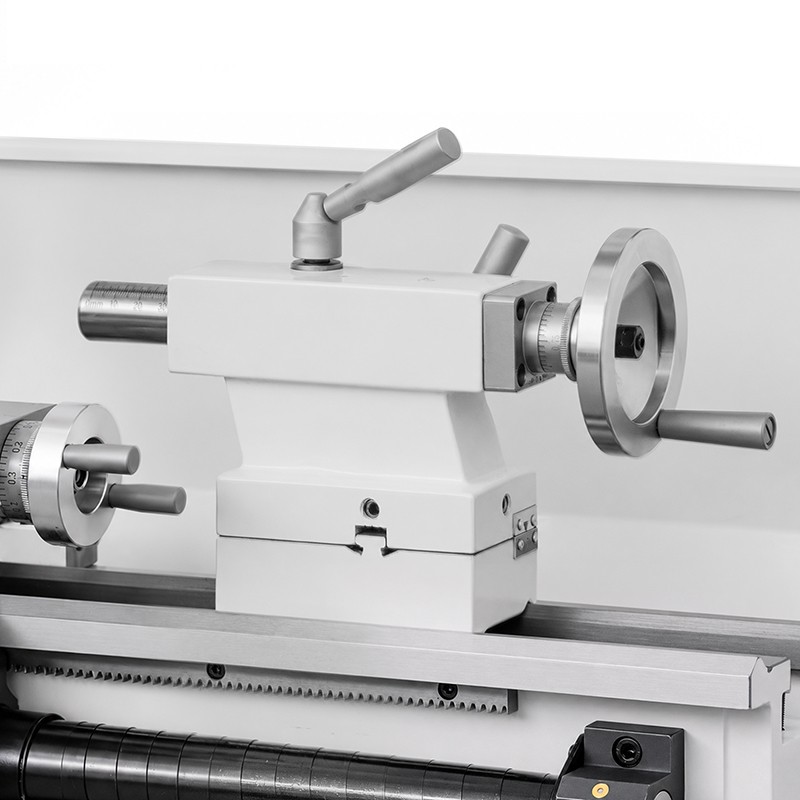

The combination of electronic speed control, a precision feed mechanism and a stable tailstock ensures high dimensional accuracy. The CORMAK TYTAN metal lathe is ideal for short-run production, the manufacture of individual components, the repair of machine parts and toolmaking work requiring a high degree of repeatability.

Applications

• metalworking workshops,
• tool shops,
• manufacturing plants,
• maintenance departments,
• training workshops,
• single-unit and small-batch production.

Standard equipment

• lathe base,
• fixed and movable support
• 3-jaw chuck,
• right and left jaws
• gear wheels for threading,
• MK2 fixed tap,
• lubricator,
• chip tray,
• wrench for the chuck and Imak,
• flat and Allen keys,
• fuses,
• user manual in Polish,
• CE declaration of conformity.

Optional accessories

• 4-jaw chuck,
• tool holders,
• rotating cutters,
• turning tools,
• drill chucks for the tailstock.

Technical specifications – TYTAN 400S

The CORMAK TYTAN 210x400 VARIO 230V universal lathe is a tried-and-tested solution for professionals seeking high precision, reliability and a wide range of machining capabilities. Choose a high-performance conventional lathe that will ensure precise metalworking and a comfortable working experience for many years to come.
