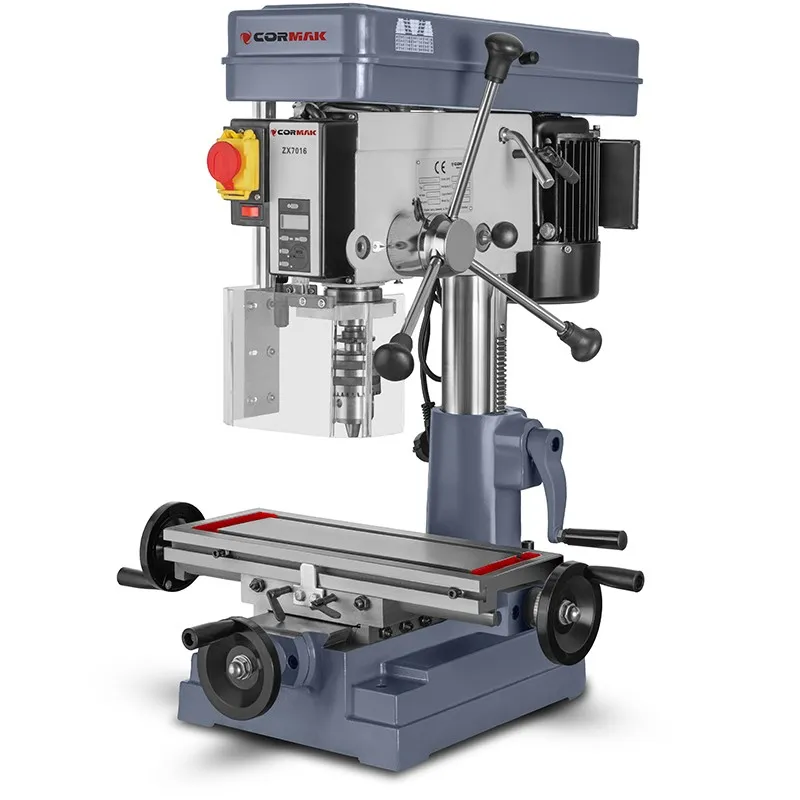

Drilling–Milling Machine CORMAK ZX7016 230V

Metal Drilling–Milling Machine CORMAK ZX7016 230V

The CORMAK ZX7016 230V drilling–milling machine enables drilling and milling of metal components at a single workstation. The integrated cross table, digital depth readout and spindle mounted on precision ball bearings facilitate control over machining operations.

Key Advantages of the ZX7016 230V Drilling–Milling Machine

This bench drilling–milling machine combines workpiece positioning along the X/Y axes with spindle height adjustment. The single-phase 230V / 50Hz power supply allows the machine to be used in workshops equipped with an electrical installation of these specifications.

• Digital drilling and milling depth readout facilitates control of tool penetration depth.
• Metal mechanical components, including pulleys, ensure structural durability.

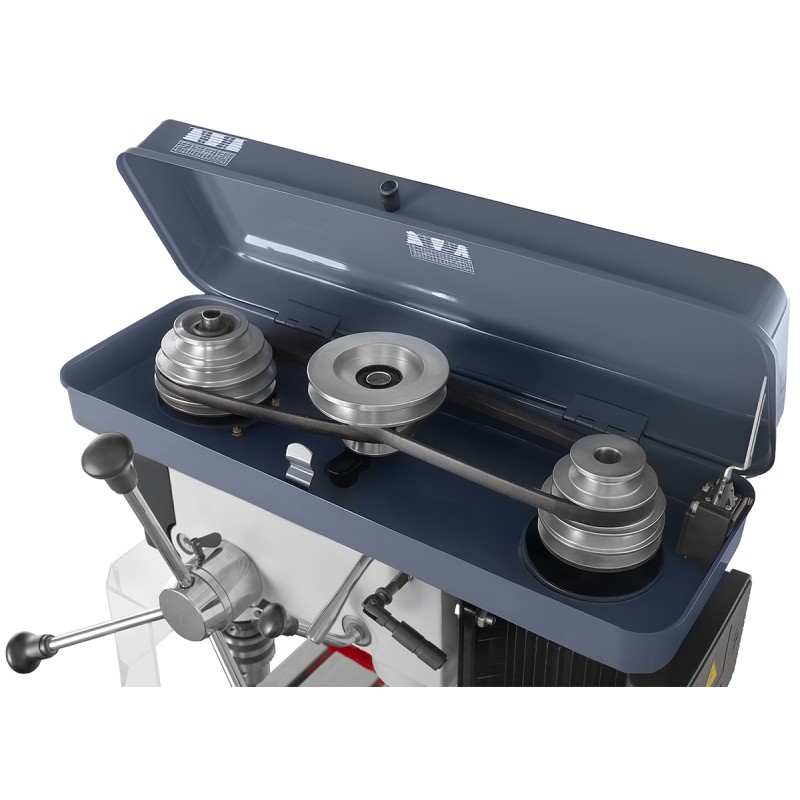

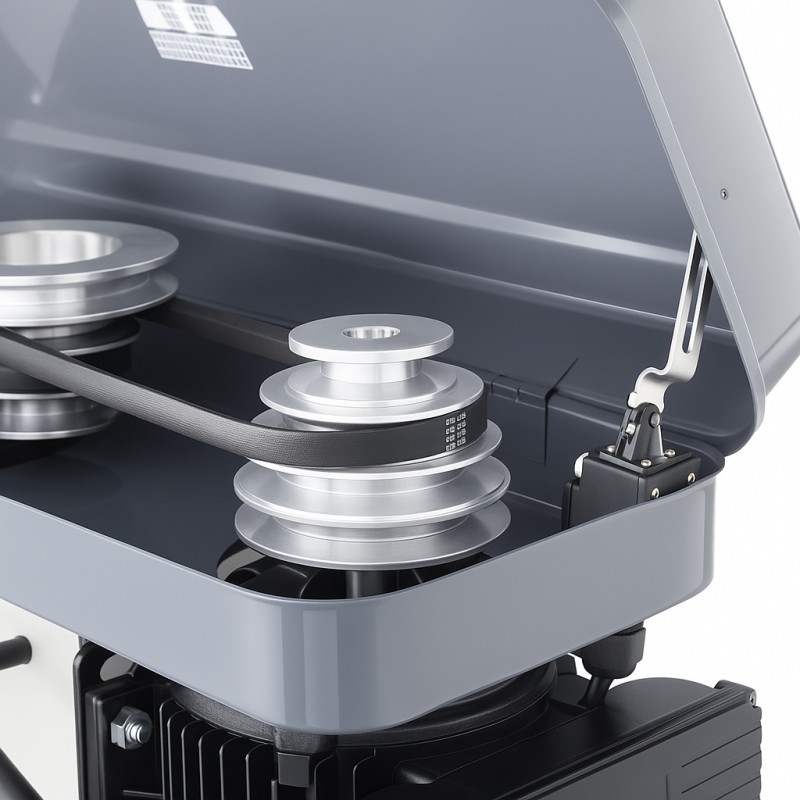

• Belt drive transmission allows the spindle speed to be selected according to the task being performed.

Construction and Technology

The spindle, mounted on precision ball bearings, ensures stable tool guidance. The threaded through-bore spindle allows working heads to be mounted, while the MK2 taper enables compatible tooling to be selected. The machine is powered by a motor rated at S1/S6: 0.55kW / 0.75kW.

Cross Table and Workpiece Clamping

The heavy-duty worktable is an integral part of the machine. Travel distances of 230mm along the X-axis and 115mm along the Y-axis enable the workpiece to be positioned relative to the tool. T-slots are provided for securing tooling, including a machine vice (option*).

Machining Precision and Efficiency

The ZX7016 metal drilling–milling machine offers 12 spindle speeds, ranging from 320 to 3,300rpm. This allows the spindle speed to be matched to the material, tool diameter and type of operation. The quill travel of 80mm and the adjustable distance between the spindle nose and worktable facilitate working area setup.

Workshop Applications

The machine is suitable for drilling holes, milling slots and machining surfaces in mechanical workshops, maintenance departments and workshops producing individual components. The 230V drilling–milling machine enables various operations to be performed without transferring the workpiece between separate machines.

Operational Safety

The machine carries CE marking and an EC Declaration of Conformity. The control panel and safety devices meet occupational health and safety requirements. The spindle and transmission guards are fitted with a microswitch, while the safety switch has an IP54 protection rating.

Technical Specifications

Note: The specified operating parameters are indicative and may vary depending on the material being machined, the tool used and its technical condition (e.g. the degree of wear or dullness).

Standard Equipment

• Drill chuck 1–16
• Drill chuck arbor
• Cross table (worktable)
• Hand tools
• User manual / CE certification

Optional equipment*

• Machine vice for direct mounting on the worktable.

Choose the CORMAK ZX7016 230V drilling–milling machine and contact a CORMAK advisor to select tooling suitable for your planned machining operations.

*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.
