Reference:
xz6350zb

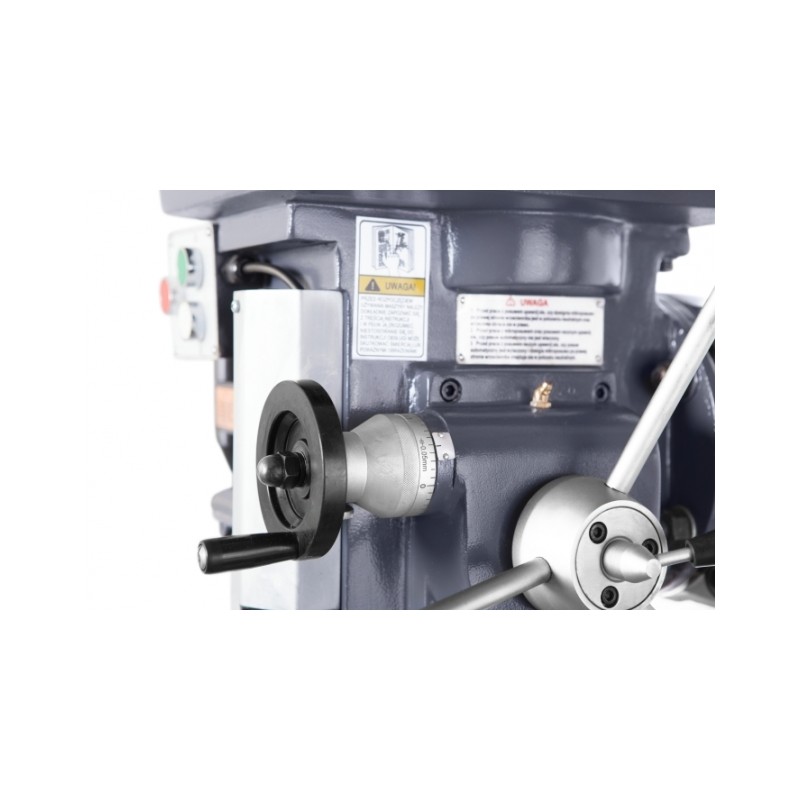

Our CORMAK XZ 6350ZB Drilling–Milling Machine guarantees reliability and precision in one unit. Featuring a simple, durable construction, this machine ensures uninterrupted operation for years. Equipped with both horizontal and vertical spindles, the XZ 6350ZB offers maximum versatility. The ISO 40 tool taper provides stable and accurate machining, while power feeds on the X and Y axes, rapid feed on the Z axis, and a vertically extending spindle make operation intuitive and efficient. The swivelling vertical head (0–90°) and extendable, rotating top arm add flexibility and accuracy. The XZ 6350ZB is the ideal choice for those who value durability and versatility.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Machine characteristics
-
Vertical Head and Horizontal Spindle: The XZ 6350ZB features both a vertical head and a horizontal spindle, providing a wide range of machining capabilities.
-
ISO 40 Tool Taper: The ISO 40 taper ensures secure tool clamping for precise and stable machining.
-
Power Feeds and Rapid Feed: Equipped with power feeds on the X and Y axes and a rapid feed on the Z axis, allowing precise positioning and efficient operation.
-
Extendable Vertical Spindle: The extendable vertical spindle allows better access to the workpiece, improving comfort and control during machining.
-
Mechanical Feed and Automatic Tapping: Three-speed mechanical feed and automatic tapping functionality enhance flexibility and productivity.
-
Swivelling Vertical Head and Extendable, Rotating Top Arm: The head swivels 0–90°, while the top arm can extend and rotate, providing additional versatility and precision for complex operations.
Choose the CORMAK XZ 6350ZB Drilling–Milling Machine and benefit from a complete service package, including warranty, English documentation, professional support, and convenient delivery. CORMAK offers not only outstanding machine quality but also comprehensive customer care.
Technical data
| Working table size | 1270 × 260 mm |
| Table travel (X/Y/Z) | 710 / 320 / 360 mm |
| Number of T-slots | 5 |
| T-slot spacing | 50 mm |
| Max table load | 200 kg |
| Vertical head | Swivelling 90° |
| Spindle travel | 120 mm |
| Spindle taper | ISO 40 |
| Mechanical spindle feed | 0.08 / 0.15 / 0.25 mm/rev |
| Vertical spindle speed range | 90–2000 rpm |
| Horizontal spindle speed range | 40–1300 rpm |
| Longitudinal feed rate | 24–402 mm/min |
| Cross feed rate | 24–402 mm/min |
| Rapid feed | For Z-axis |
| Top arm travel | 460 mm |
| Vertical spindle to column distance | 260–740 mm |
| Vertical spindle to table distance | 100–440 mm |
| Horizontal spindle to table distance | 0–300 mm |
| Digital readout | 3 axes |
| Main motor power | 2.2 kW / 3 HP |
| Overall dimensions | 1520 × 1289 × 2150 mm |
| Weight | 1420 kg |
Standard equipment
- Digital readout for 3 axes

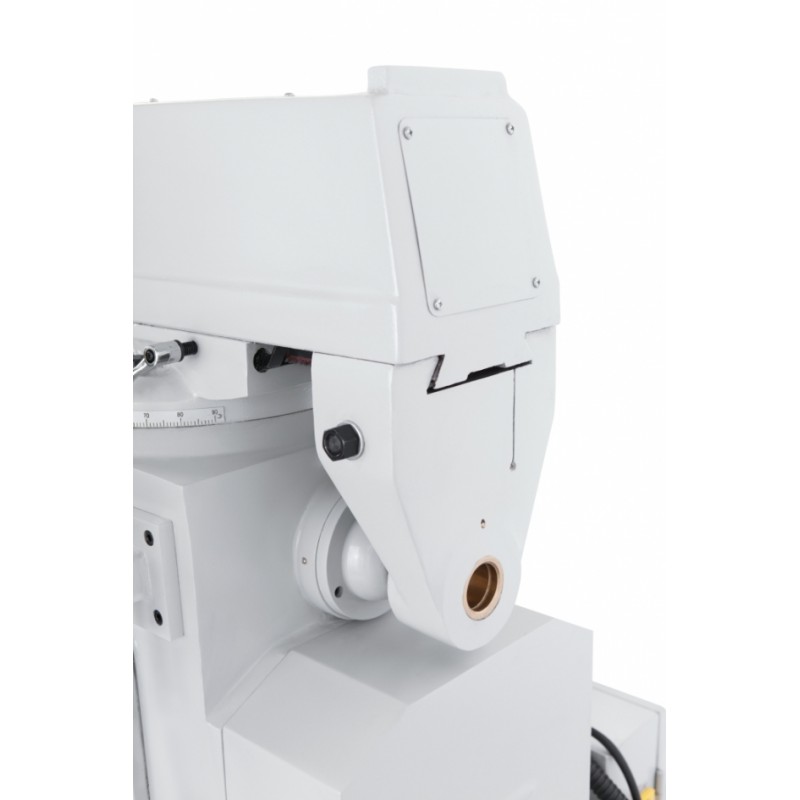

- Horizontal spindle support (arbor bracket)
- Long milling arbor
- Work table guard
- Milling arbor with complete collet set for end mills
- Drill chuck 1–16 mm
- Reduction sleeves ISO 40 / Morse taper
- 24 V work light
- Coolant system
Optional accessories
- Swivel vices
- Tilting vices
- Precision vices
- Rotary tables
- Dividing heads
- Tapping heads
- Milling heads
- End mills (HSS, HSSE, HSS-PM, VHM)
- Straight shank drills
- Taper shank drills
- Milling inserts
- Hand and machine taps
- Clamping kits
- Tool holders (collet, Weldon)
- Driving arbors
- Drill chucks
