Reference:
ZX7032g400V

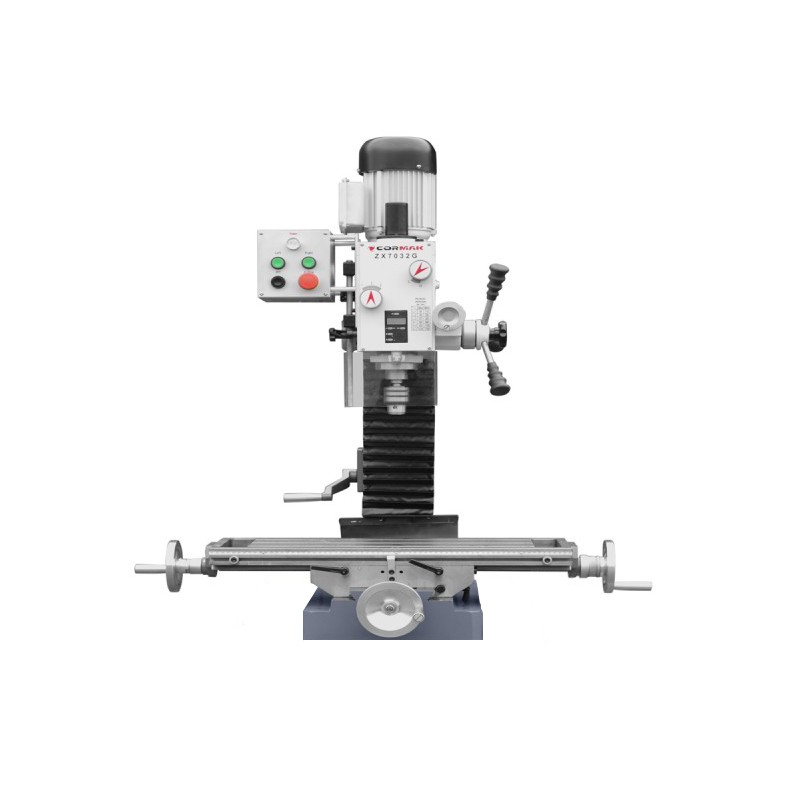

This machine can be used for drilling, reaming and enlarging holes up to 32 mm in cast iron, as well as tapping holes up to M12, milling up to a width of 80 mm and slotting up to 22 mm. It is also suitable for cutting and face milling operations.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Machine description

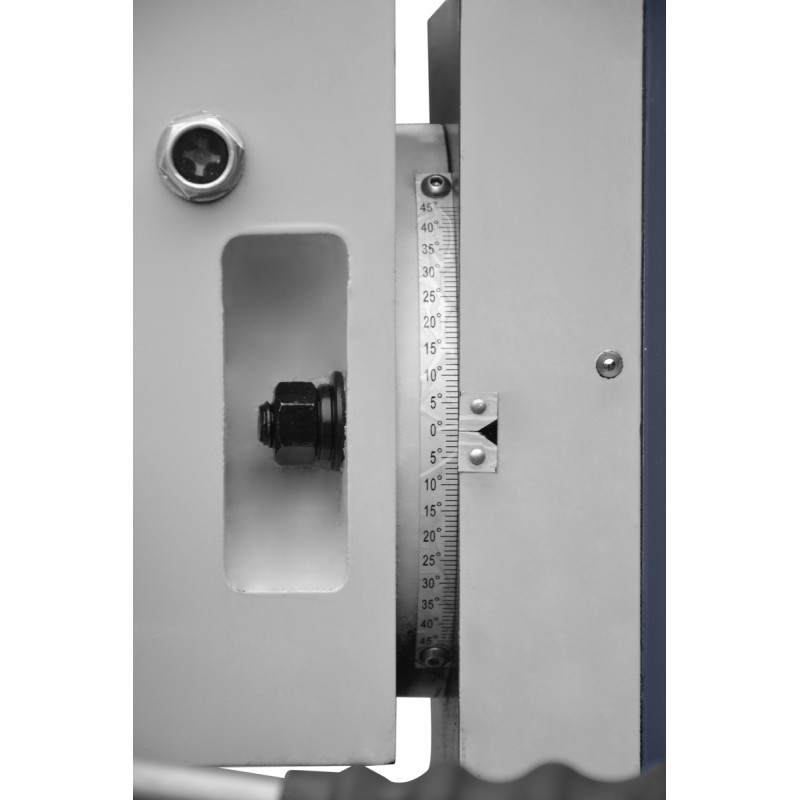

- Tilt head ±45°
- Digital spindle travel display
Technical parameters
| Max drilling diameter in steel/cast iron | 32 mm |
| Max face mill diameter | 63 mm |
| Max end mill diameter | 16 mm |
| Max thread diameter | M12 |

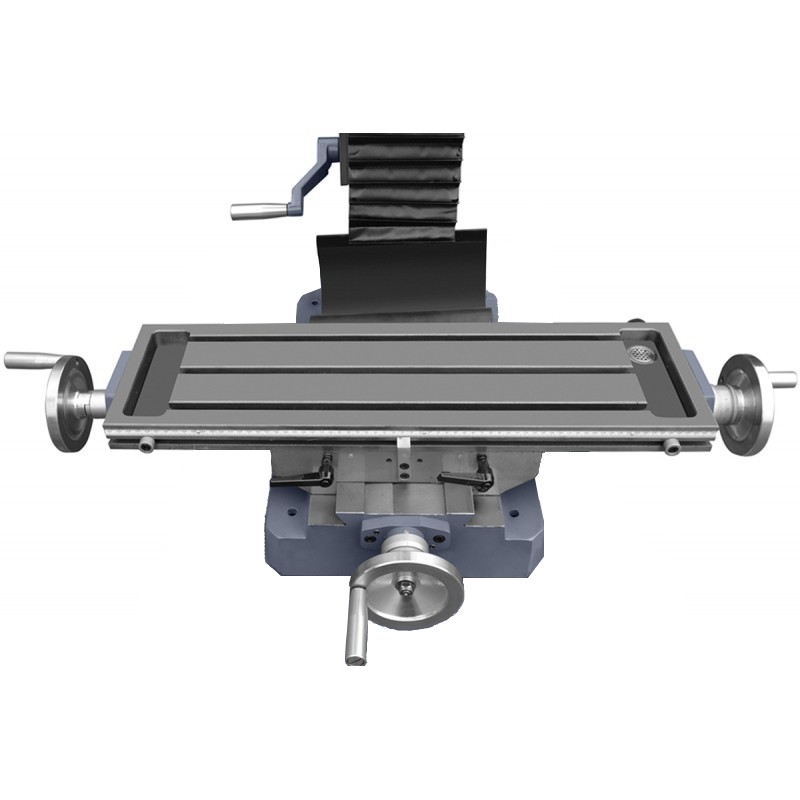

| Table dimensions | 700 × 190 mm |
| Table travel X / Y | 460 / 225 mm |
| Distance from spindle nose to table | 65 – 460 mm |
| Spindle quill travel | 75 mm |
| Distance from spindle axis to column | 170 mm |
| Head rotation angle | ±45° |
| T-slot size / spacing / number | M10 / T12 / 63 mm / 3 |
| Spindle speeds (6 gears) | 95 / 180 / 270 / 500 / 930 / 1420 rpm |
| Spindle taper | MT3 |
| Motor power / supply | 0.9 kW / 1.2 HP / 400 V |
| Weight (without base) | 185 kg |
| Dimensions (without base) | 1050 × 750 × 1250 mm |
Milling machine base available as an optional accessory.
Are you interested in this product?
Contact our consultant

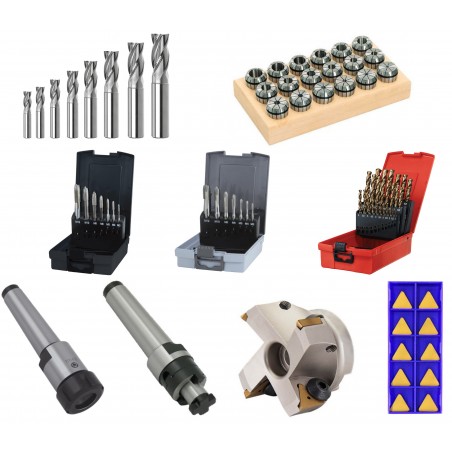

Optional equipment
