CNC Milling Machine / CNC Router CORMAK C1325 ATC (1300x2500) with Automatic Tool Changer

1. Work table

• Sectional table with FOUR independent vacuum sections made of rigid and durable HPL boards.

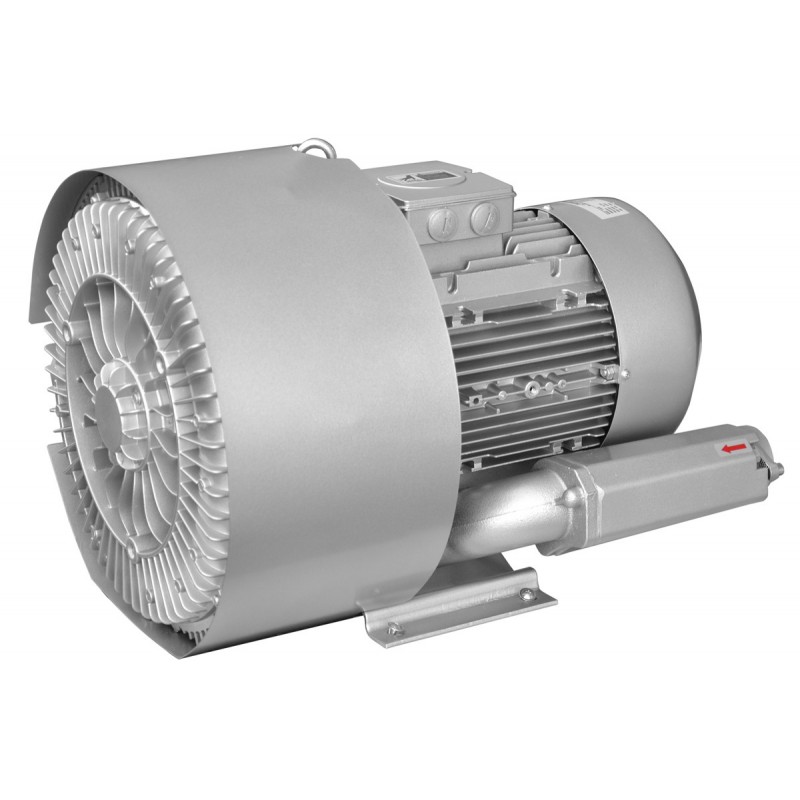

• Each section includes holes connected through a piping system to the vacuum pump.
• Main openings on the vacuum table are fitted with caps, enabling clamping of different material formats.
• The work surface is covered with a network of channels that allow even vacuum distribution across the entire table.
• Also includes grooves for manual material clamping.

2. HQD Spindle

• Brushless spindle from a renowned manufacturer with 9kW power, powered by an inverter and protected against overloads.
• Air-cooled milling spindle with an innovative air-cooling system.
• Designed for automatic tool change, reducing downtime caused by manual tool replacement.
• Automation allows the use of all tools without recalibration or production interruption.

3. Drive system

• Energy-efficient Leadshine 1500W servo drives with high holding torque (dual drive on Y axis).

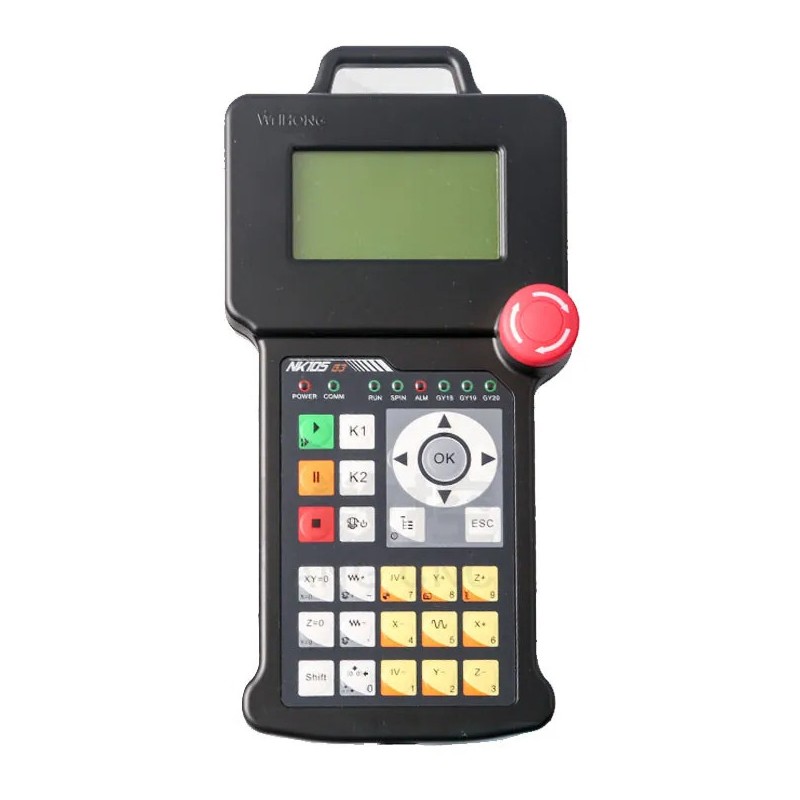

• Controlled by a NK-105 G3 digital controller ensuring excellent machining quality at high working speeds.
• Brushless servo motors on X and Y axes transmit drive through high-quality planetary gearboxes.
• Z-axis, where positioning precision is essential, is driven by a reinforced ball screw.
• Movement along X and Y axes is achieved via HIWIN linear guides and helical racks made of hardened and tempered steel for long-term durability.
• Professional HIWIN trapezoidal linear guides are tested and verified at each assembly stage.
• Central, maintenance-free lubrication system for key moving elements such as carriages and ball screws, saving time and extending service life.

4. Structure

• The sliding gantry is made of cast iron, ensuring outstanding rigidity and vibration absorption during machining.
• The robust ribbed steel table construction eliminates vibration during operation.

5. 4-Tool Magazine + Tool Height Sensor

• Equipped with a 4-position linear tool magazine, ISO30 holders, and ER32 collets.
• Includes tool holders: ISO30 and collets sized 1/2" (6 pcs), 1/8" (2 pcs), 3–4mm (2 pcs), 5–6mm (4 pcs), 7–8mm (2 pcs), 9–10mm (2 pcs).
• Each CNC machine includes a precise Z-axis tool height sensor eliminating measurement corrections after each tool change.
