CNC Wood Milling Machines

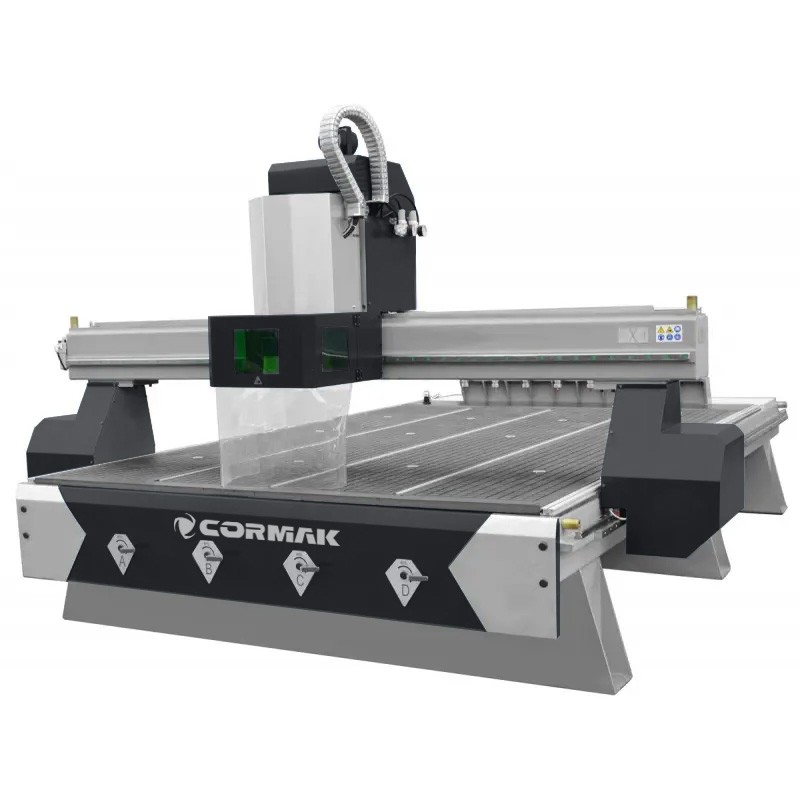

4-Axis CNC Router CORMAK C2040 ATC PREMIUM 2150x4300 with Hybrid Table
Manufacturer:
CORMAK
The machining centre with industrial control provides versatile machining capabilities including cutting, drilling, milling, and engraving. Easy access to the machine allows operation by a single operator. The offered CNC router is a precise machine based on components from leading global manufacturers. The CORMAK C2040 ATC CNC router is designed for processing and cutting wood, chipboard, MDF, OSB, plywood, and plastics such as PVC, plexiglass, and dibond. AC YASKAWA SERVO motors ensure appropriate acceleration and travel speeds on each axis.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Machine description

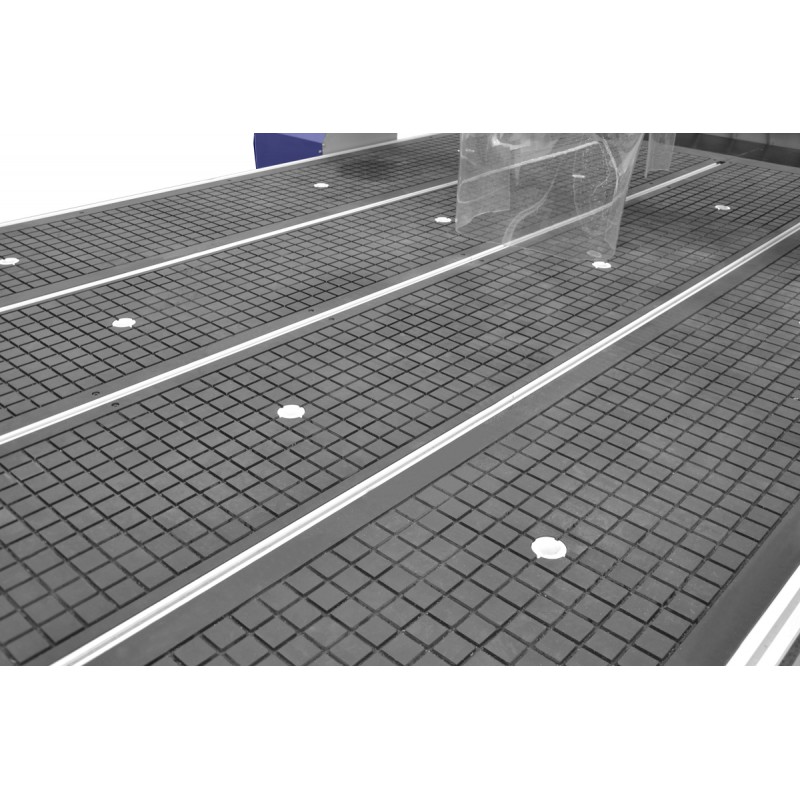

1. Working table
- The working table is manufactured using hybrid technology,
- It features grooves allowing manual material clamping of workpieces measuring 2100 x 4300 mm,
- Sectional table with four independent vacuum zones together with a 7.5 kW pump!

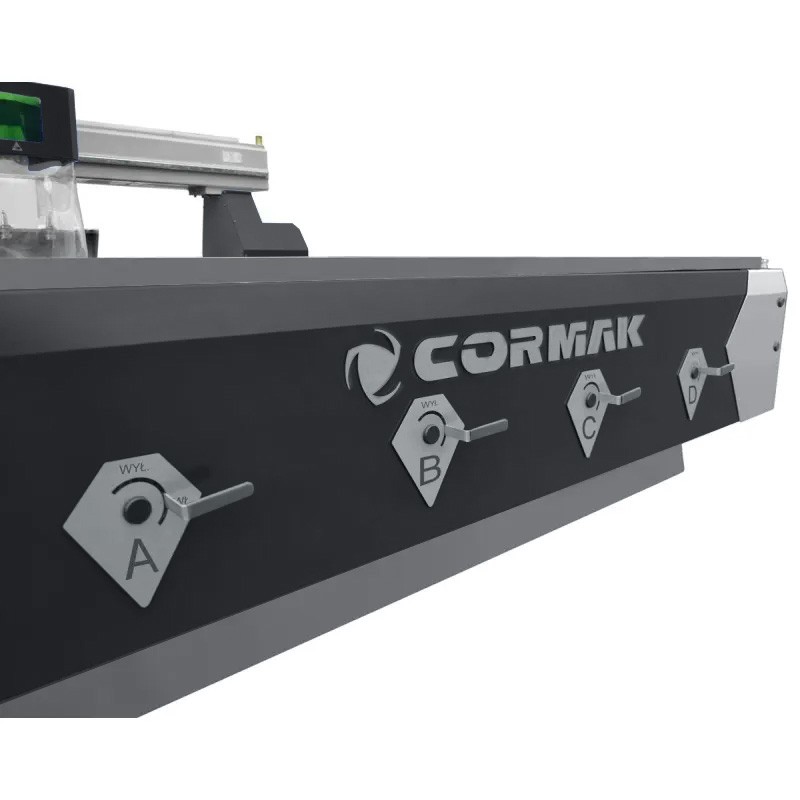

2. Adjustment of vacuum table zones

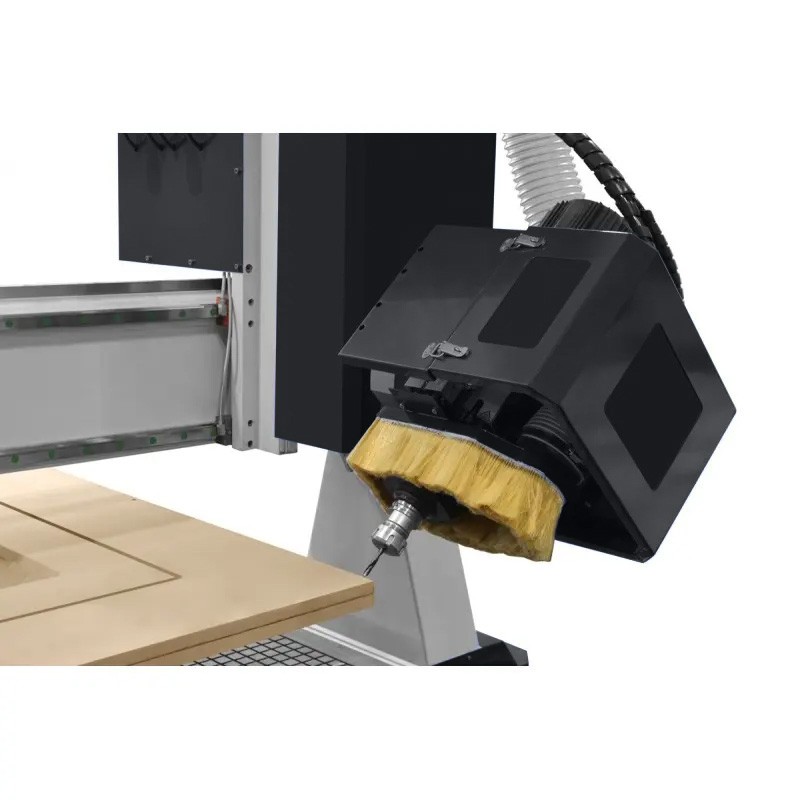

3. HQD spindle
- High-class brushless spindle characterised by high power output of 9 kW
- Additionally equipped with an innovative AIR cooling system / not liquid cooled!
- The spindle design uses high-quality machine bearings, ensuring very quiet operation and extended service life.
- The spindle speed range is from 4,500 to 24,000 rpm.
- Possibility of adding oil mist lubrication for an additional charge
4. 4th axis

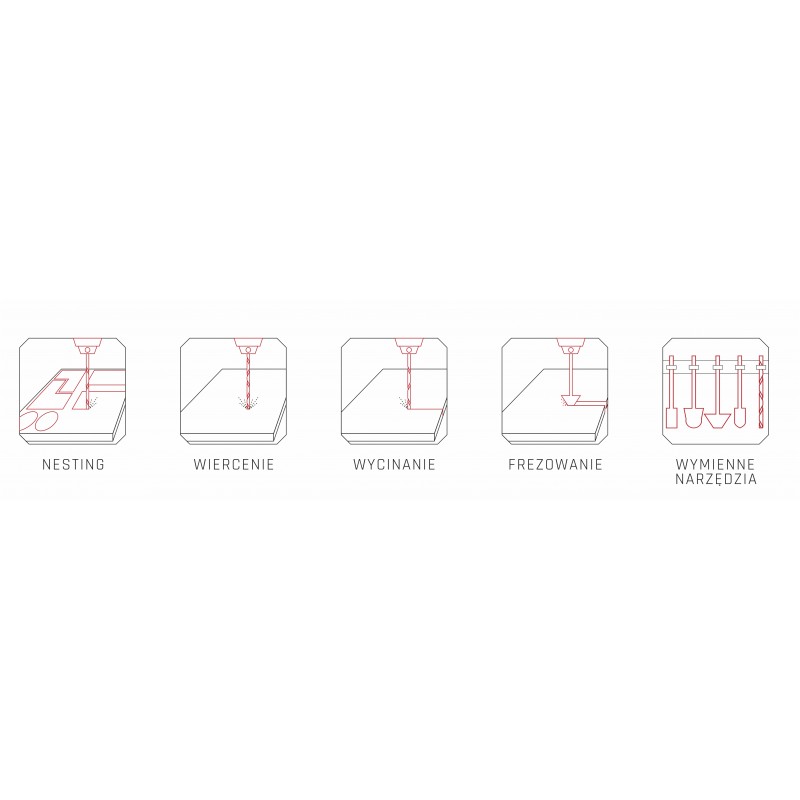

- Versatile machining capabilities (cutting, drilling, milling, engraving)
- Free access to the machine enabling operation by a single operator

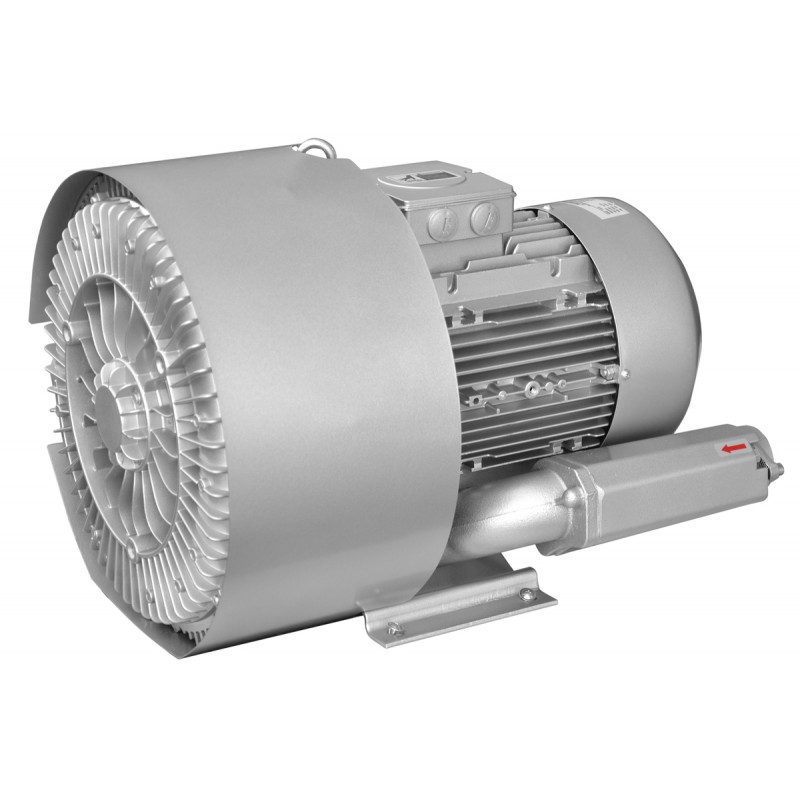

5. Vacuum pump (option*)
- Vacuum pump – 7.5 kW (up to 440 mbar)
- 4 independent vacuum zones
6. Drive system
- SERVO motors used to drive high-power machine tools ensure appropriate acceleration and axis speeds.
- High-quality rack-and-pinion drives operate on the X and Y axes, providing durability and precision,
- The Z axis is driven by a high-quality ball screw.
- All axes move on linear guide rails.
- The machine is equipped with a tool height sensor.
- Gantry drive on rack-and-pinion system, rolling linear guides.
- Linear bearings: trapezoidal rails, Hiwin carriages.
7. Construction
- The moving gantry structure is made of cast iron, providing exceptional rigidity and excellent vibration damping during machining.
- Rigid table construction made of high-quality materials, thermally treated during the manufacturing process.
- Free access to the machine allowing operation by a single operator.
8. Tool magazine
- Tool holder ISO30 ER32 collet
- Tool magazine 8 positions
- Tool height measurement sensor
- Included tool holders: ISO30 and collets for tool diameters:
-1/2" – 6 pcs
-1/8" – 2 pcs
-3–4 mm – 2 pcs
-5–6 mm – 4 pcs
-7–8 mm – 2 pcs
-9–10 mm – 2 pcs - An air compressor connection is required for automatic tool change
Software, INDUSTRIAL CONTROL:
- The machine supports the latest CAD/CAM software.
- OPTIONAL Latest software UCanCAM V13 (software enables file import from Corel, AutoCAD, etc.; import/export of files, editor, text input, and many other functions)
- The software allows fast and easy design of components, which are then converted into G-code. Import of ready-made files from other programs is also possible.
- The machine features a function to resume from the last G-code path in the event of a power failure, continuing from the last point without loss of time or material.
AC YASKAWA SERVO motors used to drive high-power machine tools ensure appropriate acceleration and axis speeds.
The router operates on new-generation software.

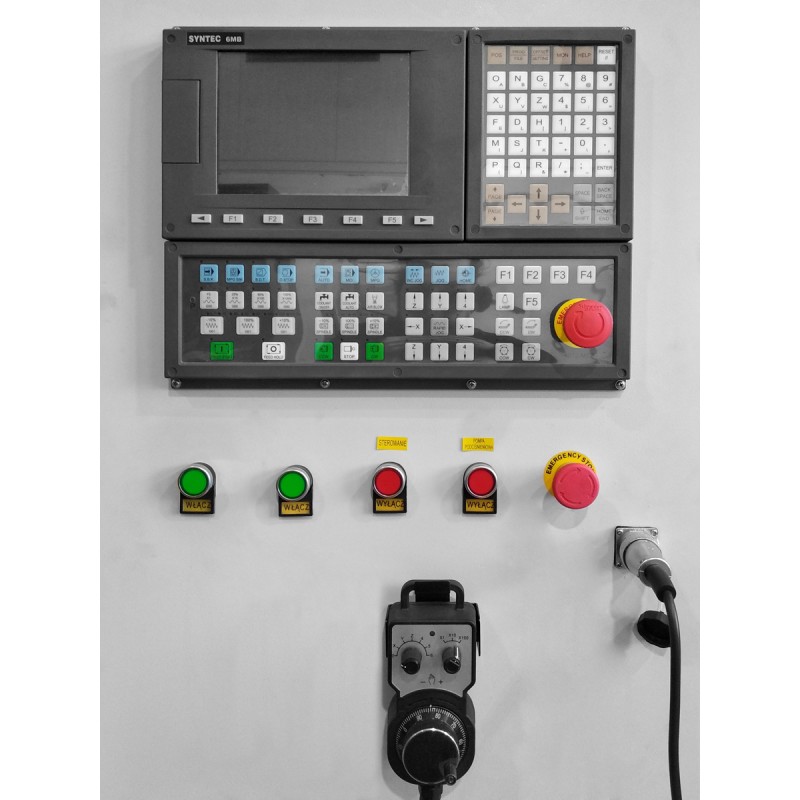

The machine is controlled via a Japanese industrial controller with a handwheel and LCD display.
We offer machine tools with full CE certification.
By choosing the CORMAK brand, you choose machining precision, long service life, and safety for operators.
Technical parameters
| Working area | 2150x4300 mm |
| Z axis | 350 mm |
| Construction | Gantry – cast iron / table – welded steel |
| Drives | servo motors, hybrid |
| Table | hybrid |
| Spindle power | 9 kW |
| Spindle | HQD air-cooled (optional oil mist) |
| Spindle speed | from 6,000 to 24,000 rpm |
| Power supply | 400 V, compressed air min. 8 bar |
| Re-positioning accuracy | 0.01 mm |
| Linear bearings | trapezoidal rails, Hiwin carriages |
| Material clamping | vacuum, hybrid |
| Vacuum pump | (option*) 7.5 kW, 4 independent vacuum zones |
| Software | UCanCAM V13 (option*) |
| Dimensions | 5070 x 2870 x 1950 mm |
| Weight | 2450 kg |
Equipment
- Air-cooled spindle, Premium version
- AC Yaskawa hybrid servo drives
- Raised gantry on Z axis up to 350 mm
- Vacuum table – 4 independent vacuum zones + T-slot table for manual material clamping (clamps included)
- Tool measurement sensor included
- Tools, collet set, levelling feet, and other accessories
- SYNTEC control system
- Tool set: milling cutters, drills, holders
Unloading and positioning of the machine on the customer’s side.
Power plug on the customer’s side due to different 16A / 32A sockets.
Commissioning of CNC routing machines:
Commissioning of CNC routing machines
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
