Geared Column Drill with Power Feed CORMAK ZS-40B

Geared Column Drill with Power Feed CORMAK ZS-40B + Tapping Chuck Set

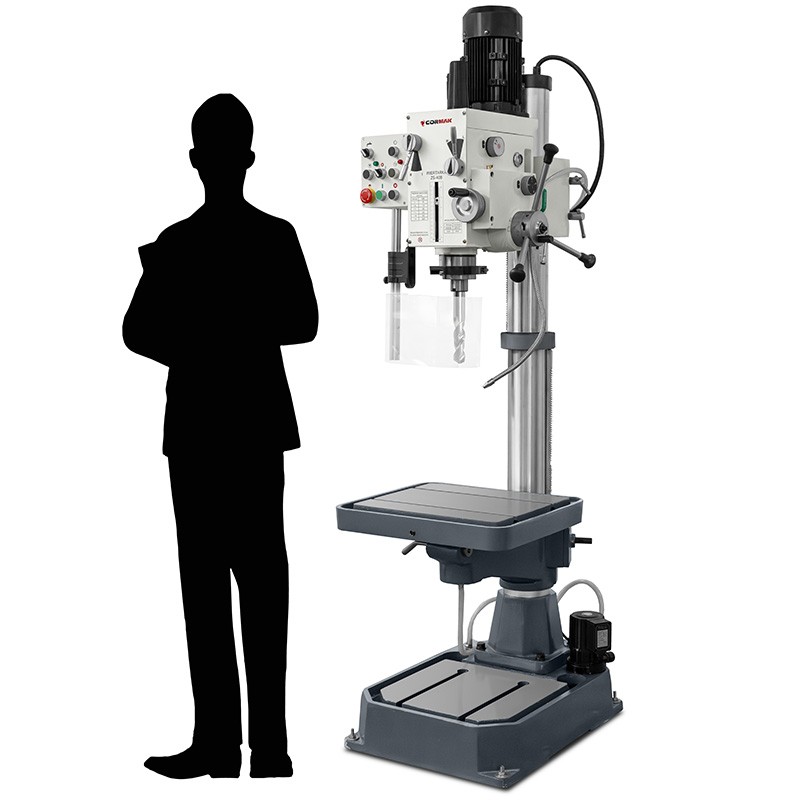

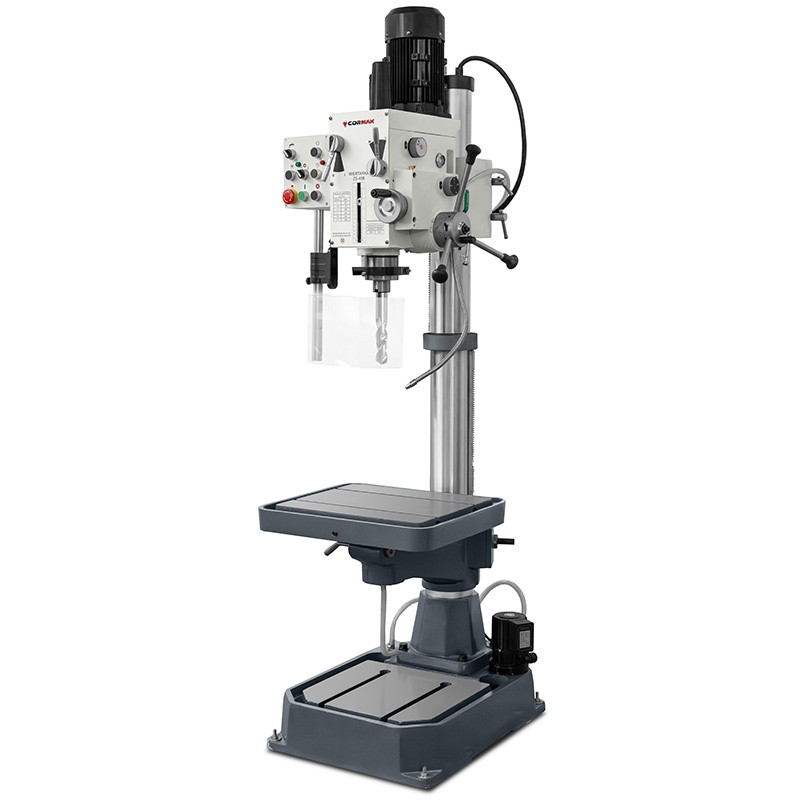

The industrial column drill CORMAK ZS-40B with power feed is a solid, precise and efficient metal drilling machine designed for intensive use in production plants, workshops and toolrooms. Featuring an automatic feed, oil-immersed gearbox and tapping function with reversible spindle rotation, it provides comfortable and safe operation for both drilling and tapping. Supplied complete with a tapping chuck set – ready for immediate use.

Main advantages

• Automatic vertical feed – three feed ranges (0.12 / 0.18 / 0.25 mm/rev) allow precise adjustment of cutting parameters.
• Tapping function with automatic left-hand rotation – enables safe and fast thread cutting up to M32.
• High structural rigidity – 115 mm diameter column and cast-iron base ensure stability and eliminate vibration.
• Hardened oil-bath gearbox – provides reliability and durability even during continuous operation.
• Rotating worktable with adjustable height – allows easy positioning of workpieces of various sizes.
• Coolant system as standard – protects tools from overheating, extending service life and machining accuracy.
• Tapping chuck set INCLUDED – a practical extension of the machine’s functionality.

Construction and technology

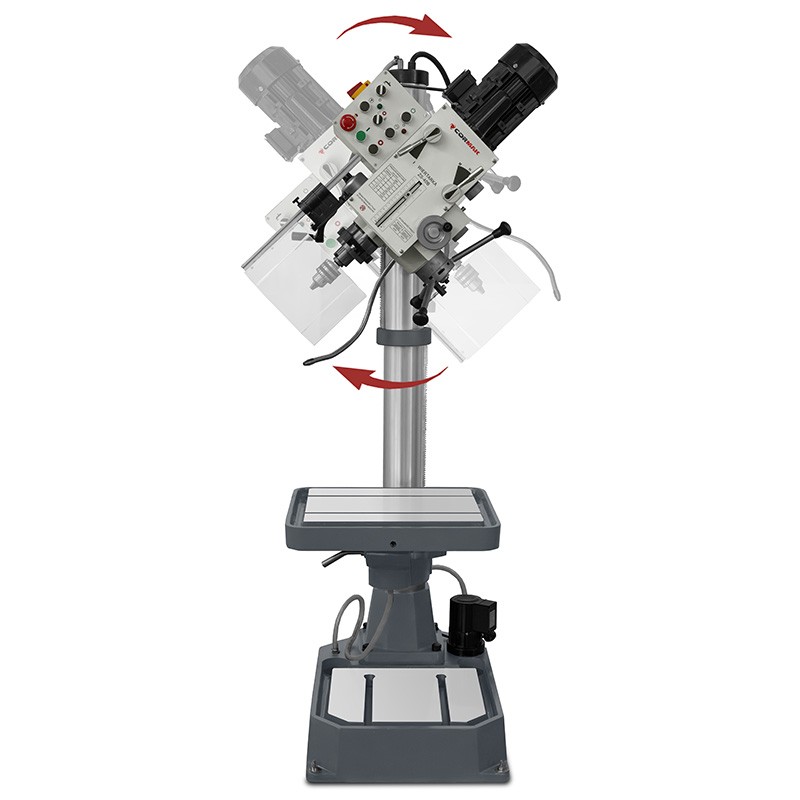

The CORMAK ZS-40B geared column drill has been designed for durability and precision. The gearbox with hardened and ground gears working in an oil bath ensures smooth speed change and minimal mechanical wear. The swivelling head with adjustable height increases setup flexibility. The worktable with T-slots (14 mm) allows for quick installation of vices and fixtures. The plexiglass spindle guard ensures operator safety while maintaining visibility of the machining process.

Precision and performance

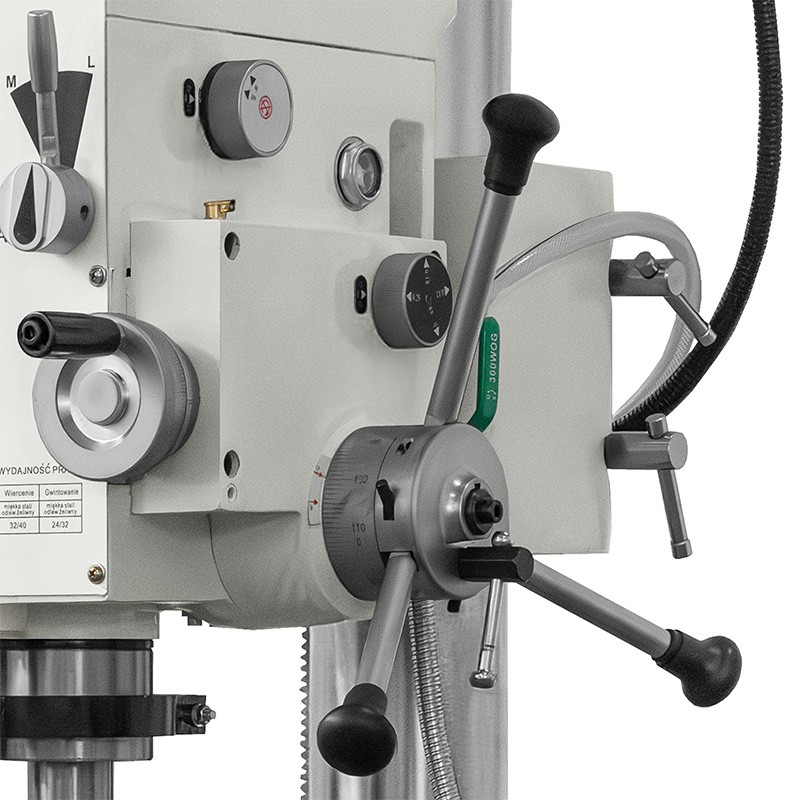

Thanks to its precision handwheel with graduated scale and optimised mechanical system, the CORMAK ZS-40B drill with power feed guarantees repeatability and high-quality holes and threads. The spindle speed range from 50 to 2520 rpm combined with six gear steps enables perfect matching of parameters to the material. The 1.1 kW (S1) / 1.6 kW (S6) motor easily handles drilling holes up to Ø40 mm.

Applications

This machine is intended for use in:

• mechanical and locksmith workshops,
• maintenance departments,
• toolrooms and machining centres,
• industrial and production plants,
• technical schools and training centres.

Standard equipment

• Reducing sleeves MK2, MK3, MK4
• 16 mm drill chuck
• Coolant system with pump
• Rotating table with T-slots
• Plexiglass spindle guard
• Tapping chuck set – INCLUDED

Technical data

Enhance your workshop’s capabilities with proven technology. Choose the CORMAK ZS-40B geared column drill with power feed and tapping chuck set – the complete solution for precise and efficient metalworking. Contact our technical advisor or order online today.
