Pillar Drill for Metal CORMAK Z5028W with Cooling System

Pillar Drill CORMAK Z5028W with Cooling

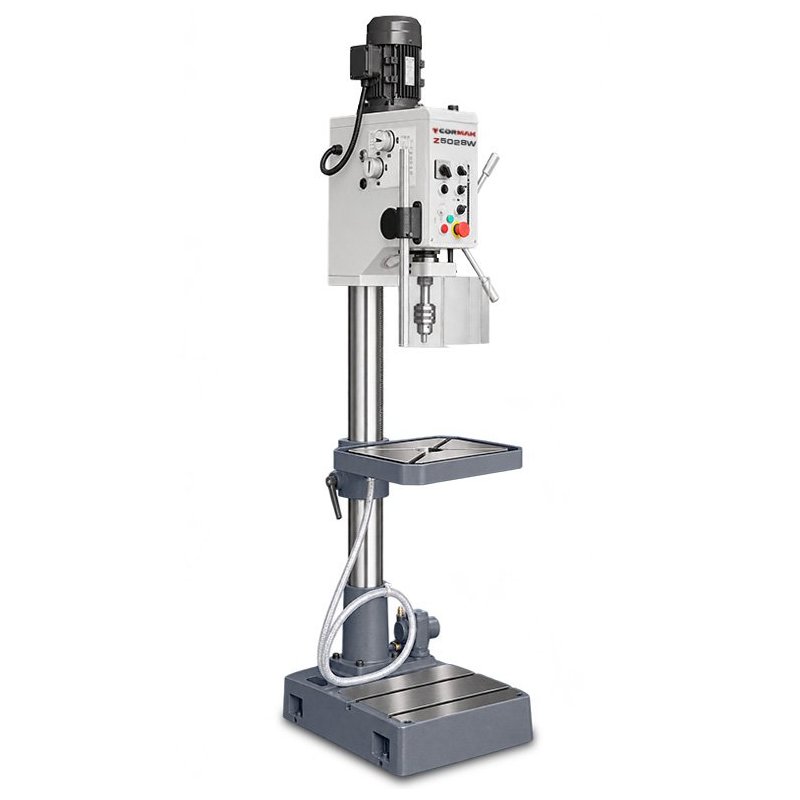

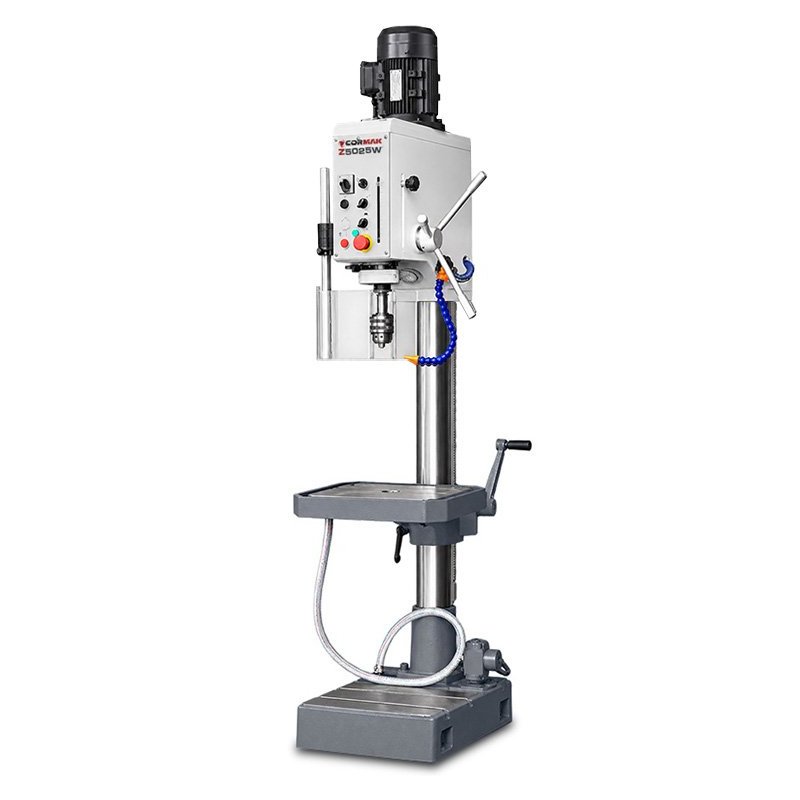

The CORMAK Z5028W pillar drill is a professional column drilling machine for metal, designed for precise and demanding drilling and tapping operations in industrial environments. Its solid structure, wide speed range and integrated cooling system make it a reliable machine for workshop and production applications.

Main Advantages

• Tapping capability with right/left rotation – perfect for precise internal thread cutting.

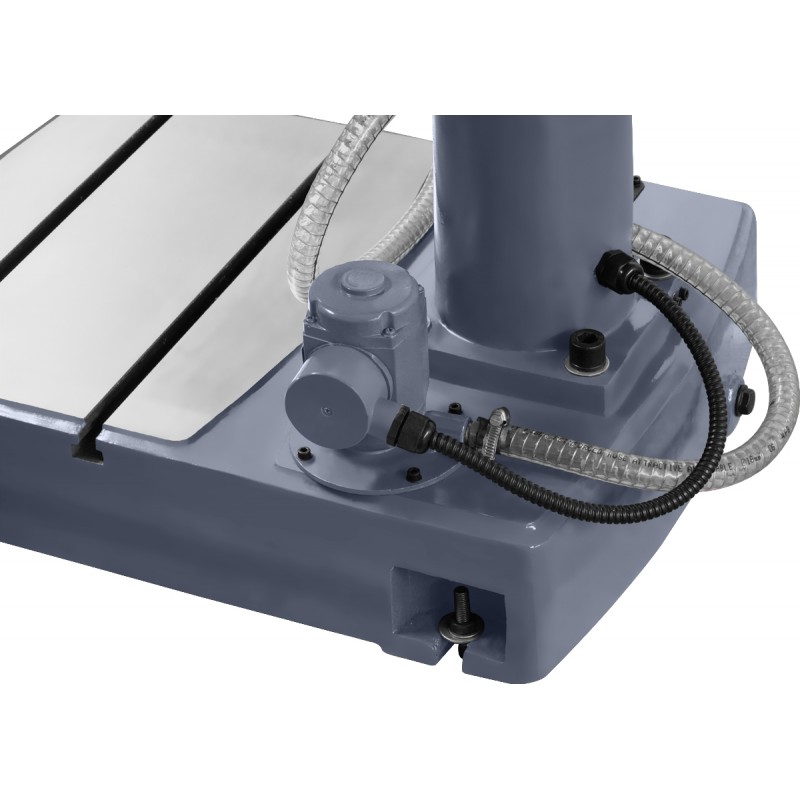

• Built-in cooling system – effectively removes heat, extending tool life and improving machining quality.
• 12 spindle speed settings – from 75 to 3200 rpm, enabling optimal adjustment to the material and tool size.
• Large spindle stroke – 130 mm – allows deep-hole machining without interrupting the process.
• Stable 97 mm column – provides high rigidity and minimises vibration during drilling.

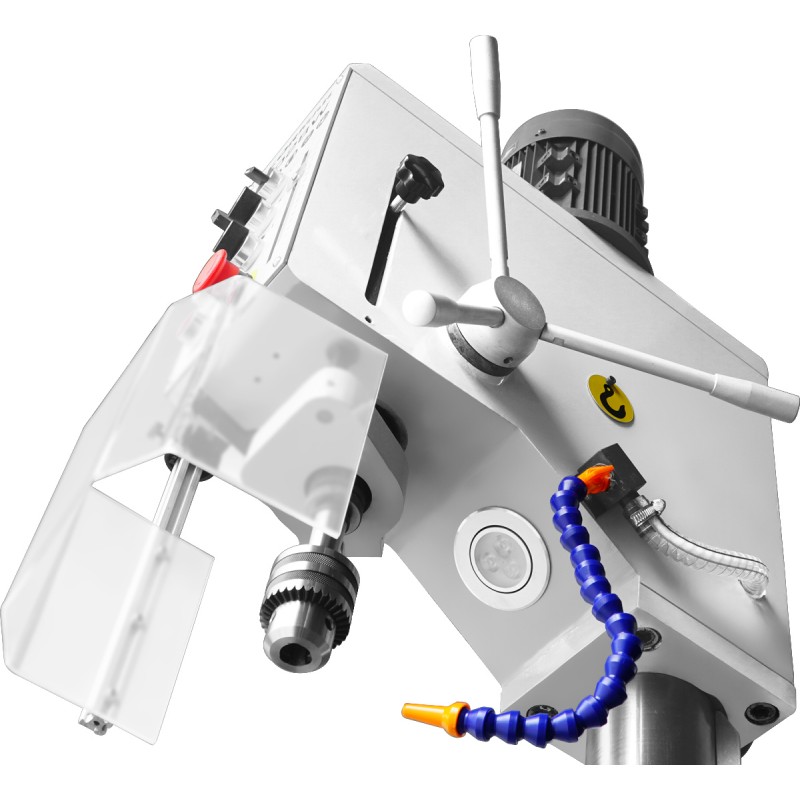

• LED work area lighting – improves accuracy and operator comfort, even in poorly lit environments.

Design and Technology

The CORMAK Z5028W column drilling machine is built on a robust cast-iron frame comprising the base, table and headstock. This design ensures rigidity and resistance to dynamic loads. The worktable is equipped with 14 mm T-slots for quick and secure clamping of vices and fixtures. The MK3 spindle is mounted on precision bearings for smooth rotation and drilling accuracy.

Precision and Performance

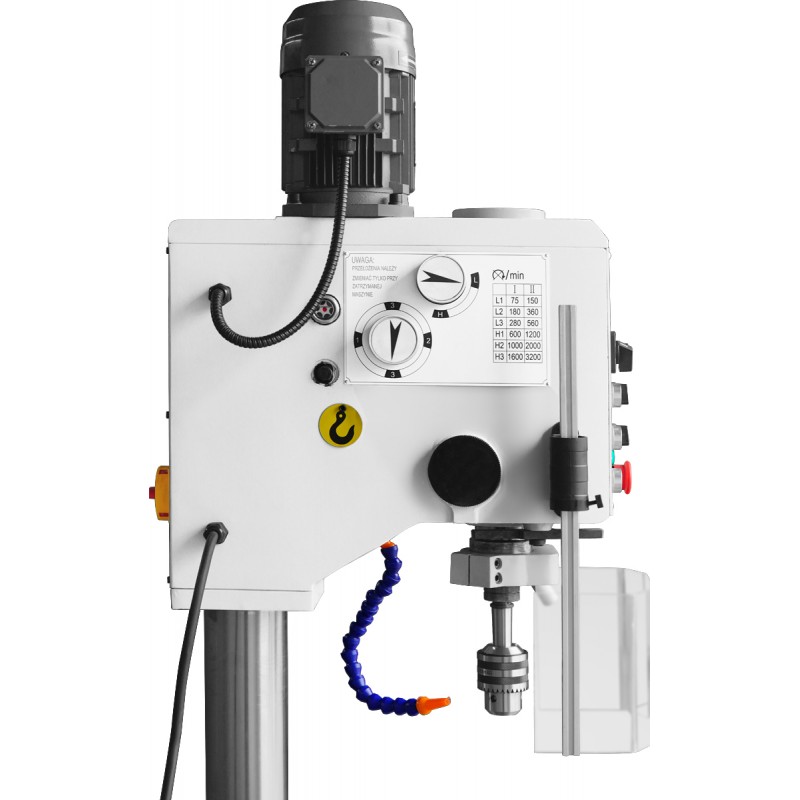

Thanks to the 12-step gearbox, wide speed range and clear drilling depth indicator, the operator maintains full control over machining parameters. The reverse rotation function allows safe tapping. The machine provides generous working space – the maximum distance from spindle tip to base is 1220 mm, allowing the processing of larger workpieces.

Applications

The CORMAK Z5028W metal pillar drill is ideal for use in:

• industrial and production plants,
• locksmith and mechanical workshops,
• maintenance departments,
• technical schools and training centres,
• toolrooms and service companies.

Standard Equipment

• Cooling system
• Drilling depth indicator
• LED work area lighting
• Right/left rotation
• Base with T-slots

Technical Data

Choose proven technology and machining precision. Select the CORMAK Z5028W pillar drill to ensure reliability and efficiency in your daily operations. Contact our technical department or place your order online today.
