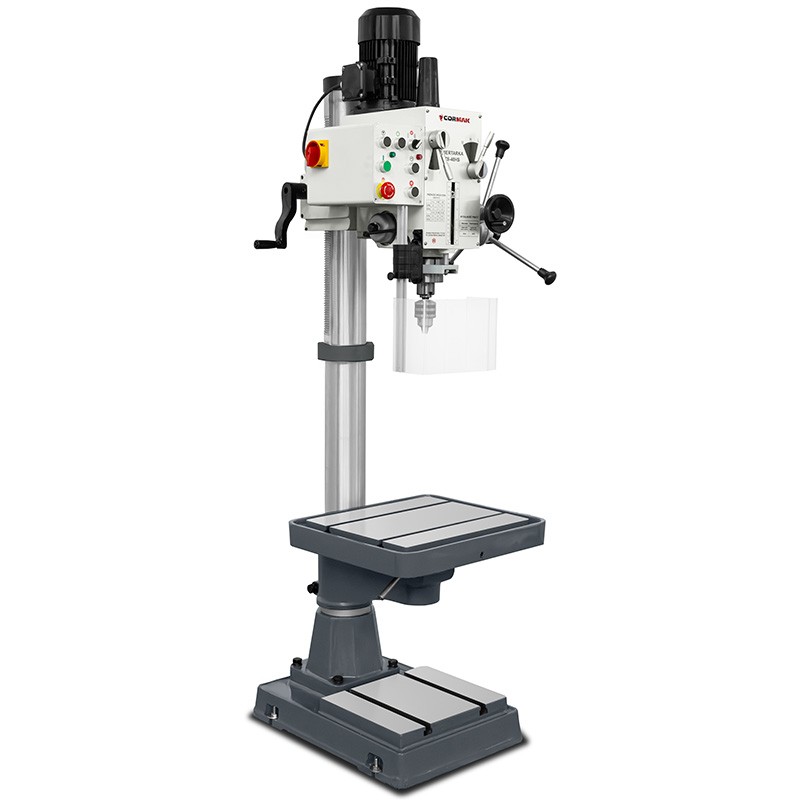

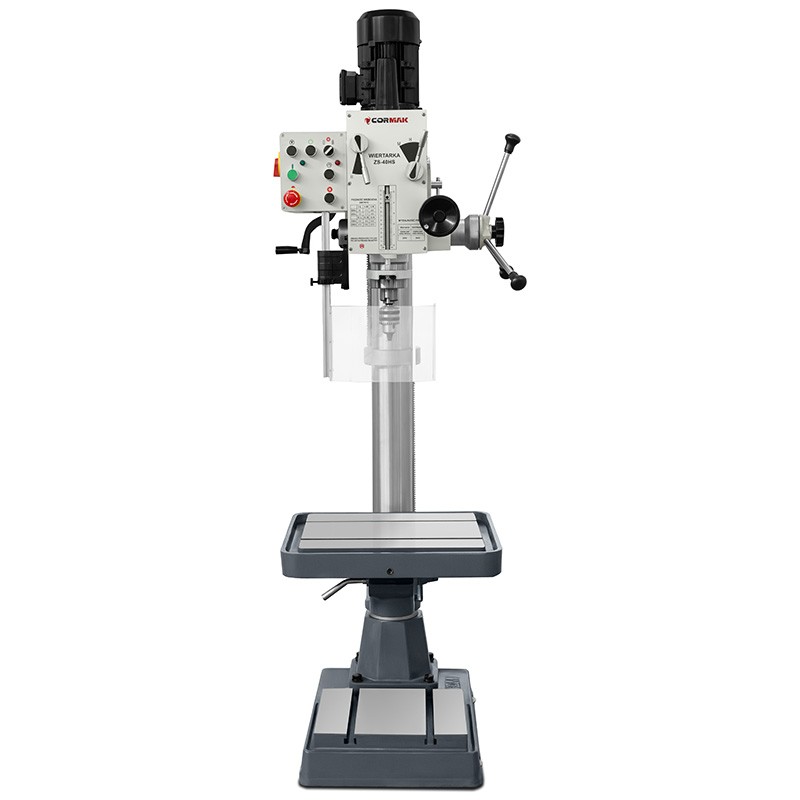

Geared Column Drill CORMAK ZS-40HS

Industrial Column Drill CORMAK ZS-40HS

The CORMAK ZS-40HS column drill is an advanced metal drilling machine designed for intensive industrial applications. With its hardened gear transmission, large drilling capacity and tapping function up to M32, this model offers a reliable solution for production, maintenance and metalworking workshops.

Main advantages

• Large drilling capacity – up to 40 mm – enables machining of a wide range of materials and thicknesses.
• Tapping function with automatic spindle reversal – allows efficient and precise thread cutting up to M32.
• Precision oil-bath gearbox – six speed steps ensure optimal spindle speeds (95–1600 rpm) for different operations.

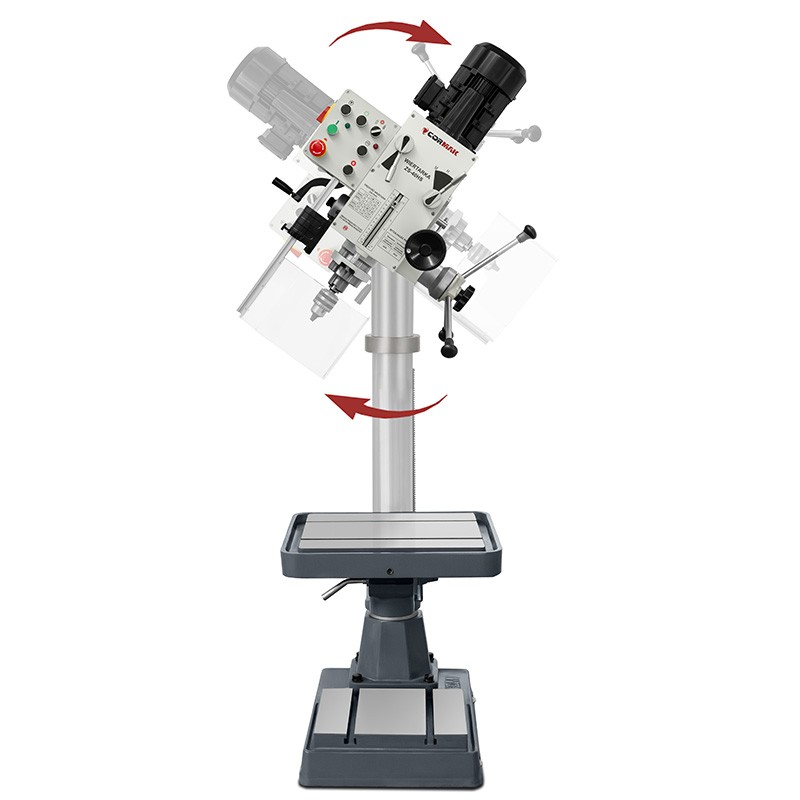

• Swivelling head with adjustable height – increases flexibility, enabling drilling at various angles.
• Rigid 115 mm diameter column – guarantees maximum stability even under heavy load.

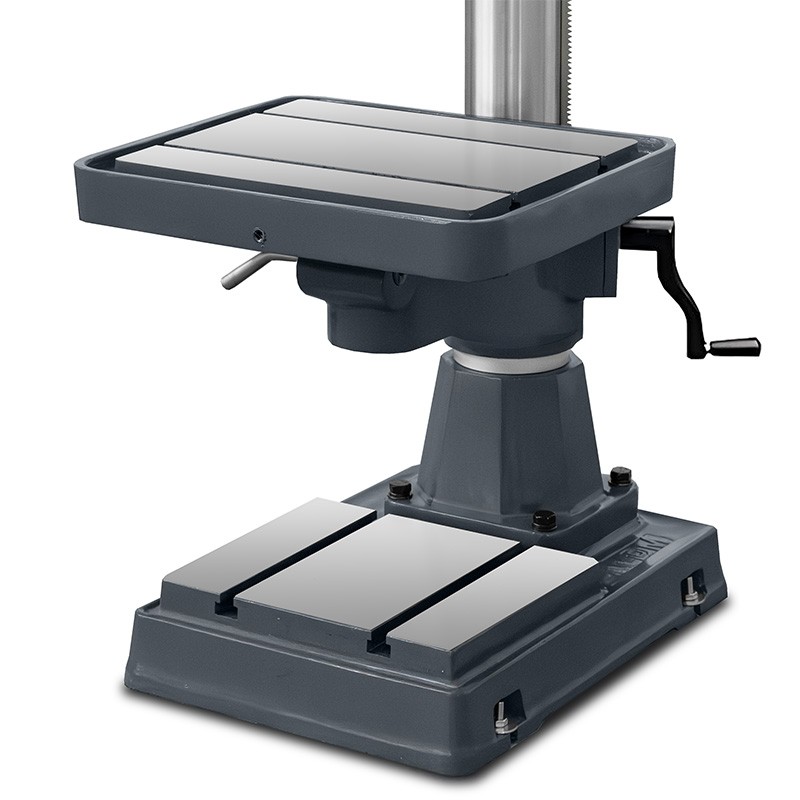

• Large adjustable worktable with vice mounting option – facilitates machining of large components.

Construction and technology

The CORMAK ZS-40HS industrial drill is built on a robust cast-iron structure with a reinforced 115 mm column, ensuring high rigidity and vibration damping. The gear system, made of hardened and ground gears, provides durability and smooth operation. The 120 mm spindle travel and MK4 spindle taper allow for the use of a wide range of drilling and tapping tools.

Precision and performance

The CORMAK ZS-40HS column drill offers high repeatability and drilling accuracy, achieved through a mechanical gearbox and a precision handwheel with depth scale. Adjustable head and table height enable custom workstation setup for specific operations. The powerful motor (1.1 kW continuous duty S1, 1.6 kW intermittent duty S6) ensures efficient drilling even at maximum diameters.

Applications

The CORMAK ZS-40HS geared column drill is intended for industrial use, particularly in:

• manufacturing and processing plants,
• metalworking workshops,
• maintenance departments,
• toolrooms,
• technical schools and training centres.

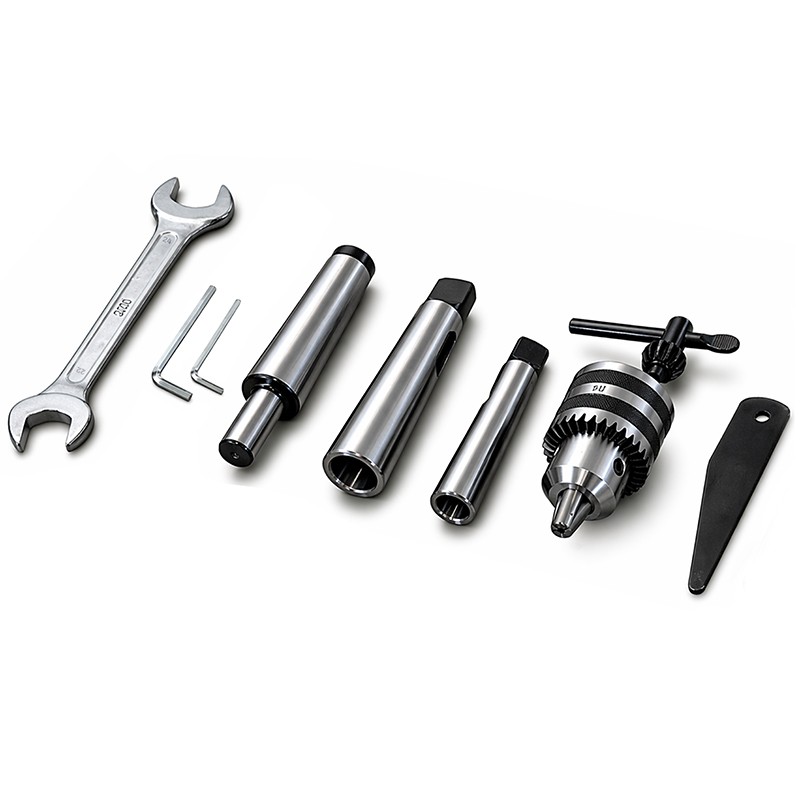

Standard equipment

• 16 mm drill chuck
• Reducing sleeves MK2, MK3, MK4
• Worktable with mounting slots
• Handwheel with depth control scale

Technical data

Choose professional solutions for metalworking. Select the CORMAK ZS-40HS industrial drill to ensure reliability, precision and maximum performance in your workshop.
