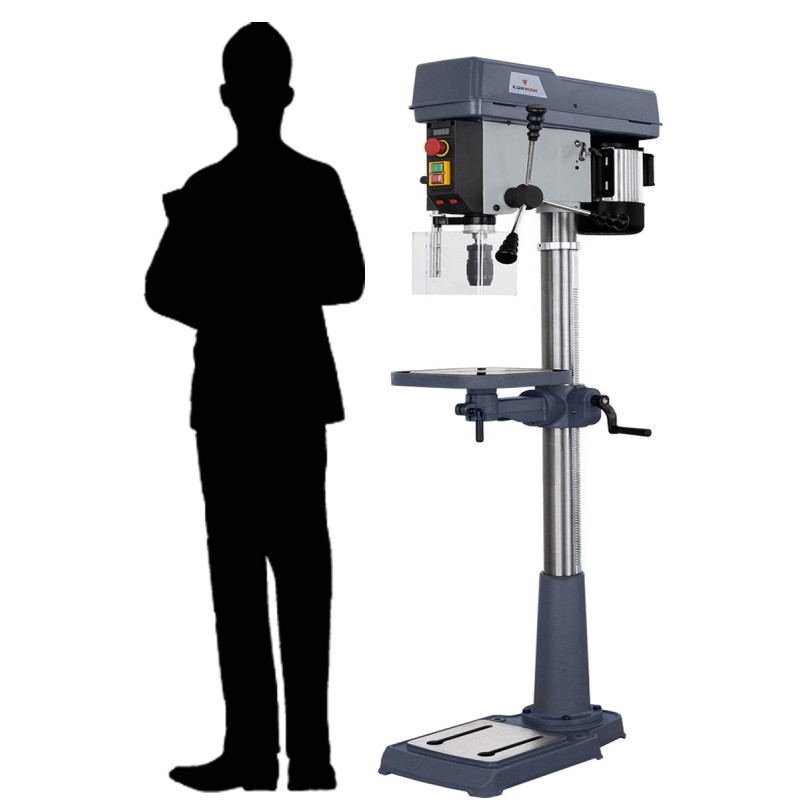

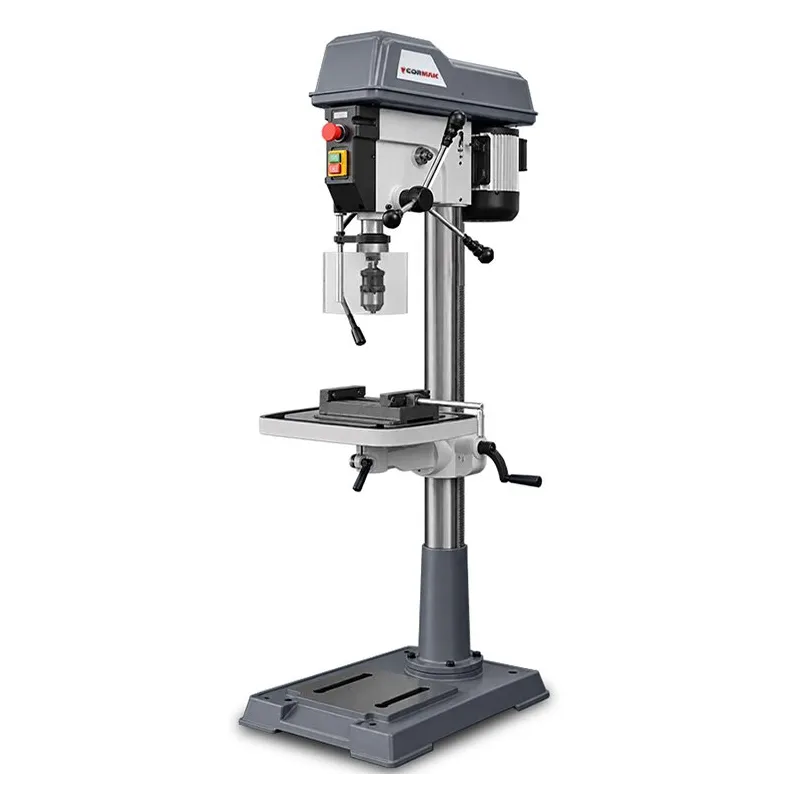

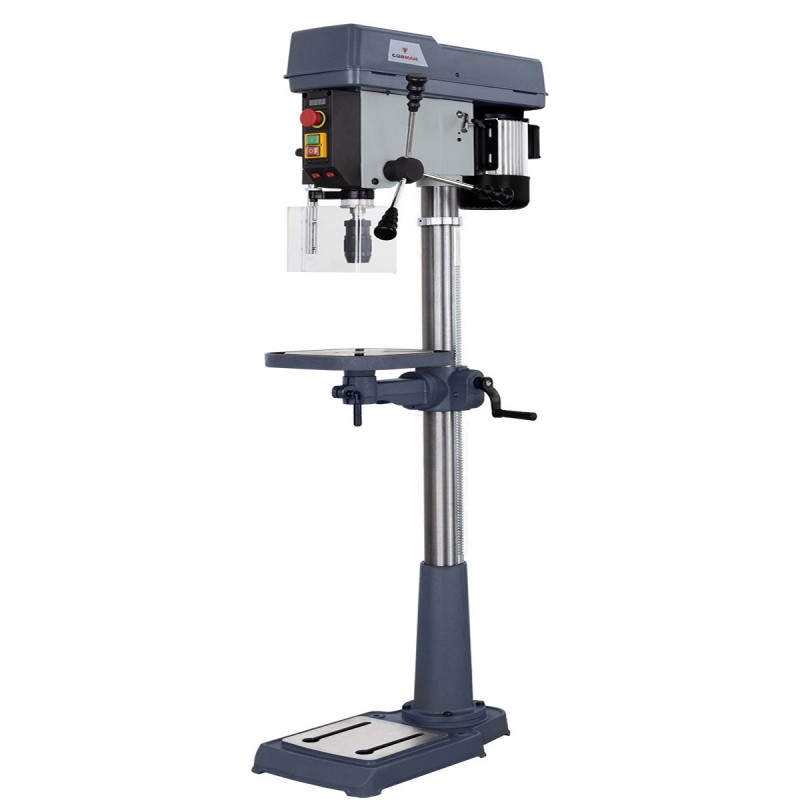

Column Drill for Metal CORMAK Z5020 BF VARIO

The CORMAK Z5020 BF Vario column drill is a versatile and modern column drill for metal, designed for heavy-duty use in industrial plants, metalworking workshops and maintenance departments. The machine offers stability, precision and a high level of operating comfort thanks to its stepless spindle speed control and ergonomic design.

Key features of the Cormak Z5020 BF Vario drill

• Stepless spindle speed control – range 190–2,700 rpm for optimum adaptation to the type of material.
• Rigid body construction – minimises vibrations and improves drilling accuracy.
• Height-adjustable work table – featuring a precision rack and pinion mechanism and a tilt range of ±45°.
• Electronic speed display – real-time monitoring of drilling parameters.

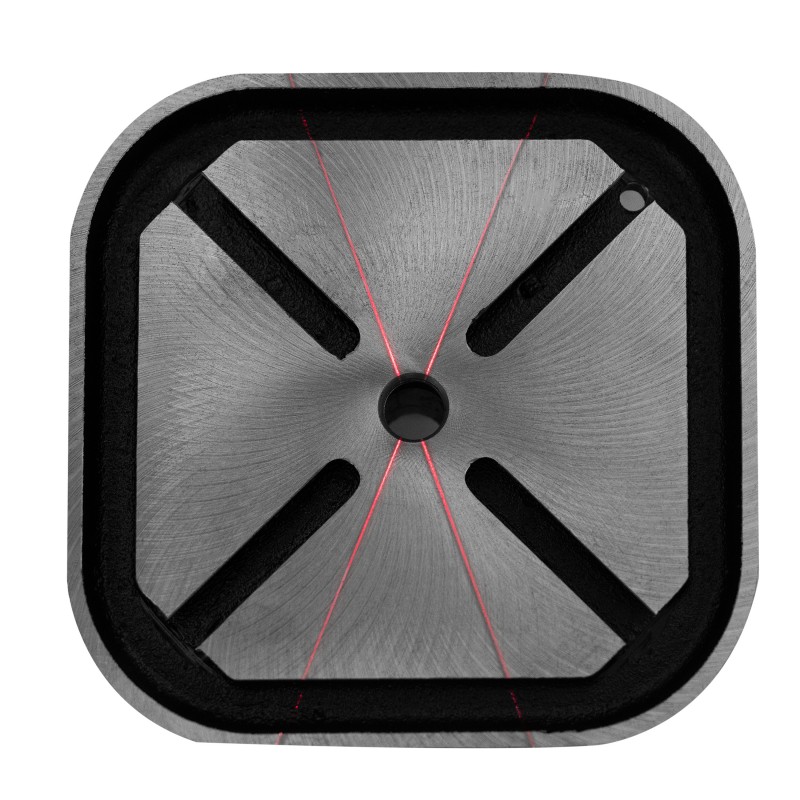

• Laser pointer and LED lighting – assist with tool positioning and improve visibility of the work area.
• 100 mm vice included – the machine is ready for use immediately upon start-up.

Design and technology

The CORMAK Z5020 BF Vario column drill is fitted with a stable 70 mm diameter column and a wide 480 × 290 mm base, ensuring excellent support for the entire structure. The MK2 spindle has a standard stroke of 120 mm, enabling deep drilling without the need to change settings. The table’s design allows it to be rotated and tilted, enabling the user to precisely adjust the workpiece’s position to suit the operation being carried out.

Precision and performance

A powerful 750 W motor and a maximum drilling diameter of 20 mm allow for the effective machining of most metallic materials. The electronic speed indicator and drilling depth stop ensure full control over the process. The long column and wide table height adjustment range (660 mm) enable work with tall workpieces and tools with a long reach.

Applications

The Z5020 BF Vario is a column drill for metal, recommended for:

• mechanical and metalworking workshops,
• maintenance departments,
• light and medium-sized industry,
• prototyping and single-unit production.

Standard equipment

• 100 mm vice
• Laser drilling guide
• LED lighting
• Electronic speed display
• Three-arm feed lever
• Drilling depth stop
• Work table with rack-and-pinion height adjustment

Technical specifications

Choose precision and performance – opt for the CORMAK Z5020 BF Vario

The CORMAK Z5020 BF Vario metal column drill is the ideal choice for professionals looking for a robust, versatile drilling machine. Order today at cormak.pl and expand the capabilities of your workshop.
