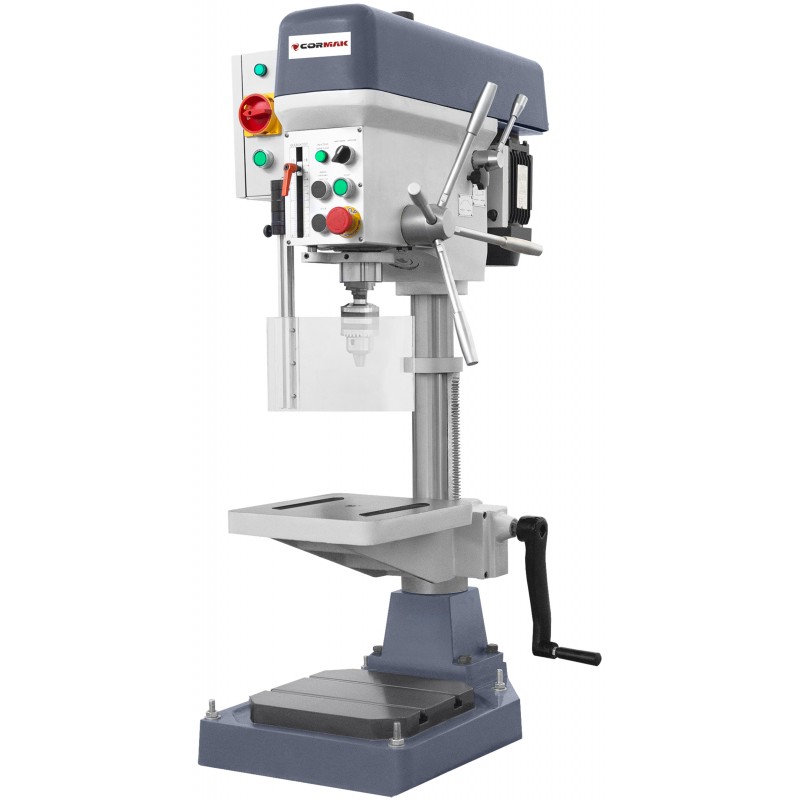

Bench Drilling Machine CORMAK WS16

CORMAK WS16 bench drilling machine is a compact yet exceptionally robust column drilling machine for metal, designed for precise drilling and tapping operations in workshop and production environments. Thanks to automatic reversal of the spindle rotation direction, the machine enables efficient tapping in steel, making it an excellent solution for users who value machining efficiency and quality.

Main advantages of the machine

• Integrated tapping function with automatic switching to reverse rotation – simplifies internal thread cutting.
• High spindle rigidity – precise operation even under heavy loads and when machining harder materials.
• Robust construction made from seasoned cast-iron components – stable operation and long machine service life.
• Large spindle travel – 100mm – greater operating range, particularly when drilling deep holes.
• Clear control panel – intuitive machine operation with quick parameter adjustment.
• U-type spindle guard with limit switch – CE compliance and enhanced operator safety.

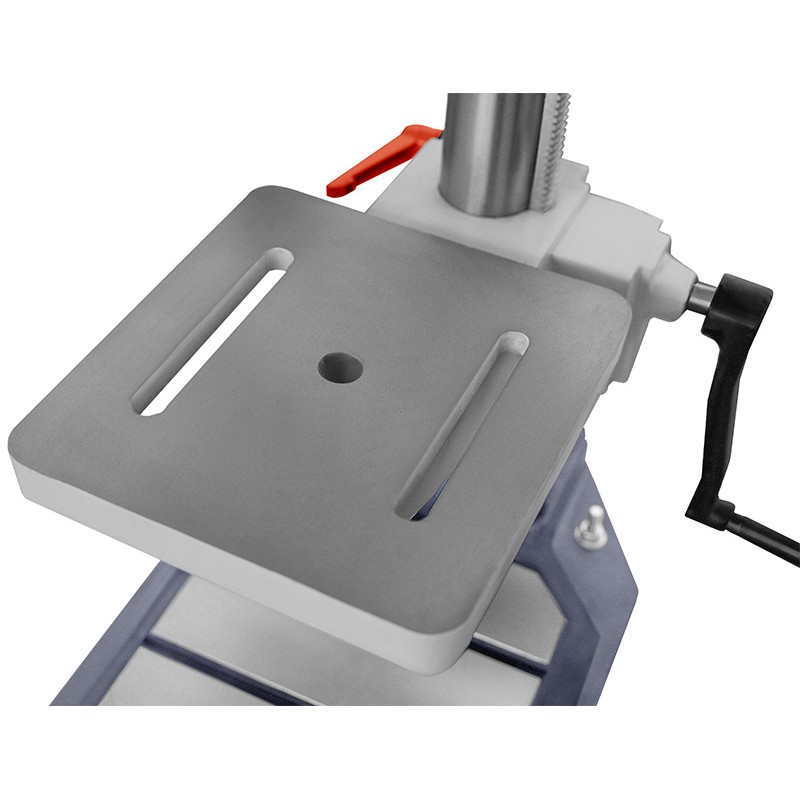

• 360° rotating table with mounting slots – flexibility in clamping and positioning the workpiece.

Construction and technology

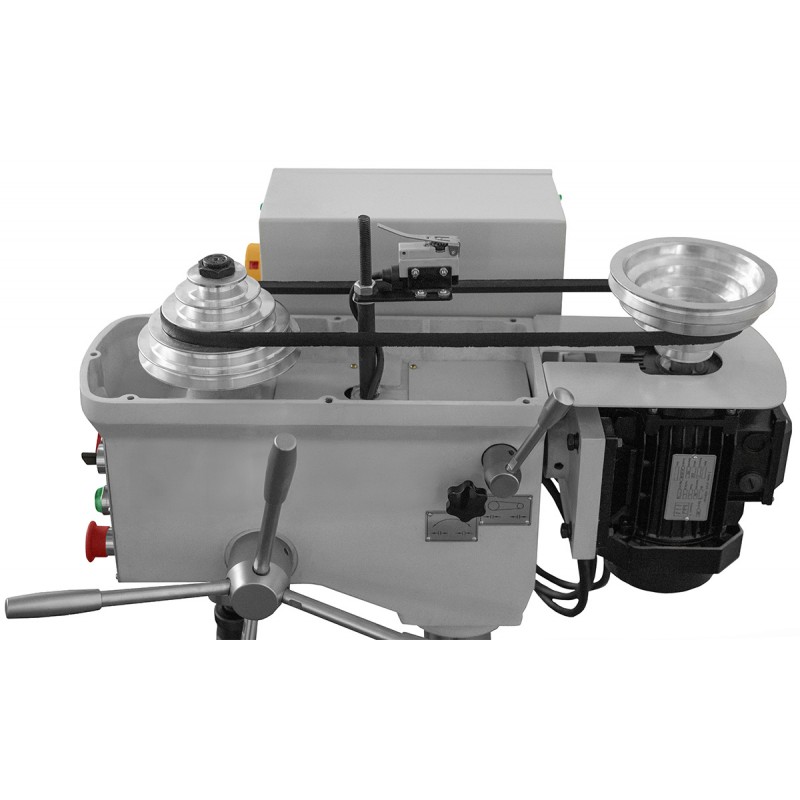

CORMAK WS16 bench drilling machine for metal has been designed with strength and durability in mind. The headstock, column, base and table are made from high-grade seasoned castings, providing exceptional rigidity throughout the construction. The spindle and transmission shafts are made from hardened, heat-treated steel, minimising wear during prolonged operation. The drive mechanism is based on a belt transmission – a solution valued for quiet and stable operation.

Precision and operating efficiency

Thanks to 5-step spindle speed adjustment in the range from 480 to 1875rpm and the MK2 Morse taper, the machine enables optimum parameters to be selected according to the material and drilling diameter. The maximum drilling diameter in steel is 16mm, while tapping is possible up to M10. The clear control panel and ability to reverse the direction of rotation significantly simplify operation while increasing process efficiency.

Applications

CORMAK WS16 column drilling machine is ideally suited for:

• metalworking and mechanical workshops,
• maintenance departments,
• training workshops and educational centres,
• one-off and small-batch production,
• applications requiring high repeatability and precision in drilling and tapping.

Standard equipment

• Adjustable keyed drill chuck (MK2 Morse taper)
• Taper drift
• Spindle guard with safety limit switch (CE compliant)
• Belt drive guard with limit switch

Technical specifications

Invest in a reliable solution for your workshop

CORMAK WS16 bench drilling machine combines compact construction, high rigidity and practical functions for efficient drilling and tapping. It is an optimal choice for professionals who value precision, durability and operational safety.

Order today or contact our technical adviser – we will be happy to help you select equipment suited to your production requirements.
