Reference:
WS32BC
Manufacturer:
CORMAK

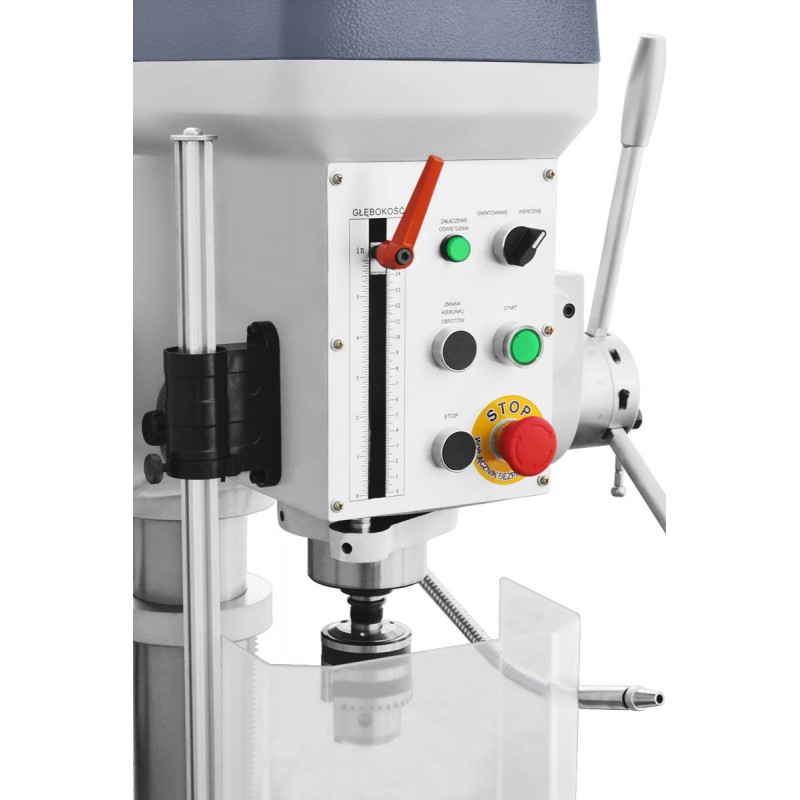

The WS32BC bench drilling machine with a reinforced structure is a general-purpose model designed for drilling, reaming, countersinking and tapping (using special holders for threading tools). It features 8 SPINDLE SPEEDS ranging from 140, 250, 380, 500, 580, 850, 1,250, to 1,960 rpm. MODEL EQUIPPED WITH AUTOFEED. The machine ensures high performance, precision, low noise, a wide speed range and a centralised control panel for comfortable operation and easy handling.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase

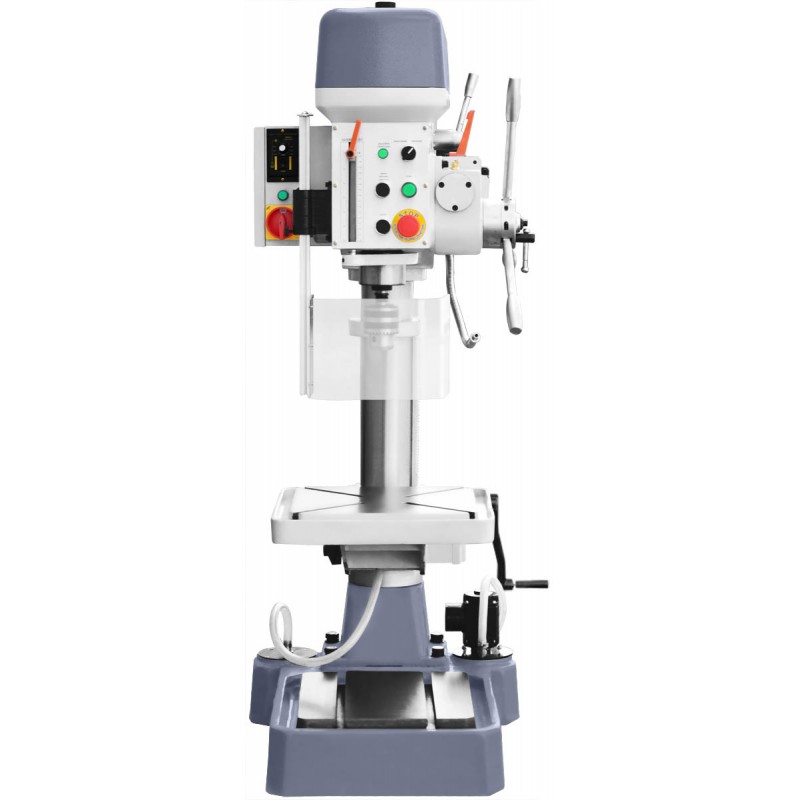

Bench Drill CORMAK WS32BC – column drill for metal with autofeed and cooling
The CORMAK WS32BC bench drill is a precise column drill for metal equipped with an autofeed spindle and cooling system, designed for demanding drilling and tapping operations. Thanks to its 8-speed gearbox, robust construction and comprehensive equipment, it is ideal for intensive industrial use.
Main advantages of the machine
- Autofeed spindle with adjustable feed rate up to 110 mm/min – improves work efficiency and repeatability of operations.

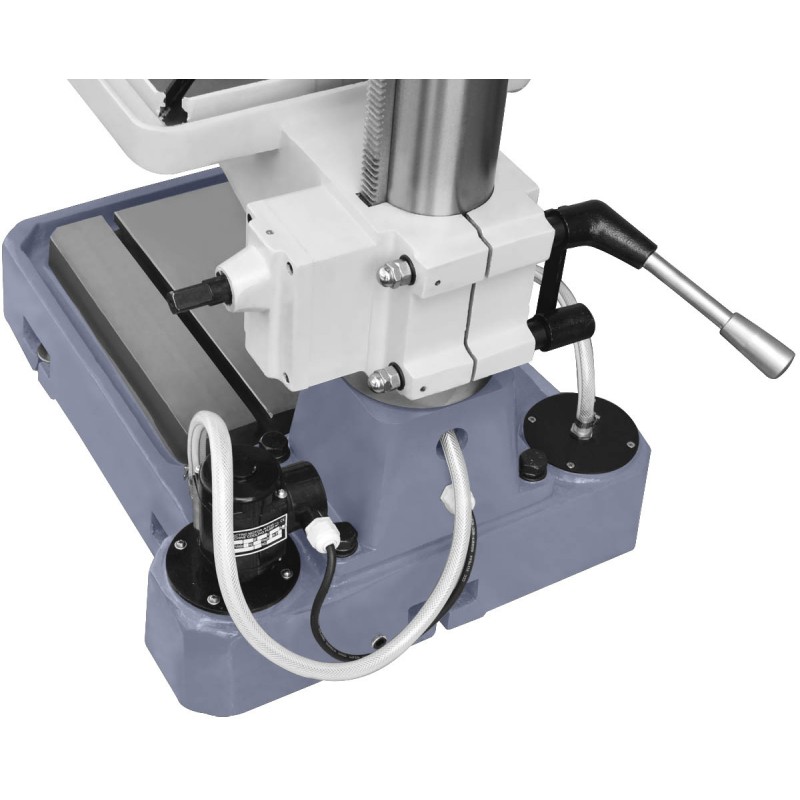

- Cooling system – protects tools from overheating and enhances machining quality.
- Tapping function – automatic spindle reversal enables efficient threading up to M24.
- High structural rigidity – a 100 mm diameter column and heavy-duty cast-iron base eliminate vibration.
- 150 mm spindle stroke – allows deep drilling without interrupting the machining cycle.
- 8-speed gearbox – speed range 140–1,960 rpm for precise parameter adjustment.
- Work safety – spindle and belt guards with limit switches compliant with CE standards.
Design and technology
The CORMAK WS32BC bench drill is constructed from machined, seasoned cast iron. The spindle and transmission shafts are made of hardened steel, providing superior durability and wear resistance. The Morse taper MK3 spindle ensures quick tool changes and compatibility with a wide range of tooling. A stable, 360° rotatable table allows easy machining of various workpiece shapes.
Precision and performance
Thanks to the autofeed and cooling functions, the CORMAK WS32BC bench drill guarantees high-quality hole finishing and significantly reduces cycle times. The main 1.1 kW motor and 0.12 kW feed motor ensure reliable operation even under heavy loads. Perfect for drilling, reaming and tapping in steel, cast iron and alloy materials.
Applications
The CORMAK WS32BC autofeed drill is an excellent solution for:
- toolmaking and locksmith workshops,
- maintenance departments,
- production facilities,
- technical schools and training centres.
Standard equipment
- Keyed drill chuck
- Taper drift
- Cooling system
- U-type spindle guard with limit switch
- Belt transmission guard with safety switch
Technical data
| Parameter | Value |
|---|---|
| Maximum drilling diameter (steel) | 32 mm |
| Maximum tapping diameter (steel) | M24 |
| Column diameter | 100 mm |
| Column wall thickness | 12.7 mm |
| Spindle travel | 150 mm |
| Feed rate | 0 – 110 mm/min |
| Distance spindle–column | 265 mm |
| Distance spindle–table | 390 mm |
| Distance spindle–base | 745 mm |
| Spindle taper | MK3 |
| Spindle speed range | 140, 250, 380, 500, 580, 850, 1,250, 1,960 rpm |
| Number of speeds | 8 |
| Table dimensions | 380 × 400 mm |
| Base dimensions | 645 × 470 mm |
| Machine height | 1370 mm |
| Main motor power | 1.1 kW |
| Feed motor power | 0.12 kW |
| Power supply | 400 V |
| Net weight | 230 kg |
| Machine dimensions | 900 × 500 × 1400 mm |
Choose performance and precision – choose CORMAK WS32BC
The CORMAK WS32BC bench drill is a complete solution for drilling and tapping metal. Order online or contact our technical consultant for more information!
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
