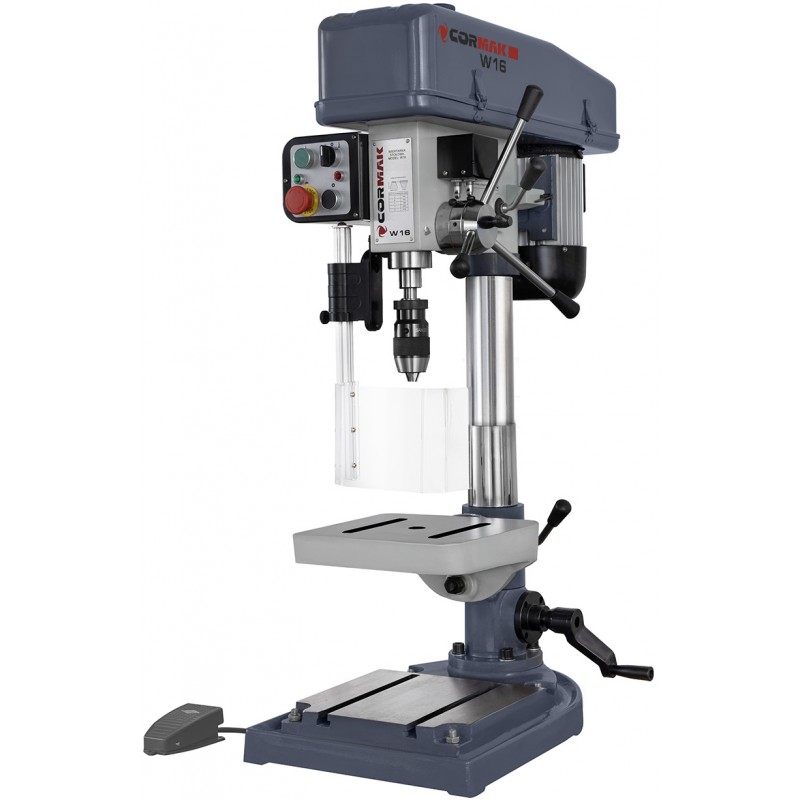

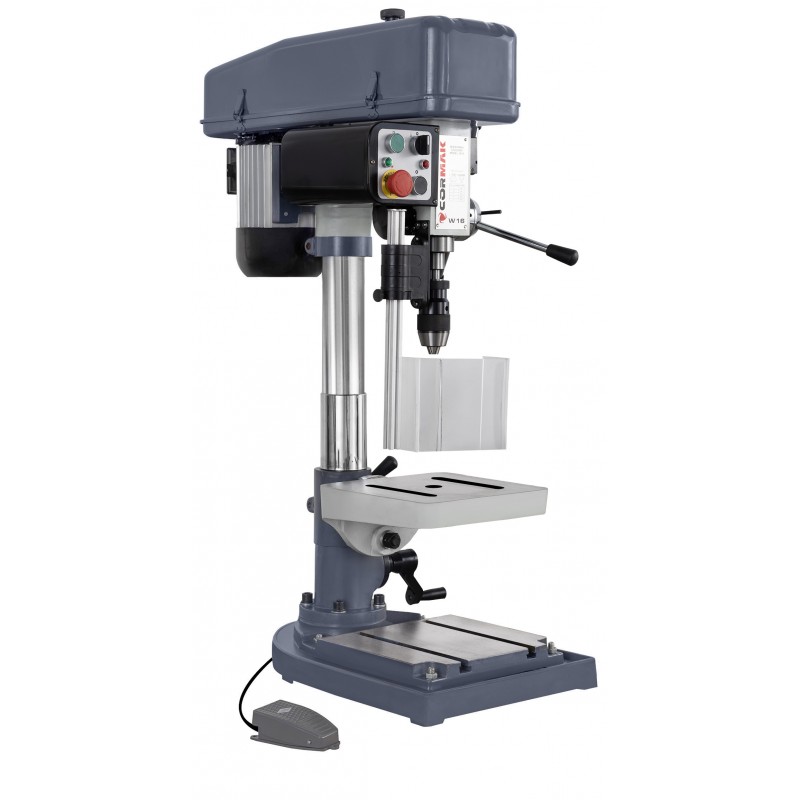

Bench Drill for Metal CORMAK W16

Bench Drill CORMAK W16 is a precise and reliable bench drilling machine for metal equipped with a tapping function. The machine is designed for professional applications – from locksmith workshops to industrial production lines. The integrated spindle rotation reversal system makes it ideal for both drilling and internal threading operations.

Main features

• Tapping function with automatic spindle rotation reversal – full process control without manual gear change.
• Manual reverse control via foot lever – enables precise tool withdrawal during special operations.
• High spindle rigidity – ensures drilling accuracy even during long work cycles.
• Adjustable drilling/tapping depth stop – prevents exceeding preset technological parameters.
• Tilting and swivelling worktable – adjustment ±45° horizontally and full 360° rotation around the column.
• Belt drive – quiet operation and reduced vibration.
• Built-in overload protection – safety limit switch inside the belt transmission guard.

Design and technology

The CORMAK W16 bench drilling machine is built on a high-rigidity cast-iron structure ensuring stable operation even at full quill travel. The spindle with MK2 taper is compatible with a wide range of tools. The belt transmission enables operation in five speed ranges (480 – 4100 rpm), allowing easy adjustment to different materials and hole diameters.

Precision and performance

Thanks to the 100 mm quill travel and adjustable drilling depth, the operator maintains full control at every stage of machining. The integrated tapping function makes the W16 a universal tool for drilling and threading with high repeatability. The spindle speeds are selected for optimal efficiency both in drilling and threading metric holes in materials of varying hardness.

Applications

The CORMAK W16 bench drilling machine for metal is ideal for:

• mechanical and tool workshops,
• maintenance departments,
• assembly and production lines,
• technical schools and training centres.

This machine is perfect wherever a precision bench drilling and tapping unit is required for machining steel, aluminium and engineering plastics.

Standard equipment

• Self-tightening drill chuck B18
• Drill chuck arbor MK2
• Foot lever for reverse rotation
• Belt guard with safety limit switch

Technical data

Invest in performance and versatility

The CORMAK W16 bench drilling machine is the perfect choice for professionals who value reliability, functionality and precision. With its built-in tapping function, the machine greatly enhances the flexibility of machining processes.

Contact our sales team or order online today – bring a new level of quality to your workshop!
