Reference:
LF20UCHW200x200
Manufacturer:
CORMAK
Fibre laser marking machine with a wide range of applications. The device can process standard metals and their alloys (iron, copper, aluminium, zinc, etc.), precious metals (gold, silver, titanium, etc.), as well as other metallic materials.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
The device meets all safety requirements!
It has appropriate markings in compliance with standards and features key-start operation.
ALL MARKING MACHINES IN OUR RANGE ARE EQUIPPED WITH TOP-QUALITY RAYCUS SOURCES — THE WORLD LEADER IN LASER SOURCE MANUFACTURING.
Description:
- Compact dimensions allow easy transport and desktop operation
- High positioning accuracy
- USB communication
- EzCad software
- Supports popular graphic file formats
- Low power consumption
- Built-in fans ensure effective cooling
- Adjustable laser height (0–50cm)
| TECHNICAL PARAMETERS | |
| Maximum power consumption | 800W |
| Laser type – fibre | 1064 nm / 20W |
| Auxiliary (red) laser pointer | <=5mW |
| Maximum marking depth | <2.0mm |
| Minimum marking line width | 0.015mm |
| Maximum marking speed | 7000mm/s |
| Minimum character size | 0.1mm |
| Positioning accuracy | +/- 0.001mm |
| Laser module lifespan | approx. 100,000h |
| Control software | EZCAD2 |
| Supported file formats | PLT, DXF, DWG, BMP, JPG, PNG |
| Working area | 210 x 150mm |
| Marking area (lens) | 200 x 200mm |
| Weight | 48kg |
Included with the machine:
- Fibre laser marking machine, 20W

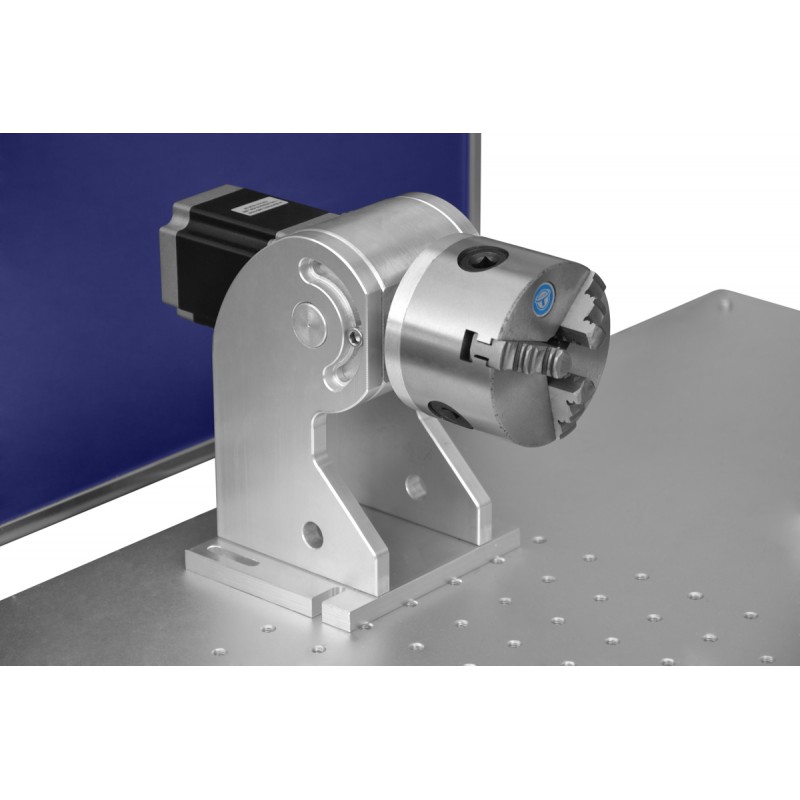

- Rotary axis
- Working area: 200 x 200mm
- Collimator
- Scanner (galvo)

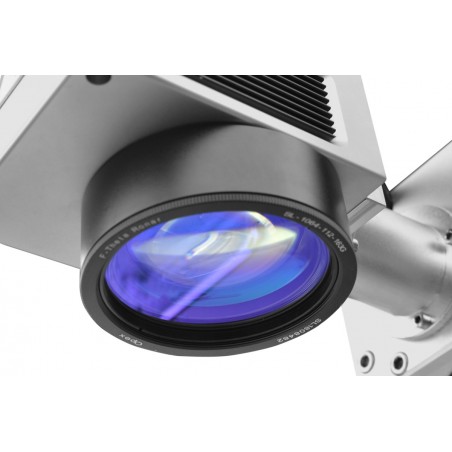

- Lens
- Red point laser
- Adjustable platform
- START foot pedal
- Software
- User manual
Optional lenses available:
- 110 x 110mm (option*)
- 300 x 300mm (option*)
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
