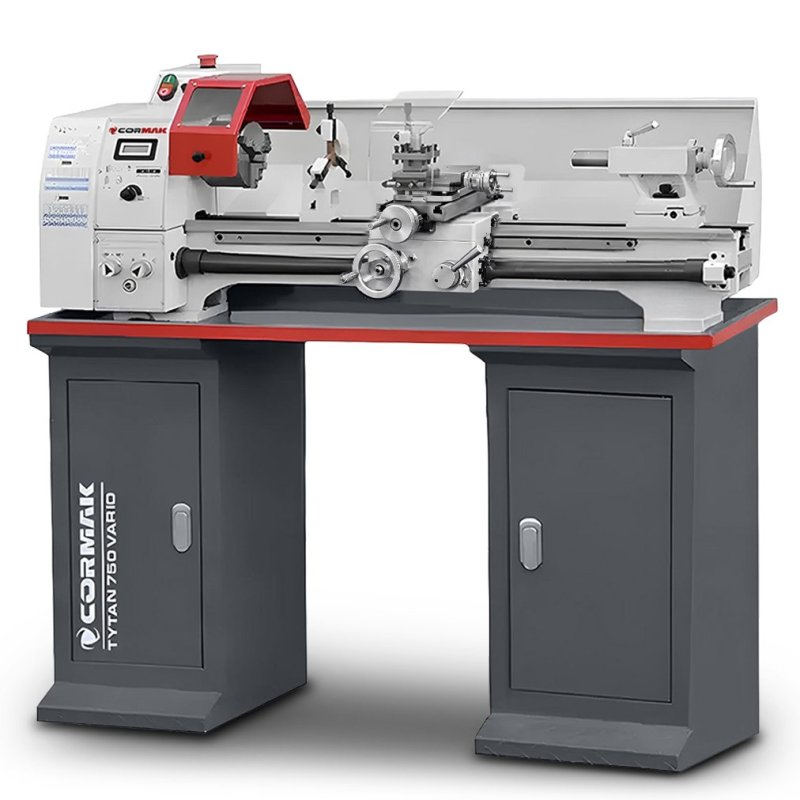

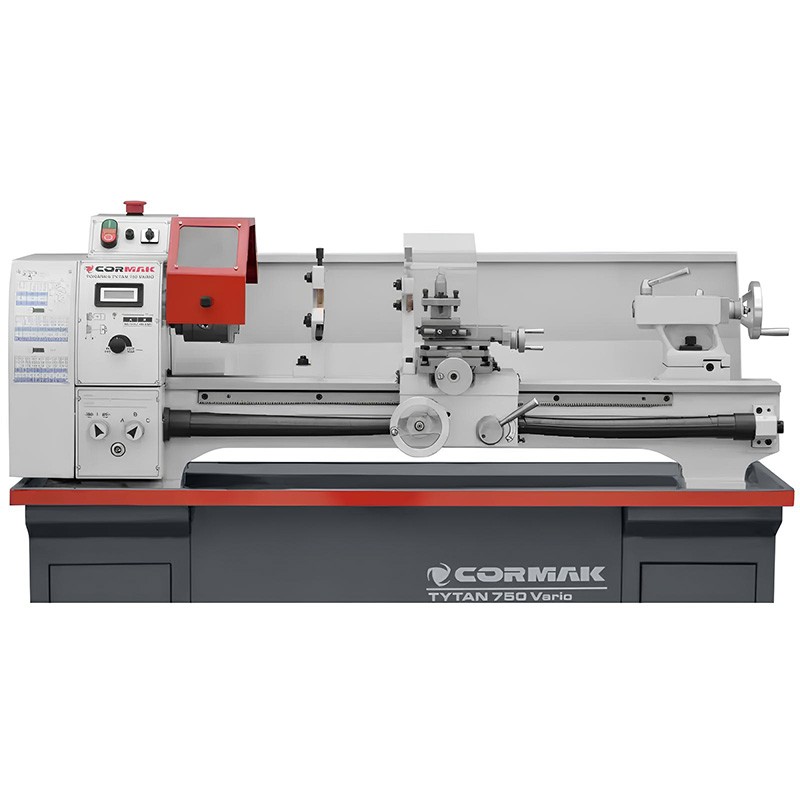

Conventional Universal Lathe CORMAK TYTAN250x750 Vario 230V with Stand

Conventional Universal Lathe CORMAK TYTAN 250x750 Vario 230V with Stand – professional small metal lathe with smooth control and high precision

CORMAK TYTAN 250x750 Vario 230V with stand is a modern conventional lathe designed for precise metal machining in production plants, technical services and tool workshops. Equipped with stepless spindle speed control and a solid steel stand, it is an excellent solution for professionals requiring reliability, flexibility and safe operation. The compact design and wide technological capabilities make it an ideal small lathe for universal applications.

Main advantages

• Stepless spindle speed control (VARIO) – enables smooth adjustment of speed to the material and operation.
• DC motor 1.1/1.32kW – ensures stable operation and sufficient torque even at lower speeds.
• Speed range L/H: 50–1125 / 100–2250 rpm – allows machining of both hard steels and more delicate materials with high precision.
• LCD display – shows the current spindle speed, facilitating turning and threading settings.
• 18 metric threads (0.2–3.5mm) and 21 inch threads (8–56 TPI) – with the possibility of cutting left- and right-hand threads.
• Automatic longitudinal feed – in six ranges (0.07–0.4mm/rev), reducing operation time while maintaining surface quality.
• Steel stand – increases machine stability and reduces vibration transfer.

Construction and technology

The design of the CORMAK TYTAN 250x750 Vario metal lathe is based on a robust grey cast-iron body with a bed width of 135mm, ensuring rigidity, vibration damping and guideway durability. The spindle with a 27mm bore and MT4 taper enables efficient machining of workpieces of various lengths and diameters. The tool post measuring 65 x 65mm accepts tools up to 12 x 12mm, providing a broad machining range for turning, grooving and parting operations.

Precision and work efficiency

Thanks to smooth speed regulation and the ability to cut threads in many standards, the universal lathe CORMAK TYTAN 250x750 ensures high repeatability and machining quality. The increased cross-slide travel (135mm) and centre distance (750mm) make it an excellent choice for both single parts and short production batches. The inclusion of both fixed and travelling steadies increases operational capacity when turning long components.

Applications

The machine is intended for:

• mechanical workshops and tool rooms,
• maintenance departments in industrial plants,
• educational and training centres,
• prototype and repair work.

The small metal lathe CORMAK TYTAN 250x750 Vario is a universal tool for precise turning tasks in demanding industrial environments.

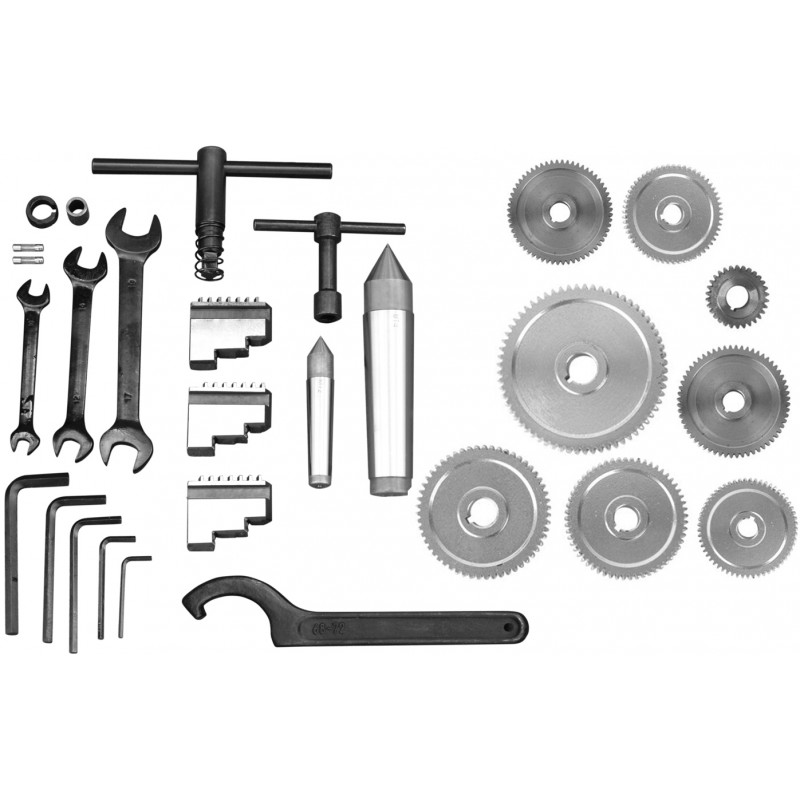

Standard equipment

• Machine stand
• 3-jaw chuck (125mm)
• Fixed and travelling steadies
• Change gears
• Dead centres MT2 and MT4
• Left and right jaws (1 set)
• Oiler
• Chip tray
• Chuck and tool post key
• Set of service tools
• CE-compliant guards
• User manual
• CE declaration of conformity

Optional equipment

• Set of turning tools 12 x 12mm (11 pcs)
• Live centre MT2
• Drill arbor MT2/B16
• Drill chuck B16 3–16mm
• HSS-CO5 drill set (1–13mm)
• Cooling system with pump
• Cutting oil ES-12 (1L)

Technical parameters

Choose CORMAK TYTAN 250x750 Vario 230V with stand – a reliable conventional lathe for precise metalworking. Order online or contact our technical advisor to select accessories tailored to your needs.
