Conventional Universal Metal Lathe CORMAK TYTAN 220x750P VARIO DRO 230V

The CORMAK TYTAN 220x750P VARIO DRO 230V universal lathe is a modern conventional lathe designed for precision metal machining in workshops, maintenance departments, manufacturing facilities and training workshops. Thanks to continuously variable spindle speed control, an efficient motor and robust cast-iron construction, the machine provides high turning accuracy, ease of operation and consistent machining results. This versatile metal lathe is ideally suited to both one-off and small-batch production.

Key Advantages of the CORMAK TYTAN 220x750P VARIO DRO Universal Lathe

The TYTAN 220x750P VARIO model has been designed for users who require high precision, stability and easy adjustment of operating parameters. Its design features enable a wide range of turning, thread-cutting and finishing operations while maintaining a high surface finish quality.

• Continuously variable spindle speed control over a range of 50–2,500rpm enables optimal cutting parameters to be selected.
• 1,100W / 230V motor ensures stable operation even during intensive use.
• Digital readout of longitudinal and cross-axis positions (DRO) enables quick dimensional checks, improves setting accuracy and enhances machining repeatability.
• LCD display allows continuous monitoring of the spindle speed.
• Hardened bed guideways increase durability and maintain high carriage guidance accuracy.
• Automatic longitudinal feed improves machining repeatability and reduces the time required to produce components.
• Capability to cut metric and imperial threads
• 38mm spindle bore enables the machining of longer workpieces.
• Compact construction allows efficient use of workshop space.

Construction and Technical Design Features

The machine body is manufactured from high-quality cast iron, which effectively dampens vibrations generated during machining. As a result, the conventional lathe maintains excellent stability even when turning harder materials. The 100mm wide bed is equipped with hardened guideways, ensuring long-term accuracy of carriage movement.

The spindle, supported by precision tapered roller bearings, features an MK5 taper and a 38mm through-bore. Continuously variable speed control eliminates the need for frequent gear changes, significantly improving operator efficiency. Electronic control and a digital LCD display enable quick adjustment of the appropriate parameters for each type of material.

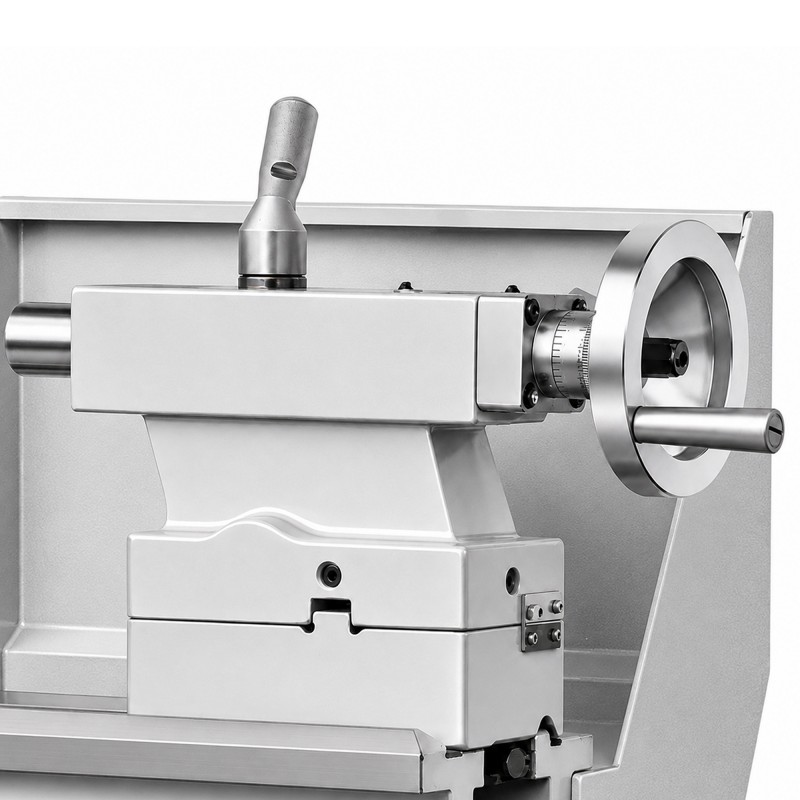

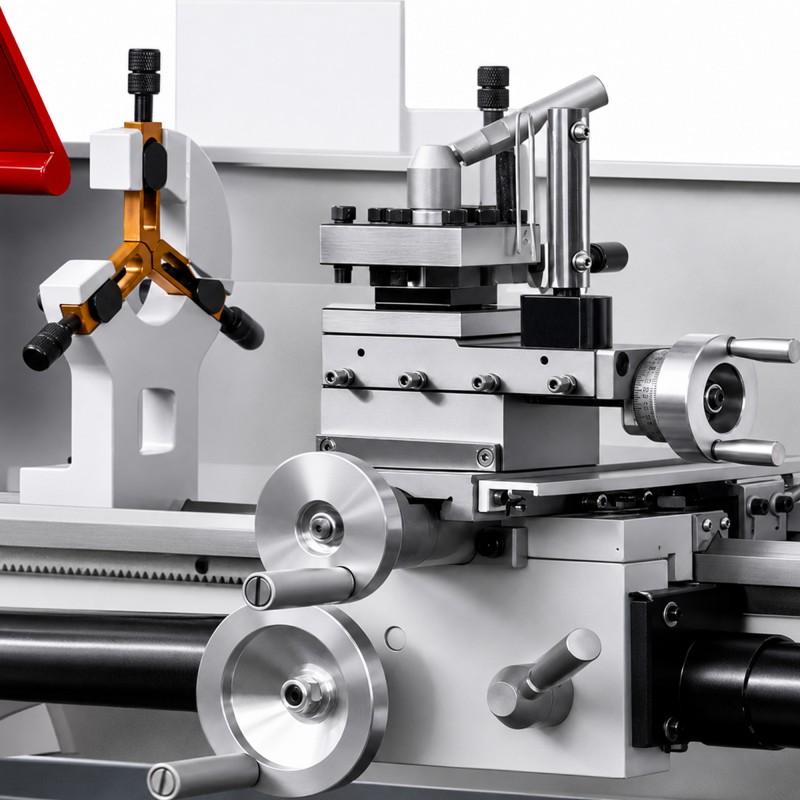

The carriage provides smooth movement and precise tool guidance, while the tailstock, equipped with an MK2 taper, enables convenient support of long shafts and the use of additional tools.

Another advantage of the lathe is its coolant and swarf collection tray, which helps keep the work area clean during machining. Its design effectively drains coolant and collects swarf, limiting their spread around the machine. This solution improves operator comfort, simplifies routine maintenance and enables more efficient organisation of the machining process.

Precision and High Machining Efficiency

The CORMAK TYTAN 220x750P VARIO universal lathe has been designed for accurate turning operations while maintaining a high surface finish quality. Its rigid construction, automatic feed and smooth spindle speed adjustment provide excellent dimensional repeatability and reduce vibrations during operation.

The lathe is equipped with a digital readout of longitudinal and cross-axis positions (DRO), enabling precise monitoring of carriage movement during machining. Electronic measurement reduces the risk of errors associated with reading mechanical scales, shortens dimensional setting times and increases workpiece repeatability. The digital readout significantly improves operations requiring high dimensional accuracy in both one-off and small-batch production.

The machine enables the turning of workpieces up to 220mm in diameter over the bed and up to 750mm in length, as well as metric and imperial thread cutting, facing, drilling, reaming and finishing operations. Thanks to the wide spindle speed range, the operator can easily adjust the parameters for structural steel, stainless steel, non-ferrous metals and plastics.

Applications

The metal lathe is suitable wherever accurate and repeatable machining of components is required.

• mechanical and metalworking workshops,
• manufacturing facilities,
• maintenance departments,
• machinery and equipment service centres,
• technical schools and training centres,
• prototyping workshops and toolrooms.

Standard Equipment

• 2-axis digital readout (DRO)
• 125mm 3-jaw chuck,
• fixed and travelling steadies,
• change gears,
• MK2 and MK4 dead centres,
• oil can,
• coolant and swarf collection tray,
• chuck and tool post keys,
• set of maintenance tools,
• CE-compliant safety guards,
• user manual,
• CE Declaration of Conformity.

Optional Equipment*

• machine stand,
• 12×12mm lathe tool set (11 pieces),
• MK2 live centre,
• MK2/B16 drill chuck arbor,
• HSS-CO5 cobalt drill bit set,
• universal coolant system,
• ES-12 coolant oil (1L).

*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.

Technical Specifications

Choose the CORMAK TYTAN 220x750P VARIO 230V universal lathe if you require precision machining, durable construction and a wide range of machining capabilities. This reliable conventional lathe for professional metalworking is suitable for both everyday workshop operations and more demanding production tasks.
