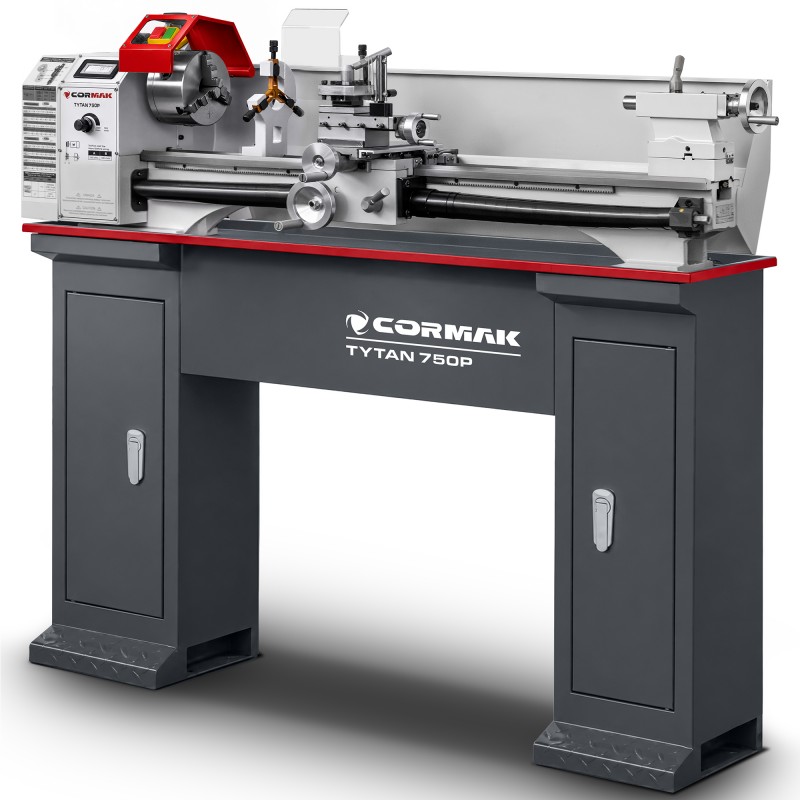

Conventional Universal Lathe CORMAK TYTAN 220x750P VARIO 230V + Stand

The CORMAK TYTAN 220x750P VARIO 230V universal lathe is a modern conventional lathe designed for precise metalworking in workshops, maintenance departments, production facilities and technical training workshops. Thanks to continuously variable spindle speed control, an efficient motor and a robust cast-iron construction, the machine provides high turning accuracy, operating comfort and repeatability of machined parts. It is a versatile metal lathe suitable for both one-off and small-batch production.

Key advantages of the CORMAK TYTAN 220x750P VARIO universal lathe

The TYTAN 220x750P VARIO model has been designed for users who require high precision, stability and easy adjustment of operating parameters. The applied design solutions enable a wide range of turning, threading and finishing operations while maintaining high surface quality.

• Continuously variable spindle speed control in the range of 50–2500rpm enables optimum cutting parameters to be selected.
• 1100W / 230V motor ensures stable operation even during intensive use.
• LCD display enables continuous monitoring of spindle speed.
• Hardened bed guideways increase durability and maintain high carriage guiding accuracy.
• Automatic longitudinal feed improves machining repeatability and reduces machining time.
• Capability for cutting metric and inch threads, both right-hand and left-hand.
• 38mm spindle bore enables longer workpieces to be machined.
• The compact design allows efficient use of workshop space.

Construction and technological solutions

The machine body is made of high-quality cast iron, designed to effectively damp vibrations generated during machining. As a result, the conventional lathe maintains high stability even when turning harder materials. The 100mm wide bed is equipped with hardened guideways, ensuring long-term carriage guiding accuracy.

The spindle, mounted on precision tapered bearings, has an MK5 taper and a through bore with a diameter of 38mm. Continuously variable speed control eliminates the need for frequent gear changes, significantly improving operator efficiency. Electronic control and a digital LCD display enable quick adjustment of suitable parameters for each type of material.

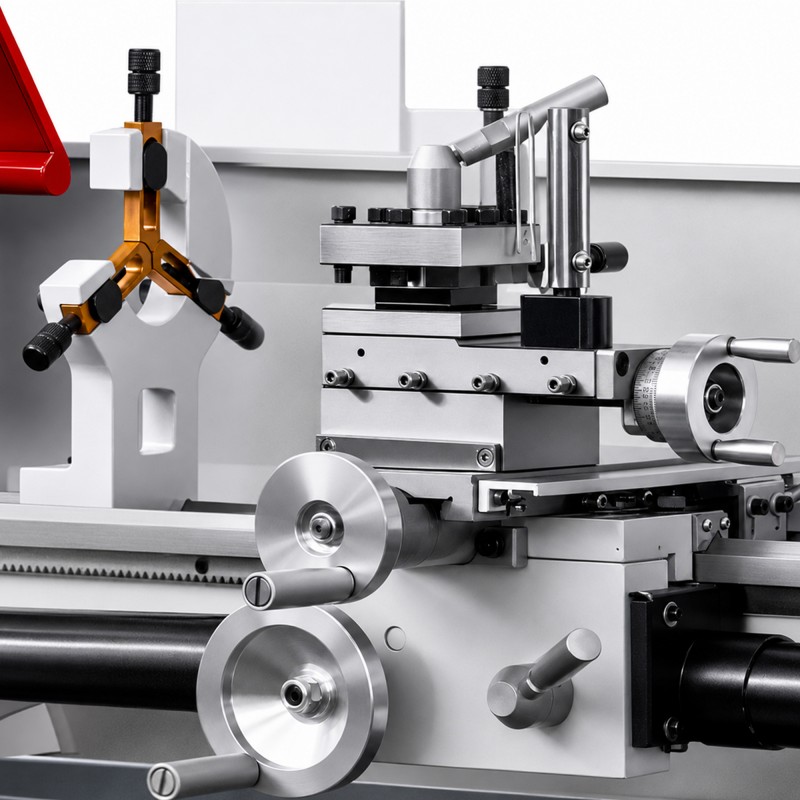

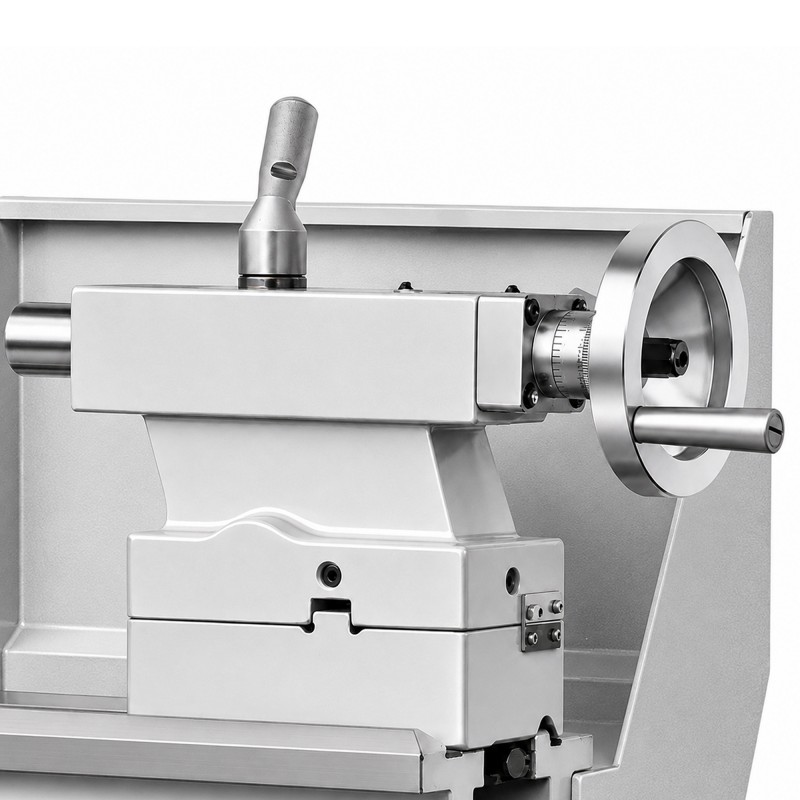

The carriage provides smooth movement and precise tool guidance, while the tailstock equipped with an MK2 taper allows convenient support of long shafts and use with additional tools.

An additional advantage of the lathe is the drip tray for coolant and swarf, which helps keep the workstation clean during machining. The design effectively drains coolant and collects generated swarf, limiting its spread around the machine. This solution improves operator comfort, facilitates daily maintenance and enables more efficient organisation of the machining process.

Precision and high machining efficiency

The CORMAK TYTAN 220x750P VARIO universal lathe has been designed for accurate turning operations while maintaining high surface quality. The rigid construction, automatic feed and continuously variable speed control provide very good dimensional repeatability and reduce vibration during operation.

The machine enables turning of workpieces up to 220mm over the bed and up to 750mm long, as well as metric and inch threading, facing, drilling, reaming and finishing. Thanks to the wide spindle speed range, the operator can easily select suitable parameters for structural steel, stainless steel, non-ferrous metals and plastics.

Applications

The metal lathe is suitable wherever accurate and repeatable machining of components is required.

• mechanical and metalworking workshops,
• production facilities,
• maintenance departments,
• machinery and equipment service centres,
• technical schools and training centres,
• prototype workshops and toolrooms.

Standard equipment

• machine stand
• coolant tray

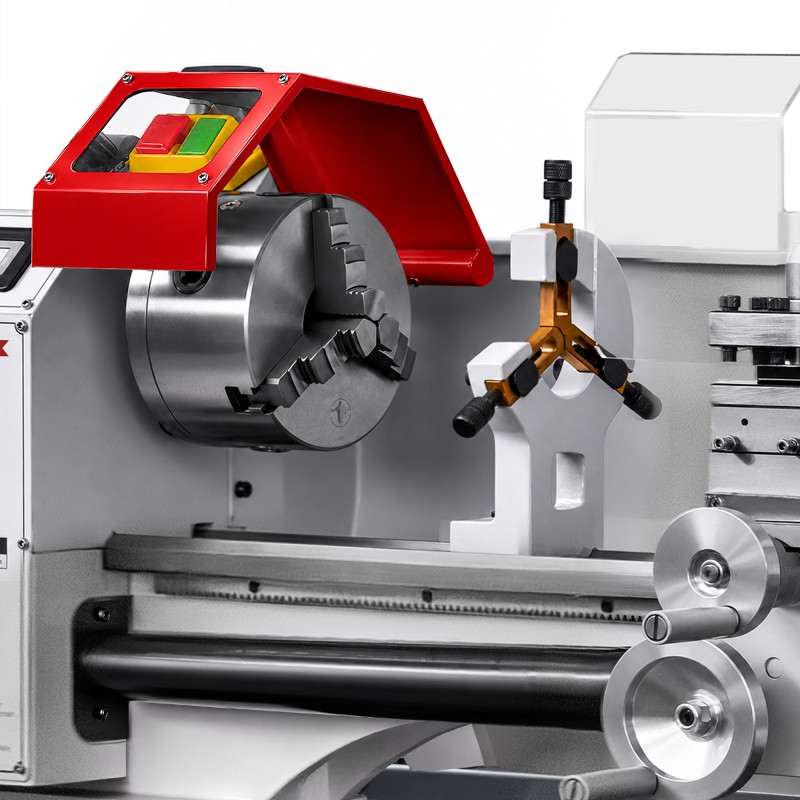

• 125mm 3-jaw chuck,
• fixed and travelling steadies,
• change gears,
• MK2 and MK4 dead centres,
• oil can,
• swarf tray,
• chuck and tool post keys,
• set of operating tools,
• CE-compliant safety guards,
• user manual,
• CE declaration of conformity.

Optional equipment*

• 12 × 12mm lathe tool set (11 pcs.),
• MK2 live centre,
• MK2/B16 drill chuck arbor,
• HSS-CO5 cobalt drill bit set,
• universal coolant system,
• ES-12 coolant oil (1L).

*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.

Technical specifications

Choose the CORMAK TYTAN 220x750P VARIO 230V universal lathe if you require precise machining, durable construction and a wide range of machining capabilities. It is a reliable conventional lathe for professional metalworking, suitable for both daily workshop use and more demanding production tasks.
