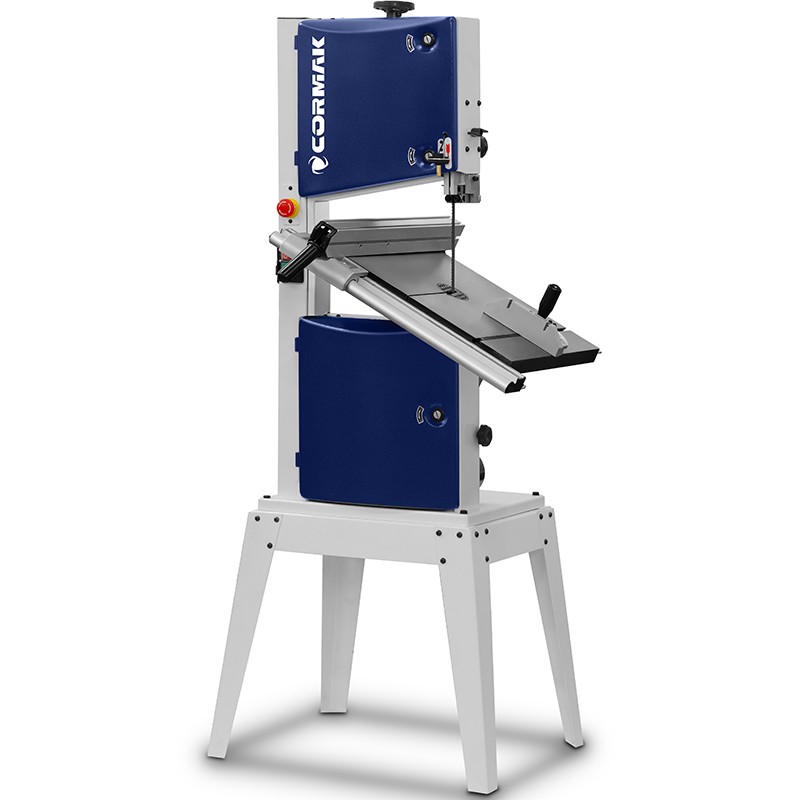

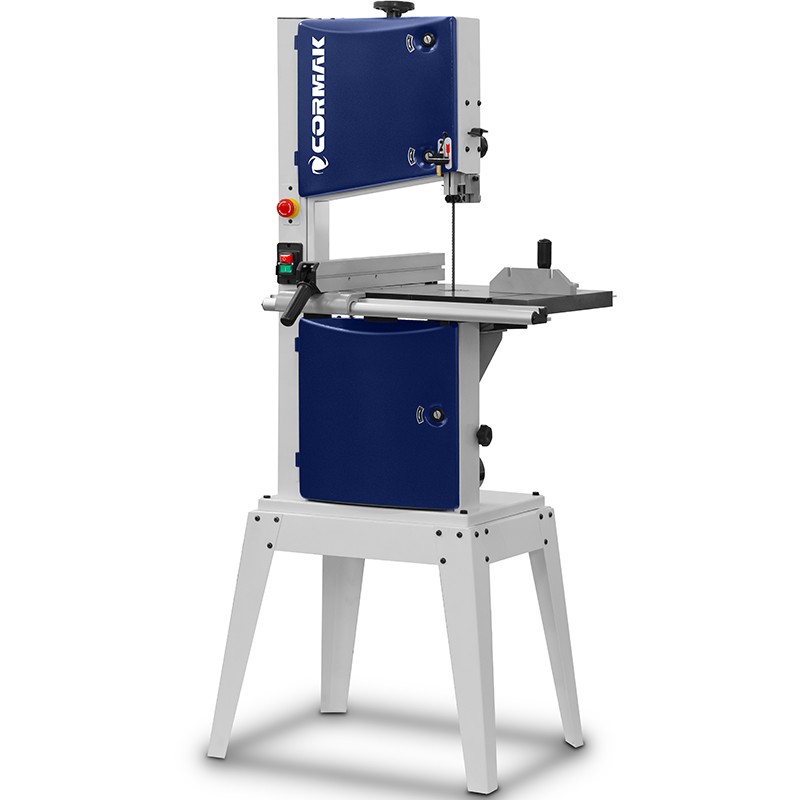

Vertical Bandsaw CORMAK HBS321 with Laser Indicator

Construction and Technology – Detailed Technical Overview

Key Machine Advantages – Practical Benefits in Daily Operation

• Laser indicator – clear cutting line guidance, faster workpiece positioning and fewer operator errors.
• Quick blade tensioning/release lever – efficient blade replacement and reduced maintenance downtime.
• Cast iron worktable – stable material support and reduced vibration, directly improving cut edge quality.

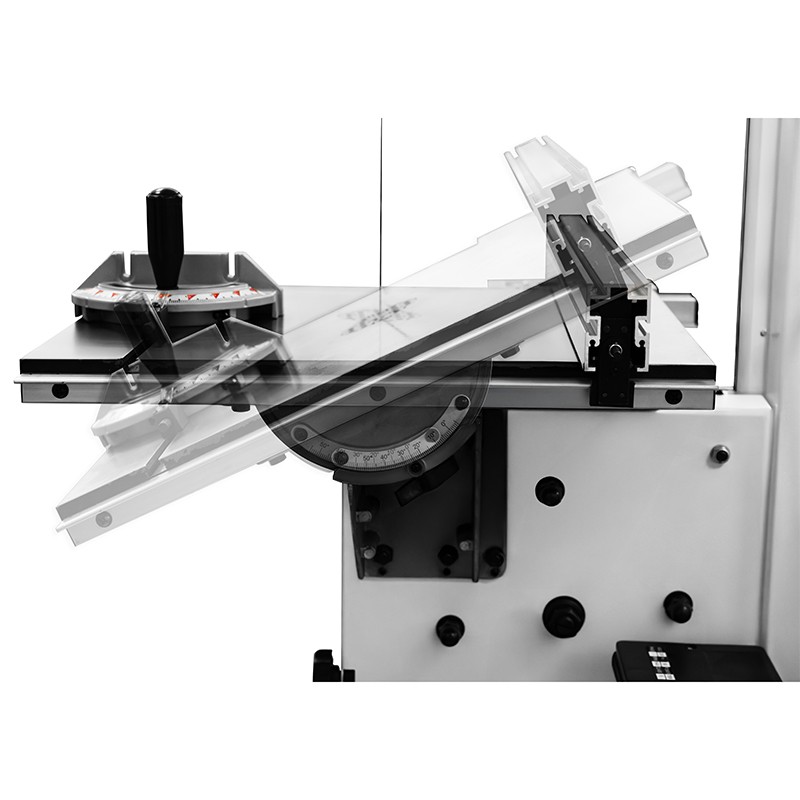

• 0–45° table tilt adjustment – enables angled cuts while maintaining cutting geometry.
• 220/335mm cutting range – convenient processing of larger cross-section workpieces (squared timber, beams and blanks).
• 230V power supply – easy integration into a workshop without requiring a three-phase electrical supply.

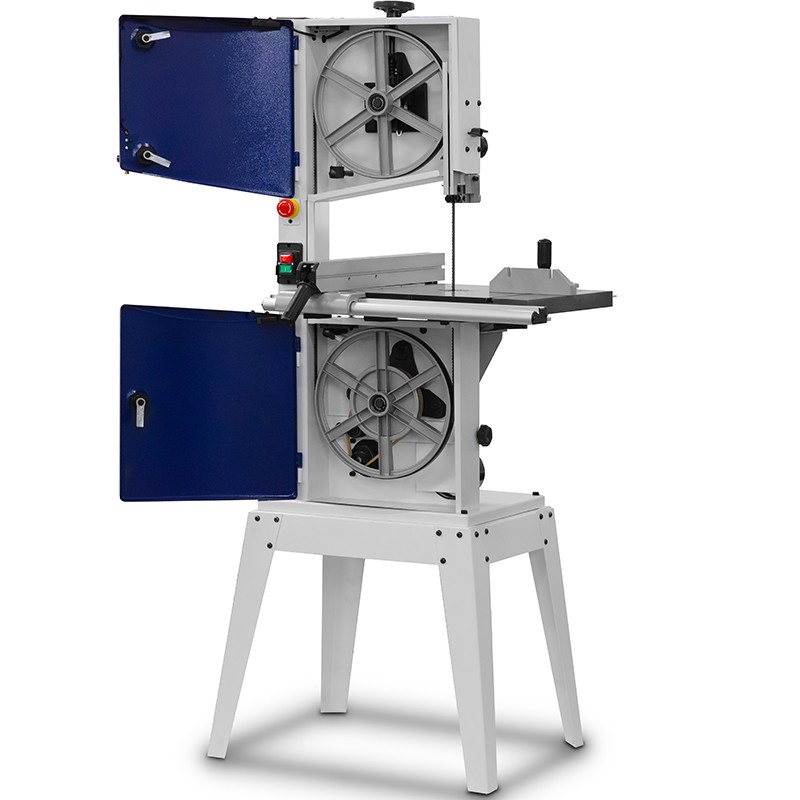

350mm Diameter Wheels and Blade Tracking Control

The use of wheels with a diameter of 350mm improves blade running stability and reduces localised stress. Combined with correct blade tension, this contributes to:

• improved cut surface quality (less tear-out and edge waviness),
• greater repeatability when producing batches of components,
• longer blade service life thanks to more stable operation.

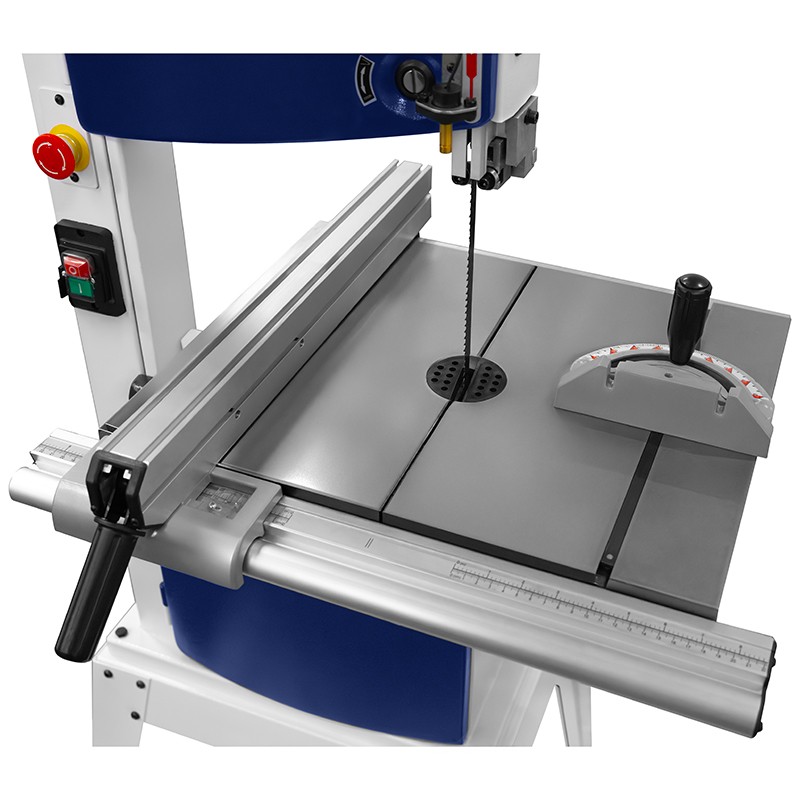

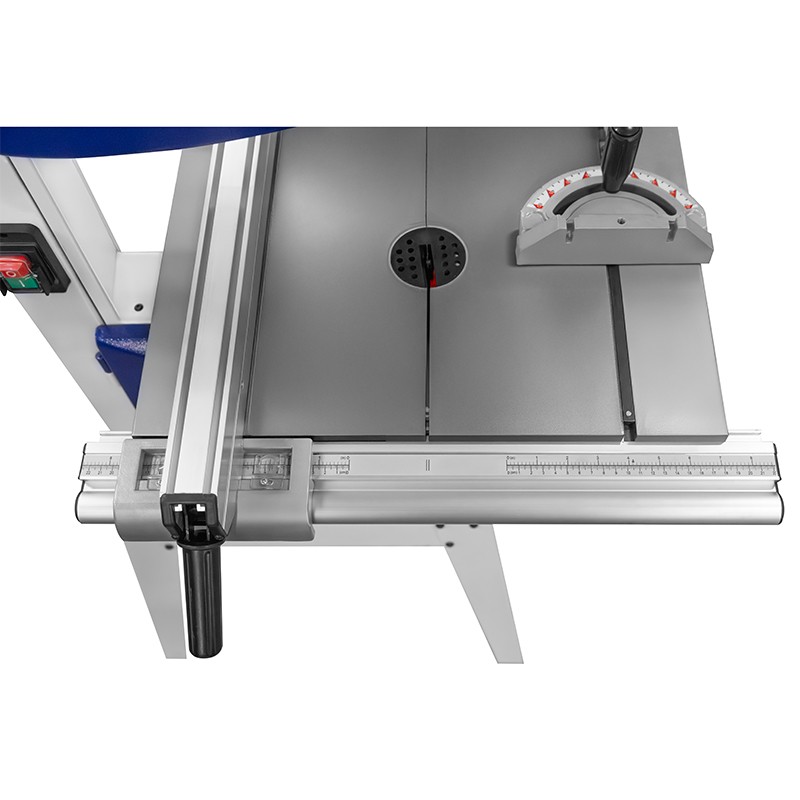

Cast Iron Worktable and Angle Adjustment

The woodworking bandsaw features a worktable measuring 545 x 400mm, providing adequate support for the workpiece, which is essential for precise straight and angled cuts. The ability to tilt the table through 0–45° enables angled cuts without the need for additional attachments. Cast iron effectively dampens vibrations, allowing the bandsaw to maintain stable operating conditions.

Drive System and Operating Parameters

The woodworking bandsaw features a motor with a total power of 1.1kW, ensuring stable operation during typical woodworking tasks, including material cutting, trimming, preparing components for gluing and assembly, and contour cutting. The use of blades with widths of 6–15mm allows the blade to be selected according to the application, from precise curved cuts to straight cuts with greater guidance stability.

Laser Indicator – Improved Control and Reduced Material Waste

The laser indicator supports rapid material positioning and accurate cutting path alignment. In practice, this means fewer trial cuts, lower material consumption and easier processing of workpieces requiring precise guidance (e.g. profiled components and contour cutting).

Cutting Precision and Productivity

In professional applications, it is not only the ability to cut that matters, but also repeatability. The rigid construction, stable table and quick blade adjustment reduce machine setup time and minimise the need for corrections during subsequent processing stages (planing, sanding and fitting). As a result, the CORMAK HBS321 bandsaw helps maintain a smooth workflow and improves process efficiency.

Applications

The HBS321 wood bandsaw is designed for a wide range of wood and wood-based material processing tasks, including:

• cutting boards, squared timber, beams and laminated components,
• trimming furniture and joinery components,
• angled cutting (using the tilting table),
• cutting shapes and profiled components,
• workshop operations in joinery shops, craft workshops and training workshops.

Technical Specifications

Standard Equipment

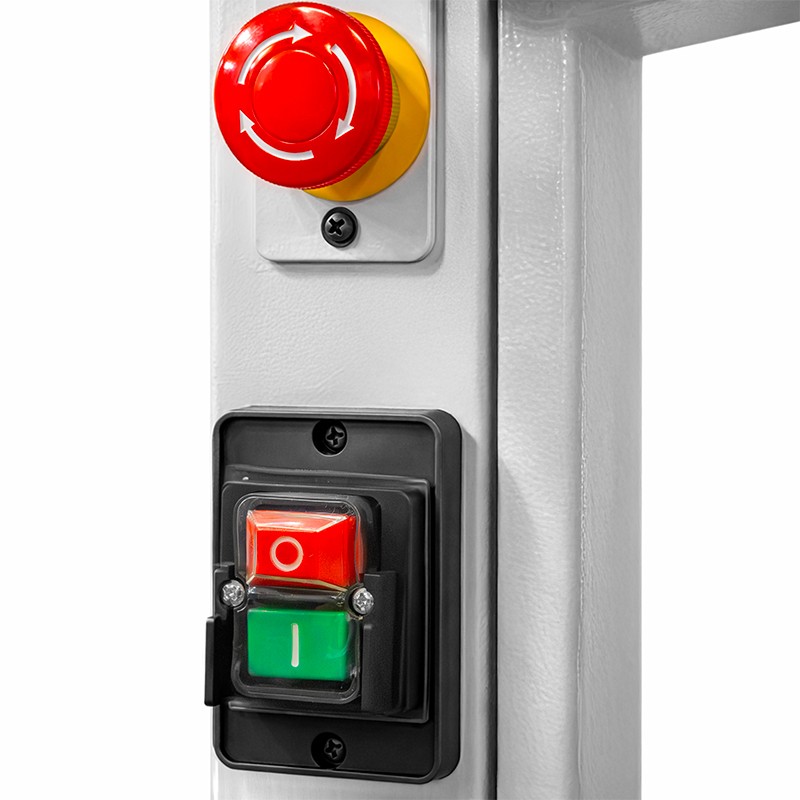

• on/off switch with undervoltage release
• quick blade tensioning/release lever
• precision fence
• bandsaw blade
