Pipe Welding Rotators CORMAK OS-3

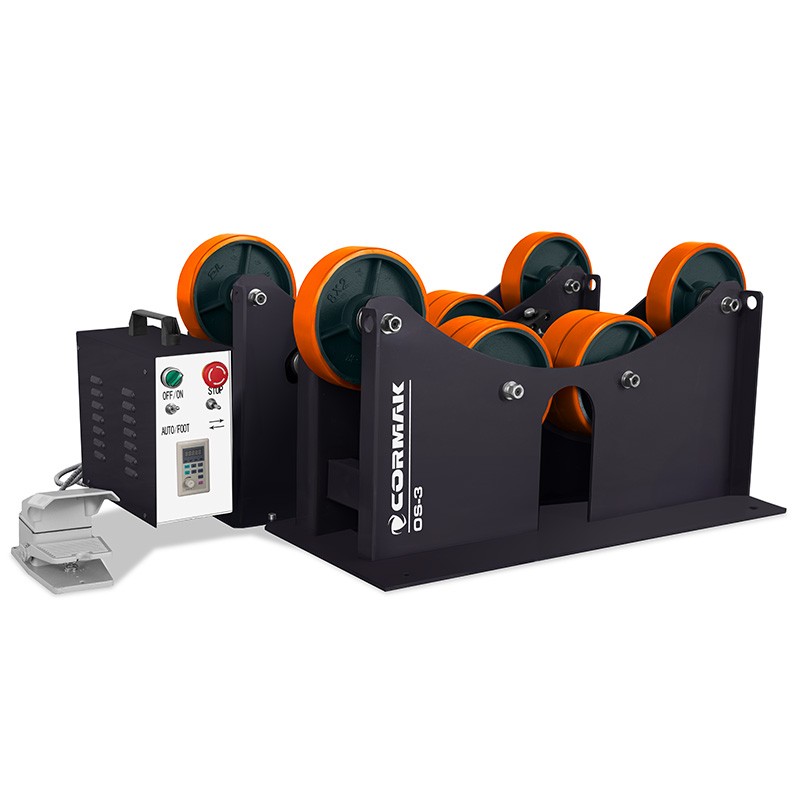

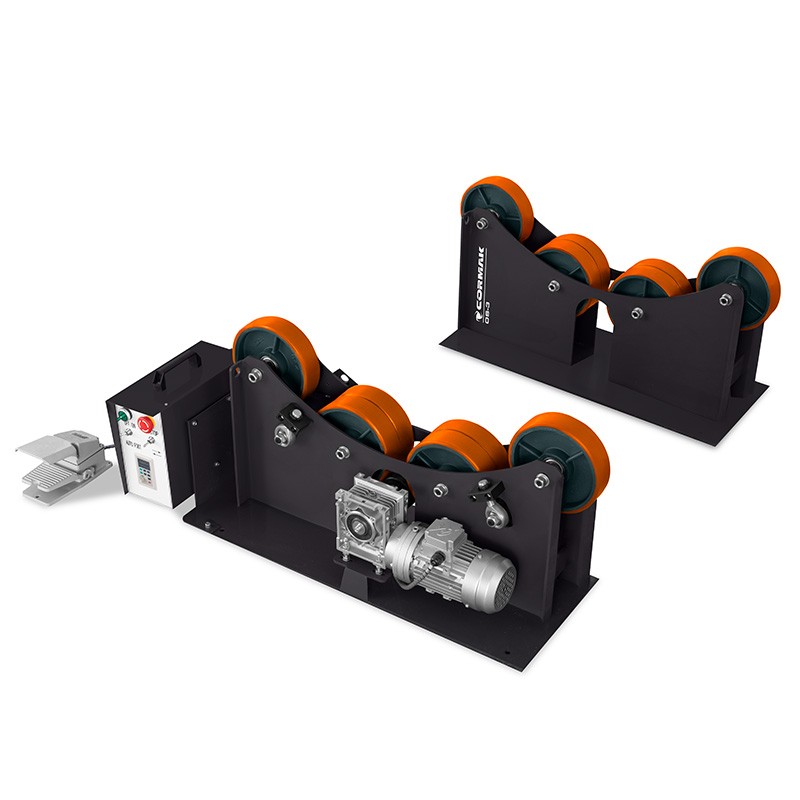

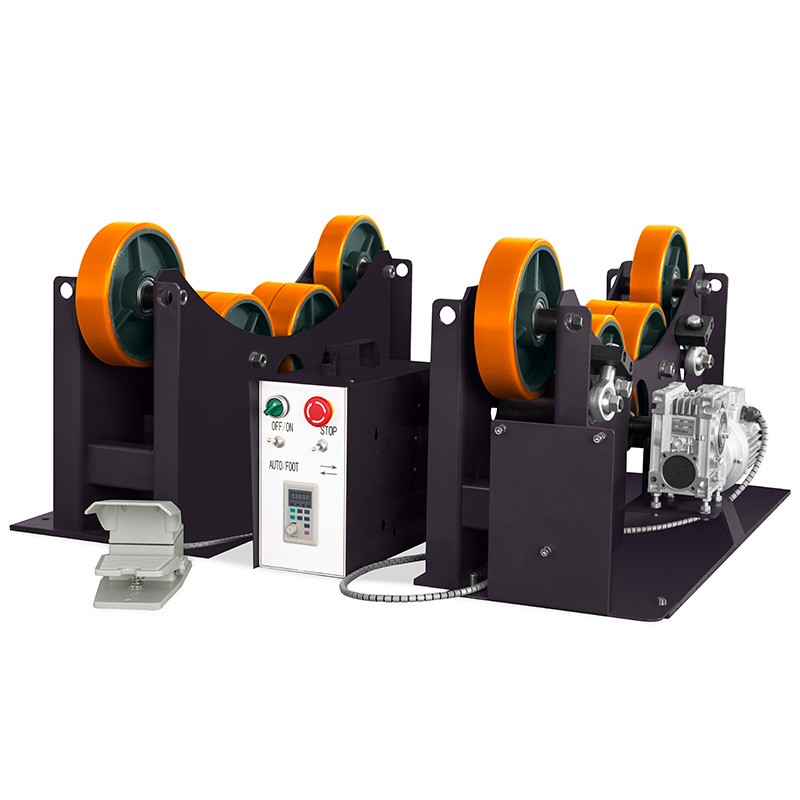

Pipe Welding Roller Rotator CORMAK OS-3 – professional welding positioner for demanding users

The CORMAK OS-3 welding rotator is a high-quality welding positioner designed for precise rotation of cylindrical components during welding, assembly, and quality control processes. The unit combines robust construction, performance, and work ergonomics, making it an ideal choice for both heavy industry and specialised workshops. Thanks to its roller drive mechanism and load capacity of up to 3000 kg, the OS-3 model is perfect for welding pipes, tanks, and cylindrical steel components.

Main advantages of the machine

• Load capacity up to 3000 kg – enables operation with large and heavy components of various diameters.
• Universal diameter range of workpieces: 40–1400 mm.
• Compact dimensions and easy integration with other workstations.

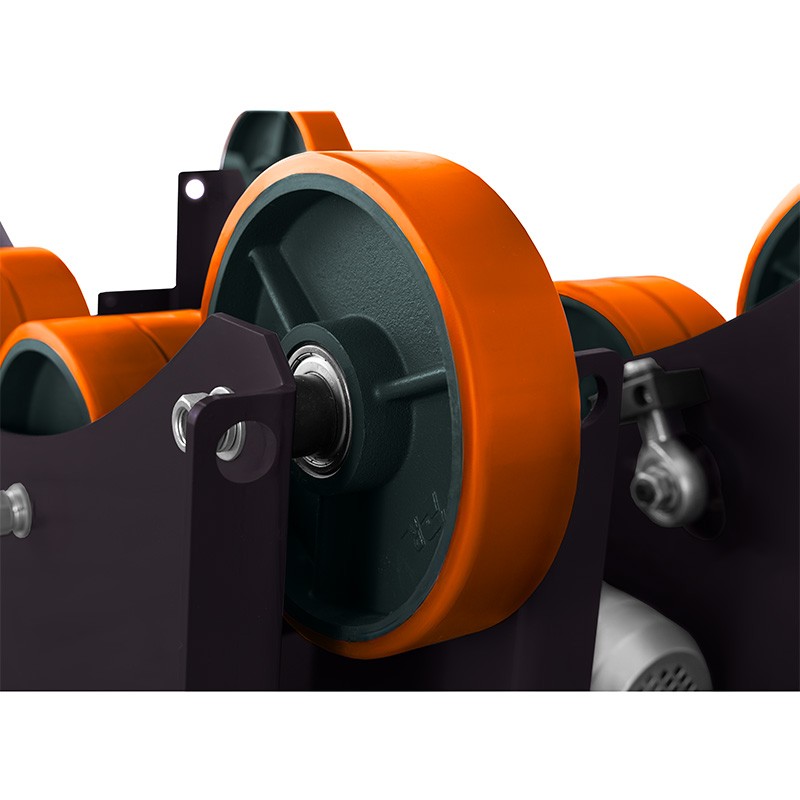

• Rollers Ø250 × 50 mm – made of high-strength materials for stability and long service life.
• Foot pedal remote control – safe and convenient control without interrupting the welding process.
• Durable construction – enhanced resistance to dynamic loads, ensuring stability and operational safety.

Design and technology

The CORMAK OS-3 welding rotator has been designed with a focus on production efficiency. The frame is made of thick-walled welded steel profiles, providing torsional rigidity and long-term durability under industrial conditions. The rollers are mounted in precision-machined housings, ensuring stable and accurate support of the rotating component, which translates into high-quality welds.

Drive system

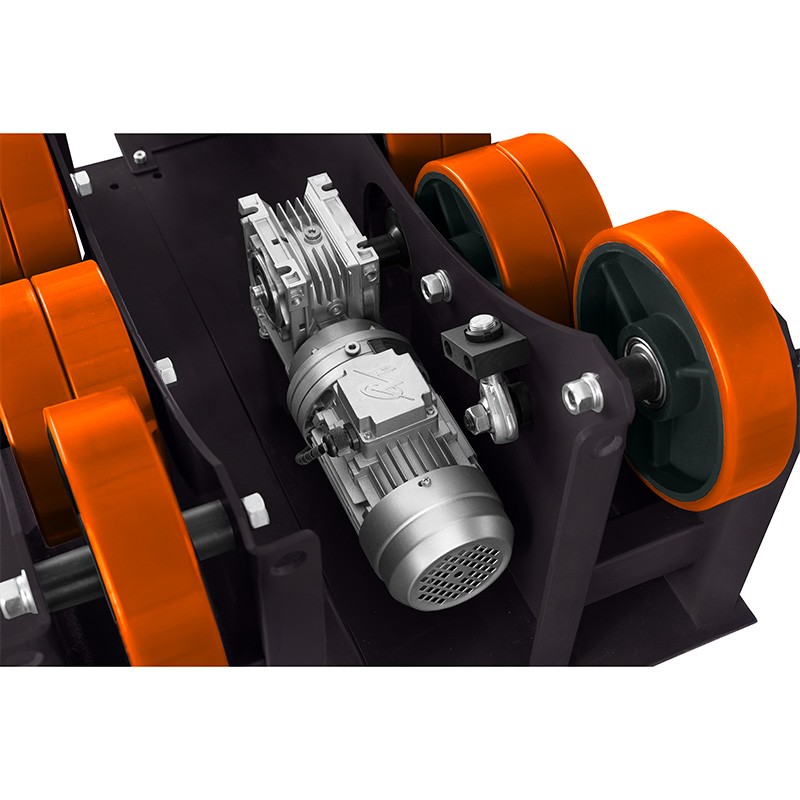

The OS-3 model is equipped with a reliable 0.37 kW motor providing smooth and uniform rotation. The drive enables precise adjustment of speed and torque, allowing the operator to adapt the rotation rate to the material type and thickness. The 230 V power supply allows connection under standard workshop conditions without the need for an additional three-phase installation.

Modularity and ergonomics

The compact construction allows for quick setup within production lines and easy repositioning in the workshop. The integrated foot pedal enables the operator to focus entirely on the welding process without the need for manual adjustments.

Precision and performance

The CORMAK OS-3 welding rotators are designed for maximum rotational accuracy and process repeatability. By eliminating vibrations and using a roller-based system, the device provides stable support for the workpiece along its entire circumference. This significantly reduces setup time, simplifies welding seam guidance, and eliminates errors caused by manual rotation.

Applications

CORMAK welding positioners are used in a wide range of industries, including:

• manufacturing of pressure and hydraulic tanks,
• processing of pipelines, fittings, and cylindrical components,
• shipbuilding, petrochemical, and power industries,
• fabrication of frames, stands, columns, and steel cylinders,
• repair and regeneration of pipes and rotating elements.

Standard equipment

• Driven roller set with 0.37 kW motor
• Ø250 × 50 mm rollers with increased grip
• Foot control pedal
• Stable powder-coated steel frame
• Power cable and full documentation

Optional equipment

• Synchronisation system with semi-automatic welding machines
• Extended rollers for larger-diameter components
• Mobile bases or transport trolley
• Digital rotational speed display
• Workpiece locking systems

Technical data

Summary and call to action

The CORMAK OS-3 welding rotator is a professional welding positioner that increases safety, precision, and efficiency when working with cylindrical components. Thanks to its compact size and intuitive control, it is a perfect choice for both serial production and workshop repairs. Choose proven welding rotators from CORMAK and improve your production process. Add to your cart now and make full use of your workshop’s potential.
