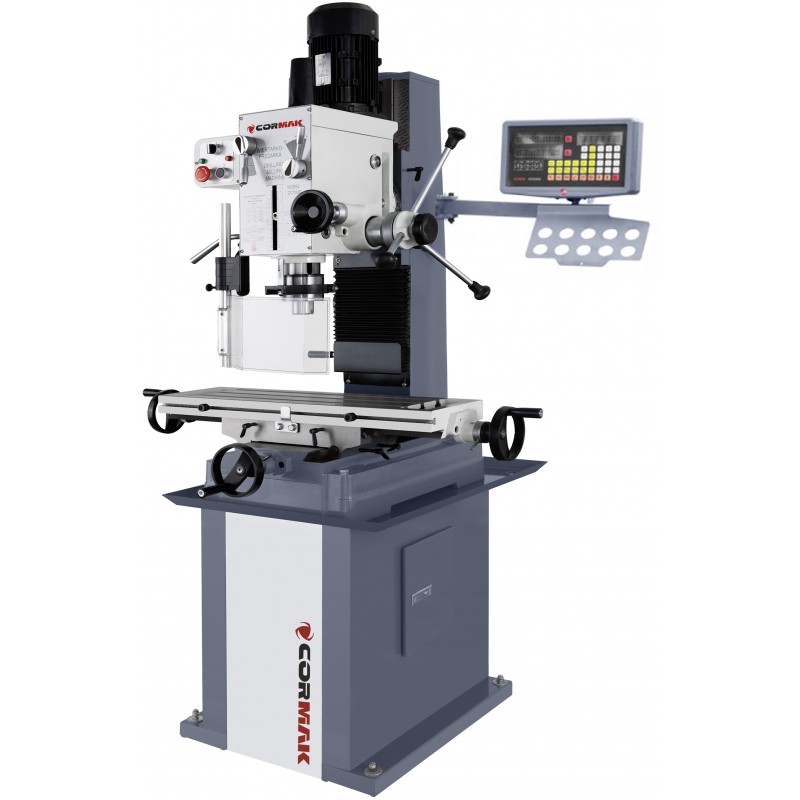

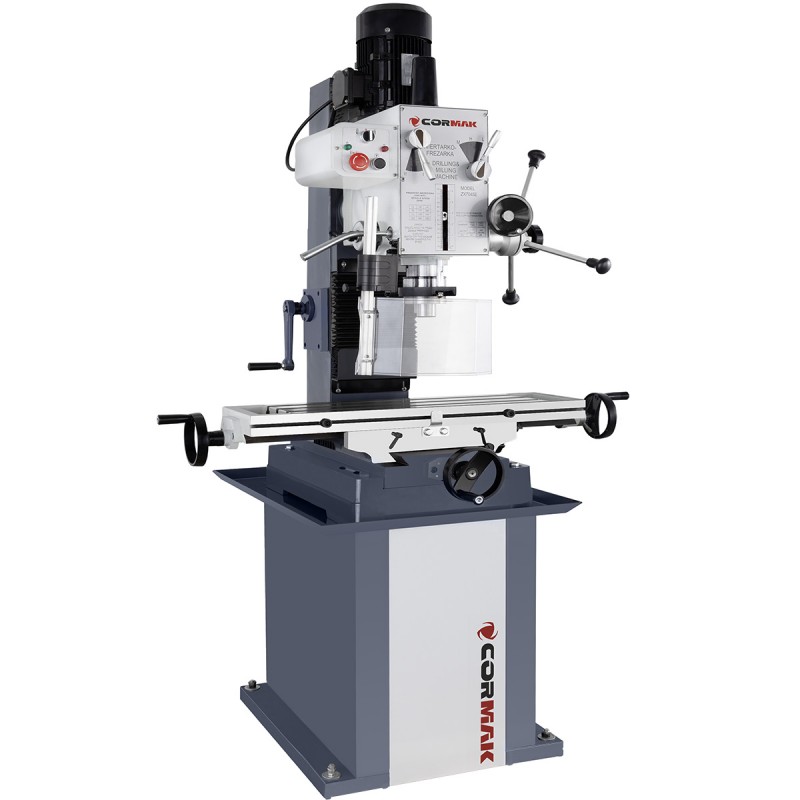

Drilling–Milling Machine CORMAK ZX7045E DRO

The ZX7045E DRO drilling–milling machine with digital readout is a versatile tool for machining steel. It is ideal for drilling, reaming, boring, threading, milling, and face milling. The machine enables precise drilling in cast iron up to 45/40 mm in diameter. Additionally, it allows thread cutting up to M12, milling up to 80 mm in width, and cutting grooves up to 22 mm deep. The ZX7045E DRO drilling–milling machine is a reliable tool ready for operation!

Machine features

• Heavy-Duty Cast-Iron Construction: The robust cast-iron frame ensures stability and durability even during intensive use.
• Height Adjustment on the Support: Unique head height adjustment on the support, not the column, allows the machine to be adapted for various applications.

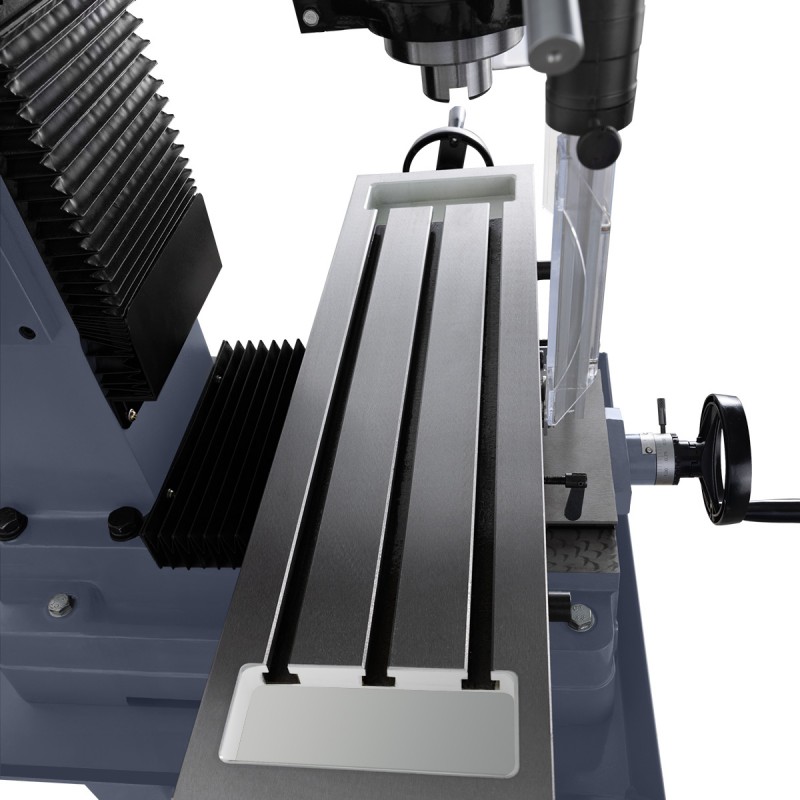

• Massive Cross Table for Milling/Drilling: A large table with a precisely ground surface provides a solid base for diverse machining projects.
• Dovetail Guideways: Precision dovetail guideways ensure smooth movement along all three axes, resulting in excellent machining accuracy.

• Quiet Operation Thanks to Ground Gears: The ground gear system provides quiet operation, enhancing operator comfort.
• Left and Right Spindle Rotation: Enables bidirectional spindle rotation for a wider range of machining operations.

• Tilting Head ±90° and Adjustable Height: The head tilt and height adjustment offer complete control over material processing.
• Digital readouts for longitudinal and cross movement.

Additional Options, Extra Benefits: The ZX7045E DRO version is available from stock and comes with a free accessory set:

• Drill chuck
• Reducing sleeve MK4/MK3
• Reducing sleeve MK3/MK2

The ZX7045E DRO drilling–milling machine is a high-precision tool that provides consistent performance in machining tasks. Equipped with digital readout (DRO) and a solid design, it allows precise milling and drilling across a wide range of materials. Its versatility and reliability make it an ideal solution for professional workshops requiring accuracy and durability for complex applications.

(Base available as an option)

Technical data

Included equipment

• 2-axis digital readout
• Drill chuck arbor MK3/B18
• Service tools
• Drill chuck 3–16 mm /B18
• Reducing sleeve MK4/MK3
• Reducing sleeve MK3/MK2
• User manual

Optional equipment

• Rotary vices
• Machine base
• Tilting vices
• Precision vices
• Dividing tables
• Indexing heads
• Tapping heads
• Milling heads
• End mills (HSS, HSSE, HSS-PM, solid carbide)
• Straight shank drills
• Taper shank drills
• Milling inserts
• Hand and machine taps
• Clamping kits
• Tool holders (collet, Weldon type)
• Arbor shafts
• Drill chucks
