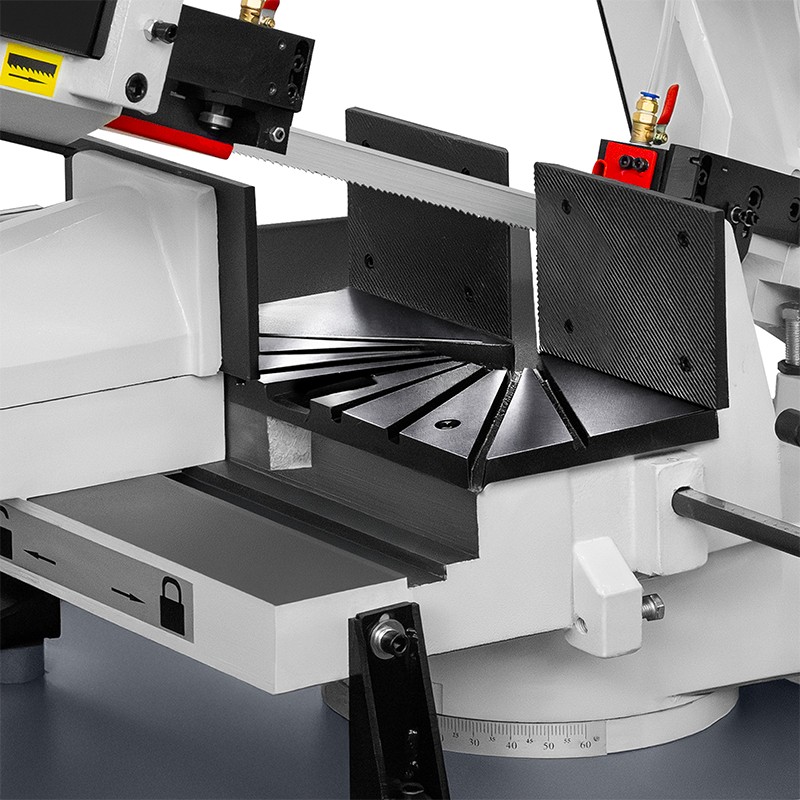

Metal Bandsaw CORMAK MCB350HD

Metal Bandsaw CORMAK MCB350HD – precision and efficiency in cutting profiles and solid materials

CORMAK MCB350HD is a professional metal bandsaw designed for precise cutting at angles from -45° to +60°. Equipped with a robust cast-iron arm and a gravity feed system, it is ideal for both unit and serial production. The high rigidity of the structure and durable components allow efficient cutting of structural, stainless and tool steels, as well as closed profiles and solid materials.

Main features

• Cutting range from -45° to +60° – full flexibility for cutting pipes, profiles and solid materials.
• Cast-iron arm – excellent rigidity and vibration resistance ensure cutting accuracy and longevity.
• Carbide blade guide system – precise tracking and extended blade life.
• Automatic stop after cutting – improved safety and energy savings.
• Gravity feed with stepless adjustment – hydraulic cylinder provides constant feed pressure throughout the cut.

Design and technology

The saw’s design is based on a heavy-duty welded steel frame with cast-iron components. The arm, inclined at 25°, improves cutting efficiency and blade life. The worm gear drive system ensures reliable performance, while the blade tension gauge (dial tensometer) maintains optimal cutting conditions.

The machine is equipped with a blade-cleaning brush, coolant pump with closed circulation system and a material stop with a measuring scale, allowing accurate repetitive cutting.

Precision and cutting performance

The CORMAK MCB350HD metal bandsaw for tubes and profiles offers a variable speed range of 36 and 72 m/min, enabling adjustment to different materials. Blade guides with bearings and carbide inserts guarantee straight, accurate cuts and minimal wear on the blade. The coolant system delivers emulsion directly to the guides, improving cutting conditions and extending tool life.

Applications

The MCB350HD model is dedicated to production plants, metal workshops and fabrication facilities where reliability, repeatability and versatility are key. It is ideal for cutting steel pipes, closed profiles, bars, flats and solid materials.

Standard equipment

• Blade-cleaning brush
• Cooling system with pump and tank
• Material stop with scale
• Saw blade
• Blade and gearbox covers

Optional equipment

• Roller table for material feeding
• Additional saw blades
• Laser cutting line system

Technical data

Order now

Choose reliability and precision – select the CORMAK MCB350HD metal bandsaw and increase the efficiency of your cutting processes. Contact our sales department to check availability!
