Reference:
BS128HDRC400V
Manufacturer:
CORMAK
Metal bandsaw with an optimal cutting range, commonly used in locksmith, manufacturing and craft workshops.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Machine characteristics

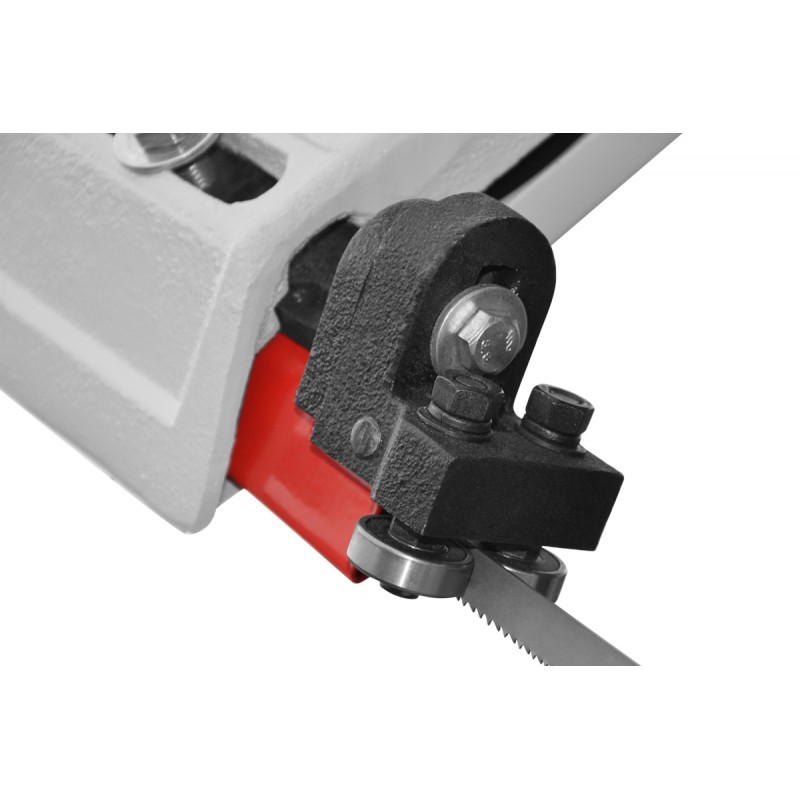

The CORMAK BS128 HDRC metal bandsaw, featuring an optimal cutting range and designed for professional craftsmen, stands out for its efficiency and ease of use. It has a pivoting arm that can rotate in both directions, which is a great advantage when cutting materials at an angle. Despite its compact size but substantial weight (109 kg), the machine is very stable and does not vibrate when cutting larger materials, unlike lightweight machines. The workpiece can be fed manually or by any feeding device. The feed during cutting is gravitational, based on the oil flow in a double-chamber hydraulic cylinder. The appropriate arm lowering speed is achieved using a valve that regulates the oil flow between the cylinder chambers. The straightness of the cut is ensured by a set of bearings guiding the blade. It is equipped as standard with an automatic limit switch and an ON/OFF switch in accordance with IP 54. The saw frame swivels for double mitre cutting from -45° to +60°.
Technical parameters
|
BLADE LENGTH |
1640 x 13 x 0.65 mm |
|
BLADE TENSION |
mechanical (manual) |
|
CUTTING SPEED |
20 / 29 / 50 m/min |
|
POWER |
0.55 kW / 400V |
|
ARM LOWERING CONTROL |
stepless via hydraulic cylinder |
|
CUTTING RANGE |
-45° – +60° |
|
DIMENSIONS |
1000 x 550 x 1100 mm |
|
WEIGHT |
103 kg |
| Max. cutting capacity [mm] | |||
|---|---|---|---|
|
Angle |
|
|
|
|
0º |
Ø125 |
150 x 100 |
120 x 120 |
|
45º |
Ø90 |
90 x 90 |
90 x 90 |
|
60º |
Ø55 |
55 x 55 |
55 x 55 |
|
-45º (L) |
Ø75 |
75 x 75 |
75 x 75 |
Standard equipment
- 3rd generation hydraulic cylinder
- Table for vertical cuts
- Quick-clamping vice

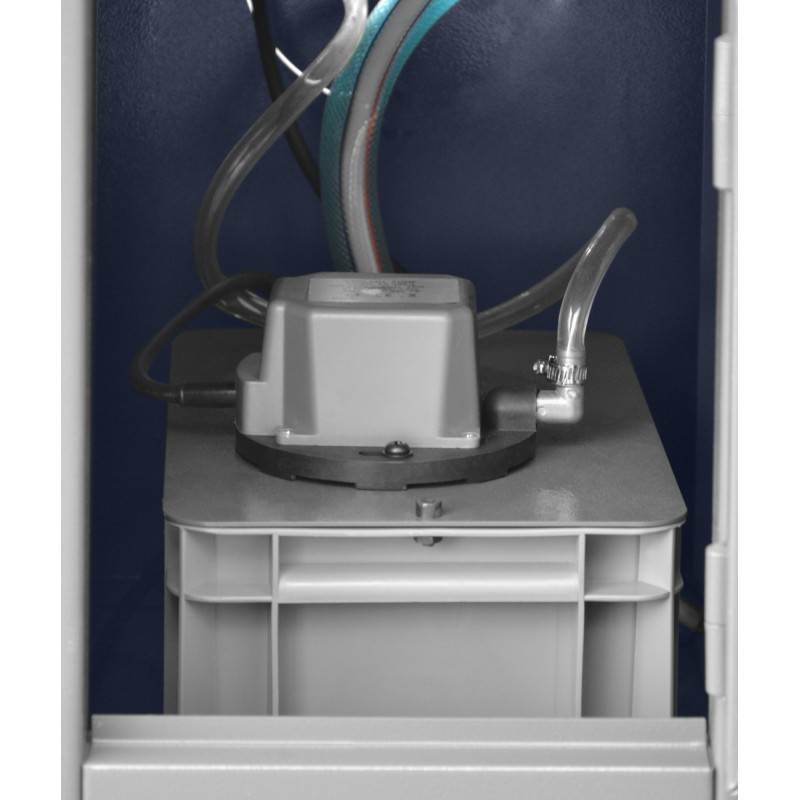

- Coolant system
- Workpiece stop
- Automatic limit switches
- Modern thermal motor protection
- Mobile base with four wheels
- CE certification
