Metal Bandsaw CORMAK BS128HDRC 230V | Industrial Bandsaw | CORMAK

Category: Gravity Feed Metal Bandsaws

Metal Bandsaw CORMAK BS128 HDRC 230V

Reference:

BS128HDRC

Manufacturer: CORMAK

Metal bandsaw with an optimal cutting range, widely used in locksmith, manufacturing and craft workshops for cutting a variety of metals.

Not available for purchase

Find out more about financing

Any questions? Give us a call!

export@cormak.eu

+48 25 6310027 ext. 105

+48 25 6310027 ext. 130

+48 609939400

+48 721939797

+48 721939787

+48 501944934

+48 609939741

+48 609939051

tax included kr704.69

excl. tax kr563.75

Polish manufacturer

Top Quality

Warranty service

and post-warranty service

CE certificates

We comply with EU standards

12 / 24-month warranty

Secure purchase

Description

Machine features

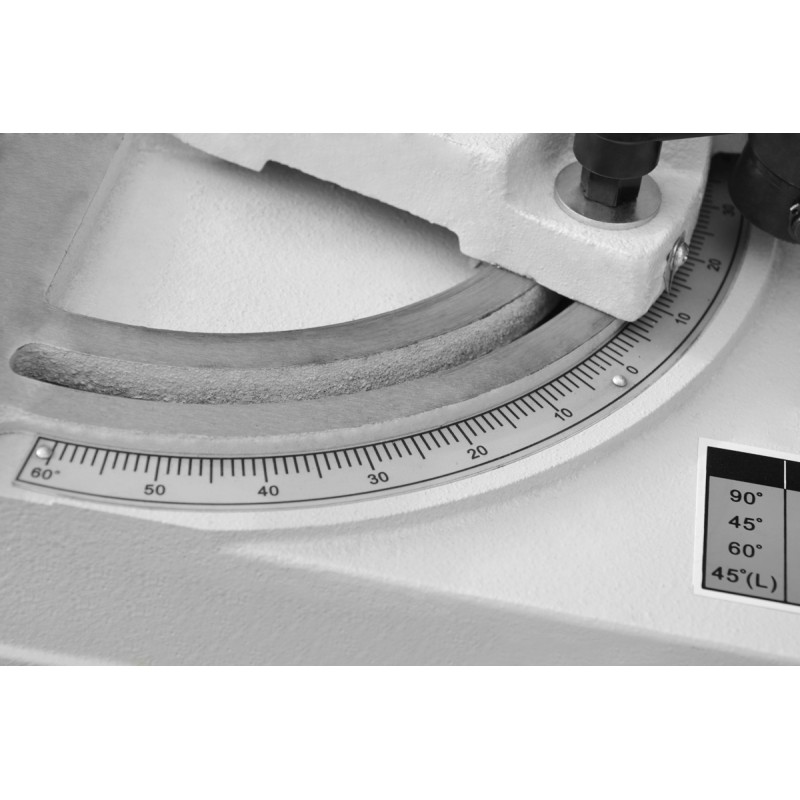

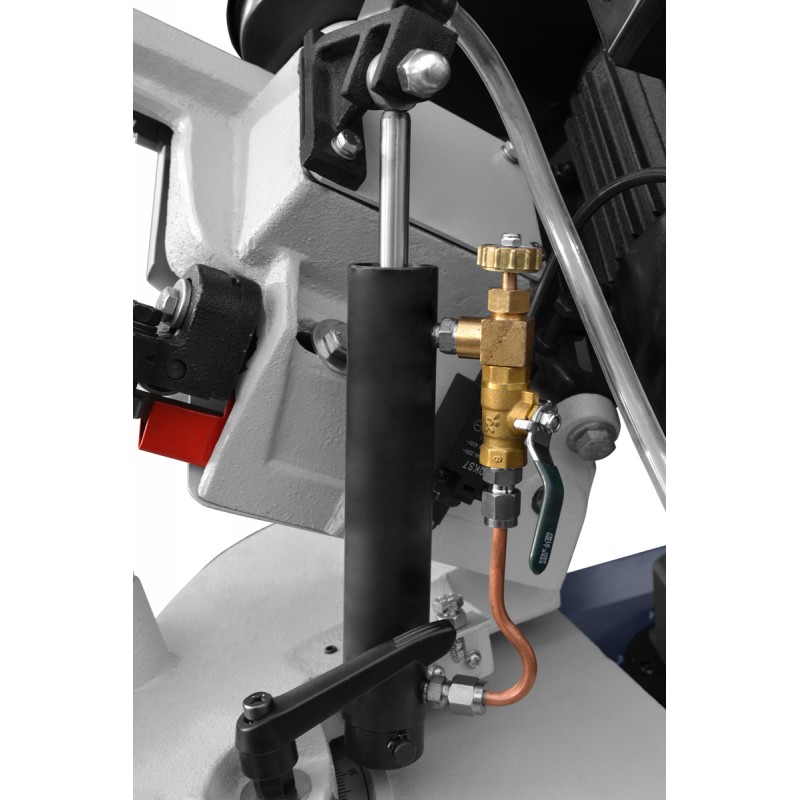

The CORMAK BS128HDRC metal bandsaw, designed for professional craftsmen, offers optimal cutting range, performance, and ease of use. The arm swivels in both directions, which is a major advantage when cutting materials at angles. Despite its compact size, the machine’s high weight (90kg) ensures excellent stability and minimises vibrations during cutting – unlike lighter machines. The material can be fed manually or by any feeding device. The feed during cutting operates by gravity, based on the oil flow within a dual-chamber hydraulic cylinder. The desired arm lowering speed is achieved by adjusting the valve that regulates the oil flow between the chambers. Cutting accuracy is ensured by a set of bearing guides. The machine is equipped as standard with an automatic limit switch and an ON/OFF switch compliant with IP54. The saw frame swivels for double mitre cutting within the range from -45° to +60°.

Technical specifications

Blade length	1640 × 13 × 0.65mm
Blade tension	mechanical (manual)
Cutting speed	20 / 29 / 50m/min
Motor power	0.55kW / 230V
Arm lowering adjustment	stepless by hydraulic cylinder
Cutting range	-45° to +60°
Dimensions	1000 × 550 × 1100mm
Weight	90kg
