Reference:
BS370h
Manufacturer:
CORMAK

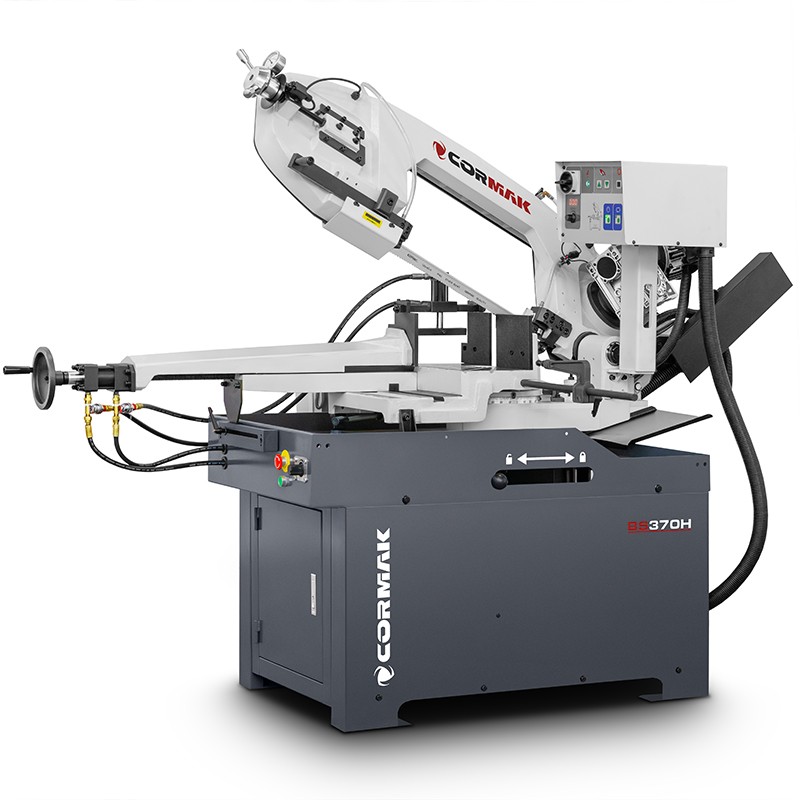

The semi-automatic band saw CORMAK BS370H, equipped with a hydraulically controlled vice and saw arm, coolant system and swivel arm enabling cutting at angles from -45° to +60°, combined with blades from the renowned German company Rontgen, is widely used in metalworking workshops where precision, quality and cutting speed are essential.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Product characteristics:

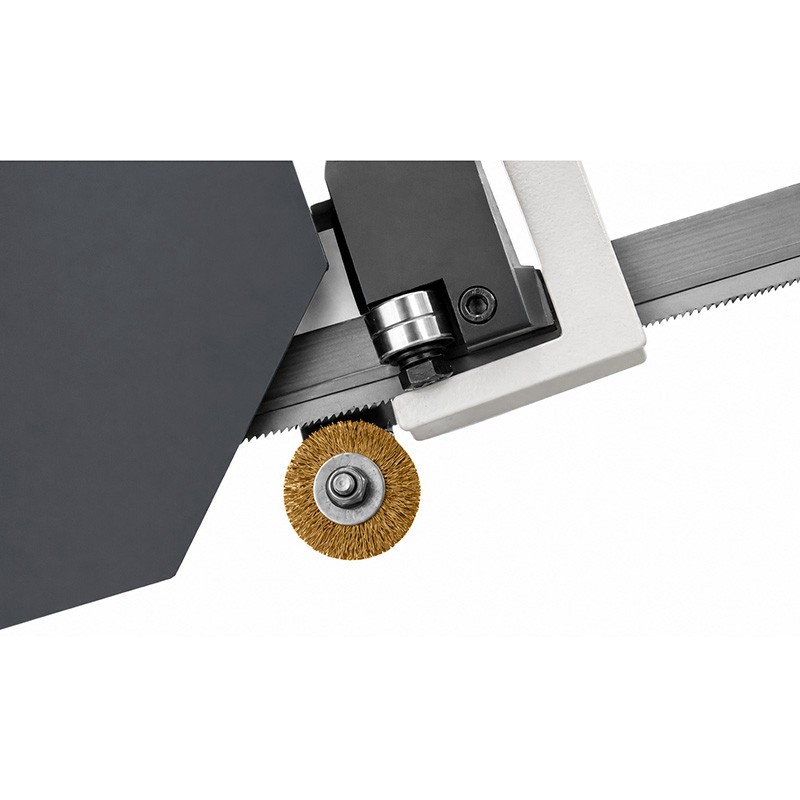

The BS370H is a robust and reliable semi-automatic band saw with cutting angles from -45° to +60° and a hydraulically controlled vice and saw arm. An indispensable machine in every metalworking workshop, it is ideal for cutting pipes, profiles and solid materials. The blade guides are equipped with special carbide plates and bearings. This has a significant impact on blade guidance, service life, straightness, accuracy and cutting quality. Carbide guidance greatly reduces wear of both the machine and the blade. The machine is equipped with an efficient coolant pump with a closed coolant circulation system.

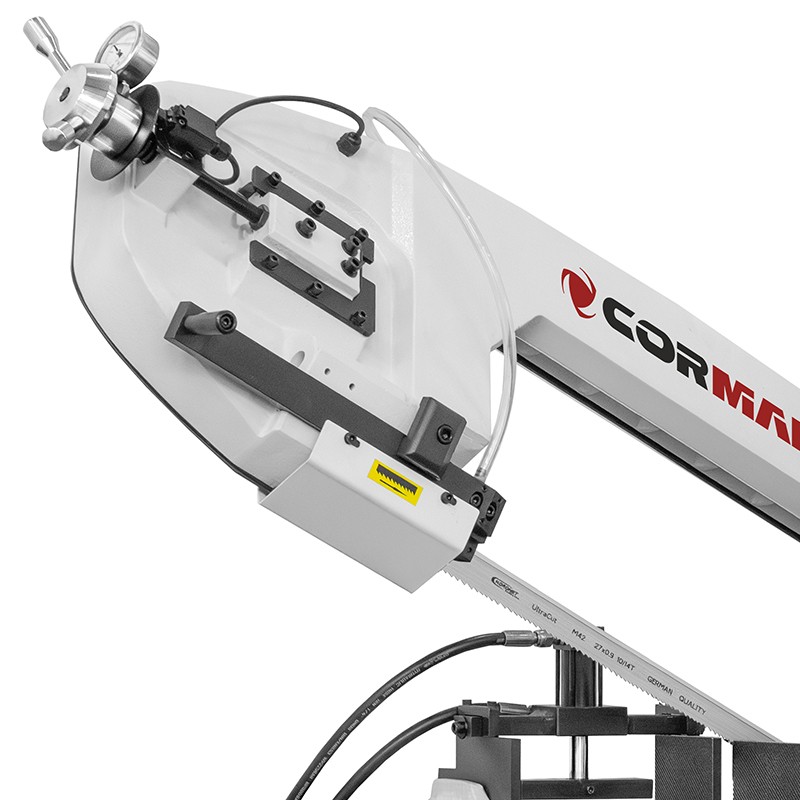

The machine drive is transmitted via a worm gearbox. The machine features a three-phase motor with two cutting speeds and motor thermal protection. The saw is equipped with a DIAL TENSION GAUGE – blade tension indicator and an automatic switch in the event of blade breakage.
The upper part of the base is shaped as a tray for draining coolant and collecting chips generated during cutting. A cast-iron work table with a swivel arm and a control panel mounted on a separate arm is fixed to the base. During the cutting process, the main cutting motion is performed by the movement of the cutting blade, while the feed is provided by the downward movement of the arm. The arm descent speed (cutting speed) is regulated by means of a hydraulic cylinder.
- Band saw designed for precise, professional work.
- Twist-resistant, rigid arm and saw frame made of nodular cast iron.

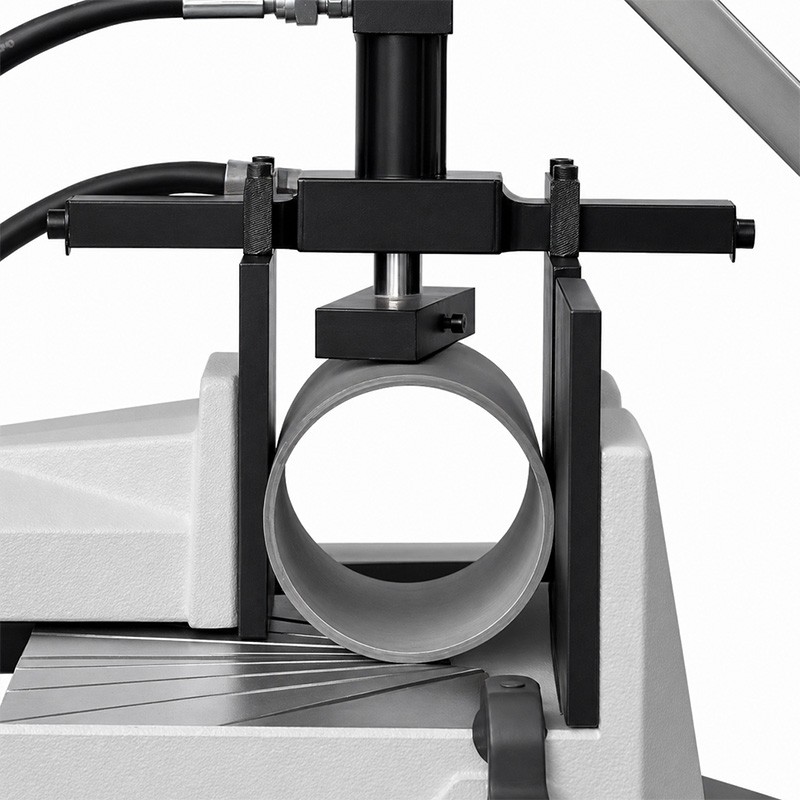

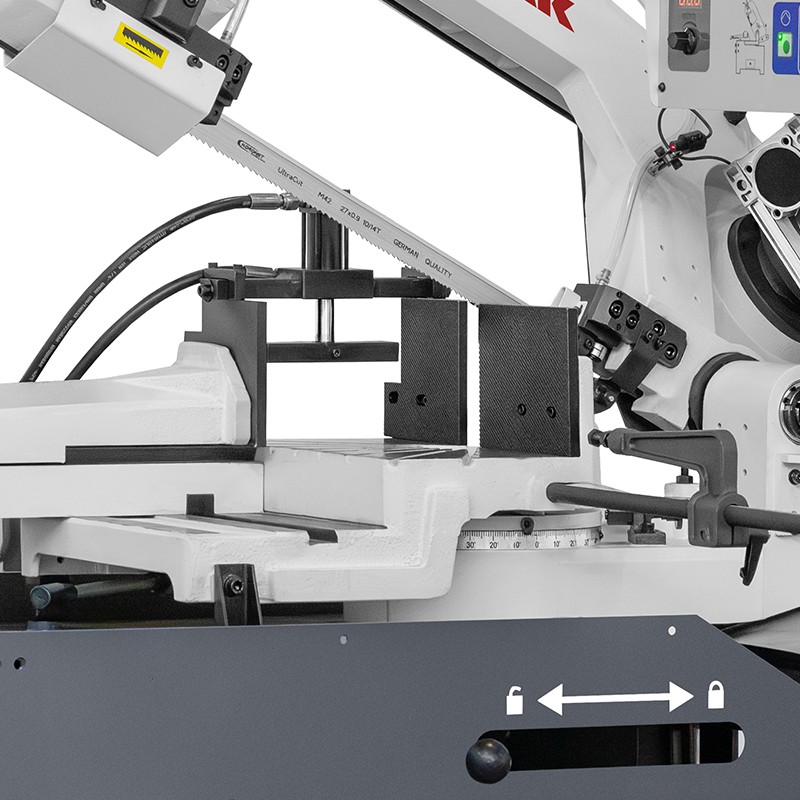

- Double-sided vice with quick clamping.
- In semi-automatic mode, after pressing START, the hydraulic vice clamps the material, the hydraulics lower the saw arm, a limit switch signals completion of the cut and the hydraulics raise the saw arm.
Technical parameters
| Blade size | 3160 x 27 x 0.9 mm |
| Blade tension | mechanical (manual) |
| Blade speeds | 34 , 68 m/min |
| Arm descent adjustment | stepless - hydraulic cylinder |
| Vice base height | 890 mm |
| Power supply | 3 phase, 400V |
| Total power | 1.5kW |
| Coolant pump motor power | 46 W |
| Dimensions with base | 1850 x 950 x 1500 mm |
| Weight | 491 kg |
