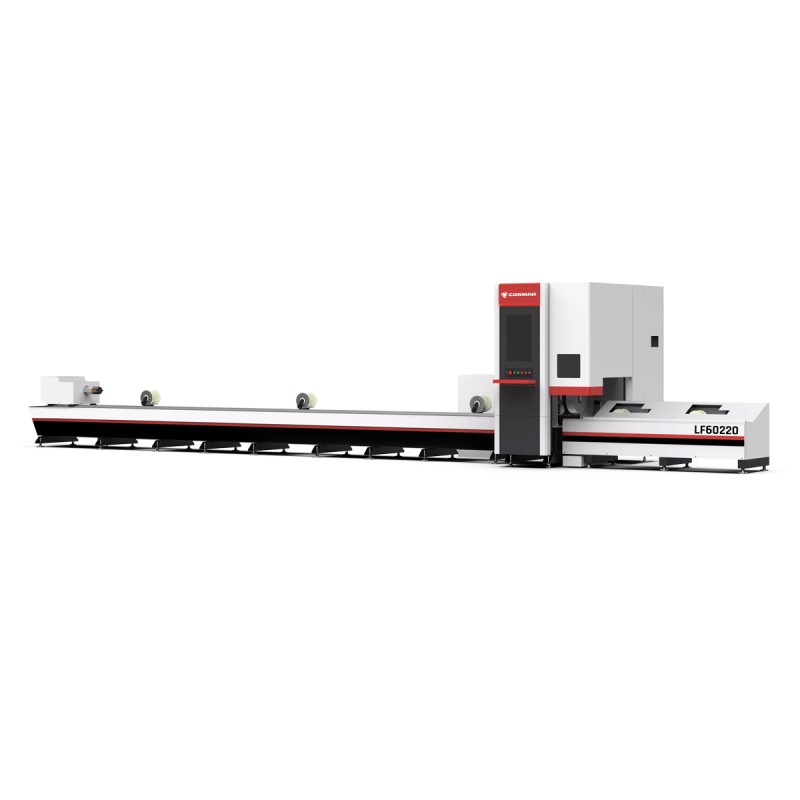

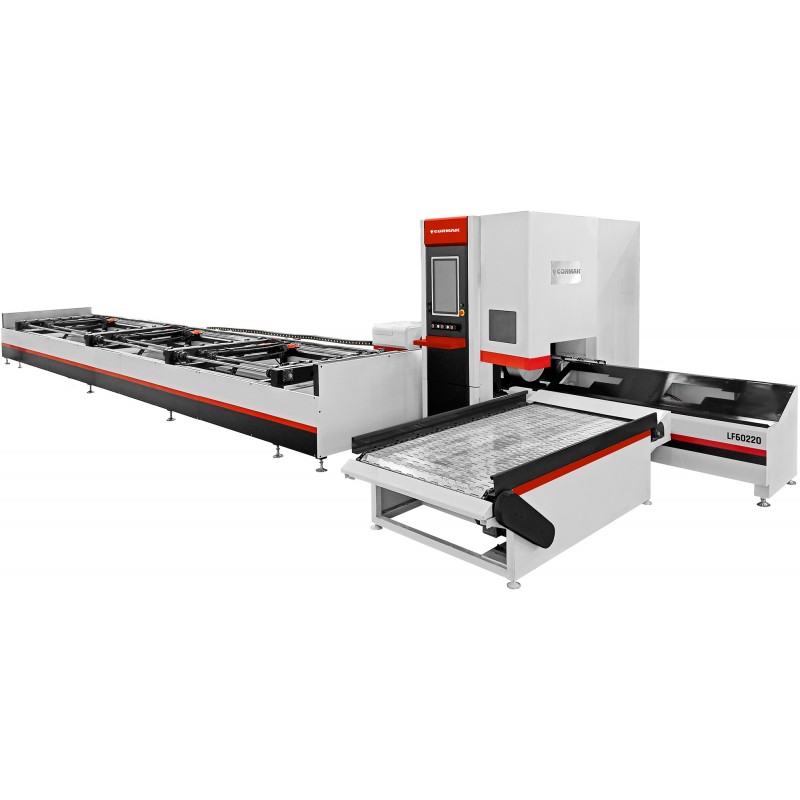

Fibre Laser Cutter for Tubes and Profiles CORMAK FIBER LF60220 with Semi-Automatic Feeder
Reference:
LF60220
Manufacturer:
CORMAK
The latest model of a fibre laser for cutting tubes and profiles, equipped with an automatic loading magazine and a receiving station for finished parts. Automation of the laser cutting process significantly increases work efficiency. Available laser powers: 1000W, 2000W, 3000W, 4000W, 6000W.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Fibre laser cutting machines are modern devices distinguished by numerous advantages. They are not only an excellent and much more cost-effective alternative to CO2 technology but also have many advantages of their own, allowing production growth (up to 70%) and improved quality. FIBER technology allows cutting sheets and other materials of various thicknesses — from very thin to very thick. The wavelength of the FIBER laser is 1.064 micrometres. These properties result in an intensity 100 times greater than that of CO2 machines of comparable power.
MAIN ADVANTAGES OF THE LASER
- maintenance-free fibre source
- no consumable components
- the fibre laser source occupies approximately 1/3 less space
- high energy efficiency – 100,000 h of operation
- versatile use (special sheets, mild steel, stainless steel, copper, brass, aluminium, titanium)
Fibre laser
- increases work efficiency by 80%
- reduces service costs by 70%
- saves 80% of energy
- minimises gas consumption
- saves 30% of workshop space

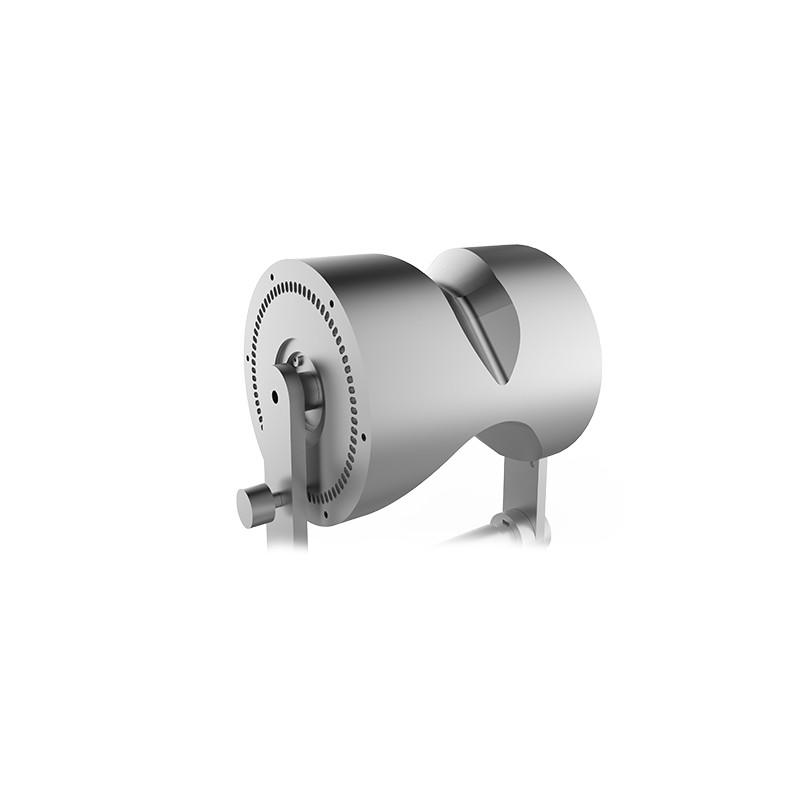

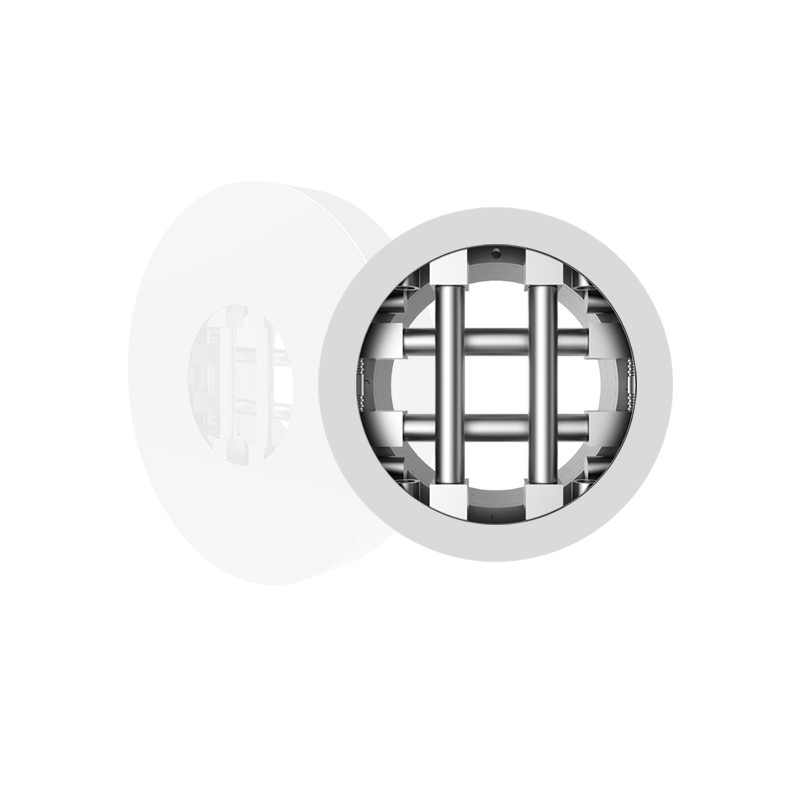

Electric Clamping Chuck
The chuck grips the profile in two directions and automatically performs axis alignment.

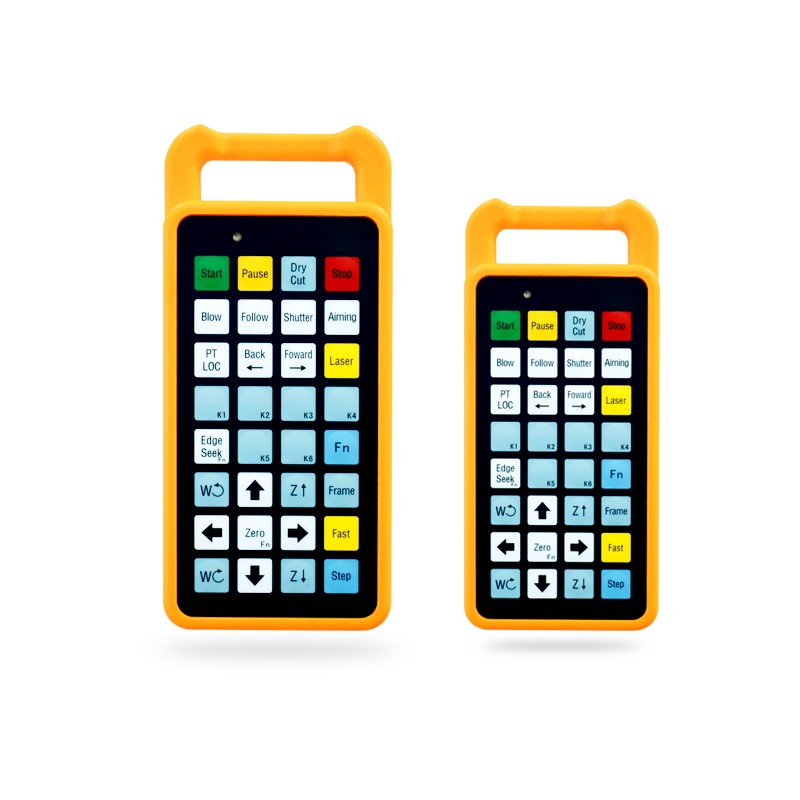

Easy to Operate
Wireless controller for easier operation.
Automatic Tube Support
Equipped with an intelligent tube support unit that prevents deformation during the cutting of long pipes.
Part Collection
The cut parts fall onto the receiver, from which they can be transported further.
Semi-Automatic Feeder
The feeder automatically delivers the workpiece, reducing the cutting process time to a minimum.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
Technical Parameters
| TUBE DIAMETER | 20–220 mm |
| POWER | 1000W 1500W 2000W 3000W 4000W 6000W |
| REPEATABLE POSITIONING ACCURACY | ±0.02 mm/m |
| POWER SUPPLY | 400V 50Hz |
Cutting Parameters
Actual parameters may vary depending on technical conditions and materials used.
Training and Machine Commissioning
It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
