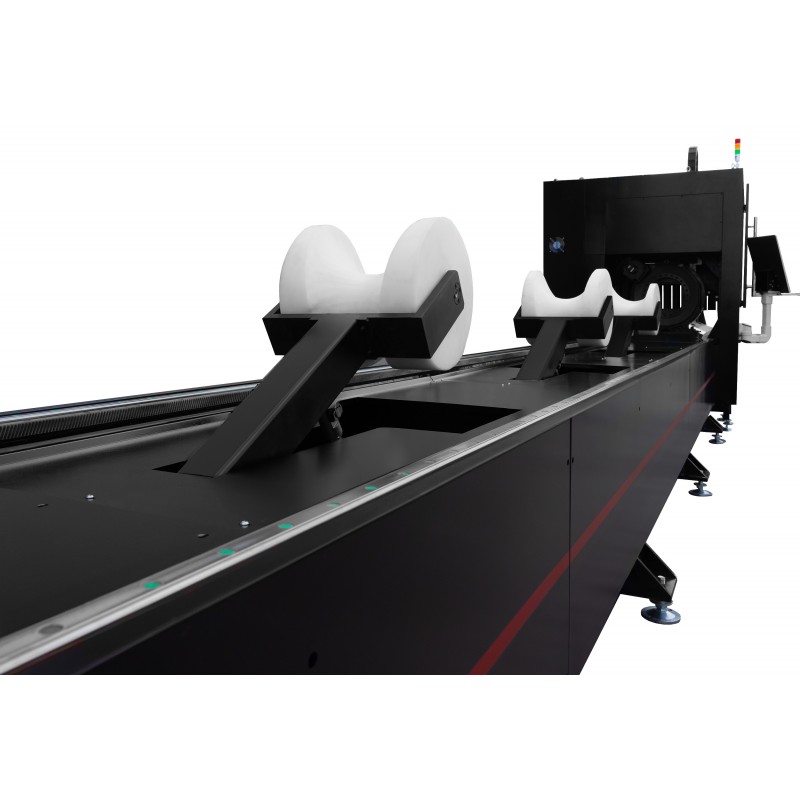

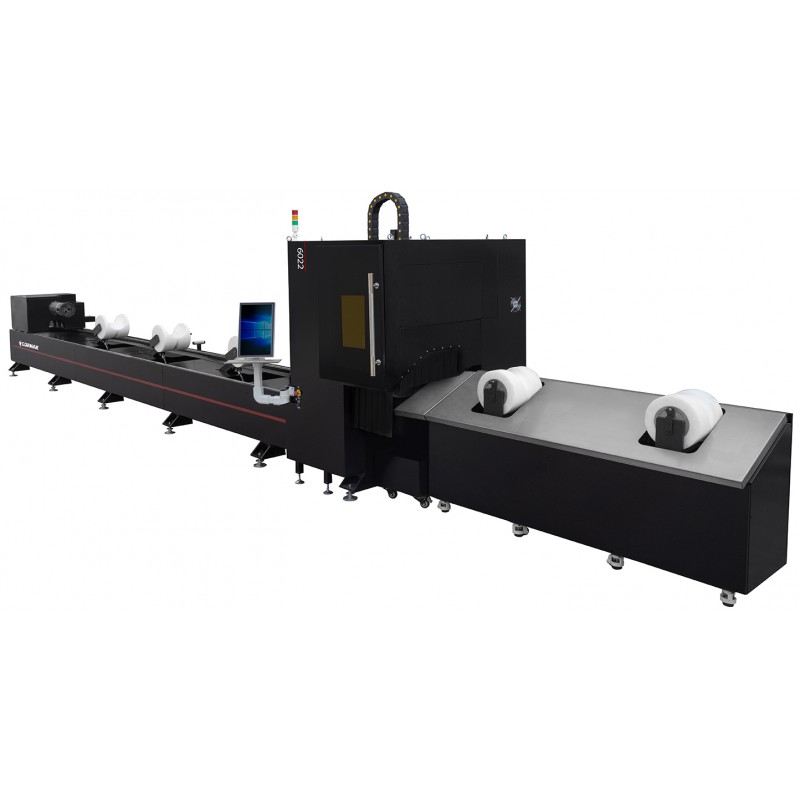

Tube and Profile Fibre Laser Cutter CORMAK FIBER LF6022 1000W
Reference:
LF60221kW
Manufacturer:
CORMAK
The latest model of the fibre laser for cutting tubes and profiles. The automation of the laser cutting process significantly increases work efficiency. Available laser powers: 1000W, 2000W, 3000W, 4000W, 6000W.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Fibre laser cutting machines are modern devices distinguished by numerous advantages. They are not only an excellent and much more cost-effective alternative to CO2 technology but also feature many benefits that allow production efficiency to increase (up to 70%) and improve quality. The FIBER technology enables cutting of sheets and other materials of various thicknesses — from very thin to very thick. The wavelength in the FIBER laser is 1.064 micrometres. These properties result in an intensity that is 100 times greater than that of CO2 devices of similar power.
MAIN ADVANTAGES OF THE LASER
- maintenance-free optical fibre
- no wearing components
- fibre laser source requires about one-third less space
- high energy efficiency – 100,000 h of operation
- versatile applications (special steels, mild and stainless steel, copper, brass, aluminium, titanium)
Fibre Laser
- increases work efficiency by 80%
- reduces service costs by 70%
- saves 80% of energy
- minimises gas consumption
- saves 30% of floor space
Electric Clamping System
The clamp grips the profile in two directions and automatically aligns it along the axis.
Easy to Operate
Wireless controller for convenient operation.
Automatic Tube Support
Equipped with an intelligent tube support system that eliminates deformation issues during the cutting of long tubes.
Part Collection (option*)
Cut components fall onto a collector from which they can be transported further.
Semi-Automatic Feeder (option*)
The feeder automatically supplies the workpiece, minimising cutting time.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
Technical Parameters
| TUBE DIAMETER | 20–220 mm |
| POWER | 1000W |
| REPEATABLE POSITIONING ACCURACY | ±0.02 mm/m |
| POWER SUPPLY | 400V 50Hz |
Cutting Parameters
Actual parameters may vary depending on technical conditions and materials used.
