zx7045bxl

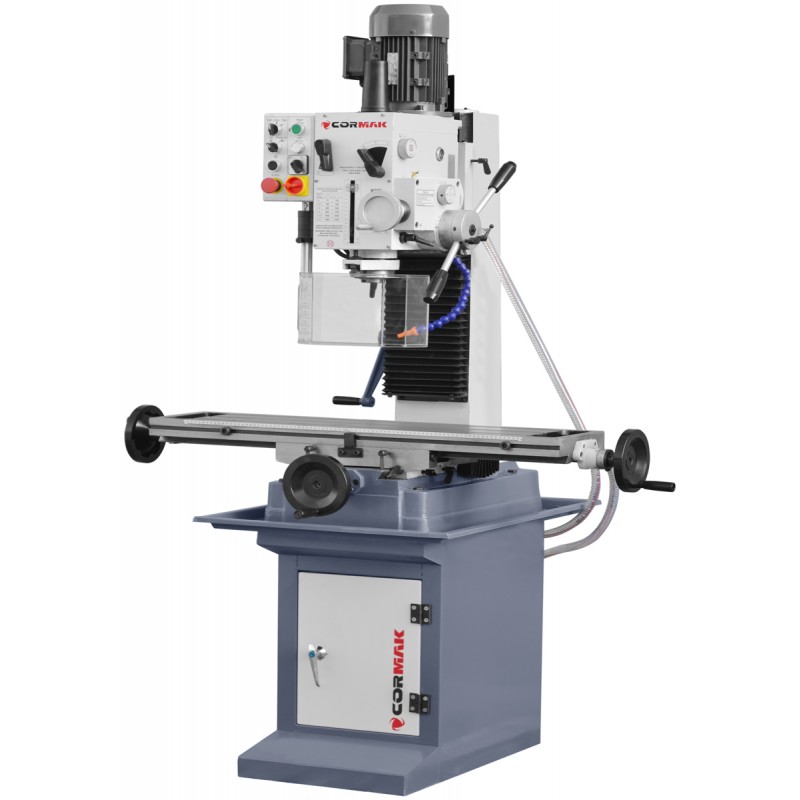

The CORMAK ZX7045 BXL drilling–milling machine is a versatile unit, perfect for drilling, reaming, enlarging holes, tapping, milling, and slotting. Designed for work in cast iron, it allows hole machining up to 32/45 mm and thread tapping up to M12. With a milling capacity of up to 80 mm and slot width up to 22 mm, this model provides full functionality. The ZX7045 BXL version features a large 1000 × 240 mm working table and an efficient coolant system. Ready for immediate use straight from stock, this machine is a reliable choice for professionals who value precision and performance in metalworking.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Machine features
- Heavy, rigid cast-iron body
- Automatic spindle feed
- Head height adjusted on the support, not on the column

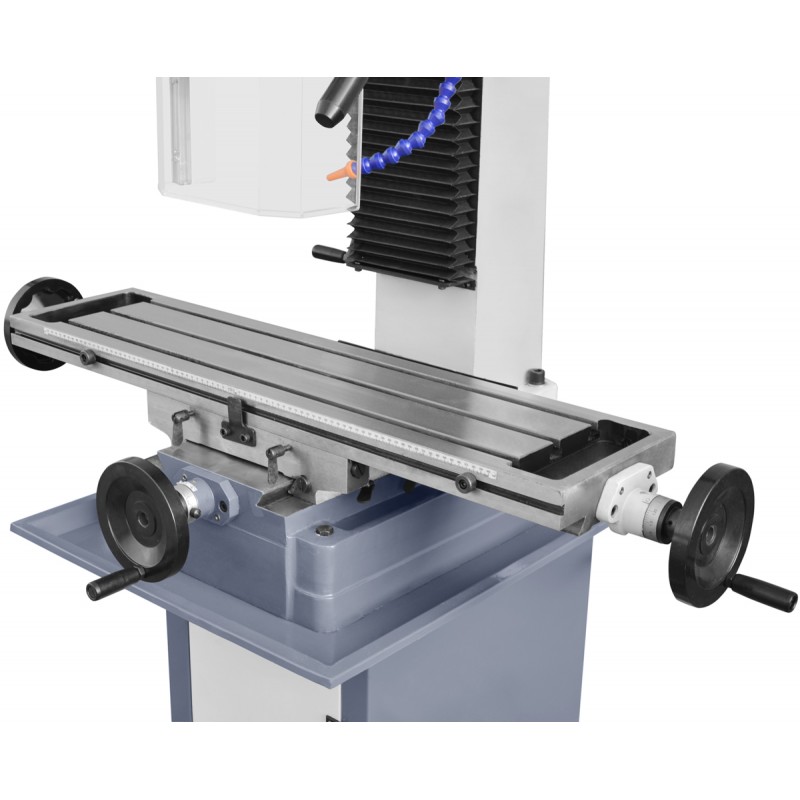

- Massive cross table with precision-ground surface
- Dovetail-type guideways
- Quiet operation thanks to ground gear wheels
- Right and left spindle rotation

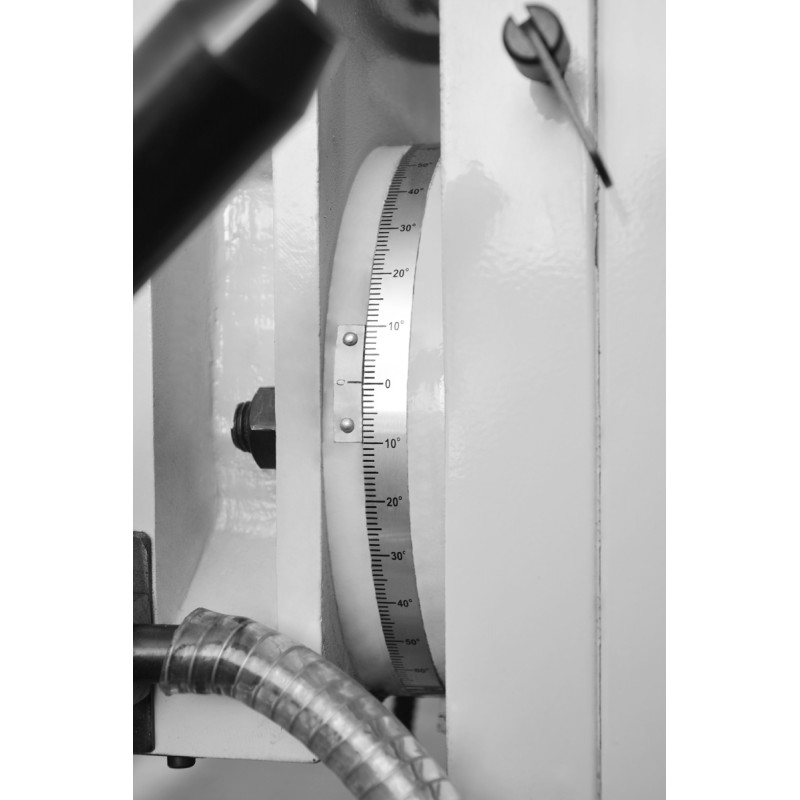

- Swivelling head ±90°
- Adjustable head height
*Machine base available as an optional accessory
Technical data
| Max drilling capacity (steel/cast iron) | 32 / 45 mm |
| Max face milling diameter | 80 mm |
| Max end milling diameter | 32 mm |
| Table size | 1000 × 240 mm |
| Table travel (X / Y / Z) | 700 / 210 / 380 mm |
| Distance spindle nose–table | 80 – 460 mm |
| Spindle quill travel | 120 mm |
| Spindle–column distance | 290 mm (to guard 230 mm) |
| Head swivel angle | ±90° |
| T-slot width | 14 mm |
| Spindle speeds | 75 / 150 / 180 / 280 / 360 / 560 / 600 / 1000 / 1200 / 1600 / 2000 / 3200 rpm |
| Spindle feed rates | 0.1 / 0.18 / 0.26 mm/rev |
| Spindle taper | MT4 |
| Power supply | 400 V |
| Motor power | 1.8 kW / 2.5 HP |
| Overall dimensions | 1300 × 820 × 2200 mm |
| Weight | 360 kg |
Standard equipment
- Drill chuck B16 – 13 mm
- Arbor MK4/B16
- Arbor MK4/D27
- Reducing sleeve MK4/MK3
- Reducing sleeve MK3/MK2
Optional accessories
- Swivel vices
- Tilting vices
- Precision vices
- Rotary tables
- Dividing heads
- Tapping heads
- Milling heads
- End mills (HSS, HSSE, HSS-PM, VHM)
- Straight-shank drills
- Taper-shank drills
- Milling inserts
- Hand and machine taps
- Clamping kits
- Tool holders (collet or Weldon type)
- Driving arbors
- Drill chucks
