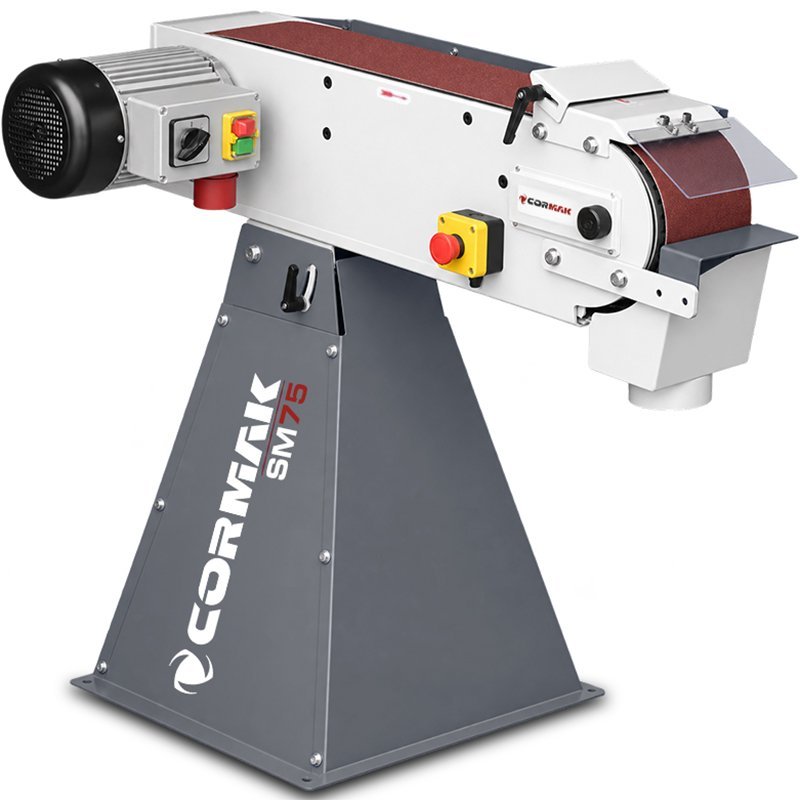

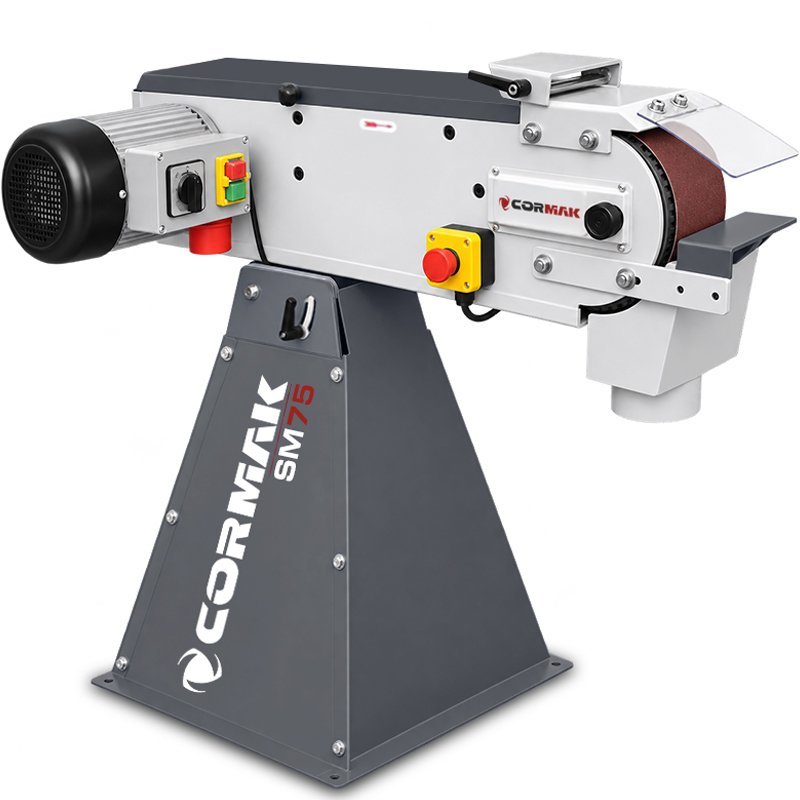

Belt Grinding Machine for Metal CORMAK SM75

Belt Grinding Machine for Metal CORMAK SM75 with Wide Base – Two Speeds

The CORMAK SM75 belt grinding machine is a high-performance, industrial-class metal belt grinder designed for precise, fast, and safe grinding of steel and metal components. Thanks to two belt speeds and a wide vibration-damping base, the stationary grinder SM75 is ideal for both single and series production, as well as workshop operations requiring a large contact area with the workpiece. Its simple design ensures ease of use, while the robust build guarantees long service life even under intensive use.

Main advantages of the machine

• Two belt speeds – 14.5 / 29 m/s – allow adjustment of operating mode to the type of material and machining purpose (rough or precision grinding).
• 3 kW / 400 V motor – guarantees smooth and stable operation even under heavy load.
• Wide grinding surface – the 75 mm belt and 250 × 150 mm contact wheel enable work on large parts.
• Belt grinder with quick tensioning system – the spring-loaded mechanism automatically maintains proper belt tension, improving comfort and control.
• Adjustable head angle – allows quick positioning of the belt according to the specific task.
• Stable, vibration-free construction – the wide cast-iron base eliminates vibration and enhances surface quality.
• Two extraction nozzles – effectively remove grinding dust, improving safety and workspace cleanliness.

Design and technology

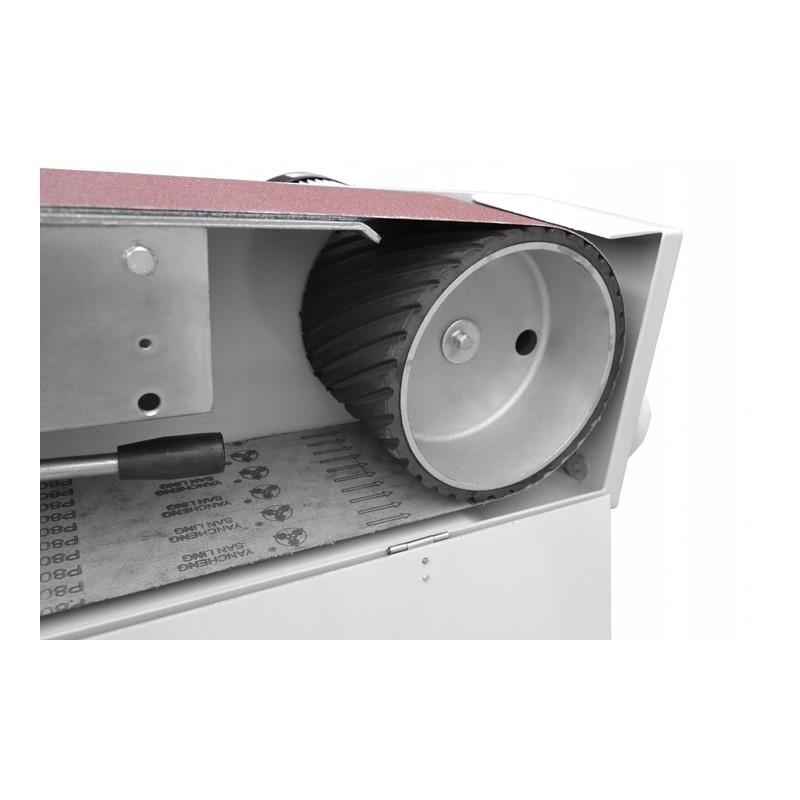

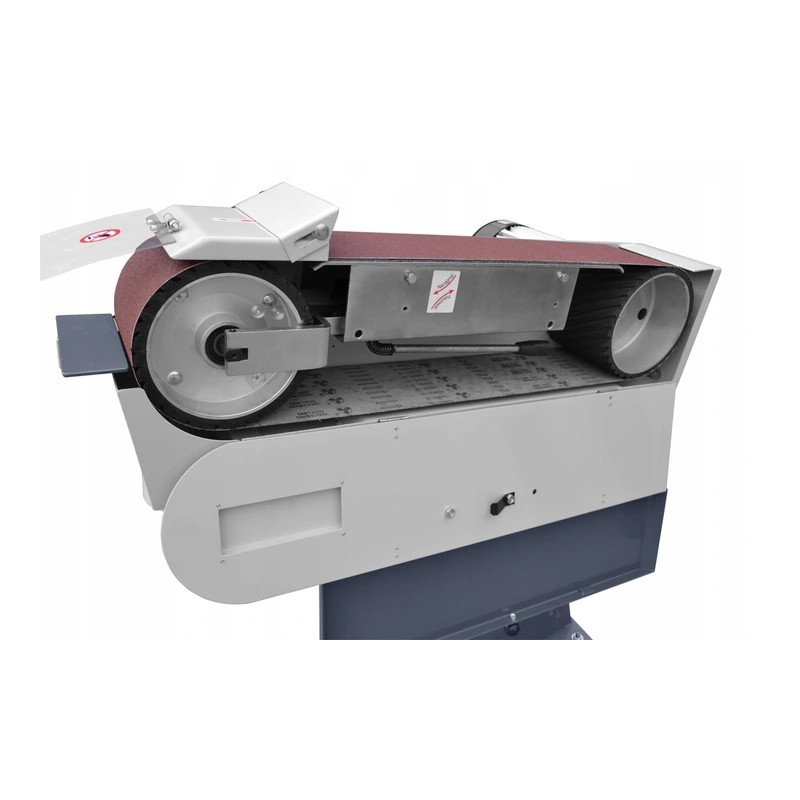

The CORMAK SM75 belt grinding machine is built on a high-rigidity frame structure ensuring stability and precise belt tracking even under maximum pressure. The high mass (72 kg) and low centre of gravity further reduce vibration. The belt guidance and tensioning system, based on bearing-mounted rollers, enables quick abrasive changes without tools. A graphite layer beneath the belt reduces friction, extending belt life and improving finish quality.

Precision and performance

The two-speed control allows users to adapt grinding speed to the type of workpiece and required finish quality. The CORMAK SM75 stationary belt grinder is suitable for both rough material removal and precision edge finishing. The extraction nozzles and ergonomic worktable ensure a clean, stable, and efficient working process.

Applications

The machine is used for:

• grinding edges, radii, and welded joints,
• working with structural steel, stainless steel, and aluminium,
• locksmith and tool workshops,
• single and serial production,
• surface preparation before painting or welding.

Standard equipment

• Abrasive belt 2000 × 75 mm
• Adjustable grinding table
• Eye shield
• Graphite layer under the belt
• Tensioning roller
• Cast-iron base
• Motor protection switch
• Double extraction nozzle

Technical data

Choose durability, precision, and professional grinding results. Select the CORMAK SM75 belt grinding machine and increase your workshop’s productivity. Order directly online!
