Metal Belt Grinder CORMAK SM150D with Extraction

Metal Belt Grinder CORMAK SM150D with Extraction

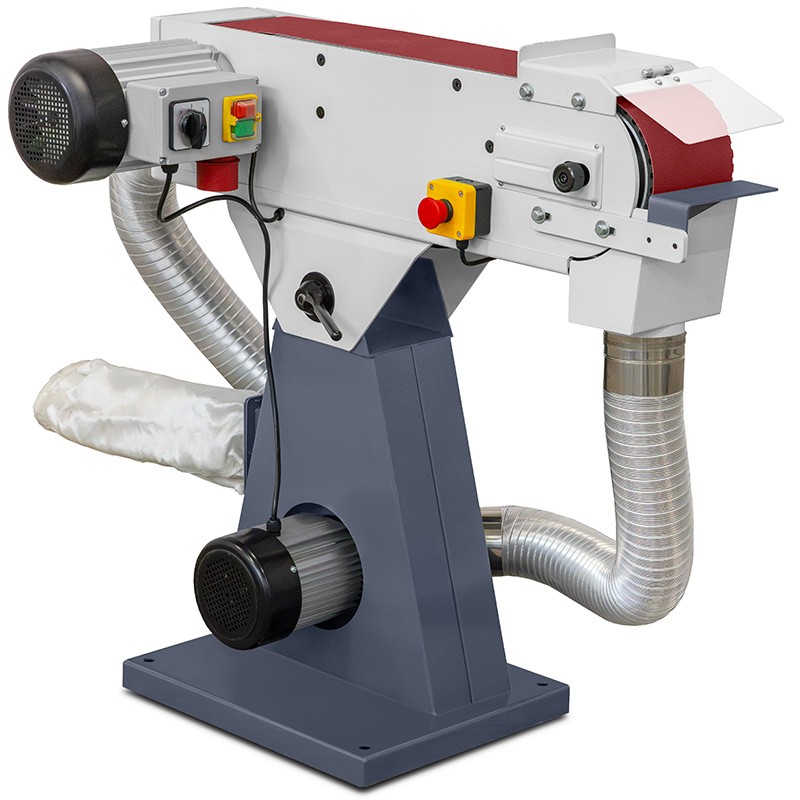

CORMAK SM150D is an industrial belt grinder designed for intensive grinding of metal components. The machine enables rough and finish grinding, surface levelling, and grinding of edges and welds. It is suitable for production facilities, toolrooms, metalworking workshops and welding workshops.

The 2.8kW motor and wide grinding belt measuring 150 × 2,000mm provide a large contact area with the workpiece. Two belt speeds – 14.5 and 29m/s – allow the grinding process to be adapted to the material type and the required finish.

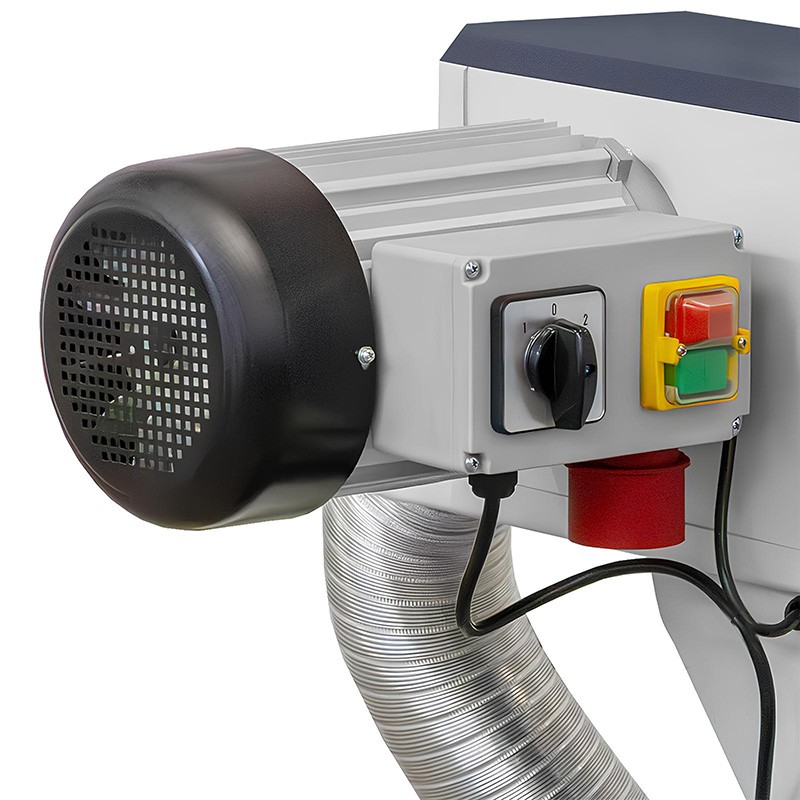

Two Grinding Speeds

The two-speed drive enables quick adjustment of operating parameters. The lower speed is suitable for more precise finish grinding, while the higher speed allows intensive material removal. The motor speed is 1,400 or 2,800rpm, respectively.

Integrated Extraction System

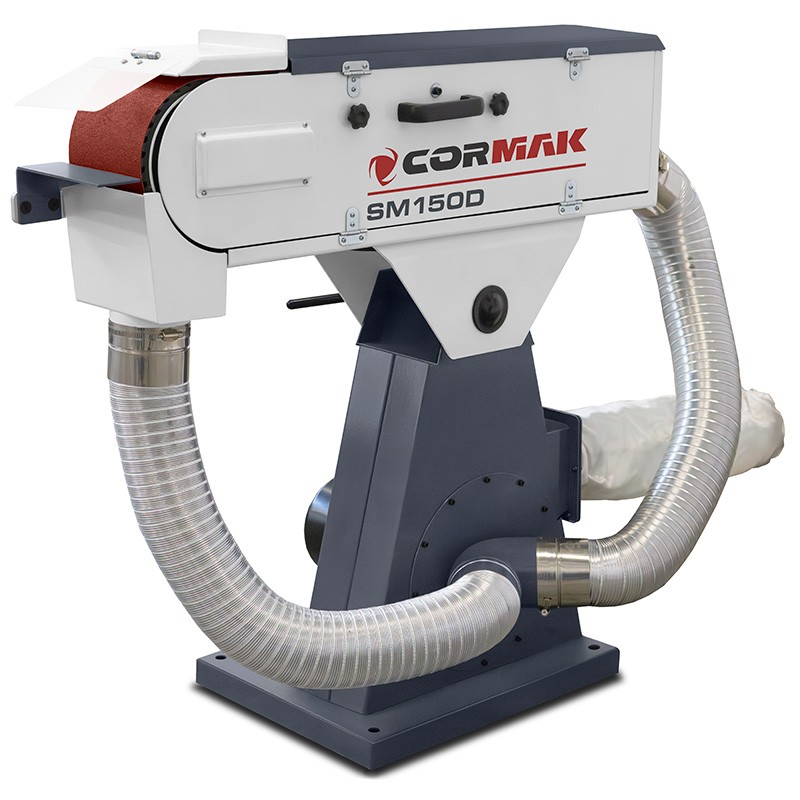

The belt grinder is equipped with an integrated extraction system featuring a collection bag and two extraction ports with a diameter of 100mm. This system helps remove dust and swarf generated during grinding, reducing their accumulation around the workstation.

Key Advantages of the CORMAK SM150D Belt Grinder

• 2.8kW motor,
• two belt speeds: 14.5 and 29m/s,
• wide grinding belt measuring 150 × 2,000mm,
• integrated dust and swarf extraction system,
• two extraction ports with a diameter of Ø100mm,
• stable welded steel construction,

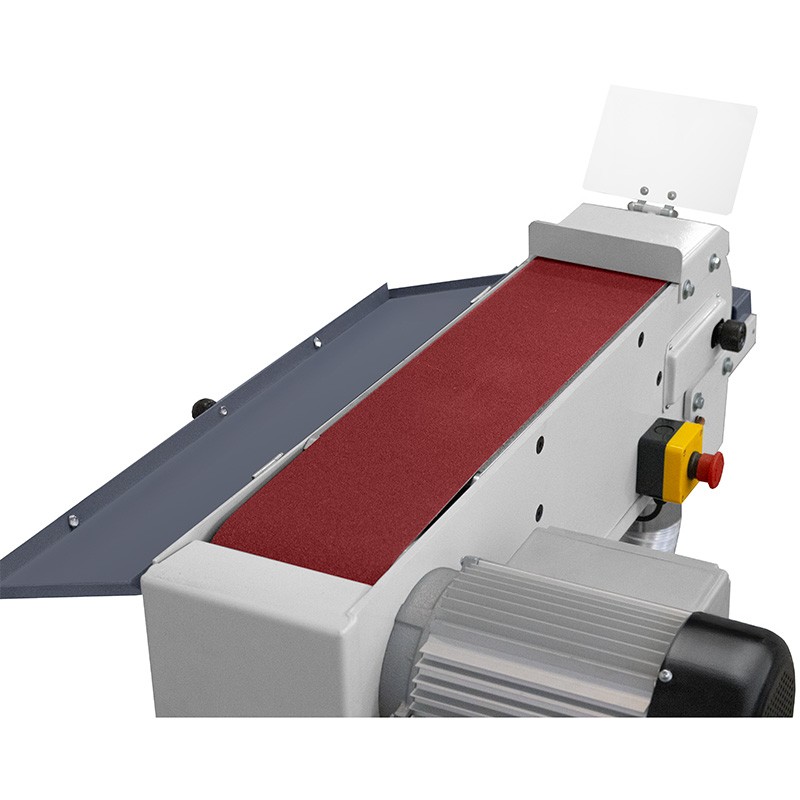

• worktable measuring 480 × 150mm,
• stepless grinding angle adjustment,
• spring-loaded belt tensioning system,
• quick grinding belt change system,

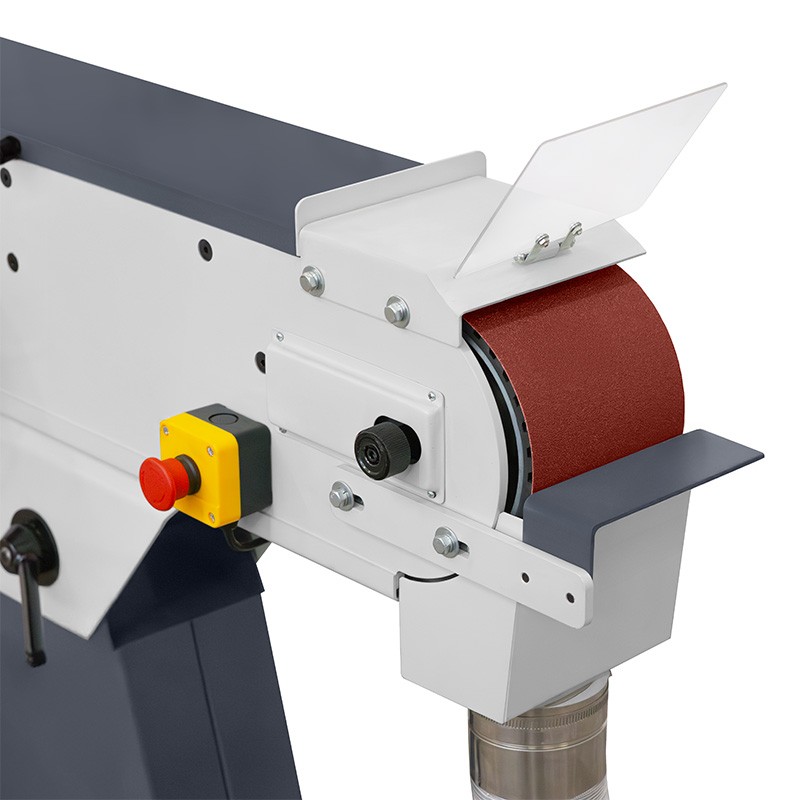

• spark and dust guard,
• hinged protective shield.

Stable Construction and Convenient Operation

The welded steel construction provides sufficient rigidity during grinding and reduces vibration. The large worktable facilitates stable handling of workpieces, while the grinding angle adjustment allows the position of the working assembly to be adapted to the task being performed.

The spring-loaded tensioning mechanism helps maintain correct belt tension during operation. The quick belt change system reduces the time required to replace the abrasive belt and makes it easier to prepare the machine for the next operation.

Applications

The CORMAK SM150D belt grinder is designed for:

• rough and finish grinding,
• grinding steel, stainless steel and aluminium,
• grinding edges and welds,
• levelling flat surfaces,
• preparing workpieces for subsequent machining operations,
• grinding operations in production facilities,
• use in metalworking and welding workshops.

Technical Specifications

Standard Equipment

• stable steel base with tilt adjustment,
• 2,000 × 150mm grinding belt,
• integrated extraction system with collection bag and Ø100mm ports,
• spark and dust guard,
• hinged protective shield.

CORMAK SM150D combines a wide grinding surface, two belt speeds and integrated extraction. It is designed for professional and efficient metal grinding in workshops and production facilities.
