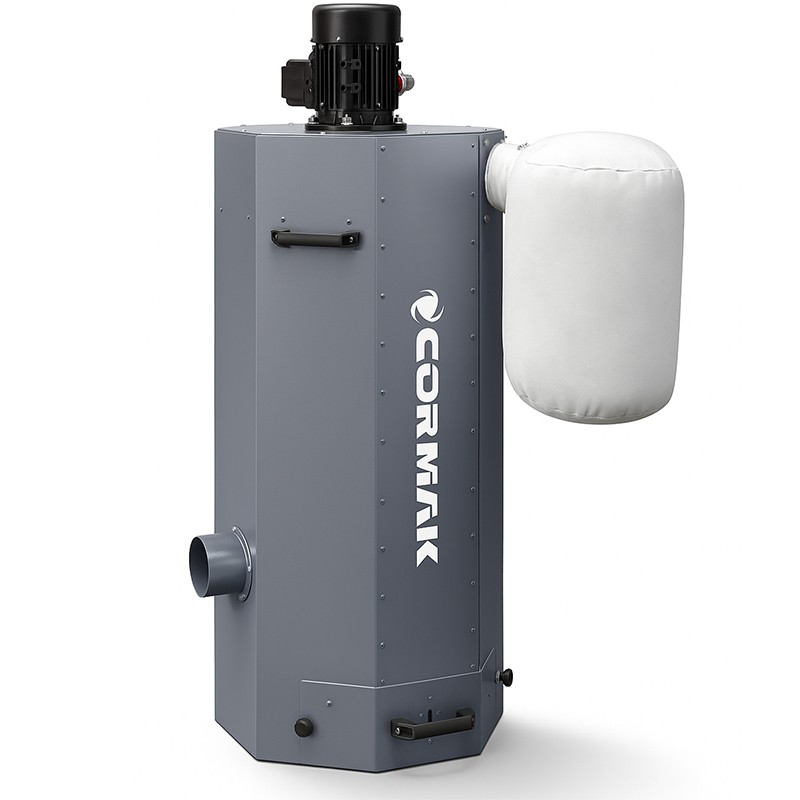

Metal Chips and Swarf Extraction System CORMAK MDC750 230V

Metal chip extractor MDC750 230V is an efficient unit dedicated to metalworking stations where effective removal of contaminants such as chips, dust, and swarf is required. Thanks to its compact design, robust motor, and high extraction efficiency, it is a reliable solution for professional metal workshops, production plants, and workstations equipped with belt, bench, and disc grinders. This metal extraction unit ensures a clean and safe working environment while maintaining stable extraction parameters.

Main advantages of the machine

• High extraction efficiency – capacity up to 1,800 m³/h without a bag, ensuring effective removal of even fine metal dust and chips.
• Compact design – stable, well-balanced housing allows operation in limited spaces.

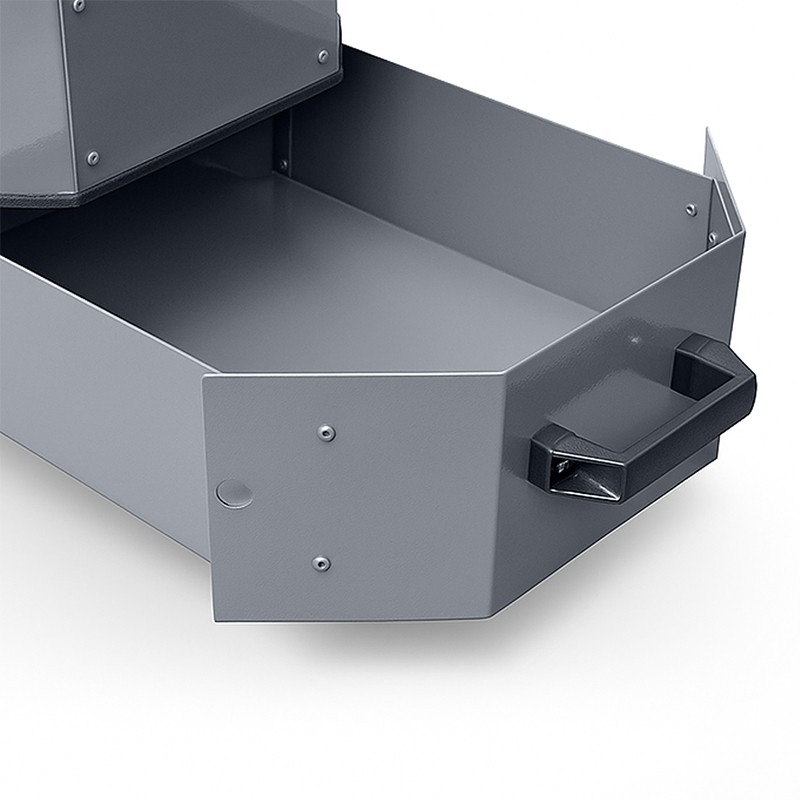

• Quick access to the container – facilitates regular emptying and reduces downtime.
• Simple filter replacement – reduced service time.
• Adapted for operation with various machines – ideal chip extractor and grinder extraction unit for small and medium-sized facilities.

Design and technology

The MDC750 has been designed for intensive operation in industrial conditions. The construction is based on a durable steel housing and an efficient filtration system that effectively separates metal dust and swarf. The suction unit driven by a 0.75 kW motor provides appropriate airflow parameters. The 350 mm diameter impeller generates stable negative pressure, allowing effective removal of even heavier metal fractions.

The unit is equipped with a suction inlet 1 × 100 mm, enabling easy cooperation with the most common machining workstations. A large collection container ensures long operating time without the need for frequent emptying.

Precision and work efficiency

The applied design solutions ensure consistent performance when extracting both metal chips and dust. A capacity of 1,520 m³/h when operating with a bag allows efficient servicing of single- and multi-operation workstations. Compact dimensions facilitate easy relocation and integration with existing workstation infrastructure.

Applications

The MDC750 metal extractor is a solution developed for professional applications, particularly for:

• bench, belt, and disc grinding stations,
• small and medium-sized metalworking workshops,
• metal component preparation and finishing stations,
• processes requiring effective extraction of metal chips and dust.

Standard equipment

• basic filter,
• container for chips and swarf,
• 100 mm suction inlet,
• set of mounting and consumable components.

Technical data

By choosing the MDC750 230V, you invest in a robust and efficient metal extraction unit designed for continuous operation. Check availability and order now to increase the safety and efficiency of your production.
