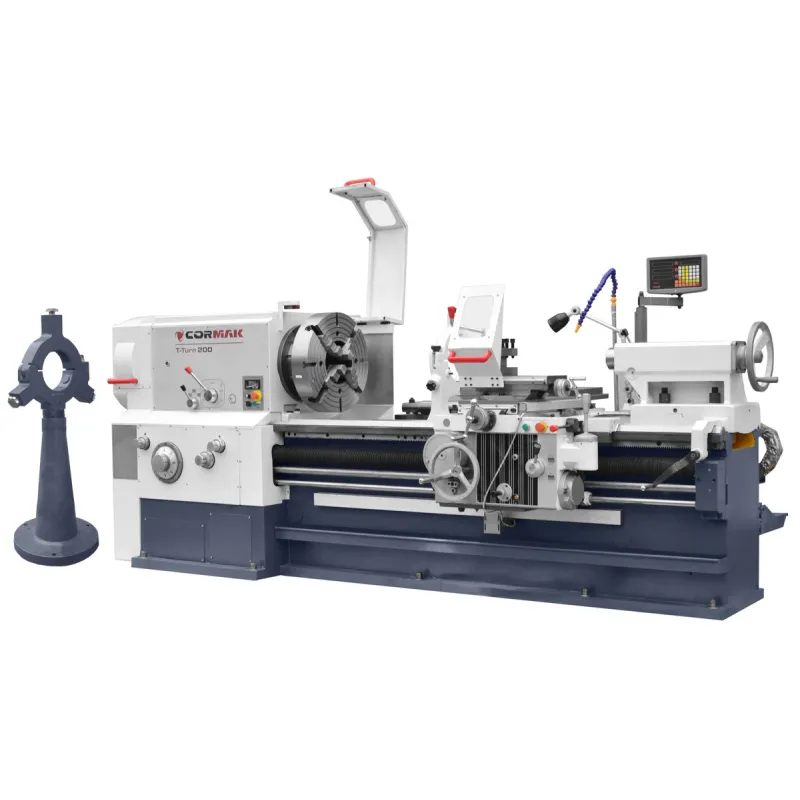

Universal Pipe Lathe CORMAK T-TURN 130 630x1300

CORMAK T-TURN 130 is a professional universal lathe designed for precise machining of pipes and large cylindrical parts. Thanks to its rigid construction, large spindle bore and high torque, this machine ensures reliability and efficiency in industrial plants, toolrooms and maintenance departments.

Main advantages of the machine

• Solid bed made of high-quality cast iron ensuring rigidity and vibration damping
• Headstock with double mounting – chucks on both sides enable convenient machining of long pipes
• Large spindle bore Ø130 mm ideal for working with pipes and shafts
• Hardened and ground guides and gears – guarantee precision and durability of motion systems
• Main motor power 7.5 kW allowing machining of large and heavy workpieces
• Torque up to 1920 Nm – effective operation across the full spindle speed range
• Efficient cooling system ensuring process stability

Design and technology

The conventional CORMAK T-TURN 130 lathe has been designed for maximum durability and accuracy. The massive cast-iron bed guarantees stability under heavy loads, while the precision spindle bearings minimise runout and vibration. Mechanical components such as hardened gears and slide guides ensure smooth and accurate tool movement.

Precision and performance

With a low-speed range of 14 – 496 rpm, the lathe enables machining of hard materials and large workpieces with high accuracy. High rapid feeds in X/Z axes (3,000/4,000 mm/min) provide dynamic tool movement and shorten the cycle time. The setup is supported by a solid 4-position tool post and a 3-axis position display.

Applications

The machine is used for:

• industrial machining of large-diameter pipes,
• production and regeneration of sleeves, shafts and flange joints,
• service and maintenance departments in heavy industry,
• companies operating in pipeline, gas and energy sectors,
• all turning processes requiring large spindle bore and stable operation.

Standard equipment

• 3-axis position display
• 4-position tool post
• 3-jaw chuck Ø400 mm
• 3-jaw faceplate chuck Ø400 mm
• Taper turning attachment
• Cooling system
• User manual

Optional equipment

• Supports for long workpieces
• Specialised pipe chucks
• Tool cooling systems
• Central lubrication systems
• Upgrade with higher precision digital position display

Technical data

Contact us – discover the full potential of CORMAK T-TURN 130

If you need a conventional lathe for machining pipes and large-diameter parts, the CORMAK T-TURN 130 is a choice worthy of a professional machine park. Contact us for a tailored offer, availability and technical support for equipment selection.
