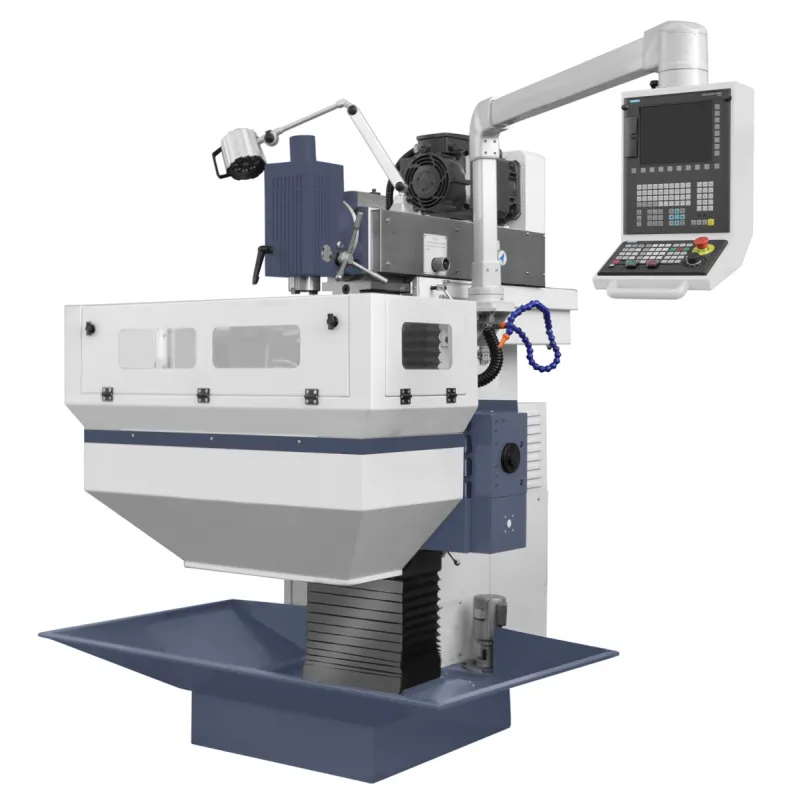

The CORMAK XL8140 CNC Toolroom Milling Machine is designed for toolrooms and workshops producing complex, high-quality components. Despite its compact size, the solid structure enables machining of relatively large workpieces with high precision and stability. Equipped with Siemens Sinumerik 808D control, it guarantees excellent flexibility, performance and reliability in professional metalworking applications.
The CORMAK XL8140 CNC Tool Milling Machine is an advanced CNC system designed for precision metal machining in a wide range of industrial applications. Equipped with Siemens Sinumerik 808D control and dual worktables, this metalworking milling centre delivers reliability, accuracy and flexibility.
Main advantages of the CORMAK XL8140 CNC Tool Milling Machine
The CORMAK XL8140 combines compact design with advanced technology, offering significant benefits for manufacturing operations:
- Versatile worktables: A horizontal table 800 × 400 mm with 6 T-slots and a vertical table 1020 × 225 mm with 3 T-slots allow machining of workpieces of various shapes and dimensions.
- High precision: Positioning accuracy and repeatability, supported by Siemens Sinumerik 808D control, ensure outstanding surface quality, even on complex geometries.
- Powerful spindle: Spindle speed range 40–2000 rpm with ISO 40 taper and a 5.5 kW motor provides efficient machining of materials from aluminium to stainless steel.
- Rigid construction: Weighing 1550 kg, the machine minimises vibrations and guarantees stability during demanding cutting operations.
- Flexible configuration: Optional CNC controls (Siemens or Fanuc) and measuring probes expand versatility and customisation for specific production needs.
- User-friendly operation: The Siemens Sinumerik 808D system with dedicated keyboard and intuitive interface allows simple programming and full CAD/CAM compatibility.
- Efficiency: Compact dimensions (1500 × 1700 × 1800 mm) and the efficient 5.5 kW motor reduce energy consumption and operating costs.
- Wide range of applications: Capable of milling, drilling, slotting, tapping, boring and hole grinding in a single production cycle.
- Accurate feeds: Stepless feed in X, Y, Z axes (10–1000 mm/min) and rapid feed 1200 mm/min ensure dynamic and precise machining.
- Durable components: High-quality materials and precision manufacturing ensure long-lasting reliability and minimal maintenance requirements.
The CORMAK XL8140 CNC Machining Centre is the perfect choice for workshops and toolrooms seeking a precise, versatile and durable machine for metal processing.
Design and technology of the CORMAK XL8140 CNC Tool Milling Machine
The CORMAK XL8140 is engineered for durability, precision and ease of use. Key components include:
Construction and worktables
The rigid cast-iron frame ensures excellent stiffness and vibration damping. The horizontal worktable 800 × 400 mm with 6 T-slots (width 14 mm, spacing 63 mm) and vertical table 1020 × 225 mm with 3 T-slots enable secure clamping of parts of various shapes.
Spindle and drive
The ISO 40 spindle operating at 40–2000 rpm and driven by a 5.5 kW motor ensures powerful cutting performance. The spindle distance from table surface (50–450 mm for vertical, 145–545 mm for horizontal) allows machining of diverse workpiece sizes.
Guides and drives
Linear guides and precision servo drives ensure smooth motion along X, Y and Z axes (500 × 400 × 400 mm travel) with stepless feed (10–1000 mm/min) and rapid feed 1200 mm/min, reducing positioning errors and enhancing dynamic precision.
CNC control system
Standard Siemens Sinumerik 808D (optional Fanuc) with IP65-rated control panel offers precise programming and process optimisation. Full CAD/CAM integration enables smooth adaptation to complex production projects.
Precision and performance
The CORMAK XL8140 CNC Milling Machine provides outstanding accuracy thanks to advanced CNC control and a stable structure. Stepless feed (10–1000 mm/min) and rapid feed 1200 mm/min reduce cycle times, while the 5.5 kW motor and 40–2000 rpm spindle guarantee efficiency in milling, drilling, slotting and tapping.
Applications of the CORMAK XL8140 CNC Tool Milling Machine
The CORMAK XL8140 Metalworking Centre is ideal for demanding industries such as:
- Automotive industry: Manufacturing precision parts such as engine components, casings and gears.
- Machinery industry: Machining shafts, housings and structural parts.
- Mould and die making: Production of moulds and dies for the plastics and metal industries.
- Aerospace: High-precision machining of aluminium, titanium and stainless-steel parts.
- Toolmaking workshops: For slotting, threading and fine hole grinding tasks requiring maximum accuracy.
Thanks to its versatile tables and configurable options, this CNC machining centre is an excellent choice for both workshops and production facilities.
CNC control systems – Siemens Sinumerik 808D and Fanuc
The CORMAK XL8140 CNC Tool Milling Machine offers professional CNC control systems from Siemens and Fanuc, providing precision, productivity and ease of operation.
Siemens Sinumerik 808D – advanced control for standard applications
- Intuitive interface: Dedicated keyboard with mechanical and membrane buttons simplifies programming and operation.
- Reliability: IP65-rated panel ensures stable performance in demanding workshop conditions.
- Advanced functions: Machining cycles and full CAD/CAM integration support complex processes.
Fanuc – stability and precision
- Long-term stability: Maintains accuracy in continuous production.
- Advanced functions: Supports complex cutting operations.
- User-friendly interface: Quick setup and straightforward programming.
Choose the CNC system that best fits your workflow to improve precision and productivity!
Technical specifications
| Horizontal table size (L × W) | 800 × 400 mm |
| Number of T-slots on horizontal table | 6 |
| T-slot width (horizontal table) | 14 mm |
| T-slot spacing (horizontal table) | 63 mm |
| Vertical table size (L × W) | 1020 × 225 mm |
| Number of T-slots on vertical table | 3 |
| T-slot width (vertical table) | 14 mm |
| T-slot spacing (vertical table) | 63 mm |
| Travel (X/Y/Z) | 500 × 400 × 400 mm |
| Spindle taper | ISO 40 |
| Spindle speed | 40–2000 rpm |
| Feed rate (X/Y/Z) | 10–1000 mm/min |
| Rapid feed (X/Y/Z) | 1200 mm/min |
| Spindle nose-to-table distance | 50–450 mm |
| Horizontal spindle-to-table distance | 145–545 mm |
| Vertical spindle-to-column distance | 180–580 mm |
| Main motor power | 5.5 kW |
| Machine weight | 1550 kg |
| Machine dimensions | 1500 × 1700 × 1800 mm |
Standard equipment
- Siemens Sinumerik 808D CNC control
- Coolant system and pump
- Protective guard
- Service tools
- User manual
- CE certification
Optional equipment*
- Fanuc CNC control
- Automatic tool measuring probe
- Automatic workpiece measuring probe
- Fully enclosed housing
*The quoted price refers to the machine only and excludes optional/additional equipment, installation, transport and training — please contact our consultant for more details.
Why choose CORMAK?
As a leading CNC machine manufacturer, CORMAK has supplied reliable industrial solutions for over 20 years. Our CNC machines meet European quality standards, are CE certified, and supported by professional service. With a 15,000 m² warehouse and a team of experts, we provide full technical assistance and consultation.
- Experience: 16 years of Siemens CNC service expertise.
- Quality: Compliance with European safety standards.
- Support: Professional advice and responsive warranty and post-warranty service.
By choosing CORMAK machining centres, you invest in precision, reliability and long-term efficiency.
Order your CORMAK XL8140 CNC Tool Milling Machine today!
Increase your production precision and efficiency with the CORMAK XL8140 CNC Milling Machine. Contact our team for detailed information, a personalised quote or a machine demonstration.
